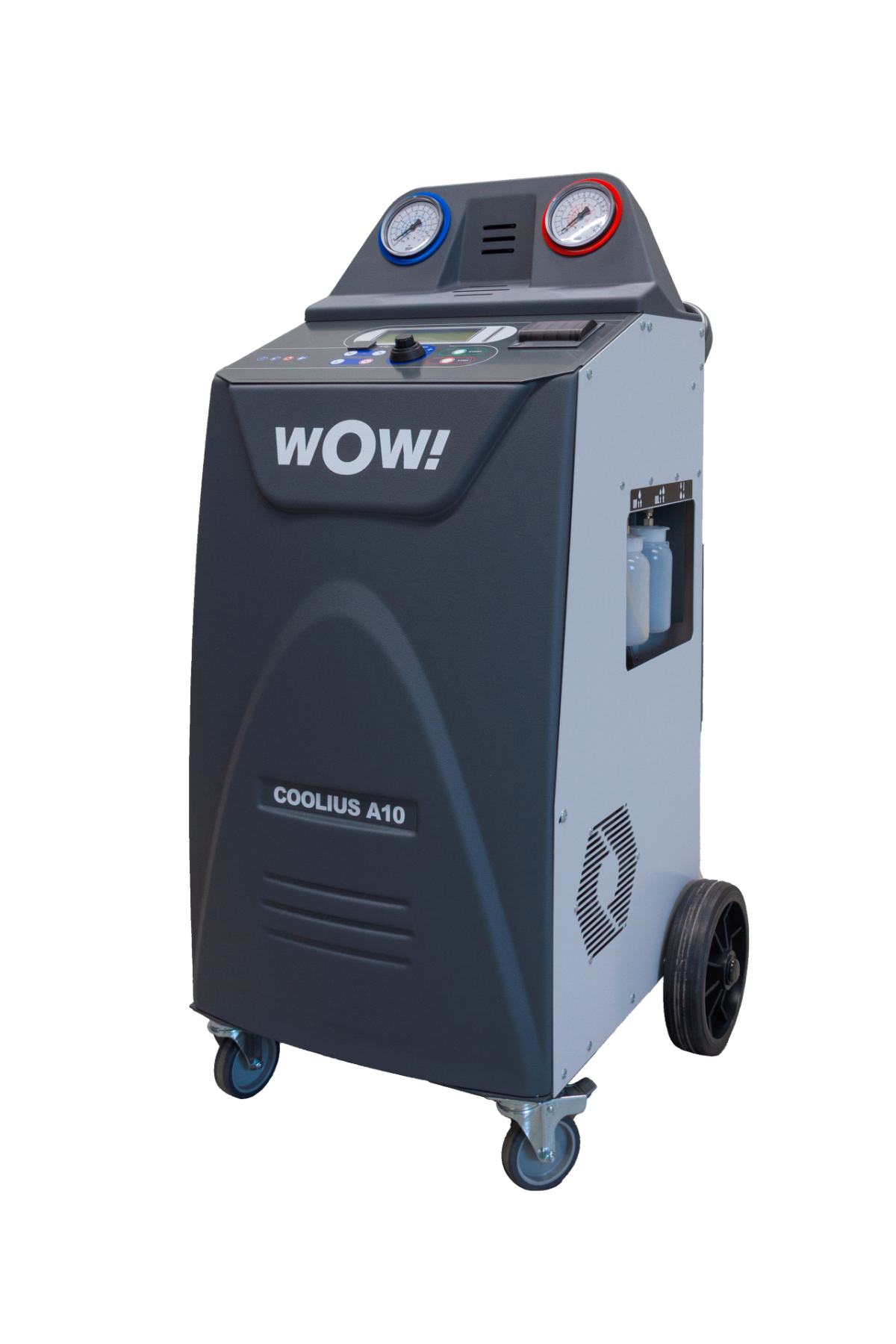

A/C service unit COOLIUS A10
For refrigerant R134a
Art. no. W050 101 000
The key features of the 10 series are
- mobile use
- compact design
- for hybrid, electric and internal combustion vehicles
- internal and external* flushing function for easy oil grade change
- Tool-less cart locking system
- optional external refrigerant identifier
* The required accessories are available from WOW!
The 10 series is suitable, for example, for
- cars
- vans
- commercial vehicles
- construction vehicles
- agricultural vehicles
Highlights of the COOLIUS 10 series
Technical data
Dimensions | 572 x 545 x 1045 mm |
Weight | 65 kg |
Casing | metal with robust plastic cover |
Operating voltage | 230 V / 50/60 Hz |
Operating temperature range | 10 / +49°C |
Refrigerant | R134a |
Total volume | 11 kg |
Refrigerant scales | 60 kg loadable |
Max. operating pressure | 20 bar |
Compressor | 1/3 HP |
Recovery rate (liquid) | 300 g/min |
Non condensable gas discharge | Automatic |
Main filter dryer (1 piece) | Type 660 Coaxial |
Fan for safe operation | D 172 mm |
Recovery speed by cooling the compressor with a fan | D 172 mm |
Pressure increase monitoring | Automatic |
Old oil discharge | Automatic |
Old oil bottle capacity | 250 ml |
Oil / UV accuracy | ± 2 g |
Refrigerant recovery and filling accuracy | ± 15 g |
Vacuum pump capacity | 100 l/min |
Final pressure (McLeod abs) | 0,05 mb |
Electronic pressure sensor | Integrated |
Fresh oil filling | Automatic |
Fresh oil PAG / POE bottle content | 250 ml |
UV additive, bottle content | 100 ml |
Refrigerant filling | Automatic |
Internal flushing for oil grade change | As standard |
Flushing the vehicle A/C systems | As standard |
Refrigerant management system | Integrated |
Display | 4 x 20 characters |
Acoustic signal | For errors and hints |
Update of the vehicle data base | Via USB port |
Creation of own vehicle database | Option |
Integrated printer | With multiple printing |
High pressure and low pressure valves | Electronically controlled |
Pressure guages (pulse free) LP + HP | CL 1.0 / D 80 mm |
quick couplers | SAE J639 |
Service hoses 3 m | SAE J2197 |
Extension kit for service hoses | Available as an option |
Service hoses length compensation | Automatic |
Certifications | CE-certification by TÜV Süd |
Setting up my COOLIUS A/C service unit
Start right now with your air conditioning service unit.
Please register in the COOLIUS portal - your device platform:
www.coolius-ac.com/
Here you will also find the complete manual.
