Coolius A05 - Spare parts
Notice:
The exploded drawings will follow
Spare parts with "Y" are also for Dubai version
Spare parts with " * " markered are only for Dubai version!
To maintenance parts
| Article No. | Designation | Serial-No. | Picture | |
|---|---|---|---|---|

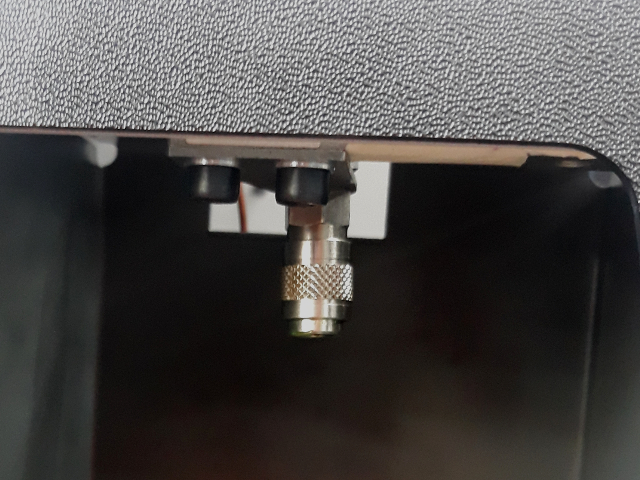

| W052100098 | UV / WASTE OIL CONNECTOR G1/8M 101 (FEMALE, MACHINE SIDE) | all |  |
Y |
| W052100133 | FEMALE CONNECTOR (BOTTLE SIDE) G1/8F 102 | all | Y | |
| W052100103 | NEW OIL / POE OIL CONNECTOR G1/8M 201 (MALE, MACHINE SIDE) | all | Y | |
| W052100134 | MALE CONNECTOR (BOTTLE SIDE) G1/8F 202 | all | Y | |
| W052100107 | METAL REINFORCEMENT D6 FOR VACUUM PUMP HOSE | all | Y | |
| W052200200 | RILSAN PA11 SR HL NEUTRAL PIPE 4/6 | all | Y | |
| W052100039 | RILSAN PA11 NEUTRAL PIPE 4/6 | all | Y | |
| W052100040 | RILSAN PA11 BLUE PIPE 2/4 | all | Y | |
| W052100041 | RILSAN BLUE PIPE 6/8 | all | Y | |
| W052100042 | RILSAN PA11 RED PIPE 2/4 | all | Y | |
| W052100043 | YELLOW PU PIPE 4/6 | all | Y | |
| W052100045 | CRISTAL PIPE 4/6 | all | Y | |
| W052100090 | REAR WHEEL BLOCK - TYPE A (10 pcs) | all | N | |
| W052100091 | REAR WHEEL STING - TYPE A (10 pcs) | all | N | |
| W052100100 | REAR WHEEL CAP - TYPE B (10 pcs) | all | Y | |
| W052100109 | FRONT PANEL - A05 | all | N | |
| W052100135* | FRONT PANEL (NO GAUGES) - A05 | all | Y | |
| W052100136* | STAND for PRESSURE GAUGES - A05 | all | Y | |

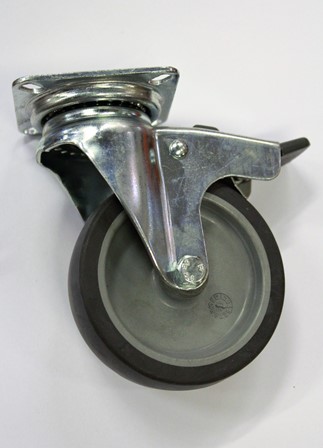

| W052200208 | FRONT WHEEL WITH BRAKE D80 | all |  |
Y |

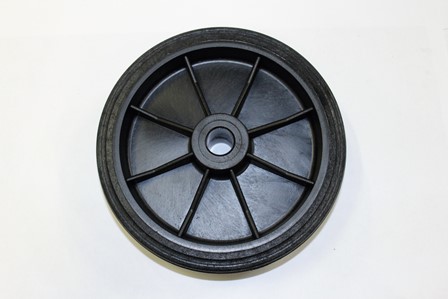

| W052200209 | REAR WHEEL D200 | all |  |
Y |
| W052100083 | MAIN SWITCH (VERSION WITH SCREWS) | all | Y | |
| W052200214 | HEAT BELT | all | N | |
| W052200215 | POWER CORD (CEE7) | all | N | |
| W052100137* | POWER CORD 3,0m UK VERSION | all | Y | |
| W052200216 | MAIN FAN D172 | all | N | |
| W052200217* | COMPRESSOR FAN D172 | all | Y | |
| W052100110 | MAINBOARD KIT for A05 | all | Y | |
| W052100111 | VACUUM PUMP 100L A05 - PACK | all | Y | |
| W052100172 | SCREW-M8-WITH-O-RING-VACUUM-PUMP-100-128L | all | Y | |
| W052200222 | COMPRESSOR RL90TGL - PACK | all | Y | |
| W052200224 | ELECTRIC VALVE GROUP (LP/XP/RF/A2/EO/EO2/A3/GA/BP/E3) | all | Y | |
| W052200225 | ELECTRIC VALVE GROUP (NO/UV/HO/VP) | all | Y | |
| W052200226 | PISTON FOR 7A ELECTRIC VALVE (LP/XP/RF/A2/EO/EO2/A3/GA/BP/E3) | all | Y | |
| W052200227 | PISTON FOR 7A ELECTRIC VALVE (NO/UV/HO/VP) | all | Y | |
| W052100015 | ELECTRIC VALVE - OIL DISCHARGE | all | Y | |
| W052100017 | CHECK VALVE – OIL SEPARATOR | all | N | |
| W052200303 | CHECK VALVE - RECOVERY A05 / 40 SERIES | all | Y | |
| W052200231 | SAFETY VALVE 10 SERIES | all | Y | |
| W052200232 | OVERPRESSURE VALVE | all | Y | |
| W052100112 | MANIFOLD (R134a) - A05 | all | Y | |
| W052200235 | COMPRESSOR COPPER PIPE - 10 SERIES | all | Y | |
| W052100012 | CAPILLARY | all | Y | |
| W052100113 | 3 m SERVICE HOSE LP (R134a) - A05 | all | Y | |
| W052100114 | 3 m SERVICE HOSE HP (R134a) - A05 | all | Y | |
| W052100159 | O-RING SERVICE HOSE M14 R134A | all | Y | |
| W052100178 | GASKET for 1/4SAE and 1/2 ACME HOSES A Series | all | Y | |
| W052200242 | RED CHARGE HOSE L610 (R134a) - A05 / A10 / A50 | all | Y | |
| W052100008 | YELLOW HOSE W/VALVE (R134a) | all | Y | |
| W052200246 | SERVICE COUPLING LP (R134a) | all | Y | |
| W052200247 | SERVICE COUPLING HP (R134a) | all | Y | |
| W052100115 | MAIN FILTER for A05 | all | Y | |
| W052100116 | A05 RECOVERY DISTILLER GROUP (R134a) | all | Y | |
| W052100117 | A05 LIQUID RECEIVER (R134a 12L VESSEL) GROUP | all | Y | |
| W052100028 | HIGH PRESSURE SWITCH | all | Y | |
| W052100122 | HP/LP GAUGES COUPLE | all | Y | |

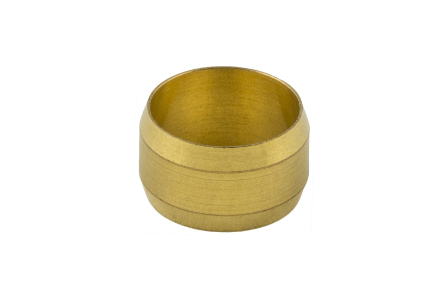

| W052100167 | SP-BRASS-OGIVE-2/4 | all |  |
Y |

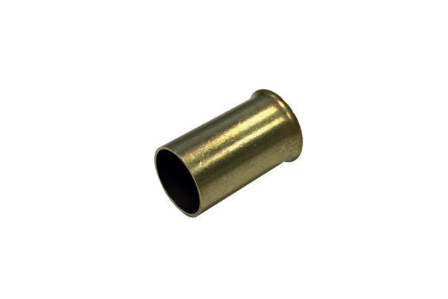

| W052100168 | SP-INTERNAL-SUPPORT-BUSHING-2/4 | all |  |
Y |
| W052100169 | SP-INTERNAL-SUPPORT-BUSHING-4/6 | all | |
Y |

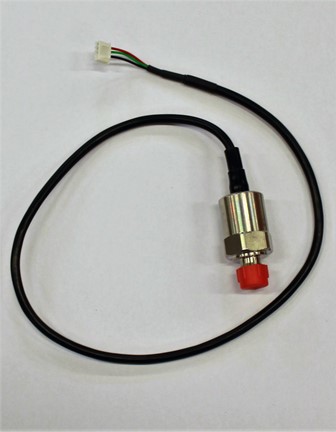

| W052200262 | ELECTRONIC PRESSURE TRANSDUCER | all |  |
Y |

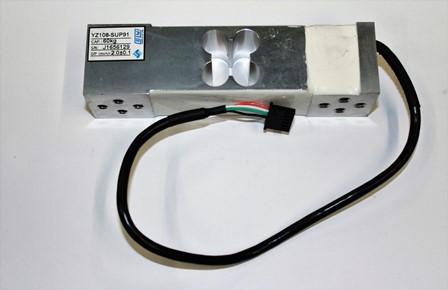

| W052200263 | LOAD CELL 60KG | all |  |
Y |

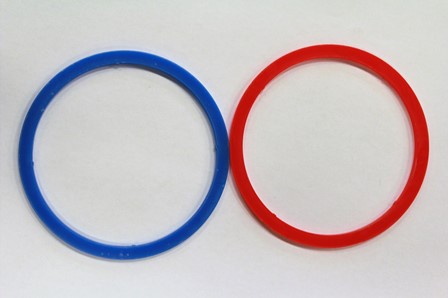

| W052100049 | RED / BLUE RINGS FOR GAUGES | all |  |
Y |
| W052100118 | KEYBOARD A05 (POLYESTER PANEL) | all | N | |
| W052100132* | KEYBOARD A05 with ENTER LED (POLYESTER PANEL) | all | Y | |
| W052100119 | STICKER A05 | all | Y | |
| W052100120 | OIL/NEW OIL STICKER | all | Y | |

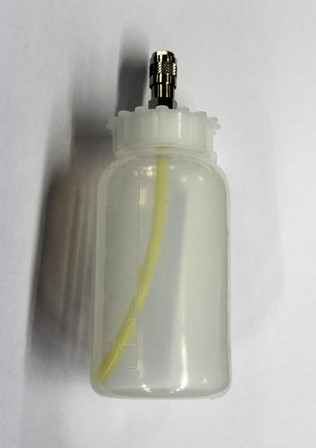

| W052200273 | NEW OIL BOTTLE 250 ml (YELLOW PIPE) | all |  |
Y |

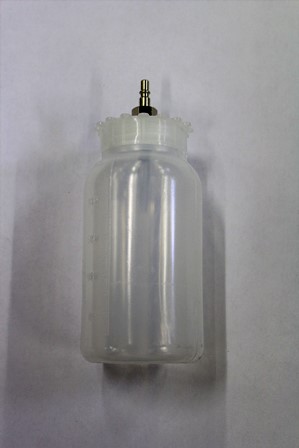

| W052200272 | USED OIL BOTTLE 250 ml | all |  |
Y |

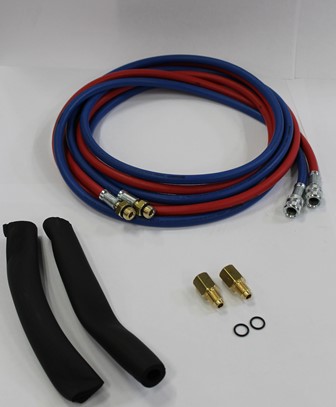

| W067200030 | SERVICE HOSES EXTENSION KIT - ADDITIONAL 3 m (R134a) | all |  |
Y |
| W052200277 | PRESSURE TRANSDUCER CONNECTION KIT | all | Y | |
| W067100012 | COVER COOLIUS-LOGO A05 | all | Y | |
| W067100014 | COVER WÜRTH-LOGO A05 | all | Y | |
| W067100008 | POWER ADAPTER-SET APAC COUNTRIES | all | Y |
Maintenance parts
| Article No. | Designation | Serial-No. | Picture | |
|---|---|---|---|---|
| W052100121 | MAINTENANCE KIT - A05 (FILTER+VACUUM PUMP OIL+GASKETS) | all | Y | |
| W052100165 | MAINTENANCE-KIT-A05-AUS-NZ | all | N | |
| W052100172 | SCREW-M8-WITH-O-RING-VACUUM-PUMP-100-128L | all | Y |
