Coolius 4000HP - (Art.no. W050200011)

Notice:

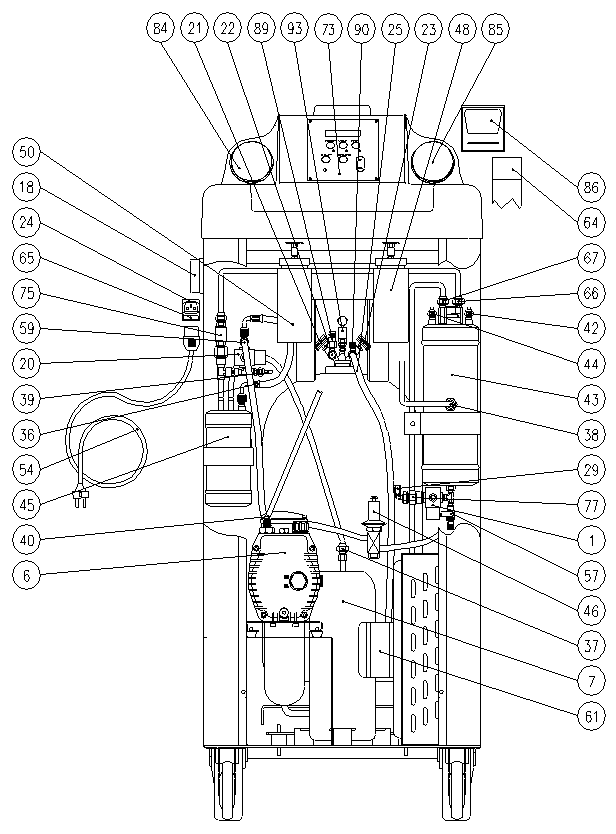

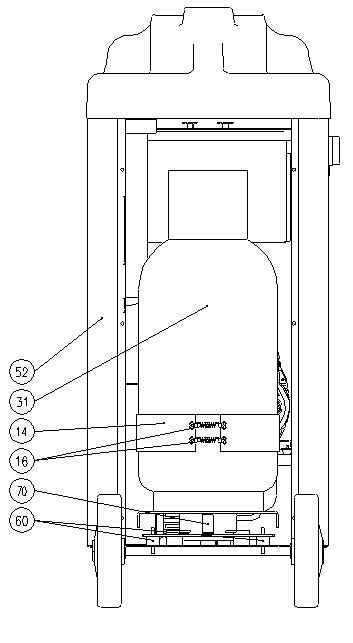

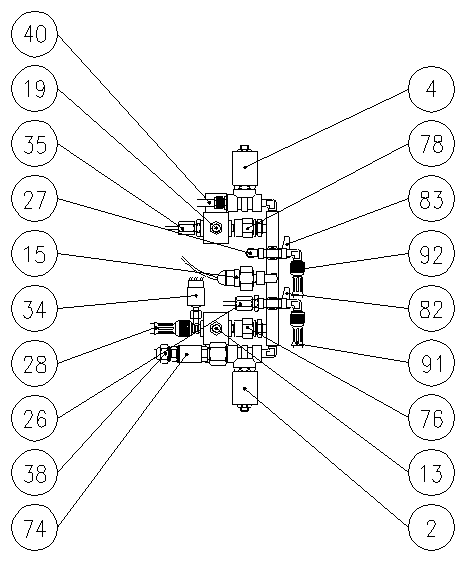

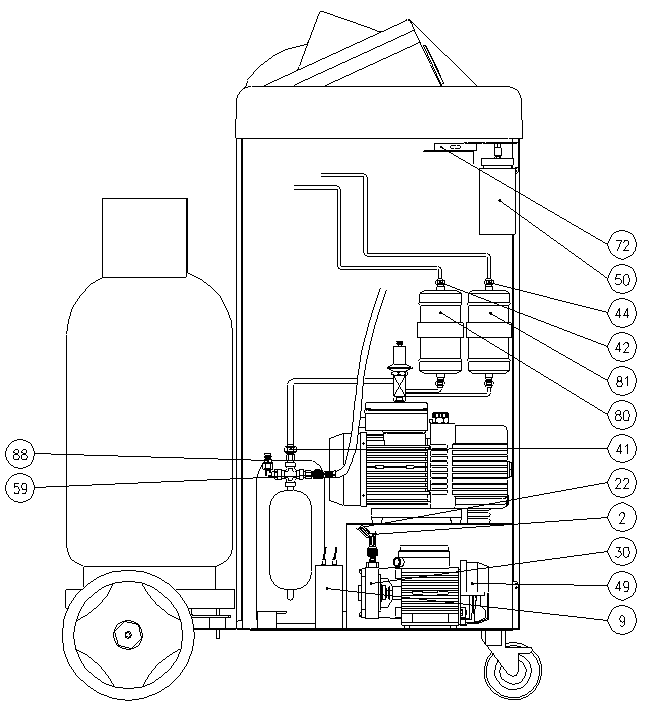

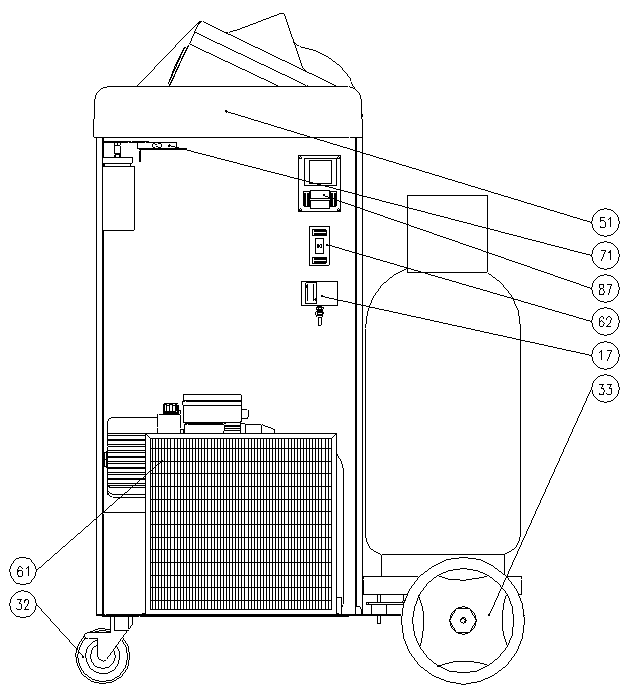

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

To maintenance parts

Service unit parts

Pos	Article No.	Designation	Serial-No.
1	0707764007	Solenoid valve	all
2	0707764015	Solenoid valve	all
2	W052200145	Solenoid valve coil	all
3	0707764015	Solenoid valve	all
4	0707764007	Solenoid valve	all
6	0707764205	Vacuum pump	all
7	W052200147	Compressor	all
9	W052200148	Condenser	all
13	0707764007	Solenoid valve	all
14	0707764034	Heater on the bottle 400W	all
15	W052200028	Pressure transducer	all
16	0900900607	Spring for heater	all
17	W052200149 no longer available	Safety swicth	all
19	0707764007	Solenoid valve	all
20	0707764025	Solenoid valve	all
22	W052200150	Refrigerant charge hose	all
24	W052200195	Plug with fuse	all
25	W052200151	Condenser - Bottle hose	14,55
26	W052200152	Low pressure gauge capillary hose	all
27	W052200153	High pressure gauge capillary hose	all
29	W052200089	Oil discharge capillary hose	all
30	W052200055	Pump refrigerant	all
31	W052200155	Bottle	all
32	W052200102	Front wheel	all
33	W052200101	Rear wheel	all
35	W052200089	Oil charge capillary hose	all
36	W052200156	Hose - pressure return to compressor	all
38	W052200157	Valves block - distiller hose	all
40	W052200158	Vacuum hose	all
42	W052200159	Distiller - Filter 1 hose	all
43	W052200160	Oil separator	all
44	W052200161	Distiller - Filter 2 hose	all
45	W052200162	Lubricant oil separator	all
46	W052200163	Complete flow gas valve	all
47	0707764227	Handle support	all
48	W052200038	Oil drain bottle	all
49	W052200035	Motor for pump	all
50	W052200038	Oil/Uv dosimeter	all
51	W052200164	Plastic cover	all
53	W052200165	Front panel	all
54	W052200090	Power cable (Europa Standard)	all
55	0764000154	HP quick coupler - R134a	all
56	0764000153	LP quick coupler - R134a	all
59	W052200167	Tube of oil of compressor	all
60	W052200030	Refrigerant scale silentblock	all
61	W052200168	Condenser with fan	all
62	W052200169	Contactor	all
64	076495 002	Paper roll-A/C-printer	all
65	W052200170	Fuse on plug	all
66	W052200171	Distiller coil inlet tube	all
68	W052200172	Rear panel	all
69	W052200173	Handle support	all
70	0707764235	Refrigerant load cell	all
71	0707764232	Oil discharge load cell	all
72	0707764232	Oil PAG load cell	all
73	W052200174	Complete console	all
	W067200035	AY-DATABASE-COOLIUS1000-4000HP-USB	all
74	W052200175	Check valve	all
75	W052200175	Check valve	all
76	0707764006	Check valve	all
77	0707764006	Check valve	all
78	0707764006	Check valve	all
79	0707764006	Check valve	all
80	0707764052	Filter drier	all
81	0707764052	Filter drier	all
84	W052200177	Low pressure gauge	all
85	W052200178	High pressure gauge	all
86	W052200025	Printer	all
87	W052200027	Power supply	all
91	W052200179	Low pressure hose 3 m	all
91	W052200189	SP-LOWPRESSUREHOSE-6M	all
92	W052200180	High pressure hose 3 m	all
92	W052200190	SP-HIGHPRESSUREHOSE-6M	all
93	W052200181	Safety valve	all
	W052200136	Micro sd card	all

Maintenance parts

Article No.	Designation	Serial-No.
0900800610	Maintenance kit	all
0707764052	Filter dryer	all
0900900605	Discharge oil filter	all
W052200123	Seal 3/8"	all
W052200122	Seal 1/4"	all
W052200279	Seal screw1 incl. seal ring	all
W052200280	Seal screw2	all
W052200281	Seal ring	all
0892764300	Wurth vacuum pump oil ISO 12 - 2 pcs to order!	all
