WB 200BR
Shaft assembly + Motor + Position pick-up + Piezo transducer
Notice:
Please note that some parts only exist in the exploded drawings but not in the spare parts table.
These parts can not be ordered separately!
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|
| 1 | W345210030 | SP-DRIVEUNIT-230V | all | |
| 1 | W345210031 | SP-DRIVEUNIT-115V | all | |
| 2 | W345210032 | SP-MOTOR-230V | all | |
| 2 | W345210033 | SP-MOTOR-115V | all | |
| 3 | W345210034 | SP-CAPACITOR-230V | all | |
| 3 | W345210035 | SP-CAPACITOR-115V | all | |
| 5 | W345210036 | SP-BRAKEPAD | all | |
| 6 | W345210004 | SP-BELT | all | |
| 7 | W345210038 | SP-SHAFT | all | |
| 8 | W345210039 | SP-PIEZO | all | |
| 9 | W345210040 | SP-THREAD-40 | all |

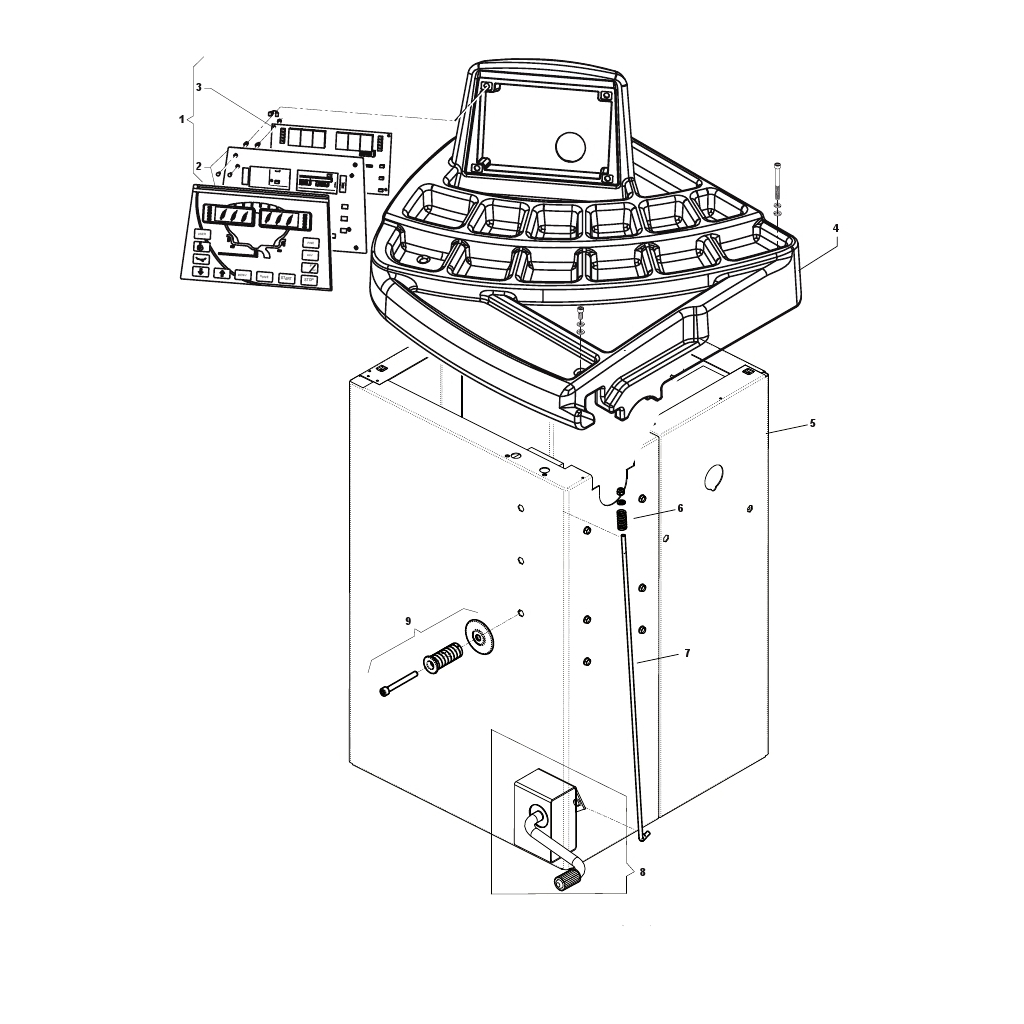

Casing
Notice:
Please note that some parts only exist in the exploded drawings but not in the spare parts table.
These parts can not be ordered separately!
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|
| 1 | W345210045 | SP-PANEL | all | |
| 2 | W345210006 | SP-CONTROL | all |  |
| 3 | W345210015 | SP-CARD-PC | all |  |
| 4 | W345210046 | SP-COVER | all | |
| 6 | W345210041 | SP-SPRING | all | |
| 7 | W345210042 | SP-ROD | all | |
| 8 | W345210043 | SP-PEDAL | all | |
| 9 | W345210044 | SP-PIN | all |

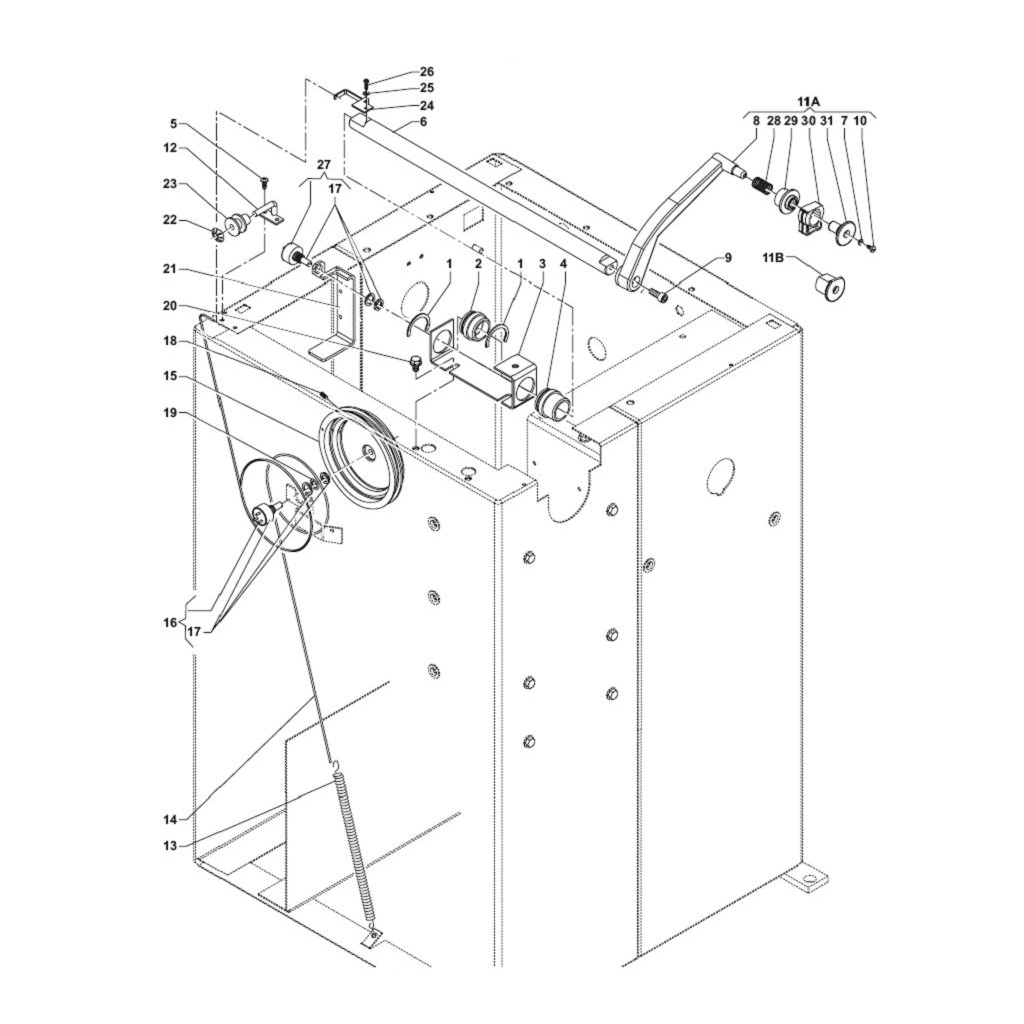

Distance Gauge (automatic)
Notice:
Please note that some parts only exist in the exploded drawings but not in the spare parts table.
These parts can not be ordered separately!
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|
| 11A | W344210034 | AY-DISTANCEGAUGE | all | |
| 27 | W345210018 | SP-ANGLE-DEVICE | all |  |

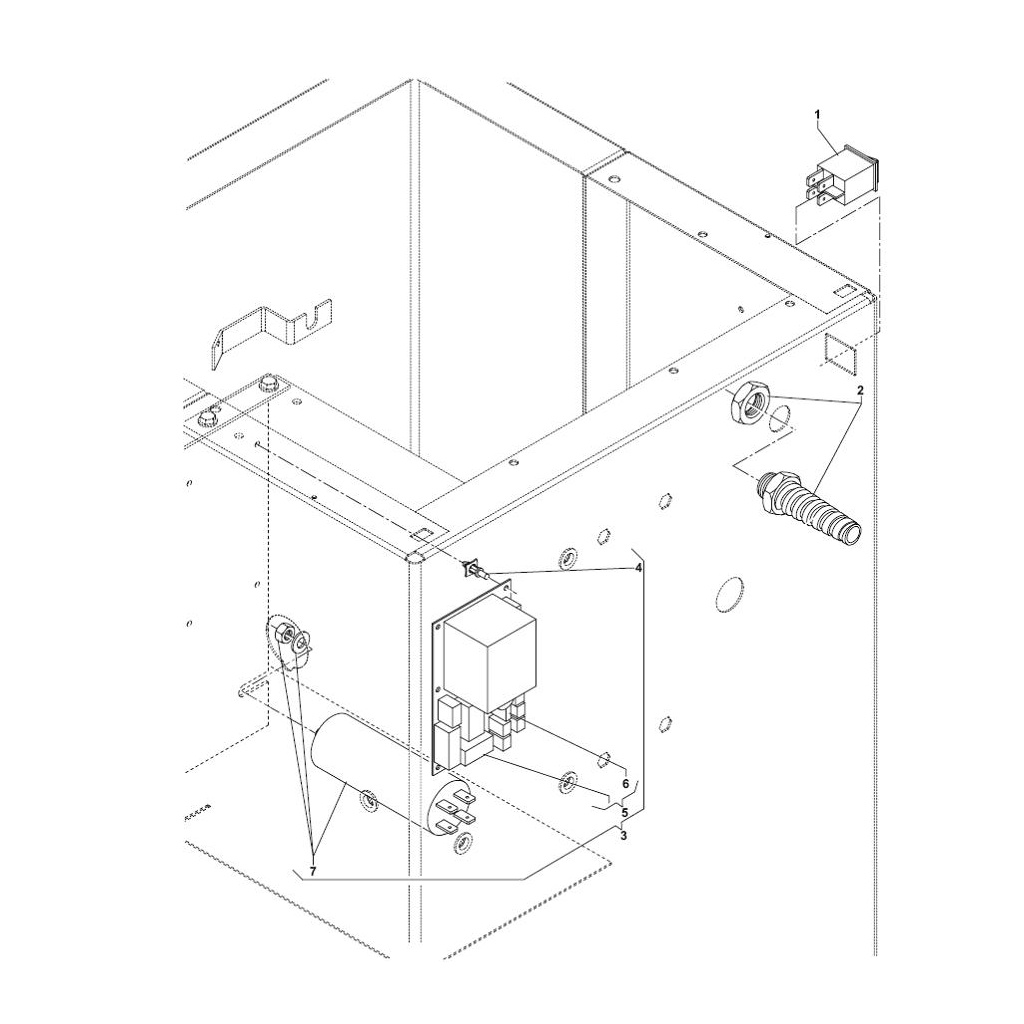

Power Unit
Notice:
Please note that some parts only exist in the exploded drawings but not in the spare parts table.
These parts can not be ordered separately!
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|
| 5 | W345210009 | SP-PCB | all |  |

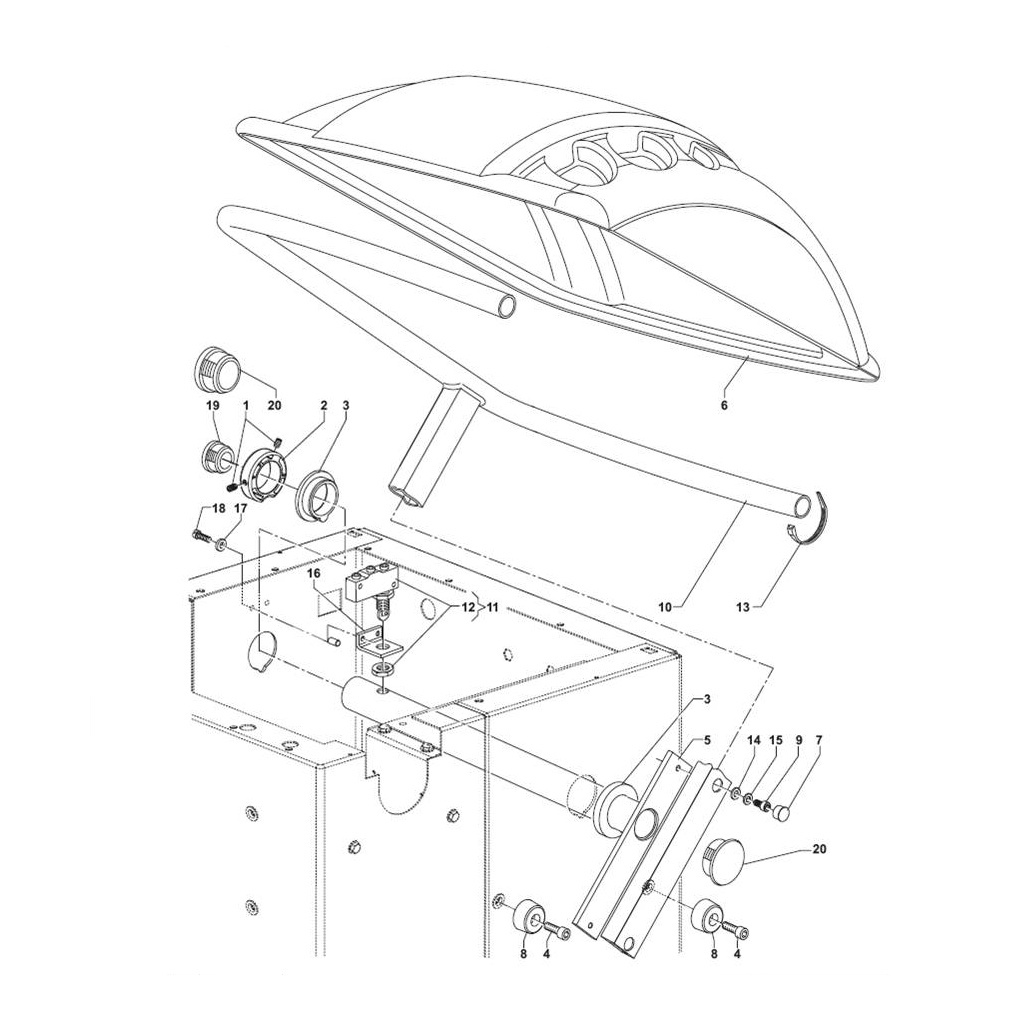

Wheel Guard GP
Notice:
Please note that some parts only exist in the exploded drawings but not in the spare parts table.
These parts can not be ordered separately!
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|
| 2 | W345210028 | SP-CAM | all | |
| 3 | W345210029 | SP-CAM-WB200 | all | |
| 11 | W345210021 | SP-SWITCH-COVER | all |  |
| 13 | W345210021 | SP-SWITCH-COVER | all | |

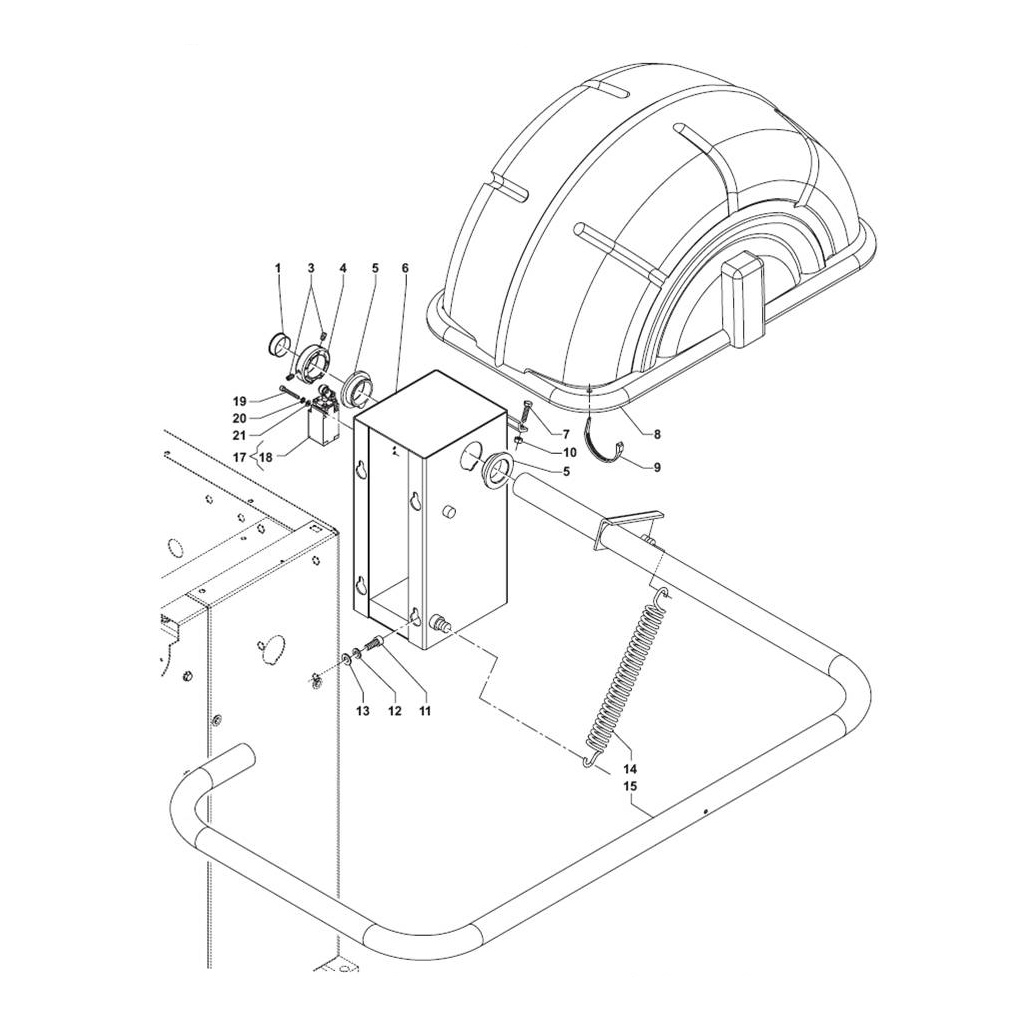

Wheel Guard
Notice:
Please note that some parts only exist in the exploded drawings but not in the spare parts table.
These parts can not be ordered separately!
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|
| 5 | W345210029 | SP-CAM-WB200 | all | |
| 14 | W345210019 | SP-SPRING-COVER | all |  |
| 17 | W345210022 | SP-SWITCH-COVER | all |  |
