Coolius 2700iQ (Art.no. W050 002 700)

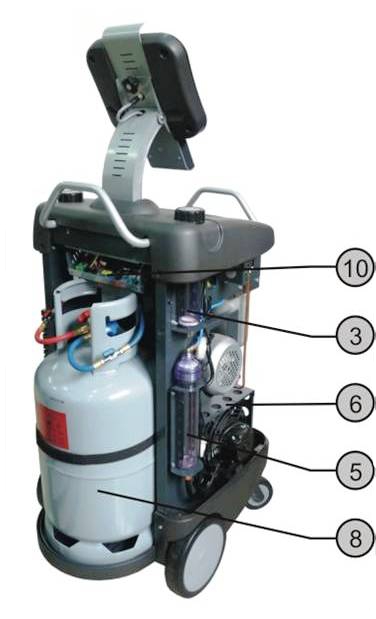

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

Article No.	Designation	Serial-No.

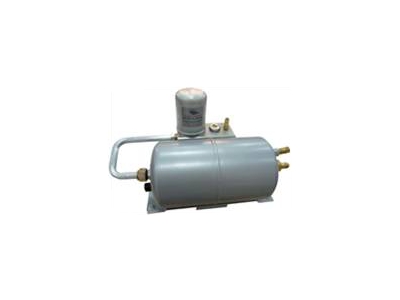

W067000015	AY-FLUSHINGKIT-A/CSERVSTAT-VW	all

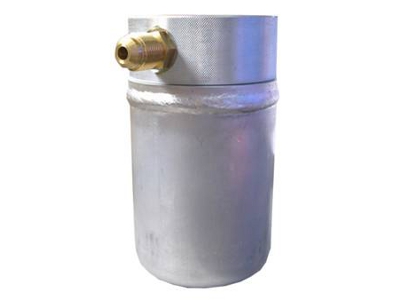

W067000016	AY-FLUSHINGKIT-A/CSERVSTAT	all

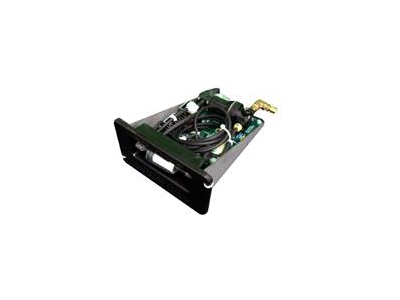

W067000017	AY-IDENTIFIER-A/CSERVSTAT-REFRIGERANT	all

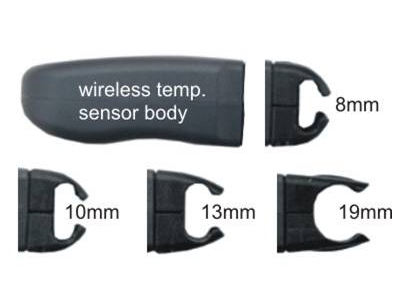

W067000019	AY-SENSOR-A/CSERVSTAT-TEMPERATURES-KIT	all
W052000103	SP-SERVICEKIT-100HOURS	all
W052000104	SP-SERVICEKIT-300HOURS	all

Pos	Article No.	Designation	Serial-No.

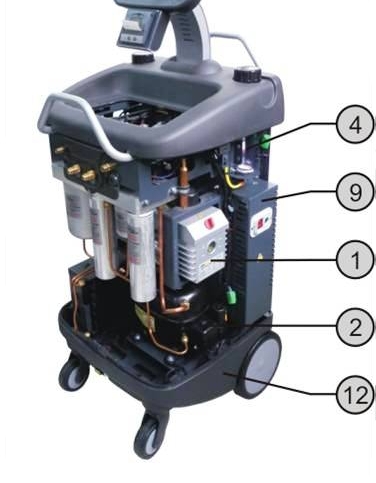

1	W052000002	SP-PUMP-VACUUM-DUALSTAGE	all

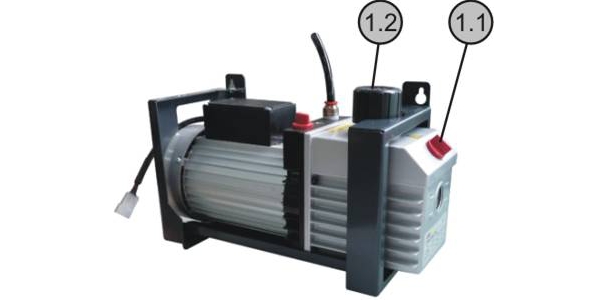

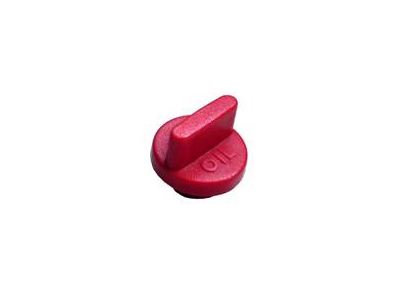

1.1	W052000003	SP-PUMP-VACUUM-CAP-PLASTIC	all

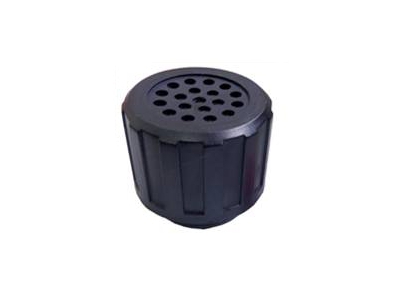

1.2	W052000004	SP-PUMP-VACUUM-EXHAUSTFILTER	all

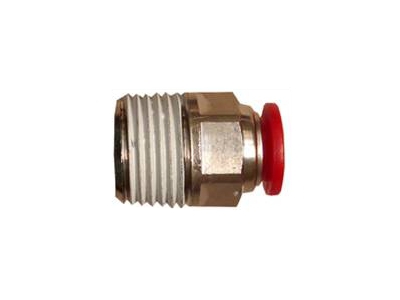

1.3	W052000005	SP-HOSE-CONNECTORHose-D10-1/2	all
	W052000006	SP-OIL-VACUUMPUMP-330ML	all

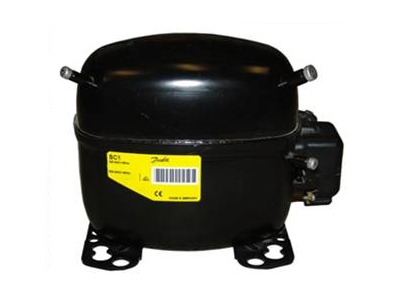

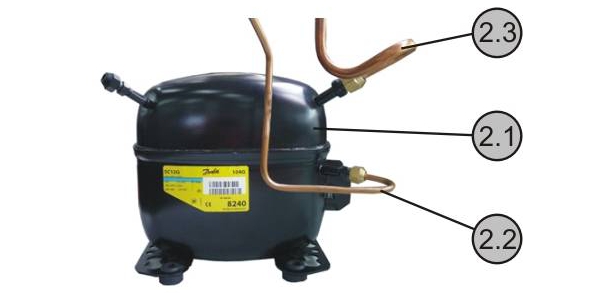

2.1	W052000007	SP-COMPRESSOR-COMPLETELY	all

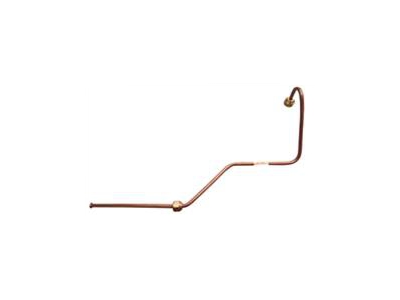

2.2	W052000008	SP-PIPE-COMPRESSOR-DISCHARGE	all

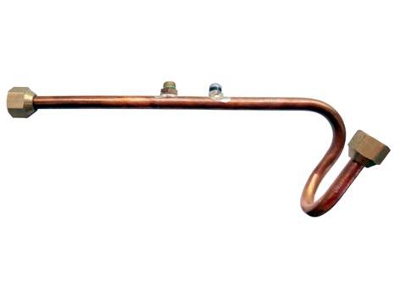

2.3	W052000009	SP-PIPE-COMPRESSOR-SUCTION	all

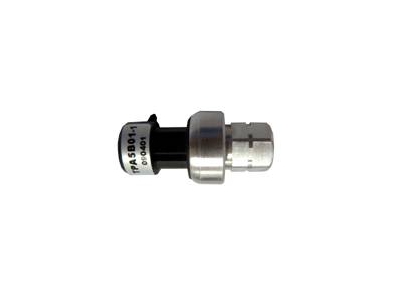

2.4	W052000010	SP-SENSOR-PRESSURE-P5	all

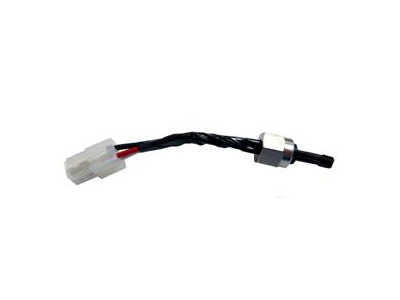

2.5	W052000011	SP-SENSOR-TEMPERATURE-SUCTION	all
2.6	W052000012	SP-OIL-COMPRESSOR-500ML	all

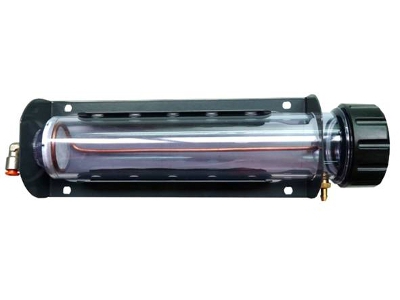

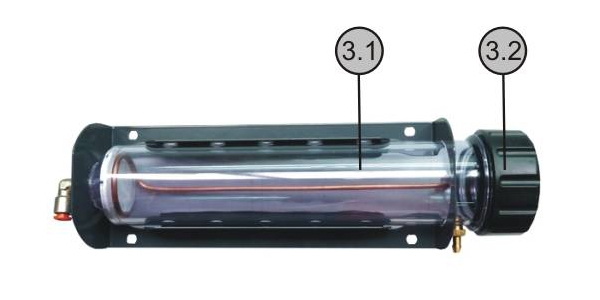

3.1	W052000013	SP-VESSEL-OIL1-COMPL	all

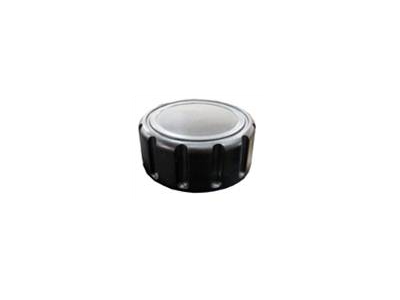

3.2	W052000014	SP-VESSEL-OIL-CAP	all

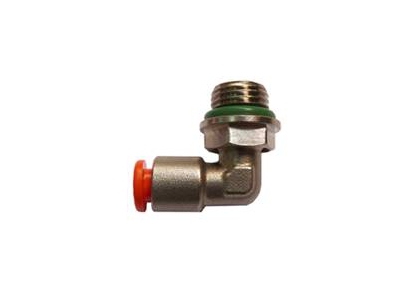

3.3	W052000015	SP-HOSE-CONNECTOR-D6-1/4	all
3.3	W052000110	SP-SENSOR-PRESSURE-VESSEL-OIL 1	all
3.3	W052000108	SP-CABLE-SENSOR-OILPRESSURE-BOARD 1	all

Pos	Article No.	Designation	Serial-No.

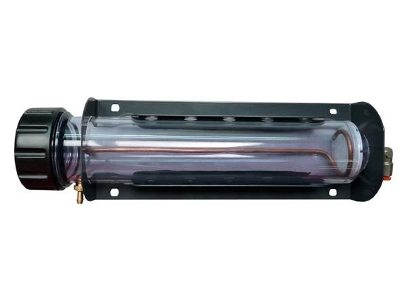

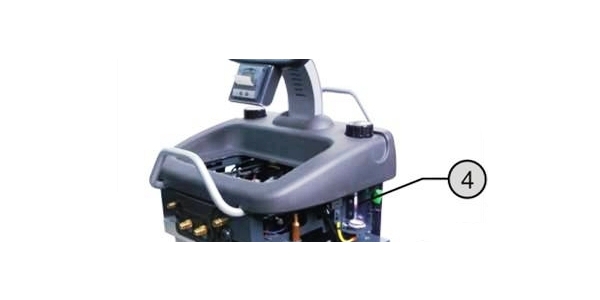

4.1	W052000016	SP-VESSEL-OIL2-COMPL	all
4.2	W052000014	SP-VESSEL-OIL-CAP	all

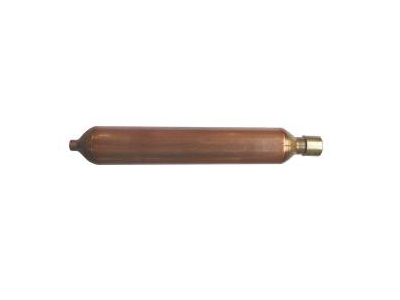

4.3	W052000017	SP-MOISTURE-TRAP	all
4.3	W052000111	SP-SENSOR-PRESSURE-VESSEL-OIL 2	all
4.3	W052000109	SP-CABLE-SENSOR2-OILPRESSURE-BOARD	all

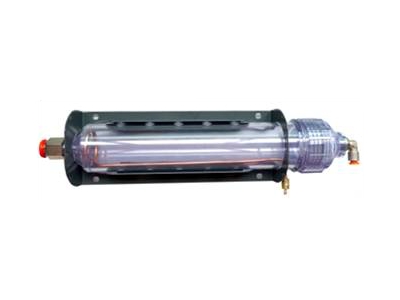

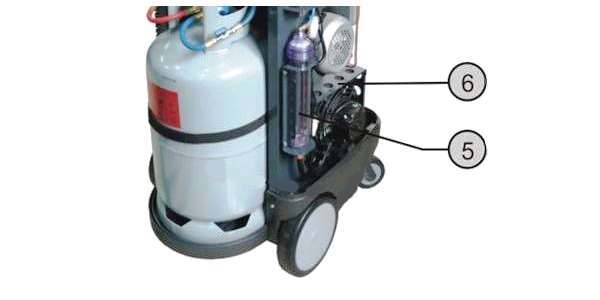

5.1	W052000018	SP-VESSEL-OLDOIL	all

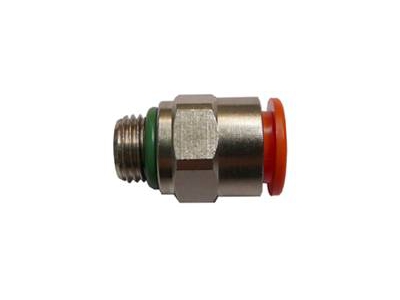

5.2	W052000019	SP-HOSE-CONNECTOR-D12-1/4	all
5.3	W052000015	SP-HOSE-CONNECTOR-D6-1/4	all

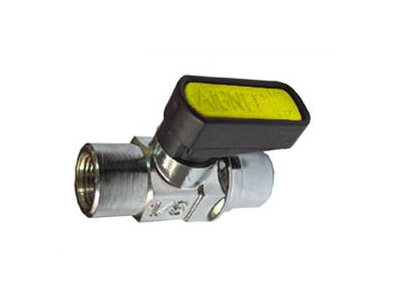

5.4	W052000021	SP-VALVE-BALL-1/8-1/8	all
5.4	W052000112	SP-SENSOR-PRESSURE-VESSEL-OLDOIL	all

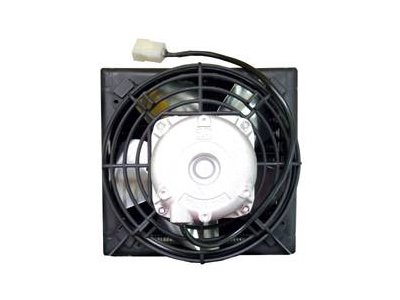

6.1	W052000022	SP-CONDENSER	all

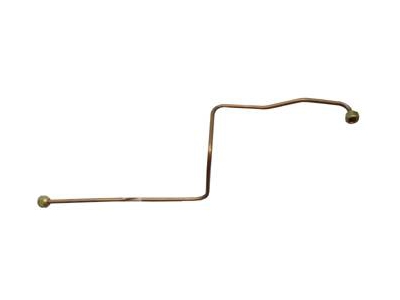

6.2	W052000023	SP-PIPE-CONDENSER-OUT	all

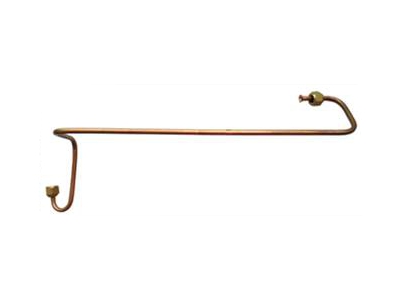

6.3	W052000024	SP-PIPE-CONDENSER-IN	all

Pos	Article No.	Designation	Serial-No.

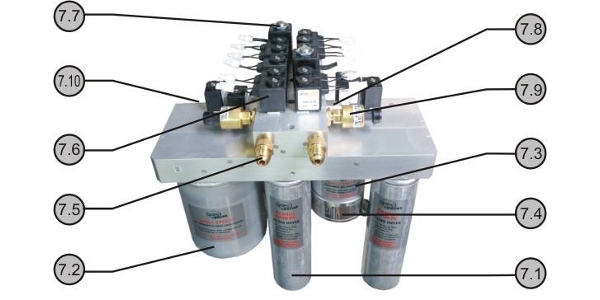

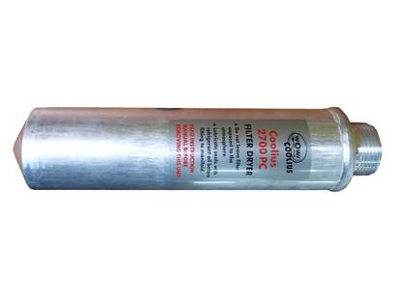

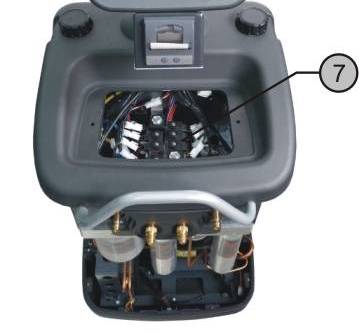

7.1	W052000025	SP-FILTER-DRYER	all

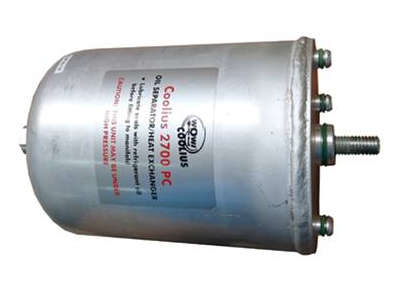

7.2	W052000026	SP-SEPARATOR-OIL-SUCTION	all

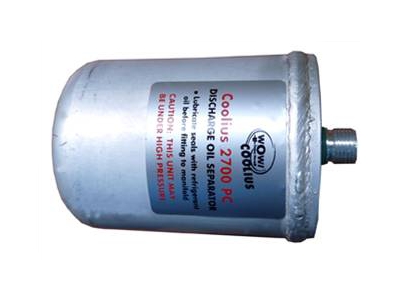

7.3	W052000027	SP-SEPARATOR-OIL-DISCHARGE	all

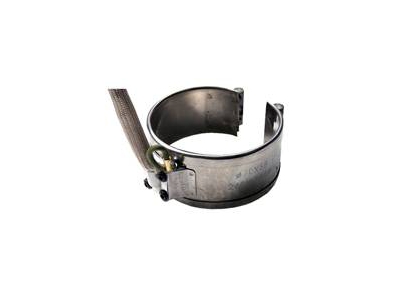

7.4	W052000028	SP-SEPARATOR-HEATER-OIL-DISCHARGE	all

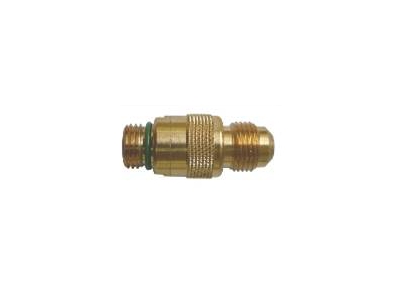

7.5	W052000029	SP-FILTER-PRIMARY-M14-3/8	all

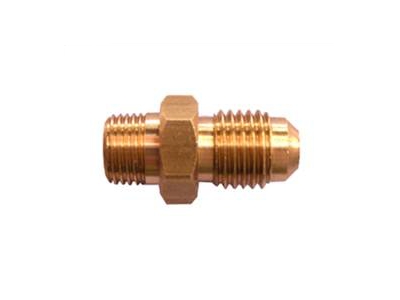

7.5	W052000030	SP-FITTING-1/4–1/8	all

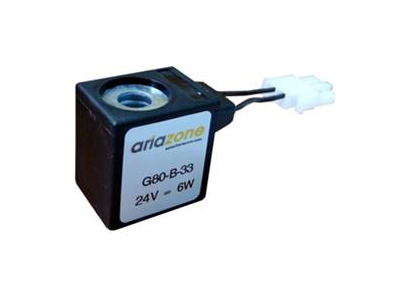

7.6	W052000032	SP-VALVE-SOLENOID-2MM-CLOSED	all

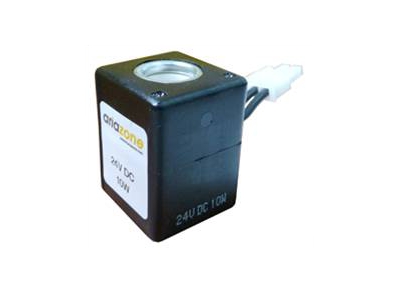

7.7	W052000035	SP-VALVE--SOLENOID-4MM-CLOSED	all

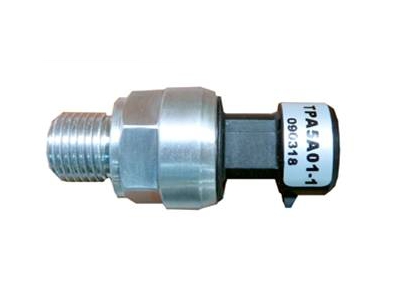

7.8	W052000031	SP-SENSOR-PRESSURE-P3-P4	all

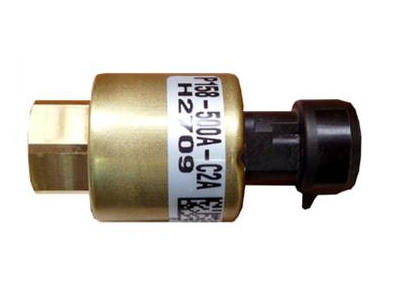

7.9	W052000037	SP-SENSOR-PRESSURE-P1-P2	all
7.10	W052000031	SP-SENSOR-PRESSURE-P3-P4	all

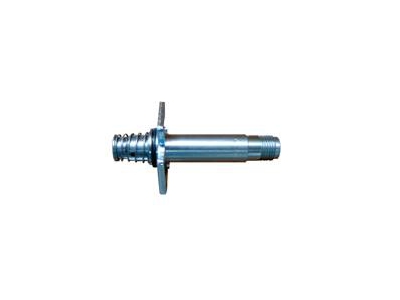

7.11	W052000033	SP-VALVE-SOLENOID-2MM-OPEN	all

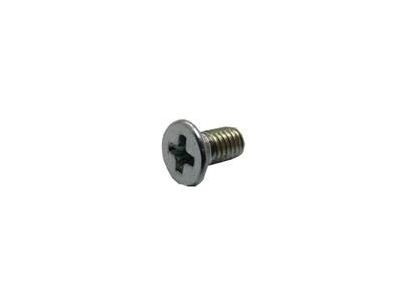

7.12	W052000034	SP-VALVE-SOLENOID-2MM-SCREW-M3	all

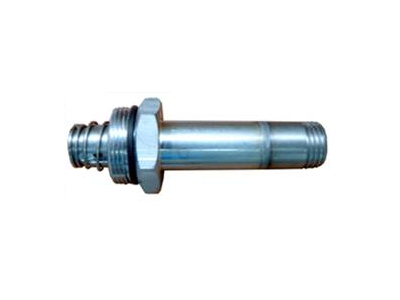

7.13	W052000036	SP-VALVE-SOLENOID-4MM-OPEN	all

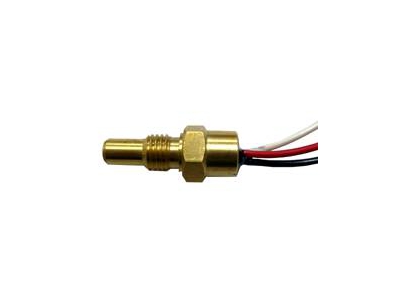

7.14	W052000038	SP-SENSOR-TEMPERATURE-DICHARGE	all

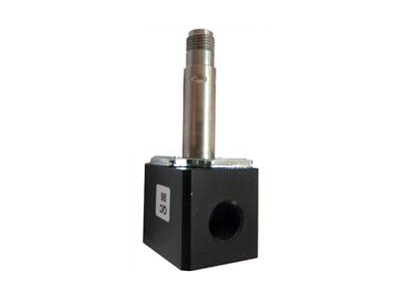

7.16	W052000039	SP-VALVE-SOLENOID-OPEN	all

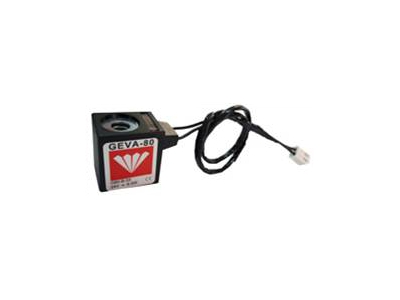

7.17	W052000040	SP-VALVE-SOLENOID-COIL	all

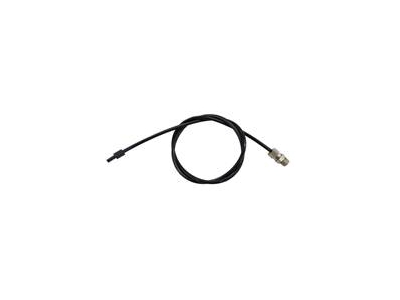

7.18	W052000041	SP-AIRPURGE-EXHAUST	all

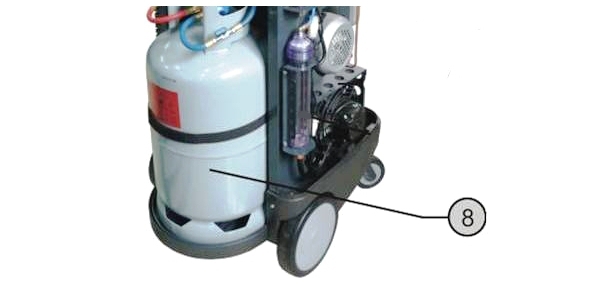

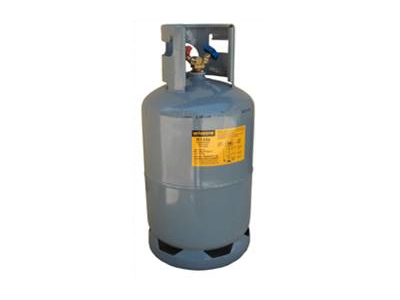

8.1	W052000042	SP-VESSEL-REFRIGERANT-27KG	all

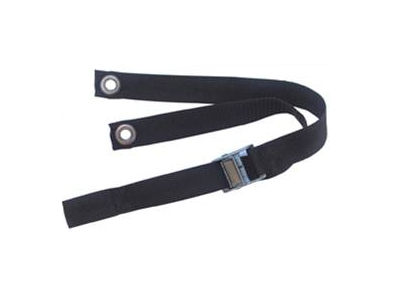

8.2	W052000043	SP-VESSEL-STRAP	all

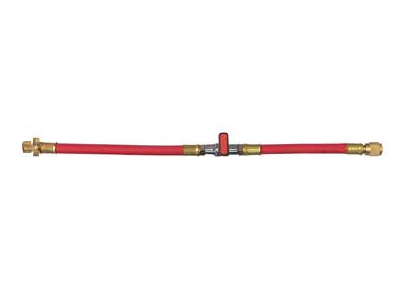

8.3	W052000044	SP-HOSE-HP-SHORT-VALVE	all

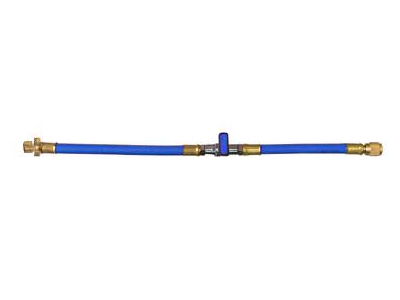

8.4	W052000045	SP-HOSE-LP-SHORT-VALVE	all

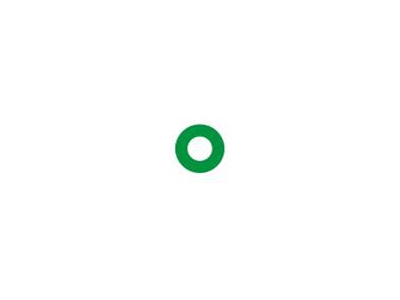

8.5	W052000046	SP-SEALRING-ORING	all

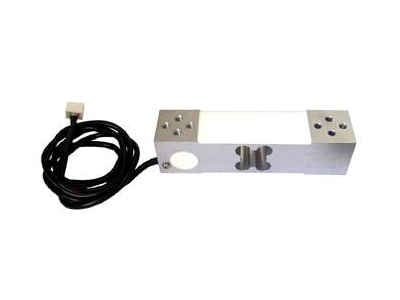

8.6	W052000047	SP-SCALE-VESSEL-REFRIEGERANT	all

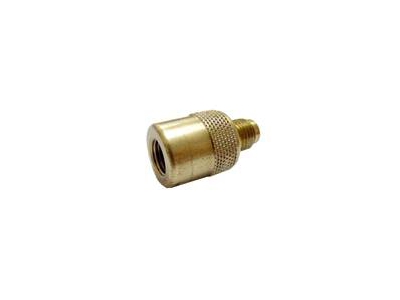

8.7	W052000048	SP-FILTER-VESSEL-REFRIGERANT	all

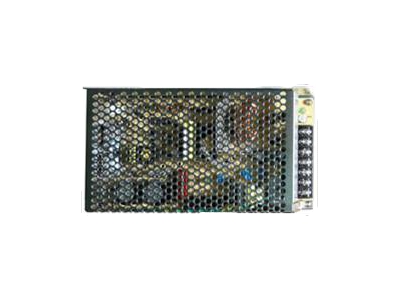

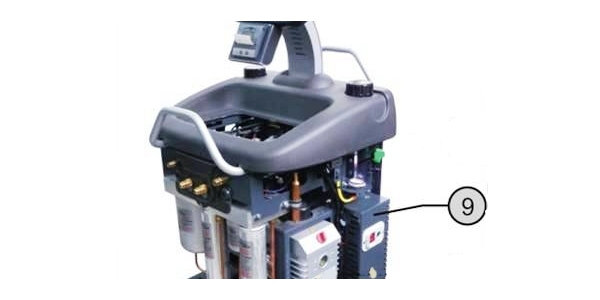

9.1	W052000049	SP-SUPPLY-POWER-24V	all

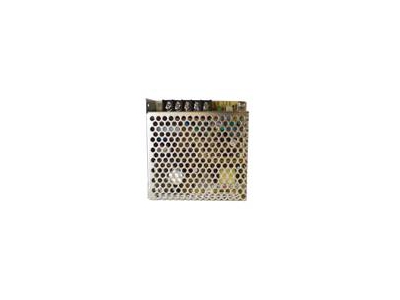

9.2	W052000050	SP-SUPPLY-POWER-12V	all

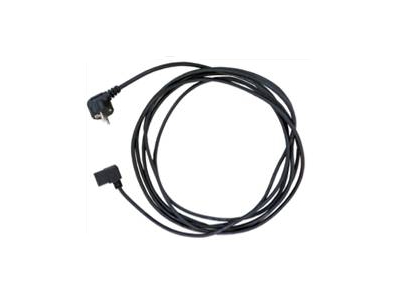

9.3	W052000051	SP-SUPPLY-POWER-220V	all

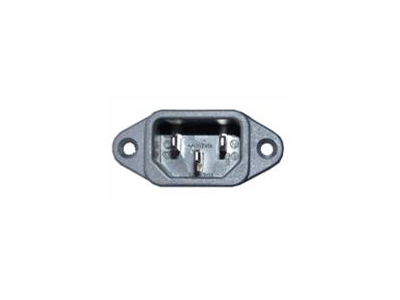

9.4	W052000052	SP-SUPPLY-POWER-SOCKET	all

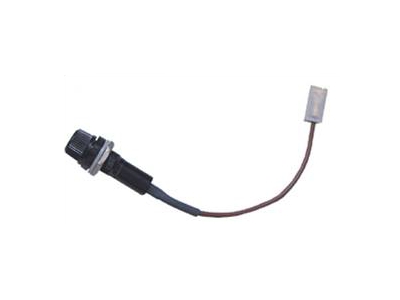

9.5	W052000053	SP-HOLDER-FUSE	all

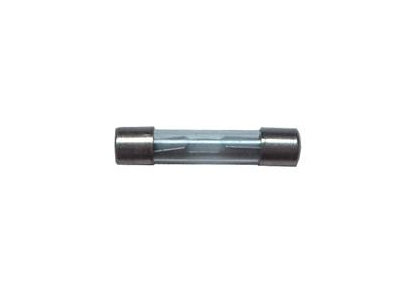

9.6	W052000054	SP-FUSE	all

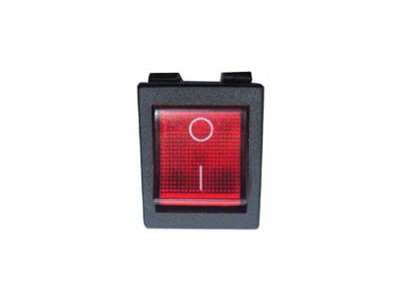

9.7	W052000055	SP-SWITCH-MAIN	all

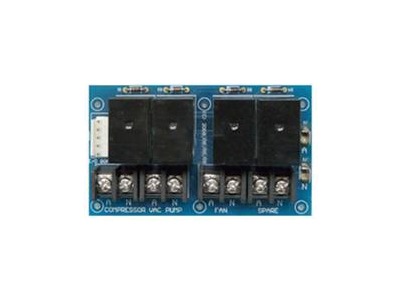

9.8	W052000056	SP-RELAY-CARD	all

Pos	Article No.	Designation	Serial-No.

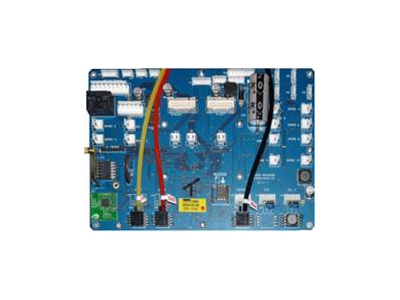

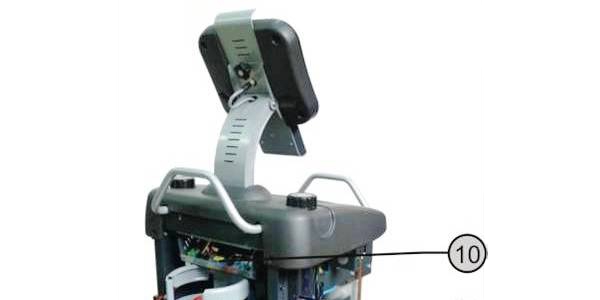

10.1	W052000057	SP-BOARD-ELECTRONICS	to 1187 & for 1233
10.1	W052000114	SP-BOARD-ELECTRONICS	from 1188

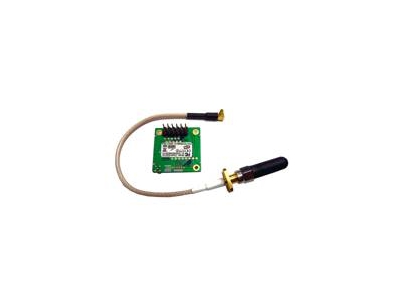

10.2	W052000058	SP-MODUL-BLUETOOTH	all

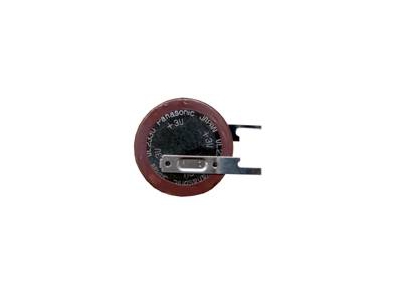

10.3	W052000059	SP-BATTERY-BOARD CR2032	all

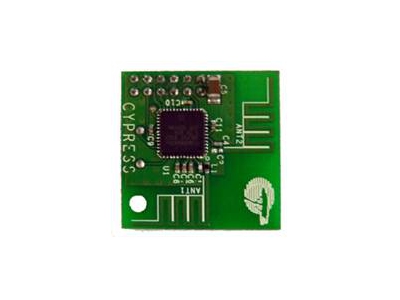

10.4	W052000060	SP-ANTENA-RF	all

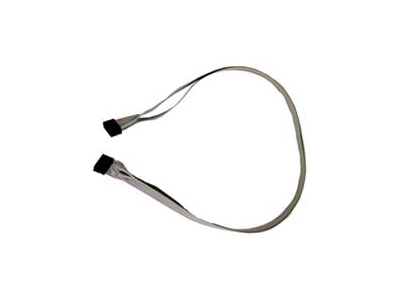

10.5	W052000061	SP-ANTENA-CABLE	all

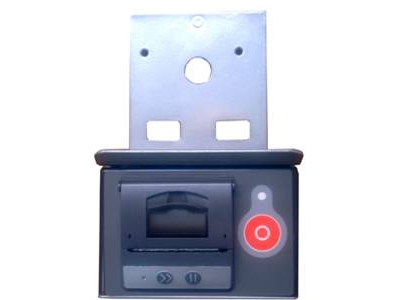

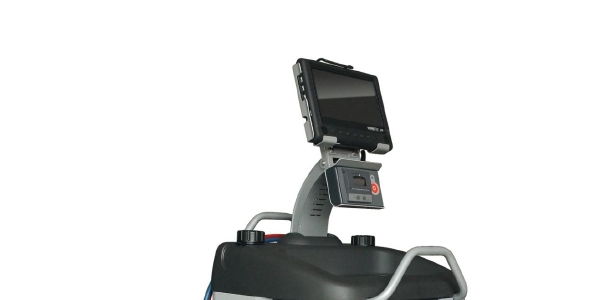

11.2	W067000020	AY-HOLDER-A/CSERVSTAT-IQ320-PRINTER	all

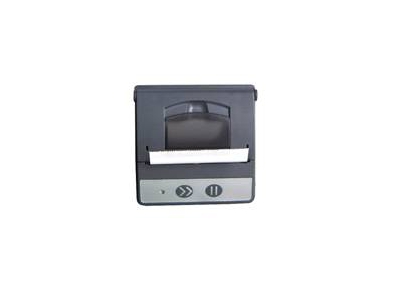

11.3	W052000064	SP-PRINTER	all
	076495 002	Paper roll-A/C-printer	all

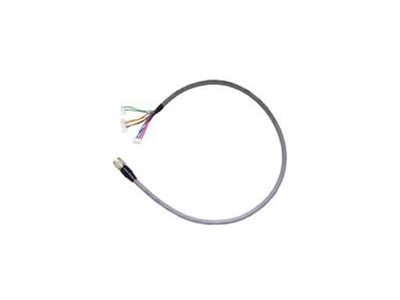

11.4	W052000065	SP-CABLE-DISPLAY	all

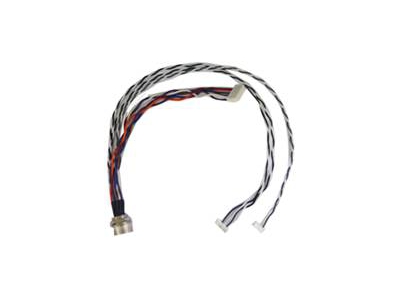

11.5	W052000066	SP-CABLE-DISPLAY-INSIDED	all

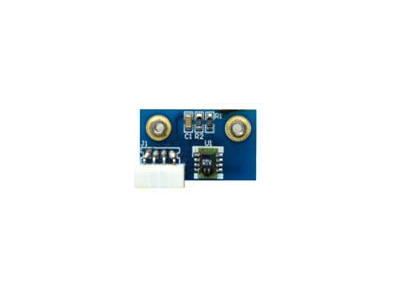

11.6	W067000018	AY-SENSOR-A/CSERVSTAT-HUMIDITY-TEMPERAT	all

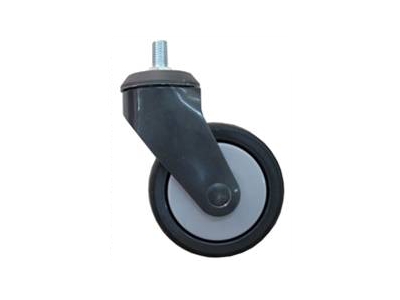

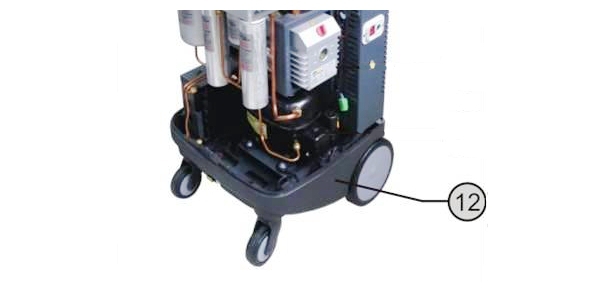

12.1	W052000068	SP-WHEEL-ROTATABLE	all

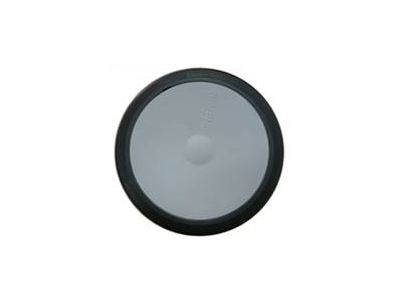

12.2	W052000069	SP-WHEEL-D200	all

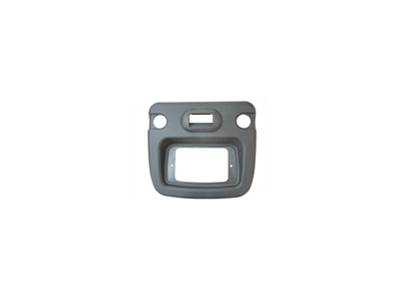

12.3	W052000070	SP-COVERPANEL-TOP	all

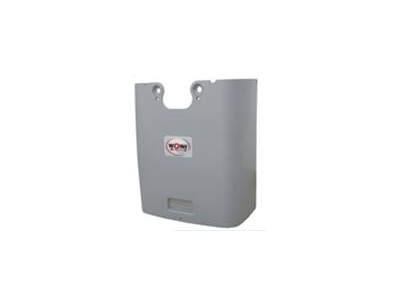

12.4	W052000071	SP-COVERPANEL-FRONT	all

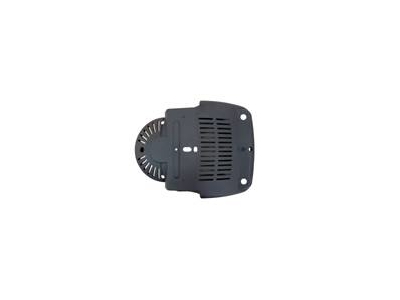

12.5	W052000072	SP-COVERPANEL-BASIC	all

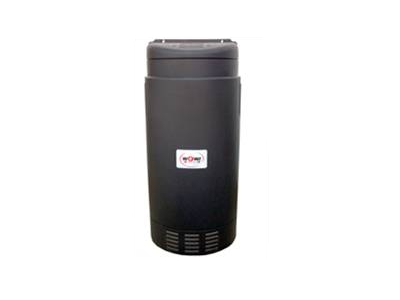

12.6	W052000073	SP-COVERPANEL-BACK-REFRIVESSEL	all

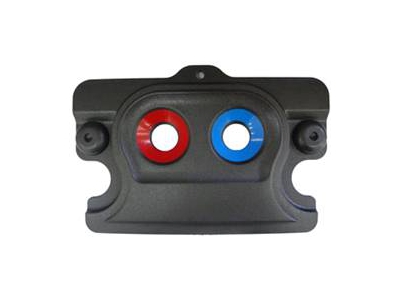

12.7	W052000074	P-HOSE-OUTLET-PLASTIC	all

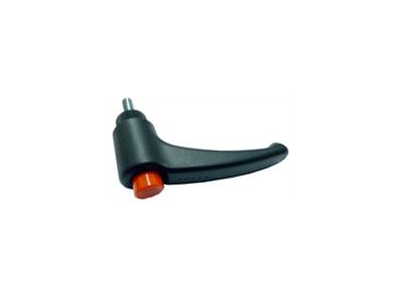

12.8	W052000075	SP-VALVE-LOCKINGLEVER	all

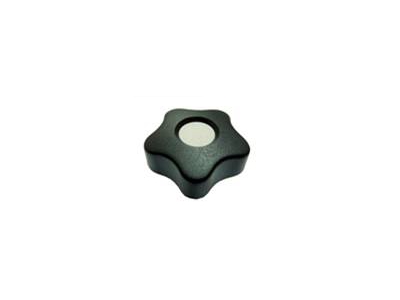

12.9	W052000076	SP-HAND-WHEEL	all
12.9	W052000106	SP-COVERPANEL-RIGHT-METAL	all
12.9	W052000107	SP-COVERPANEL-LEFT-METAL	all

Pos	Article No.	Designation	Serial-No.

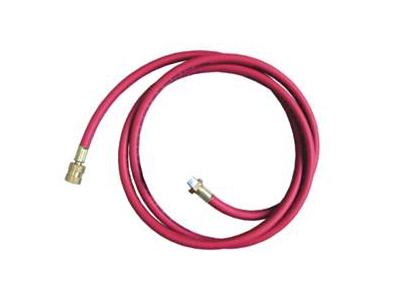

13.1	W052000078	SP-HOSE-HIGHPRESSURE-3M	all
13.2	W052000077	SP-HOSE-LOWPRESSURE-3M	all

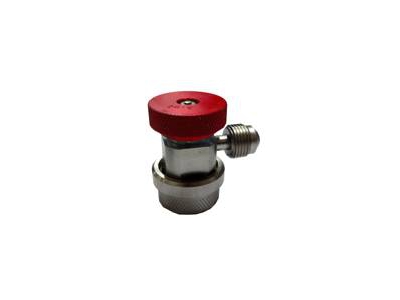

13.3	W052000080	SP-QUICKCOUPLER-HIGHPRESSURE	all
13.4	W052000079	SP-QUICKCOUPLER-LOWPRESSURE	all

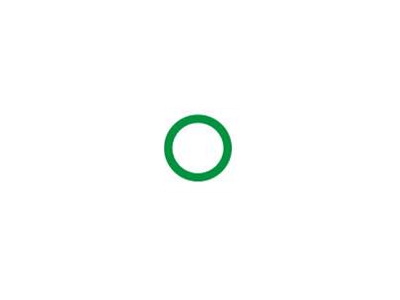

13.5	W052000081	SP-SEALRING-ORING	all

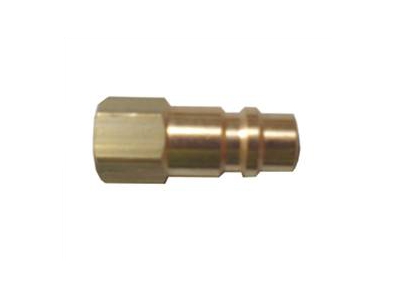

13.6	W052000082	SP-ADAPTER-QUICKCOUPLER-1/4	all

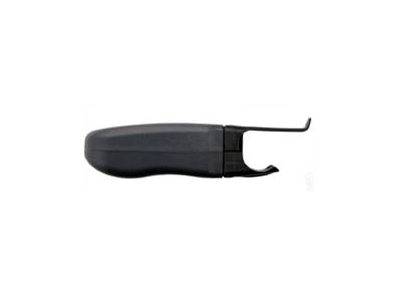

14.1	W052000083	SP-SENSOR-TEMPERATURE-VENT	all

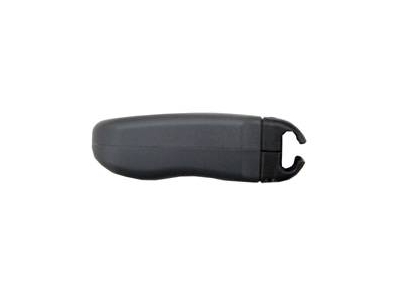

14.2	W052000084	SP-SENSOR-TEMPERATURE-VENT-JAWS	all
14.3	W052000085	SP-SENSOR-TEMPERATURE-8MM	all
14.4	W052000086	SP-SENSOR-TEMPERATURE-8MM-JAWS	all

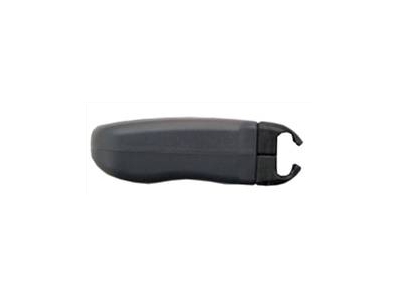

14.5	W052000087	SP-SENSOR-TEMPERATURE-10MM	all
14.6	W052000088	SP-SENSOR-TEMPERATURE-10MM-JAWS	all

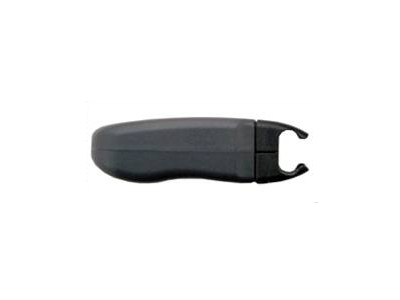

14.7	W052000089	SP-SENSOR-TEMPERATURE-13MM	all

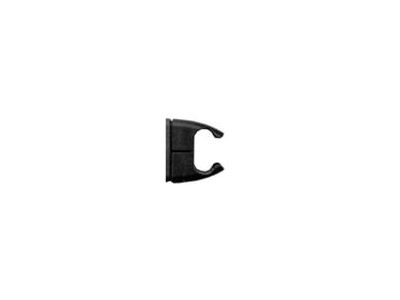

14.8	W052000090	SP-SENSOR-TEMPERATURE-13MM-JAWS	all

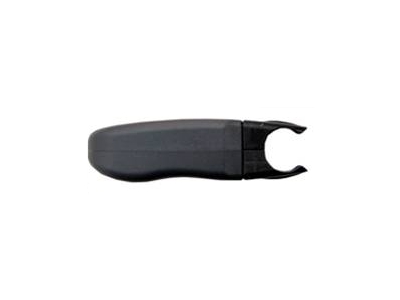

14.9	W052000091	SP-SENSOR-TEMPERATURE-19MM	all
14.10	W052000092	SP-SENSOR-TEMPERATURE-19MM-JAWS	all

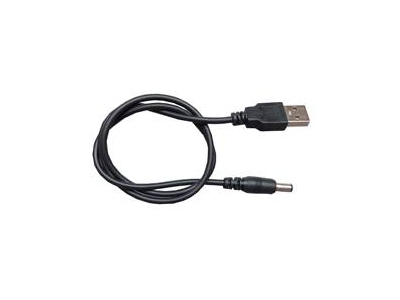

14.11	W052000105	SP-SENSOR-TEMPERATURE-CHARGING CABLE	all

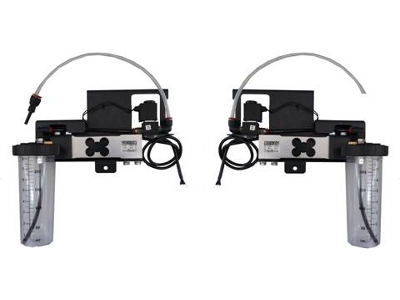

15.1	W067000014	AY-CONSTRUCTIONKIT-A/CSERVSTAT-OEL3A4	all

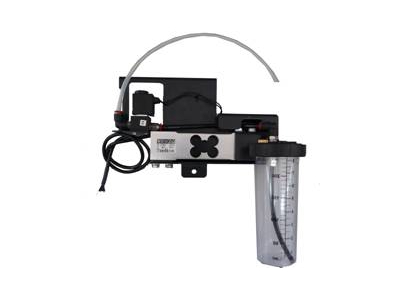

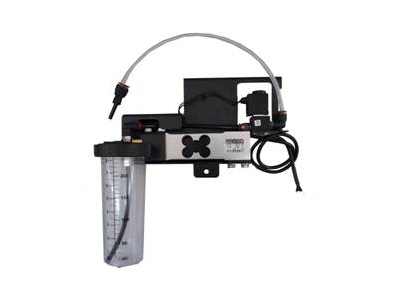

15.2	W052000094	SP-VESSEL3-KIT	all
15.3	W052000095	SP-VESSEL4-KIT	all
15.4	W052000039	SP-VALVE-SOLENOID-OPEN	all
15.5	W052000040	SP-VALVE-SOLENOID-COIL	all

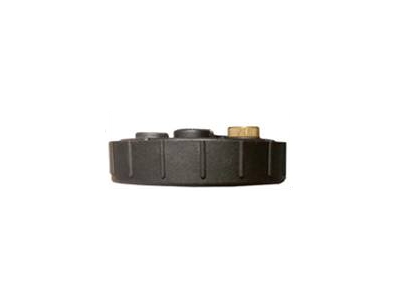

15.6	W052000096	SP-VESSEL-OIL-HOLDER	all

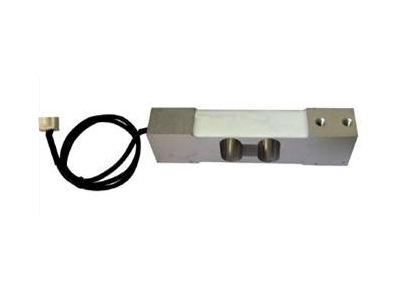

15.7	W052000097	SP-SCALE-OIL	all

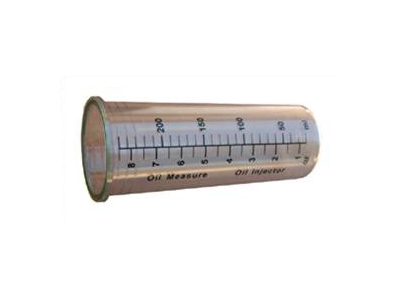

15.8	W052000098	SP-VESSEL-OIL-250ML	all

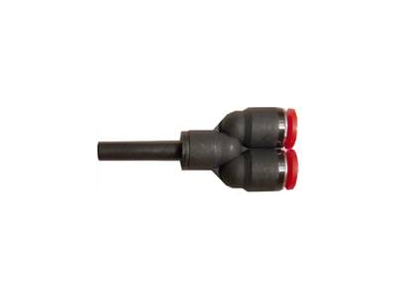

15.9	W052000099	SP-HOSE-CONNECTOR-Y	all

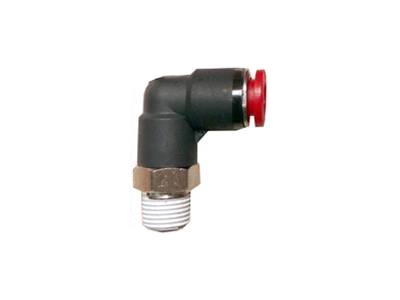

15.10	W052000100	SP-HOSE-CONNECTOR-ELBOW	all

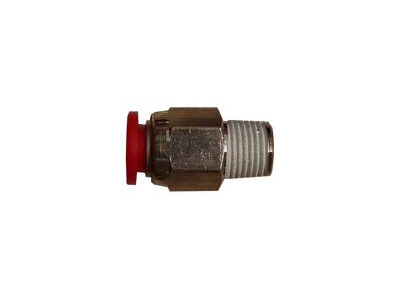

15.11	W052000101	SP-HOSE-CONNECTOR-DIRECT	all
