Coolius 20kg Data without handvalve (Art.no. 076497)
Notice:
Please note that some parts only exist in the exploded drawings but not in the spare parts table.
These parts can not be ordered separately!
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|
| 0900800610 | Maintenance kit | all |  | |

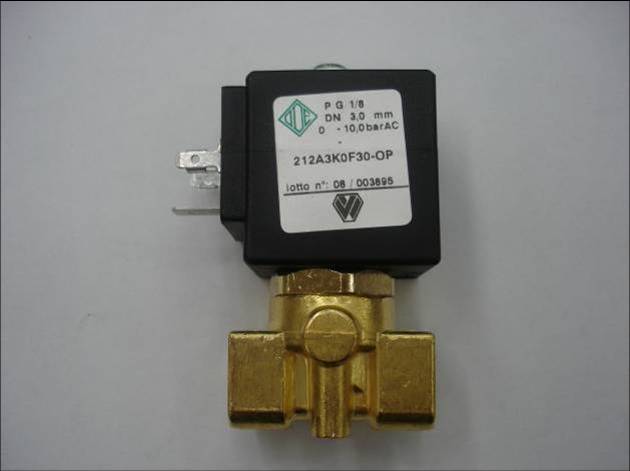

| 1 | 0707764007 | Solenoid valve | all |  |
| 2 | 0707764007 | Solenoid valve | all | |
| 3 | 0707764007 | Solenoid valve | all | |

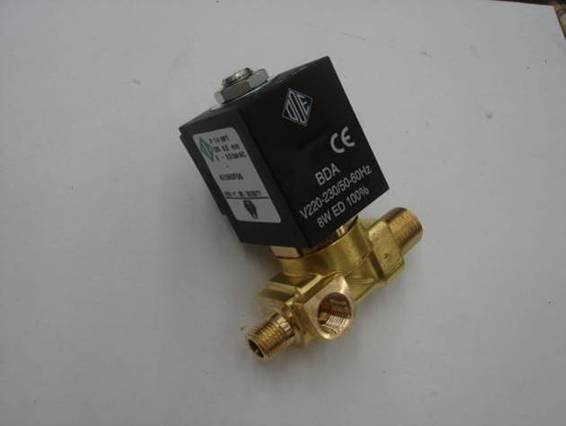

| 4 | 0707764203 | Solenoid valve | all |  |

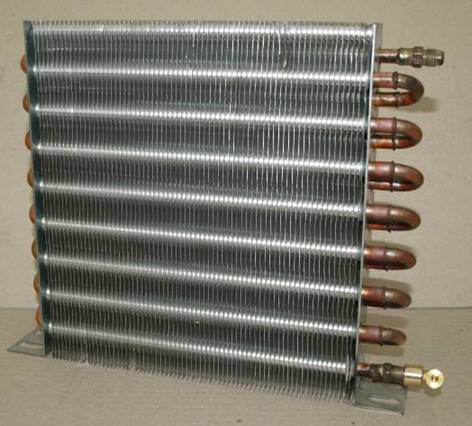

| 5 | 0707764204 | Condenser | all |  |

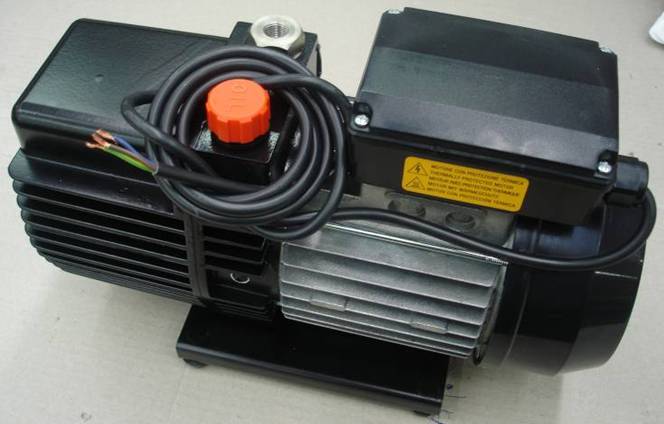

| 6 | 0707764205 | Vacuum pump | all |  |
| 7 | 0707764057 | Compressor | all |  |

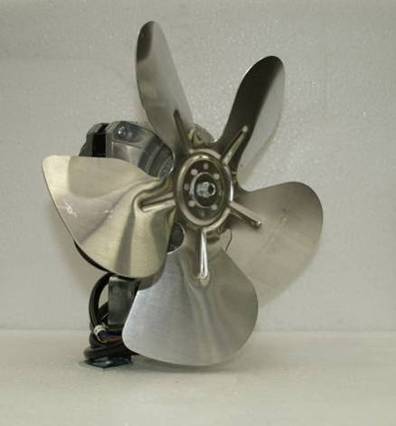

| 8 | 0707764058 | Fan | all |  |
| 10 | 0707764007 | Solenoid valve | all | |
| 13 | 0707764007 | Solenoid valve | all | |

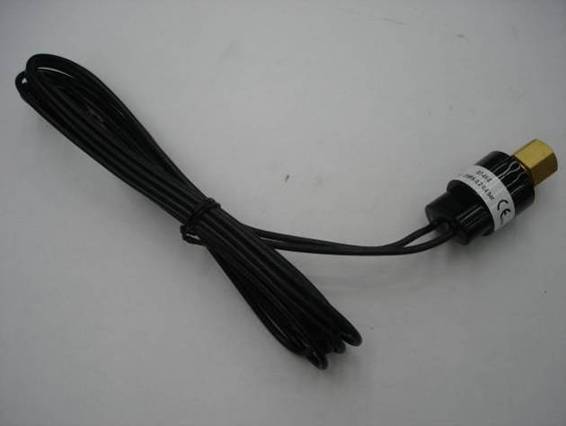

| 15 | 0707764046 | Pressure - vacuum switch | all |  |

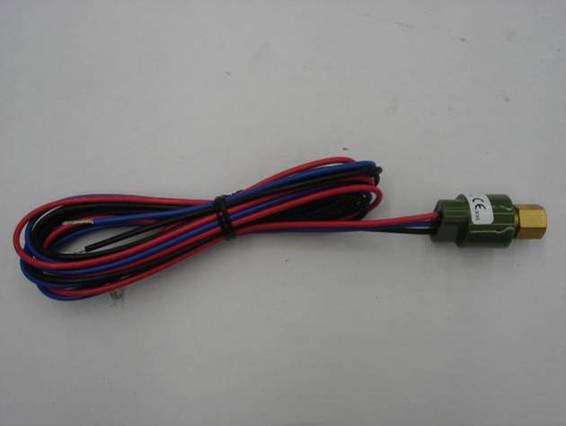

| 17 | 0900900603 | Safety switch | 0800422 - 0800425 / from 0800502 |  |

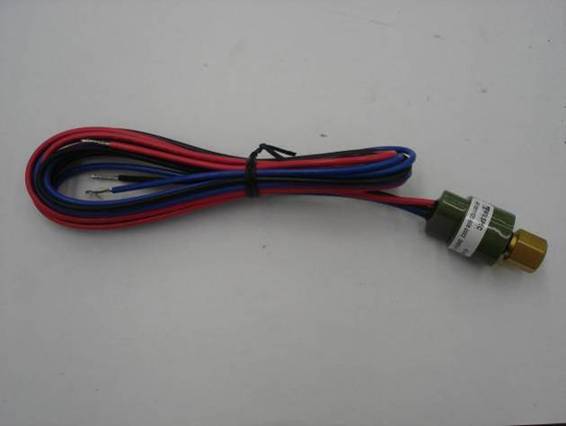

| 17 | 0707764206 | Safety switch | 0700001 - 0800501 |  |

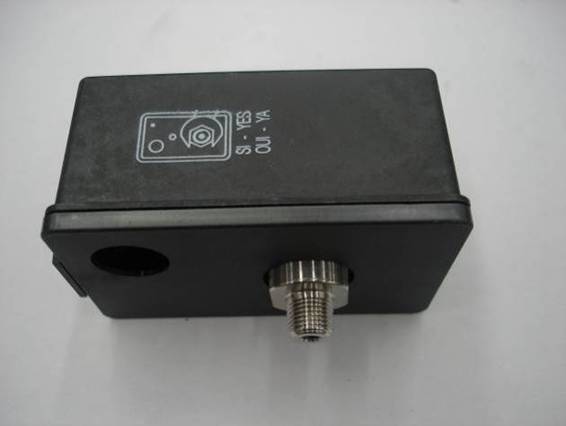

| 18 | 0707764014 | Safety switch vacuum | all |  |
| 19 | 0707764007 | Solenoid valve | all | |
| 20 | 0707764025 | Solenoid valve | all | |

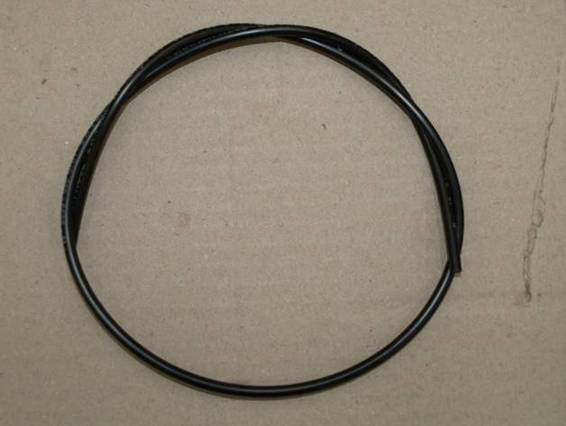

| 21 | 0707764219 | Capillary tube | all |  |

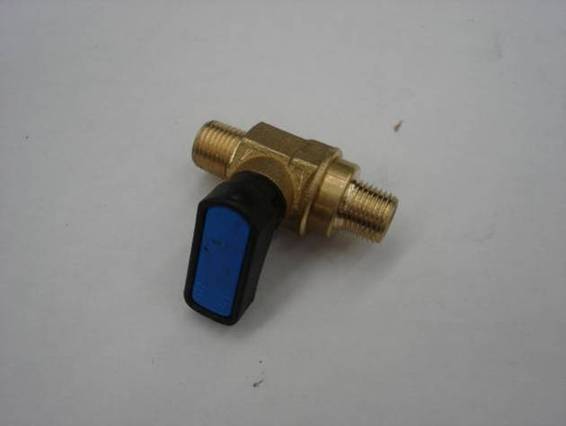

| 23 | 0707764208 | Valve on the bottle | all |  |

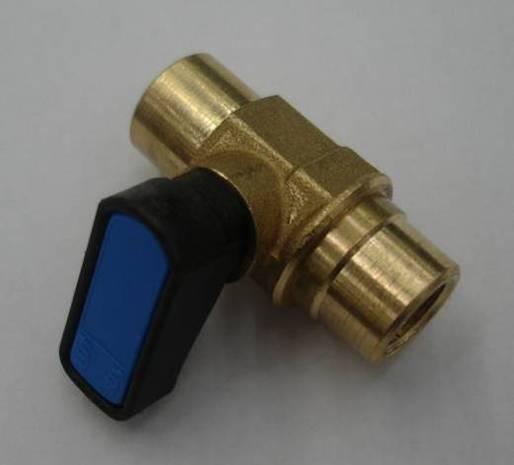

| 24 | 0707764001 | Bottle service valve | all |  |
| 25 | 0707764219 | Capillary tube | all | |

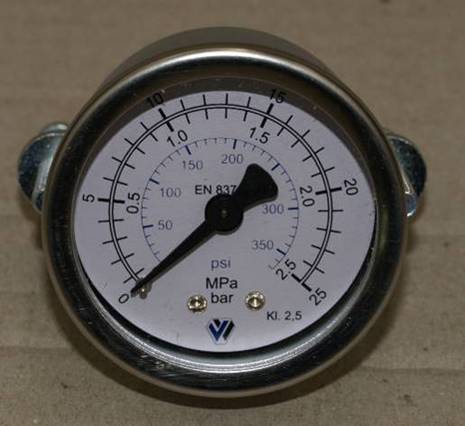

| 27 | 0707764210 | Bottle pressure gauge | all |  |
| 29 | 0707764219 | Capillary tube | all | |
| 31 | 0707764212 | Complete bottle | 0700001 - 0800501 |  |
| 31 | 0900900616 | Complete bottle | 0800422 - 0800425 / from 0800502 |  |
| 32 | W052200111 | Rotating wheel | all |  |

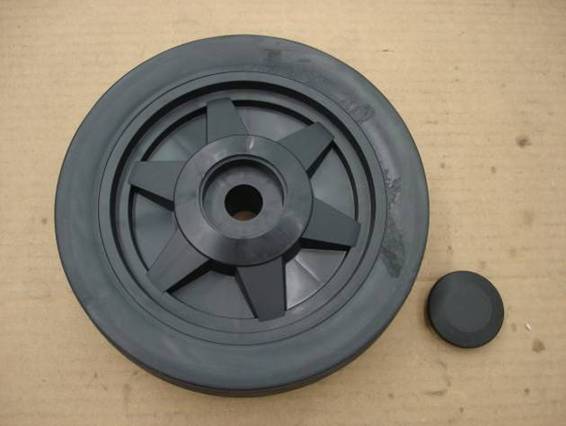

| 33 | 0707764214 | Wheel Ø 20 cm | all |  |
| 34 | 0707764219 | Capillary tube | all | |
| 35 | 0707764219 | Capillary tube | all | |

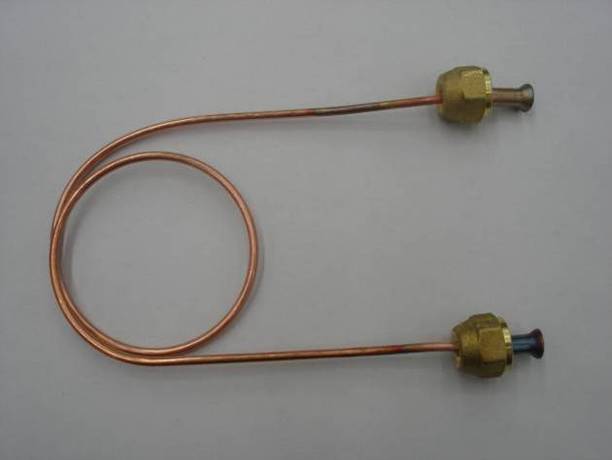

| 36 | 0707764002 | Capillary tube | all |  |

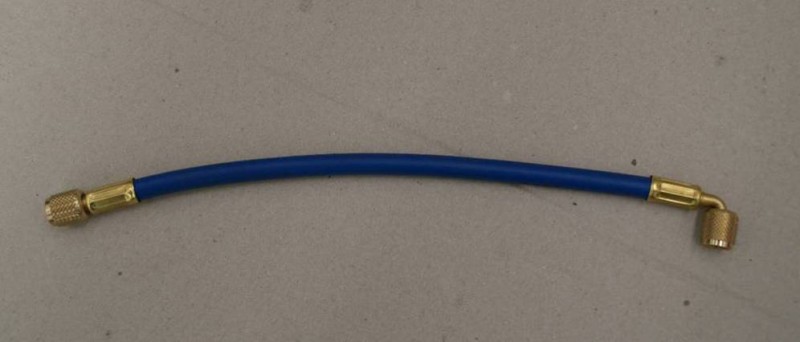

| 38 | 0707764218 | Distiller suction line hose | all |  |
| 39 | 0707764219 | Capillary tube | all | |

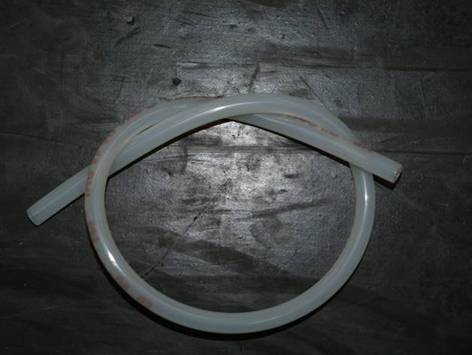

| 40 | 0707764220 | Vacuum hose | all |  |

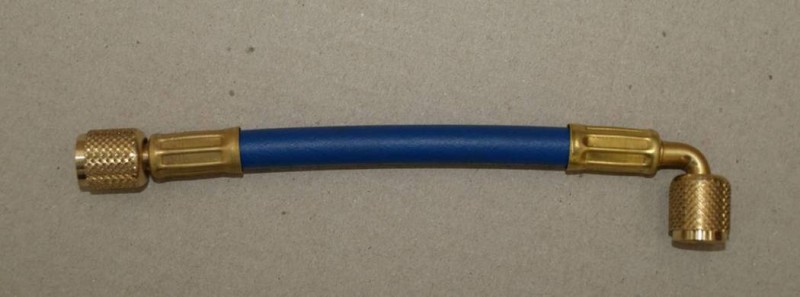

| 41 | 0707764221 | Compressor suction side hose | all |  |
| 42 | 0707764222 | Distiller suction hose | all |  |
| 43 | 0707764223 | Distiller / separator | 0700001 - 0800501 |  |

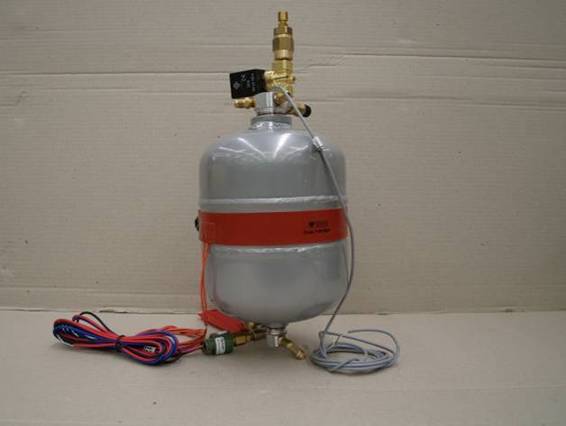

| 43 | 0900900615 | Distiller / separator | 0800422 - 0800425 / from 0800502 |  |

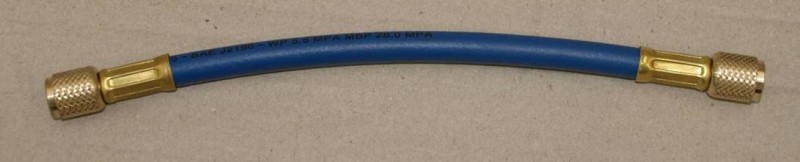

| 44 | 0707764224 | Filters hose | all |  |

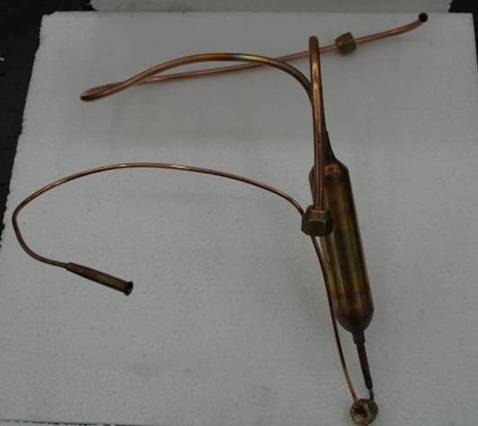

| 45 | 0707764225 | Compressor lubricant distiller | all |  |

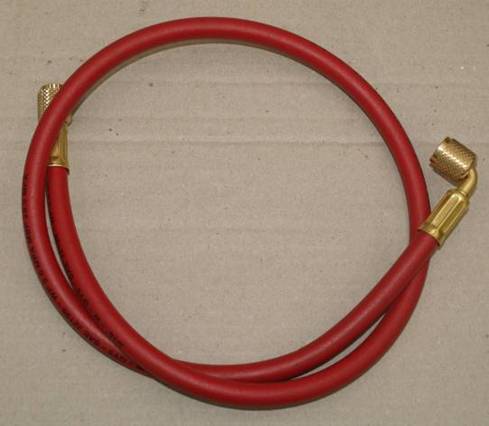

| 46 | 0707764226 | Connection hose Distiller / condenser | all |  |

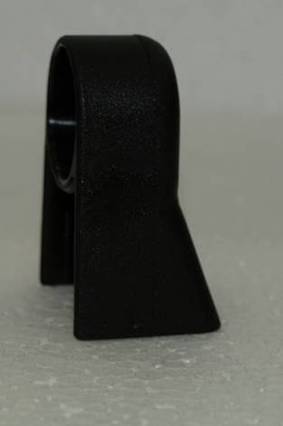

| 47 | 0707764227 | Handle support | all |  |
| 48 | W052200113 | Oil drain bottle incl. lid (black) | all |  |
| 49 | W052200113 | UV dosimeter incl. lid (black) | all | |
| 50 | W052200113 | Oil dosimeter incl. lid (black) | all | |
| 51 | 0900900643 | Heater switch | all |  |
| 52 | 0707764228 | High pressure hose 3000mm incl. adapter 0900900601 | all |  |
| 52 | W067000002 | High pressure hose 6000mm without adapter | all |  |
| 53 | 0707764229 | Low pressure hose 3000 mm incl. adapter 0900900601 | all |  |
| 53 | W067000003 | Low pressure hose 6000 mm without adapter | all |  |
| 0900900601 | Connection adapter for HP and LP hoses | all |  | |
| 0900901698 | Brass fitting | all |  | |
| 0900901699 | Brass fitting | all |  | |

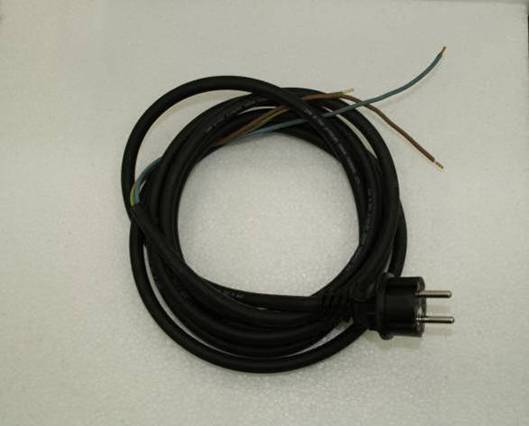

| 54 | 0707764230 | Power cable | all |  |

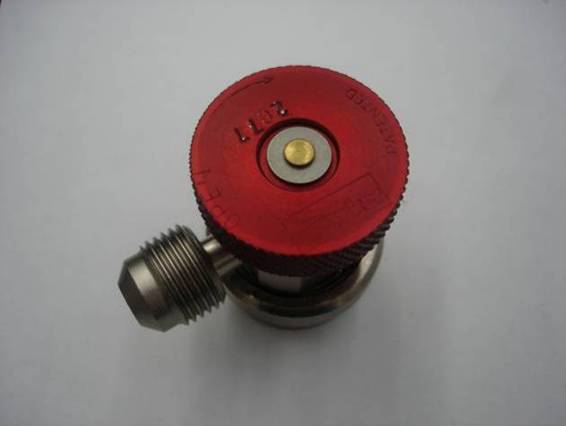

| 55 | 0707764019 | High quick coupler | all |  |

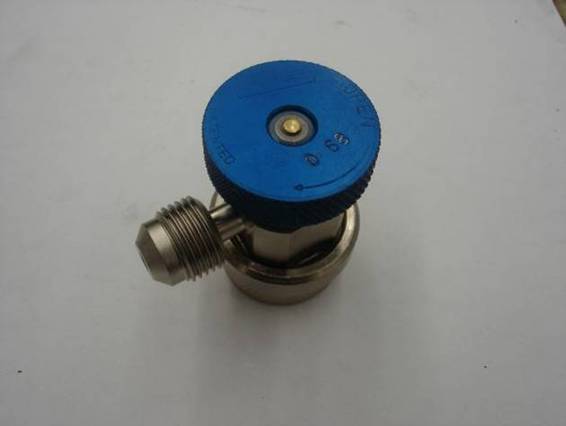

| 56 | 0707764020 | Low quick coupler | all |  |
| 57 | 0707764041 | Manual discharge valve on distiller | all |  |

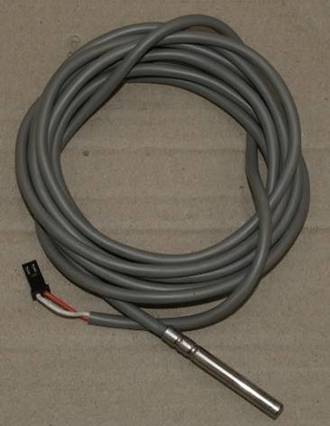

| 58 | 0707764231 no longer available | Temperature probe | all |  |
| 60 | no longer available | Board complete | all |  |

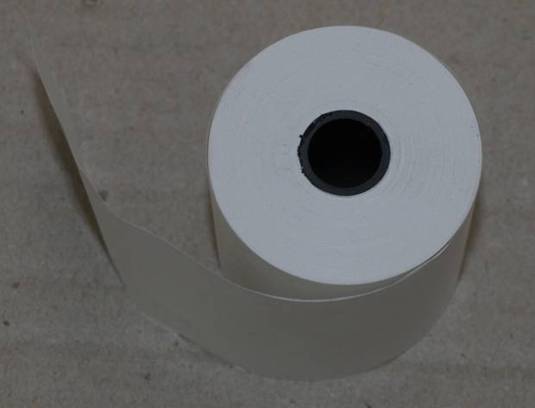

| 61 | 076495 002 | Paper roll-A/C-printer | all |  |
| 62 | 0707764238 | Black plastic basin | all |  |

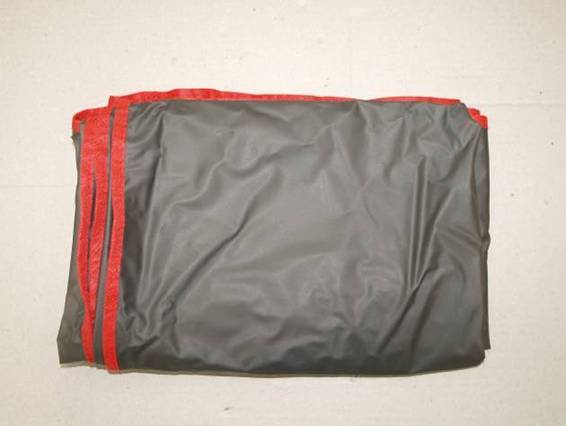

| 0707764239 no longer available | Protection cover | all |  | |
| 64 | no longer available | Electronic card power with frame | all | |

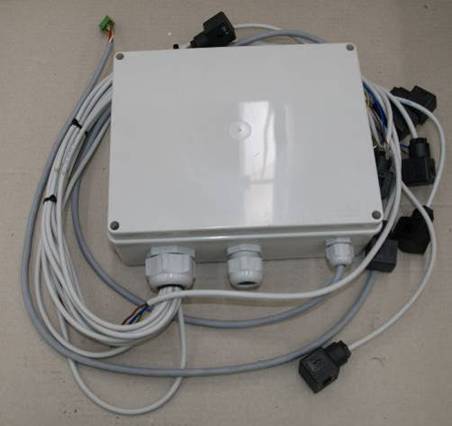

| 64 | 0900900619 | Electronic card power with frame old version | until 600660 |  |
| 65 | 0707764242 | Right panel | all |  |
| 66 | 0707764243 | Left panel | all |  |

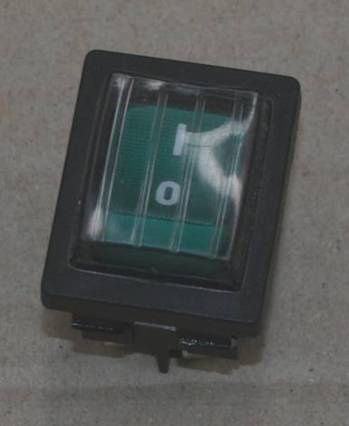

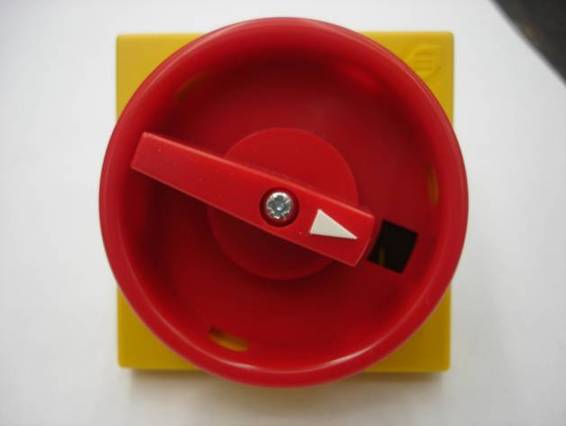

| 67 | 0707764008 | Main switch | all |  |

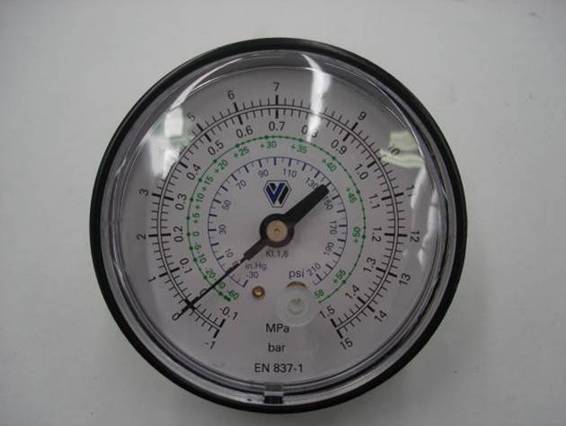

| 68 | W052200077 | Low pressure gauge | all |  |

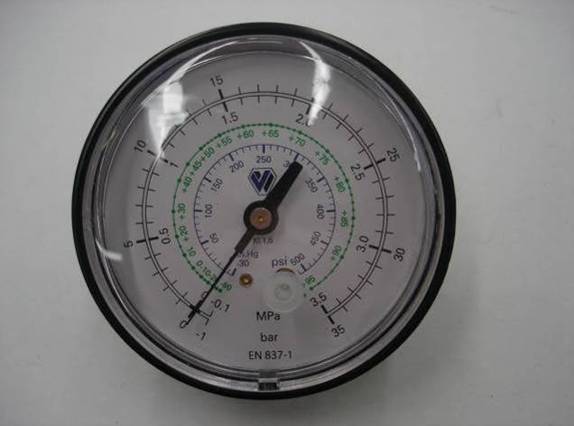

| 69 | W052200078 | High pressure gauge | all |  |

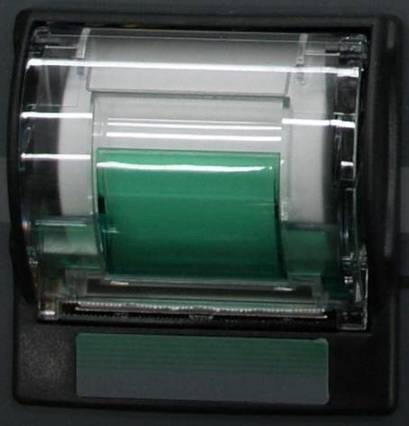

| 71 | no longer available | Printer | all |  |

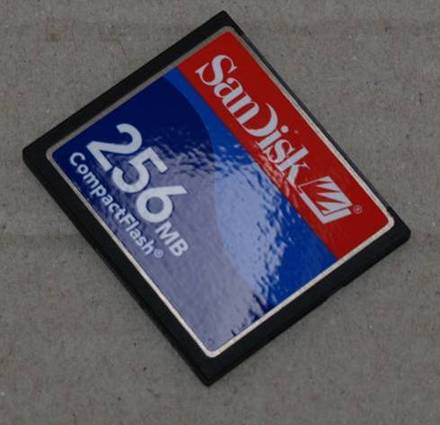

| 72 | 0707764241 | Memory card | all |  |
| 72 | no longer available | Update card | all | |

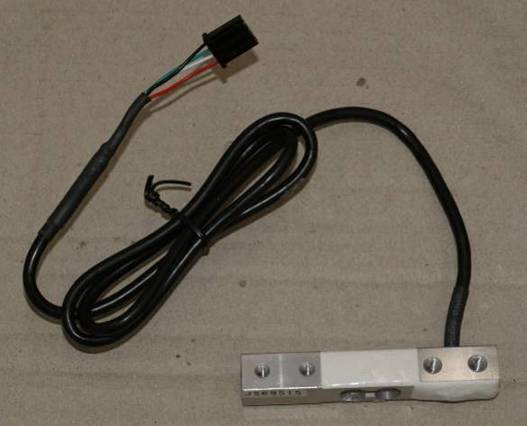

| 74 | 0707764232 | Oil load cell | all |  |
| 75 | 0707764232 | Oil drain load cell | all | |

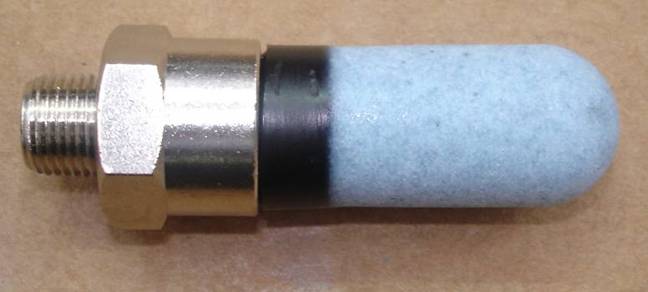

| 0900900605 | Discharge oil filter | from 0800422 |  | |
| 76 | 0707764034 | Heater on the bottle | all |  |
| 77 | 0707764232 | UV load cell | all | |
| 78 | not particular available | HP connection at bottle | all | |
| 79 | 0707764036 no longer available | Safety valve | 0700001 - 0800501 |  |

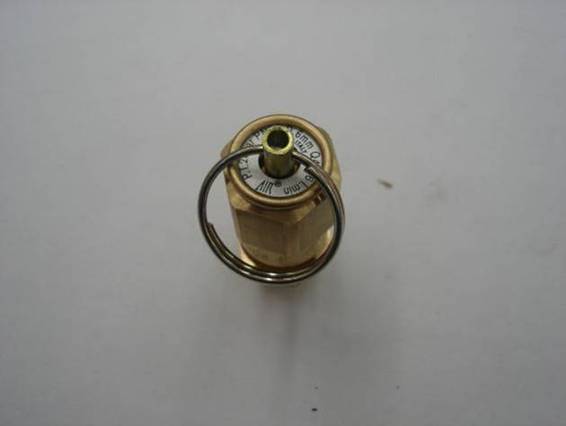

| 79 | 0900900613 | Safety valve | 0800422 - 0800425 / from 0800502 |  |

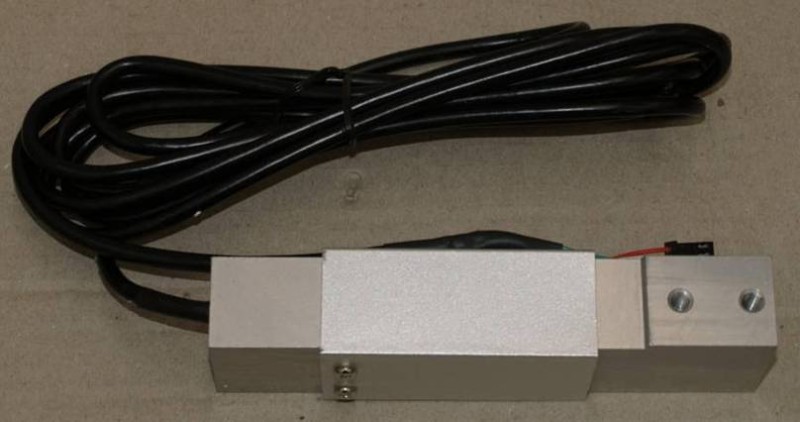

| 80 | 0707764235 | Refrigerant load cell | all |  |

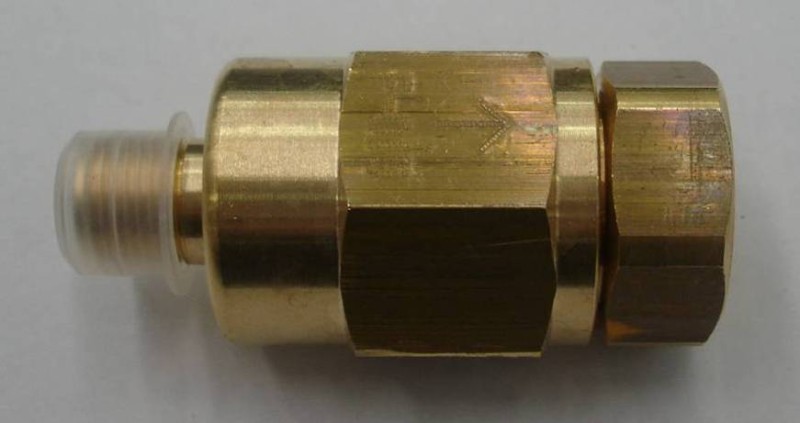

| 81 | 0707764006 | Check valve | all |  |
| 82 | 0707764006 | Check valve | all | |
| 83 | 0707764006 | Check valve | all | |
| 84 | 0707764006 | Check valve | all | |
| 85 | not particular available | LP connection on compressor | all | |
| 86 | 0707764006 | Check valve | all | |

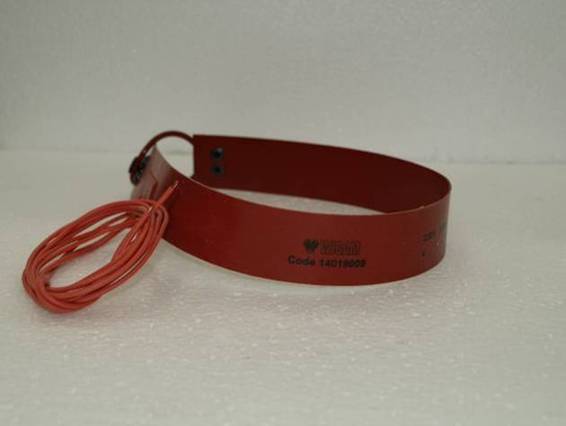

| 87 | 0707764236 | Heater on the distiller | all |  |
| 88 | 0707764006 | Check valve | all | |
| 90 | 0707764052 | Filter dryer | all |  |
| 91 | 0707764007 | Solenoid valve | all | |
| 92 | 0707764007 | Solenoid valve | all | |
| 93 | 0707764219 | Capillary tube | all | |
| 94 | 0707764219 | Capillary tube | all | |
| 95 | 0707764052 | Filter dryer | all | |
| 96 | 0707764219 | Capillary tube | from 0800422 | |
| 97 | 0707764036 no longer available | Safety valve | 0800422 - 0800501 | |
| 97 | 0900900613 | Safety valve | 0800422 - 0800425 / from 0800502 | |

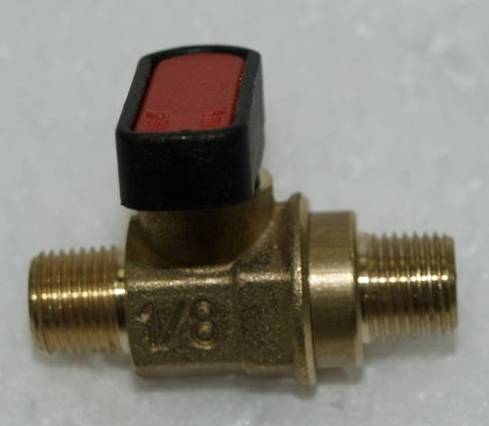

| 100 | 0707764258 | Valve on the refrigerant bottle in charging line | 0800422 - 0800425 / from 0800502 |  |

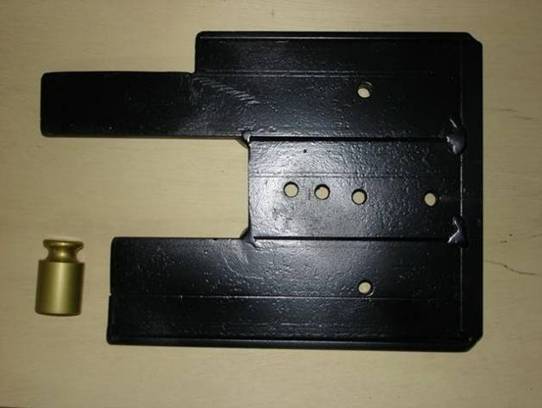

| 0900800606 | Calibration load cells kit | all |  | |
| no longer available | Pressure switches check kit | all |  | |

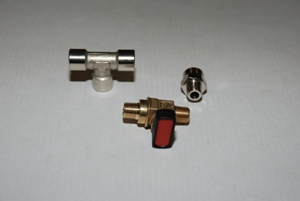

| 0900900600 | Kit 2nd valve on the refrigerant bottle | all |  | |

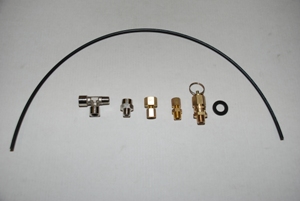

| 0900900606 | Kit not condensable gas purging 21 bar | all |  | |
| 0900900607 | Spring for heater | all | ||

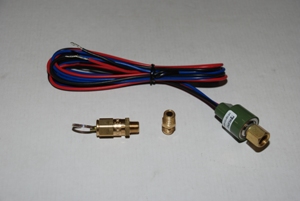

| 0900900690 | Kit 20 bar x 20 KG-DATA | all |  | |

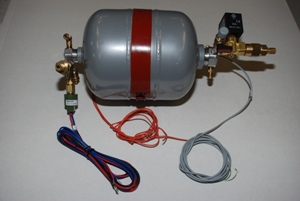

| 0900900691 | Kit 20 bar x 20 KG-DATA incl. distiller | all |  | |

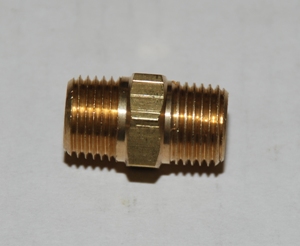

| 102 | 0900901694 | Brass fitting | all |  |

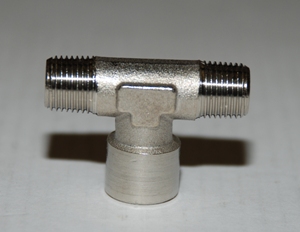

| 103 | 0900901693 | Brass fitting | all |  |

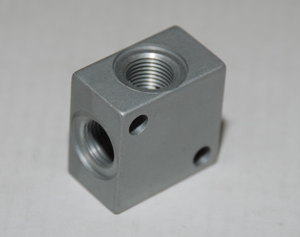

| 104 | 0900901695 | AL-block | all |  |
