Coolius 7kg mobil (Art.no. 076498)

Notice:

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

To maintenance parts To maintenance parts



Service unit parts

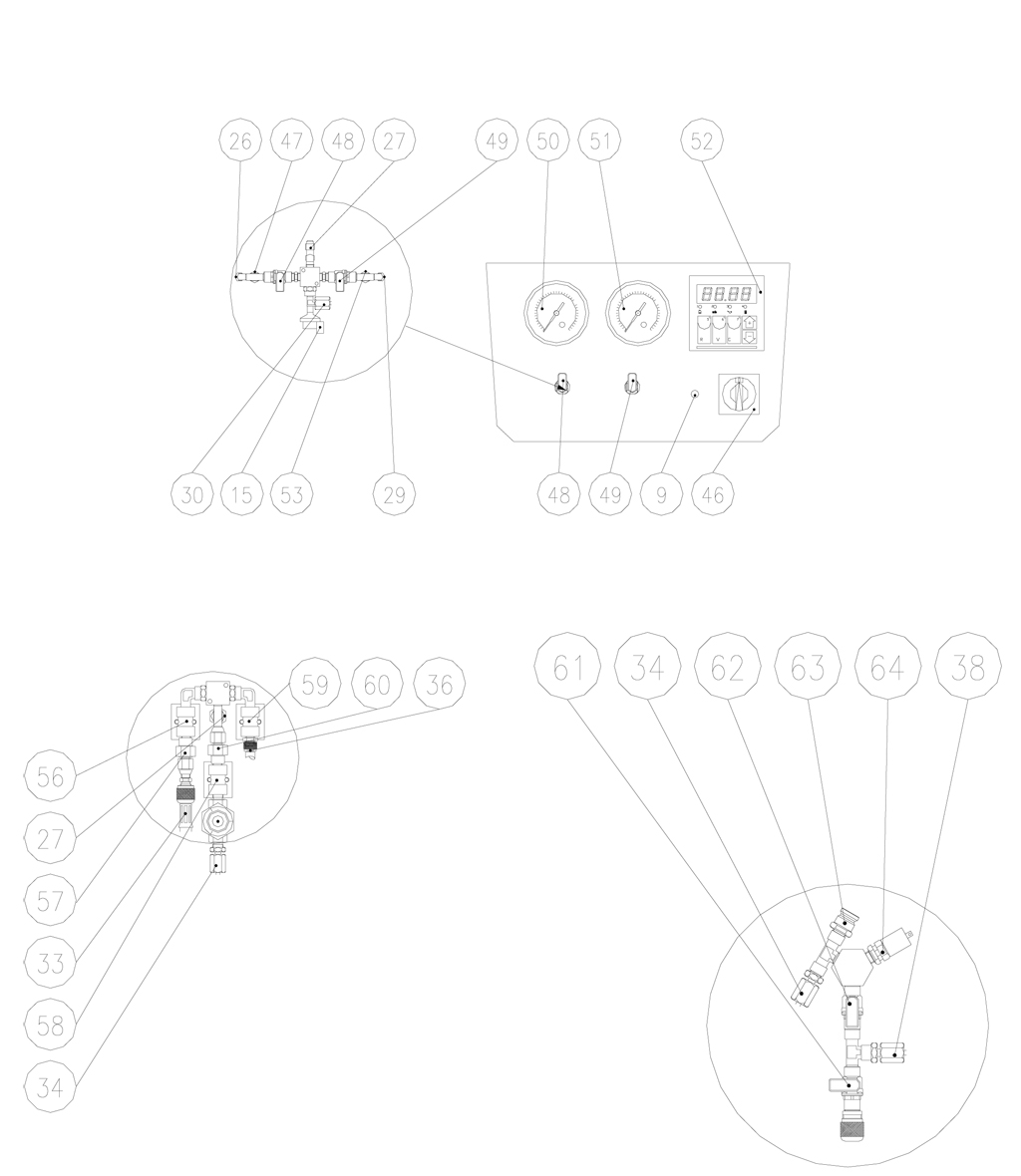

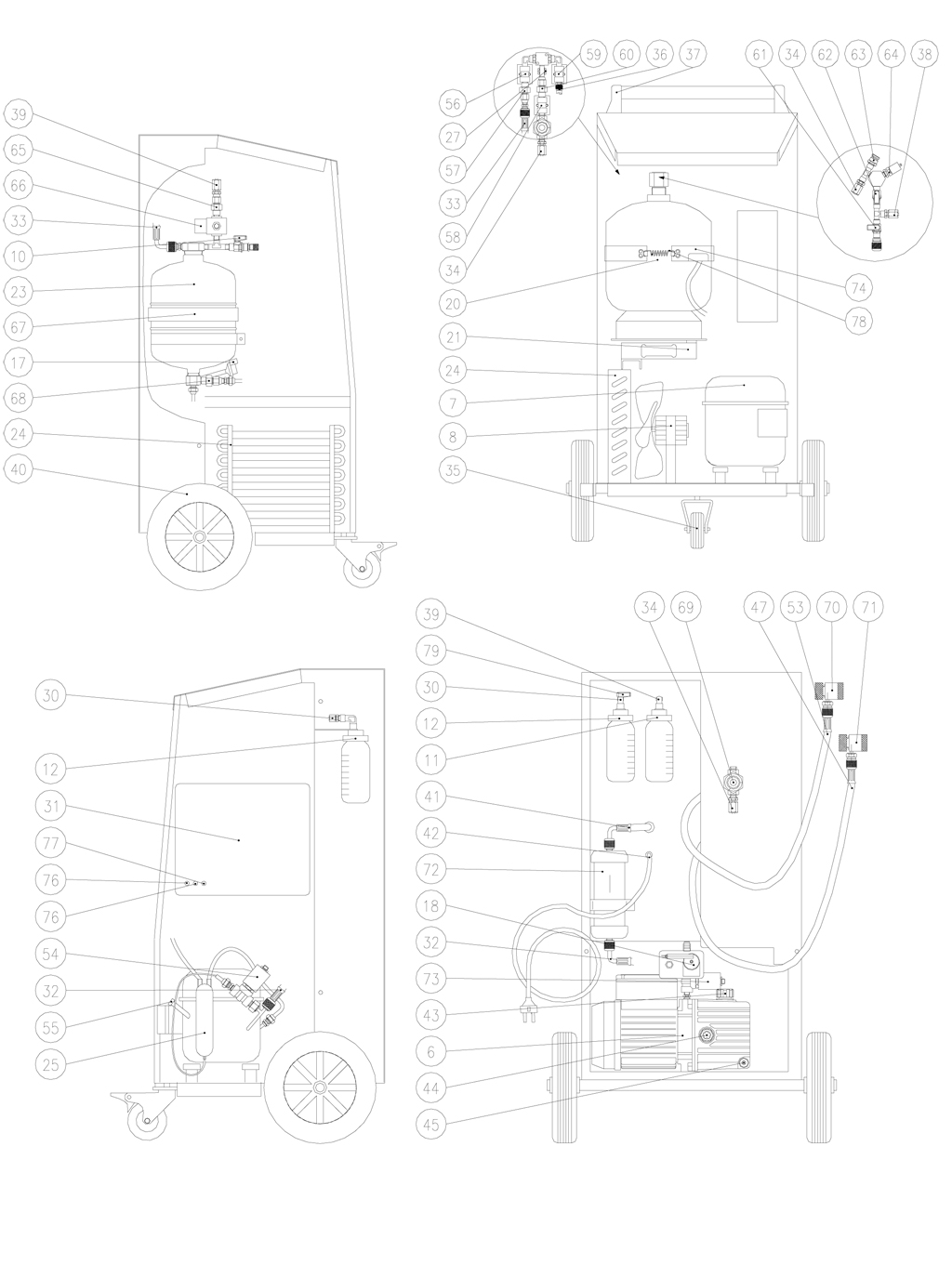

Full view exploded drawing

Click to enlarge

Full view

Click to enlarge

PosArticle No.DesignationSerial-No.Picture
60707764259Vacuum pumpall
70900900618Compressorall
80707764058Fanall
90707764011Red lightall
100707764001Valve 1/8" x 1/8"all

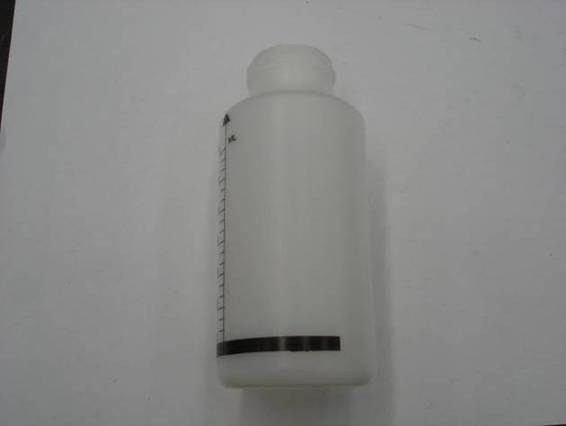

11W052200113Oil drain bottle incl. lid (black)all
12W052200113Oil charge bottle incl. lid (black)all
 0900900605Complete discharge oil filterfrom 800790

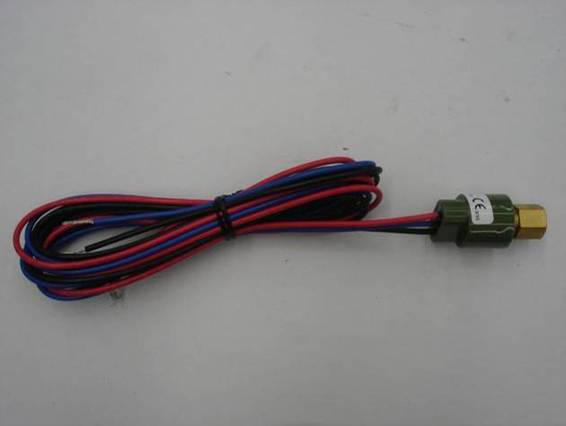

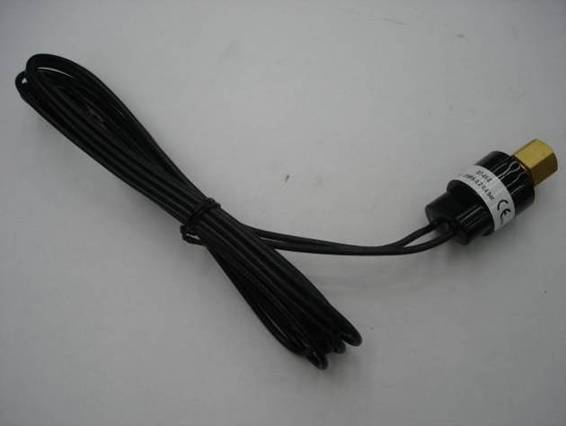

150707764046Pressure - vacuum switchall
170900900603Safety switchfrom 800790
170707764206Safety switch600100 - 800789
180707764014Safety switch - vacuumall
200707764260Complete bottle600100- 800789
200900900614Complete bottlefrom 800790
210707764072Refrigerant load cellall

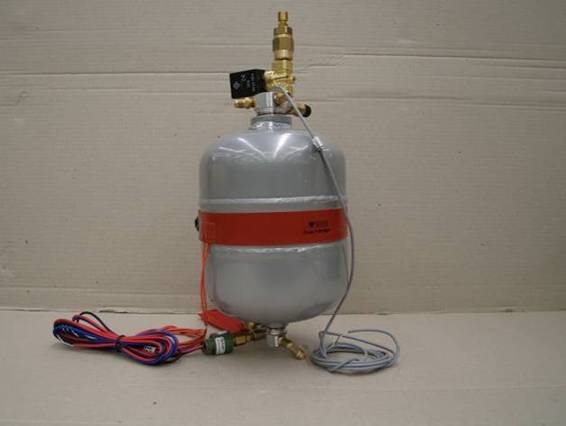

230707764261Distiller / separator600100 - 800789
230900900617Distiller completefrom 800790
240707764262Condenserall

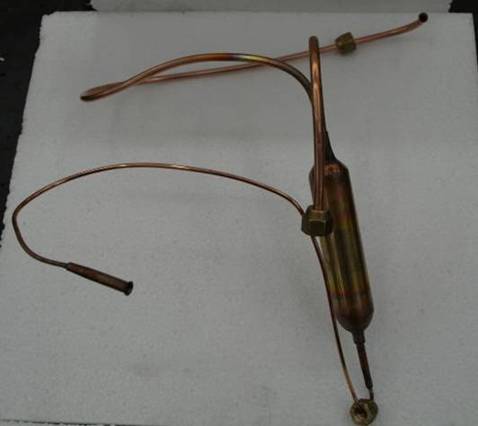

250707764225Compressor oil distillerall

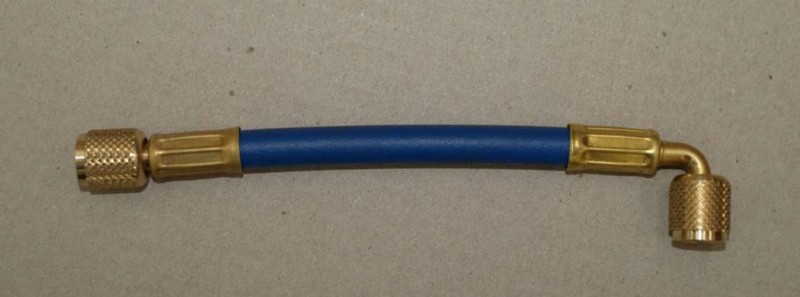

260707764270Connection hose manifold
- LP gauge		all

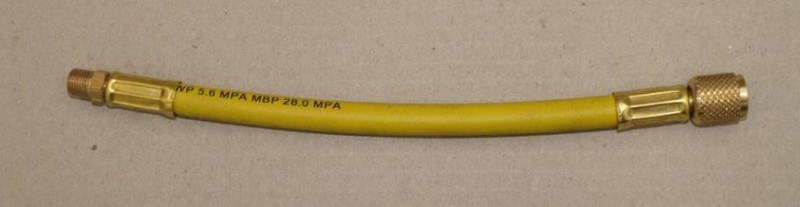

270707764264Connection hose valve assembly-manifoldall
280707764002Capillary hose for
pressure / vacuum switch		600100 - 600349
290707764270Connection hose manifold
- HP gauge		all
300707764270Oil injection hoseall
310707764009
no longer available!		Caseall
320707764267Compressor suction side hoseall

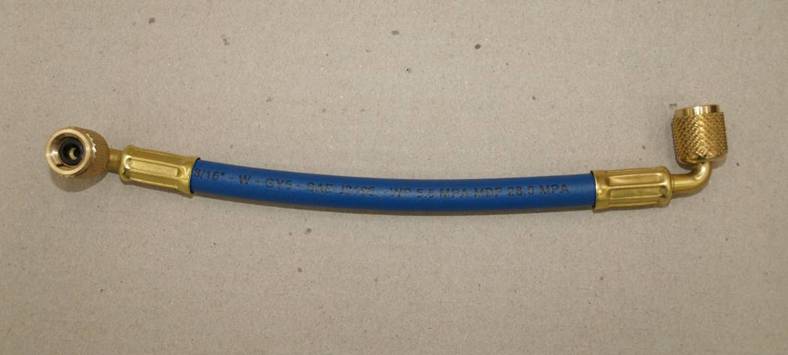

330707764268Connection hose valve assembly - distiller suctionall
340707764270Connection hose valve assembly - refrigerant bottleall
35W052200111Rotating wheelall

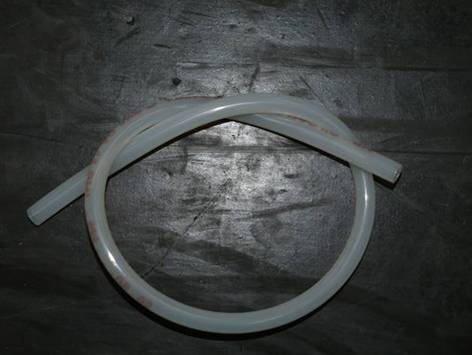

3607077640220Connection hose vacuum pumpall

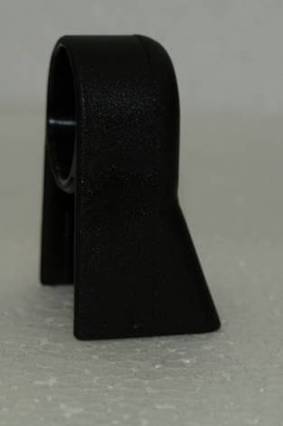

370707764227Handle supportall

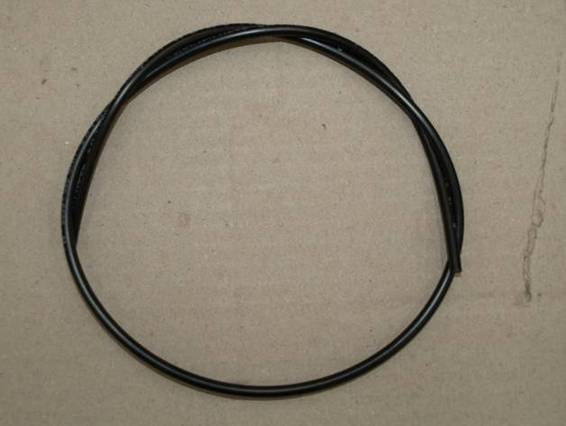

380707764270Connection hose
condenser - refrigerant bottle		all
390707764270Oil discharge tubeall
400707764214Wheel Ø 20cmall

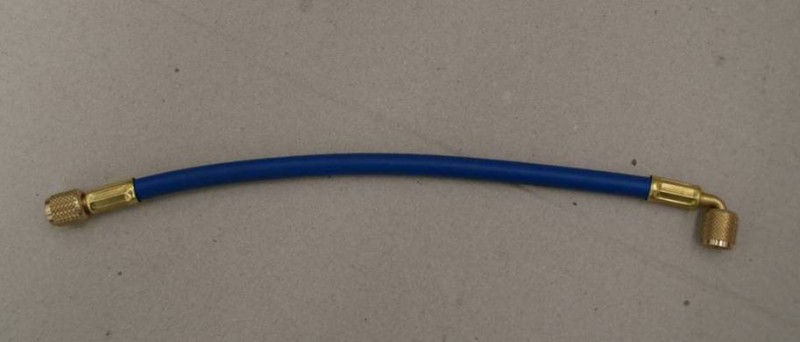

410707764272Connection hose
distiller - filter		all

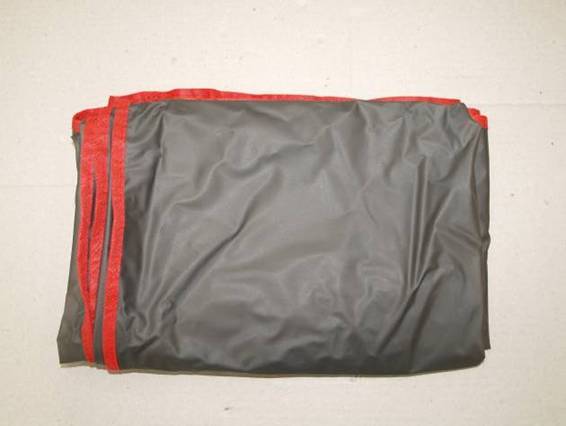

 no longer available!Protection coverall
420707764230Power cableall

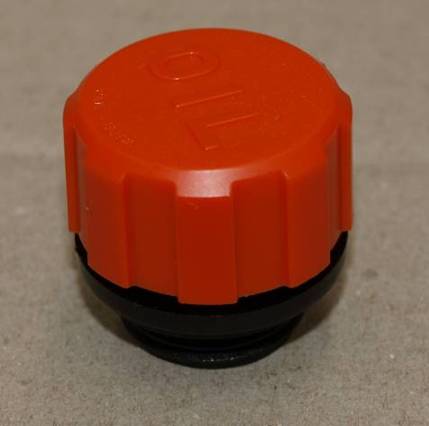

430900900611Oil venting cap vacuum pumpall

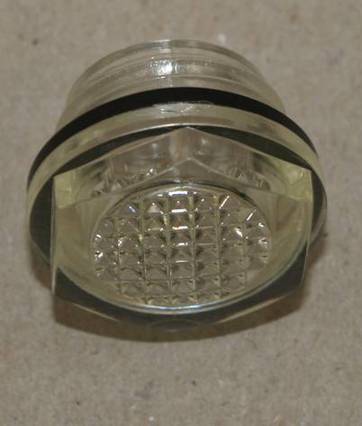

440900900612Oil sight glass vacuum pumpall

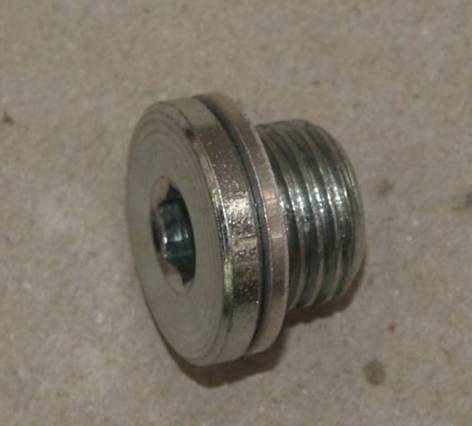

450900900610Oil drain cap vacuum pumpall
460707764008Main switchall

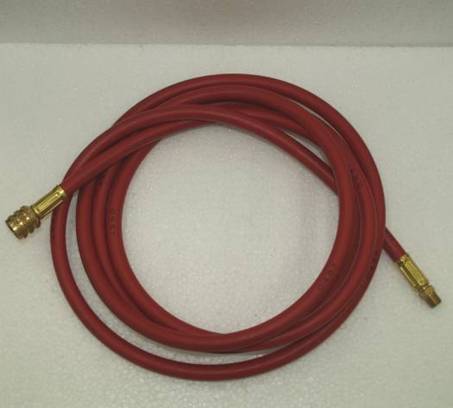

470707764228Hose 3000 mm
incl. adapter 0900900601		all
47W067000002Hose 6000 mm
without adapter		all
 0900900601Connection adapter for HP and LP hosesall
480707764001Valve 1/8" NPTf x 1/8" NPTfall
490707764001Valve 1/8" NPTf x 1/8" NPTfall
50W052200077Low pressure gaugeall
51W052200078High pressure gaugeall
520707764010
no longer available!		Electronic moduleall
520707764251WIG1 front panelall
520707764252Gasket for WIG1 moduleall

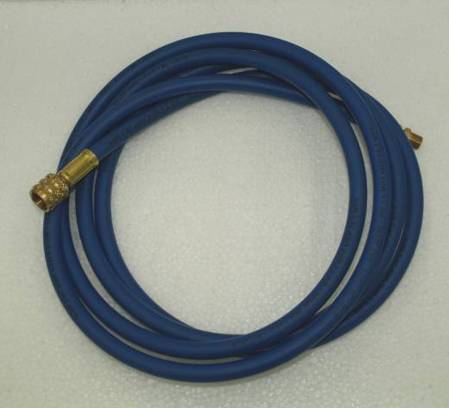

530707764229Hose 3000 mm
incl. adapter 0900900601		all
53W067000003Hose 6000 mm
without adapter		all
 0900900601Connection adapter for HP
and LP hoses		all

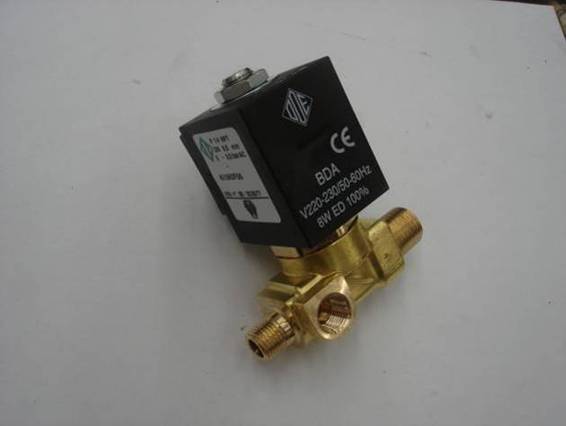

540707764025Solenoid valveall
55noneLP connection compressorall

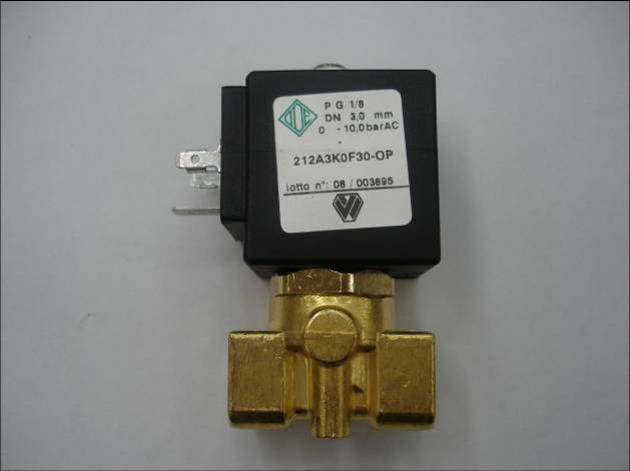

560707764007Solenoid valveall

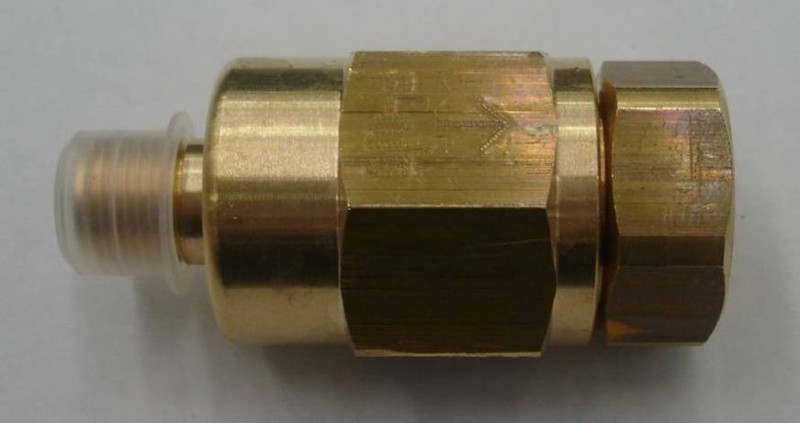

570707764006Check valveall
580707764007Solenoid valveall
590707764007Solenoid valveall
600707764006Check valveall
610707764258Valve red 1/8" NPTm x 1/8" NPTm ISO7all

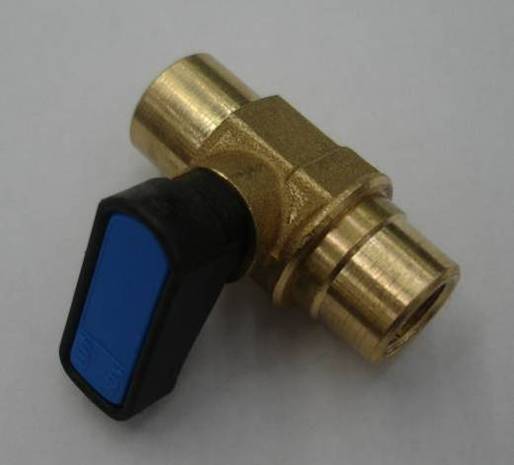

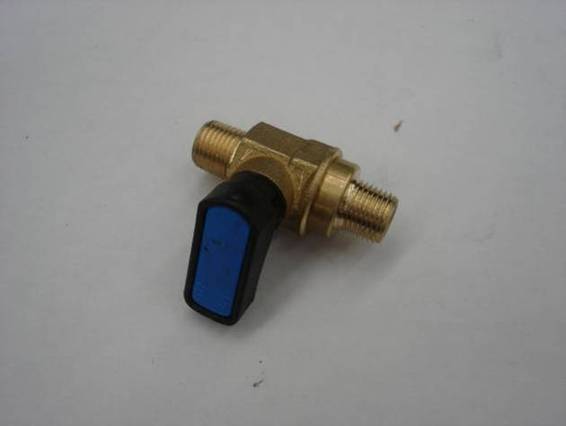

620707764208Valve blue
1/8" NPT x 1/8" NPT		all
63noneHP connection bottle

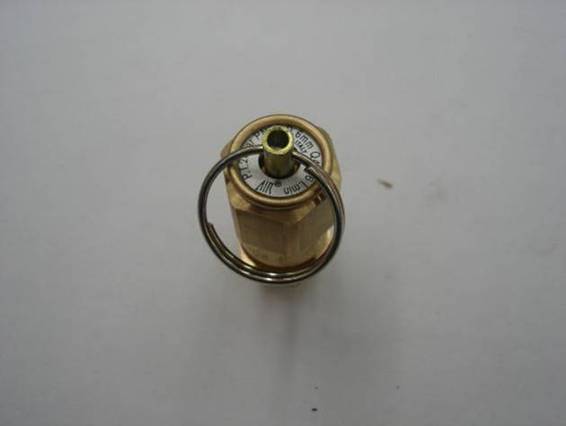

640707764036
no longer available!		Check valve600100 - 800789
640900900613Check valvefrom 800790
650707764006Check valveall
660707764007Solenoid valveall
670707764031Heater on the distillerall
680707764006Check valveall
690900900604Moisture indicatorall
700707764020LP quick couplerall
710707764019HP quick couplerall
720707764052Filter dryerall
730707764203Solenoid valveall
740707764253Heater on the bottleall
760707764060Fuse 10 Aall
760900900609
no longer available!		Fuse protectionall
770707764061Fuse 5 Aall

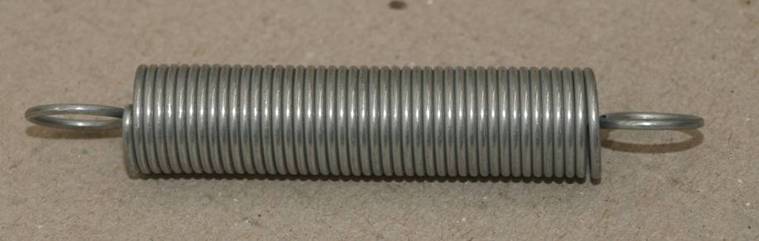

780900900607Spring for heaterall
790707764001Valve 1/8" NPTf x 1/8" NPTfall

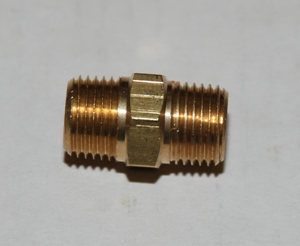

1020900901694Brass fittingall
1030900901693Brass fittingall

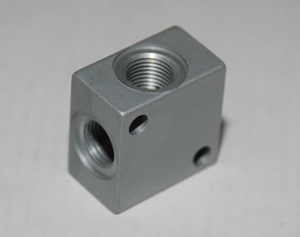

1040900901695AL-blockall

Maintenance parts

PosArticle No.DesignationSerial-No.Picture

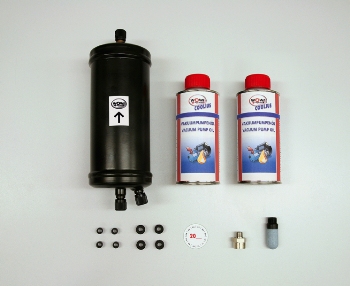

 0900800609Maintenance kitall
 0707764052Filter dryerall
 0900900605Discharge oil filterall
 W052200123Seal 3/8"all
 W052200122Seal 1/4"all
 W052200279Seal screw1 incl. seal ringall
 W052200280Seal screw2all
 W052200281Seal ringall
 0892764300Wurth vacuum pump oil ISO 12 - 2 pcs to order!all
​ ​
