WTM 300

Selection of subassembly
Body
Arms horizontal and vertical
4 Pedals box
Bead breaker
Mounting Tools
Self-Centering turntable 20" GT
Motor-Reduction Gear Group
GT Inflating Device

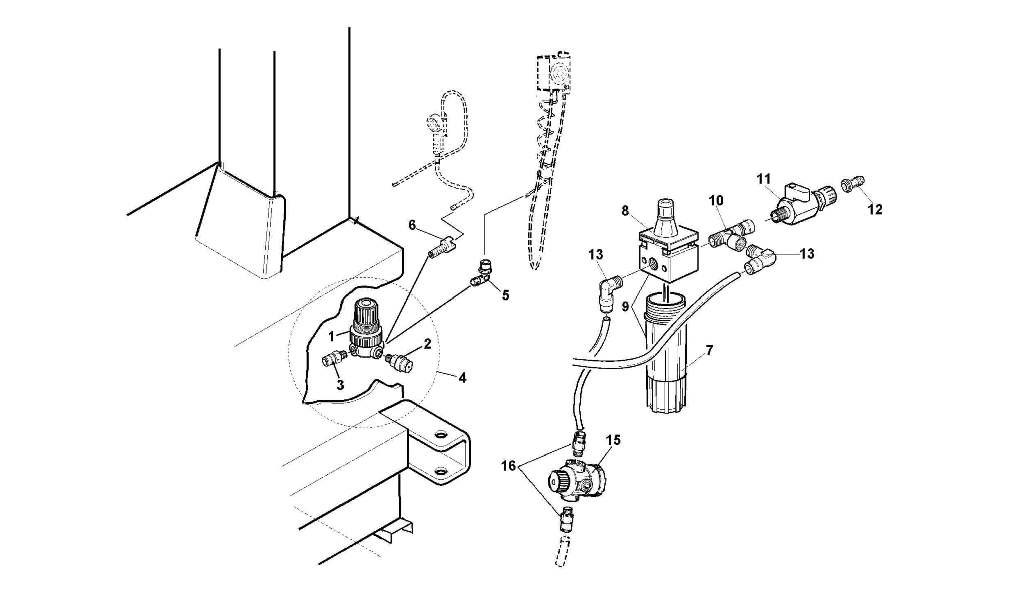

Air Lubrication Group

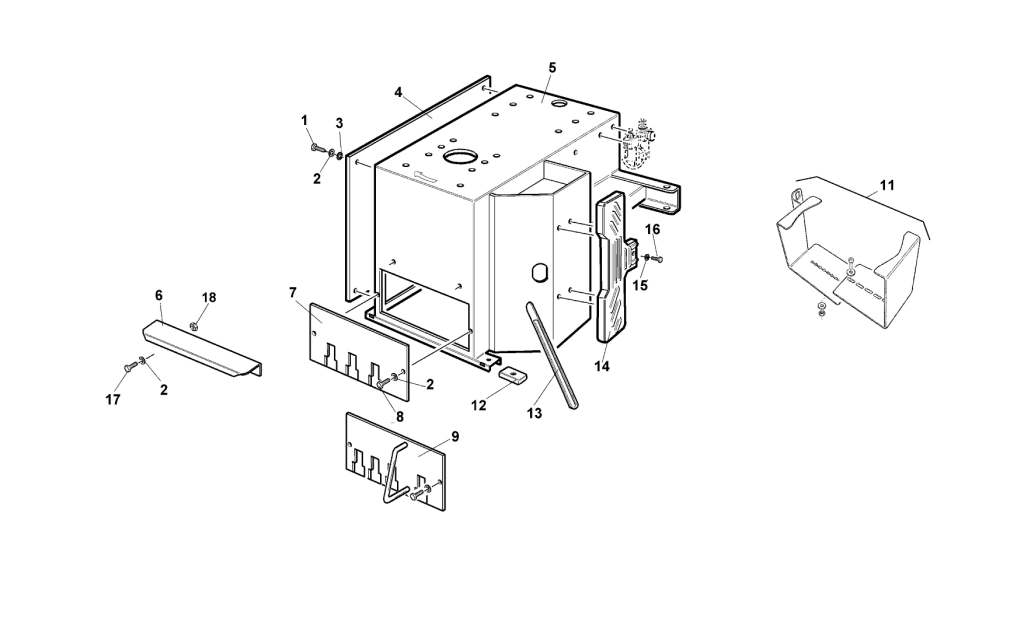

Body

Notice:

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

click to enlarge

Pos	Article No.	Designation	Serial-No
1		SCREW-SELFTAPPING-6,3X16	all
2		WASHER-DIN125-6	all
3	W342600753	WASHER-ZAHN-6,4X11X0,7	all
4	W342600082	CYLINDER-LOCK	all
5	W342600866	FRAME	all
6	W342600880	COVER-PEDAL	all
7	W342600879	BRACKET-PEDAL	all
8		SCREW-M6X12	all
9	W342600883	BRACKET-PEDAL	all
10	W342600609	BOX	all
11	W342600068	BRACKET-LUBRICATION	all
12	W342600159	Foot	all
13	W342600205	LEVER-PRESSURE	all
14	W342600160	BRACKET-WHEEL	all
15		WASHER-DIN125-6	all
16		SCREW-M6X25	all
17		SCREW-M6X20	all
18		NUT-DIN934-M6	all

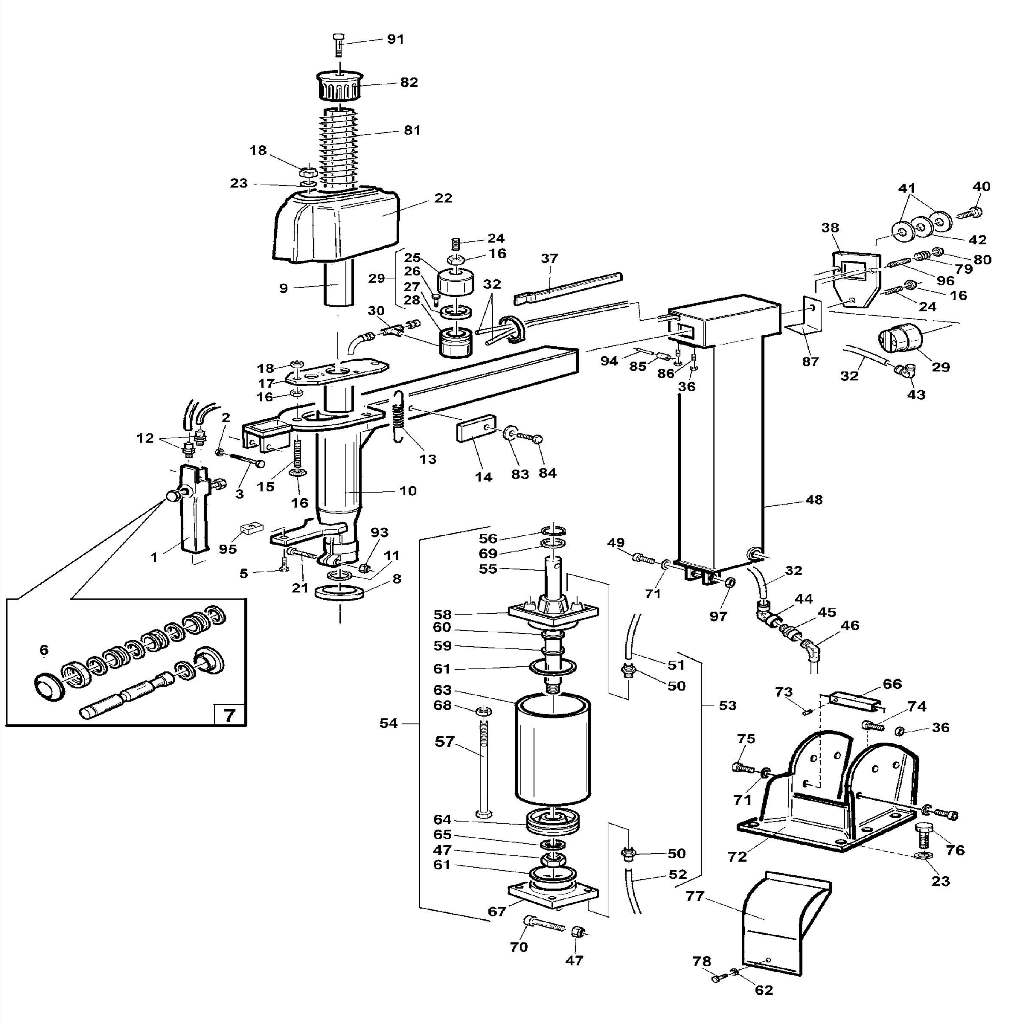

Arms horizontal and vertical

Notice:

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

click to enlarge

Pos	Article No.	Designation	Serial No.

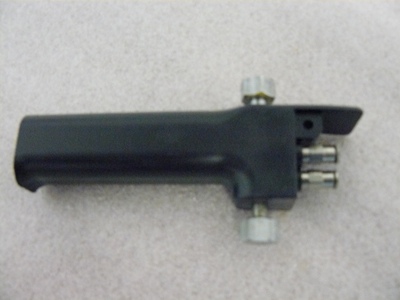

1	W342600033	CONTROL-ROBOT	all
2		NUT-DIN985-M4	all
3		SCREW-M4X35	all
5		SCREW-M6X20	all
6	W342600260	CAP-SEAL	all
7	W342600018	KIT-ARMCONTROL	all
8	W342600181	ABSORBER-INSTALLATION-WZ	all

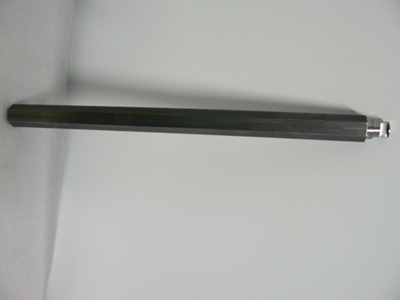

9	W342600253	ROD-HEXAGON-41-L723	all

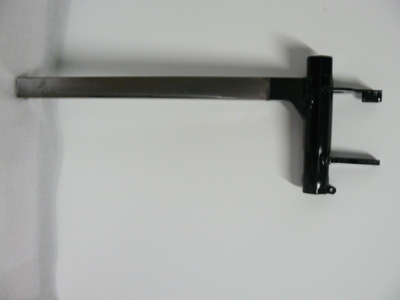

10	W342600882	ARM-HORIZONTAL	all
11		SHIM-35X45X1,5	all
12	W342600506	CLUTCH-1/8IN	all
13	W342600170	SPRING	all
14	W342600211	ABSORBER	all
15	W342600257	ROD-M10X120	all
16		NUT-DIN934-M10	all
17	W342600191	COVER-ARM	all
18		NUT-DIN985-M10	all
22	W342600254	BRACKET-ARM	all
23		WASHER-DIN125-10	all
24	W342600695		all
25	W342600603	HOUSING-CYLINDER-D60	all
26		SCREW-M6X35	all
27	W342600601	O-RING	all
28	W342600602	PISTON-D60	all
29	W342600081	CYLINDER-LOCK	all
30	W342600503	CLUTCH-1/8IN	all
31	W342600215	TUBE-4X2-L220	all
32	W342600214	TUBE-4X2,7-L2200	all
36		NUT-DIN934-M8	all
37	W342600182	GUIDANCE	all
38	W342600282	CLAMP	all
40		SCREW-M8X20	all
41	W342600800		all
42		WASHER	all
43	W342600504	CLUTCH-1/8IN	all
44	W342600500	CLUTCH-1/8IN	all

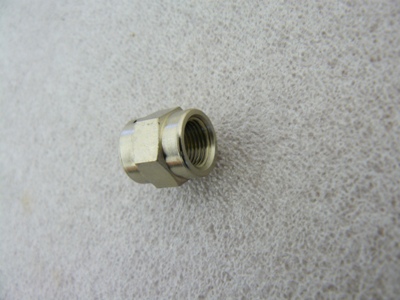

45	W342600499		all
46	W342600538	CLUTCH-QUICK-1/8IN	all
47		NUT-DIN985-M12	all

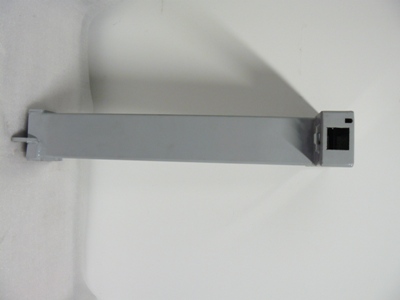

48	W342600855	ARM-VERTICAL	all
49	W342600146	PIN-M12X50	all
50	W342600537	CLUTCH-QUICK-1/8IN	all
51	W342600143	TUBE-6X4-L840	all
52	W342600144	TUBE-6X4-L1200	all
53	W342600014	CYLINDER-PIVOT	all
54	W342600007	CYLINDER-PIVOT	all
55	W342600183	ROD-CYLINDER-L309	all
56	W342600468	RING-DIN471-30	all
57		SCREW-M8X160	all
58	W342600173	FLANGE	all
59	W342600469	RING-GUMMI	all
60	W342600594	GUIDANCE-NYLON	all
61	W342600593	O-RING-D68,26X3,53	all
62	W342600269	WASHER-ARM	all
63	W342600218	HOUSING-CYLINDER-20IN-L135	all
64	W342600526	PISTON-D75	all
65		WASHER-D12,5X30X3	all
66	W342600252	SPACER	all
67	W342600172	FLANGE	all
68		NUT-M8	all
69	W342600687		all
70		SCREW-M12X110	all
71		WASHER-DIN125-12	all
72	W342600881	BRACKET-ARM	all
73	W342600698		all
74		SCREW-M8X16	all
75	W342600660		all
76		SCREW-M10X60	all
77	W342600256	COVER-FRONT	all
78	W342600713		all

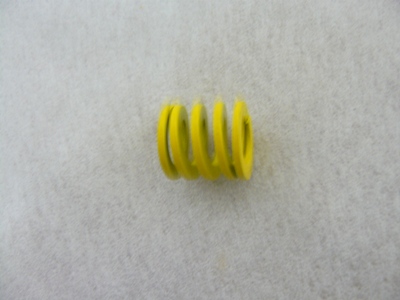

79	W342600297	SPRING	all
80		NUT-DIN985-M12	all

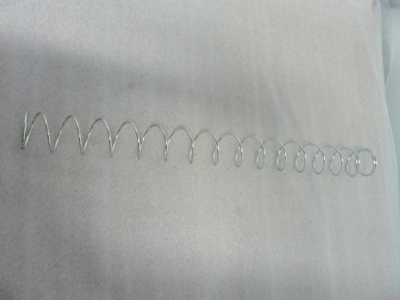

81	W342600189	SPRING	all
82	W342600126	HANDLE-ARM	all
83		WASHER-DIN125-8	all
84		SCREW-M8X20	all
85	W342600180	WHEEL	all
86	W342600715		all

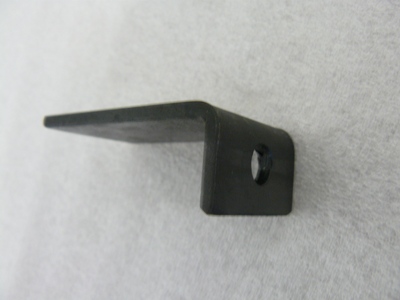

87	W342600258	LIMIT-STOP	all
91		SCREW-M8X20	all

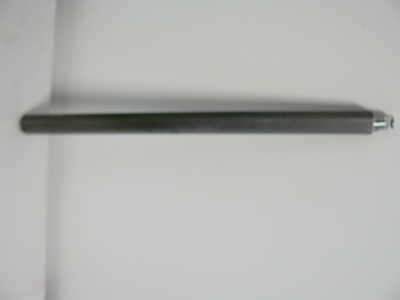

92	W342600249	ROD-HEXAGON-41-777	all
93		NUT-DIN985-M8	all
94	W342600717	PIN-8X50	all

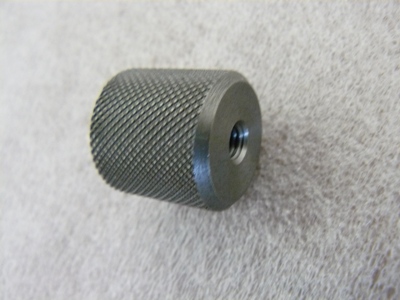

95	W342600265	NUT-HANDHANDLE	all
96		SCREW-M12X60	all
97		NUT-DIN985-M12	all

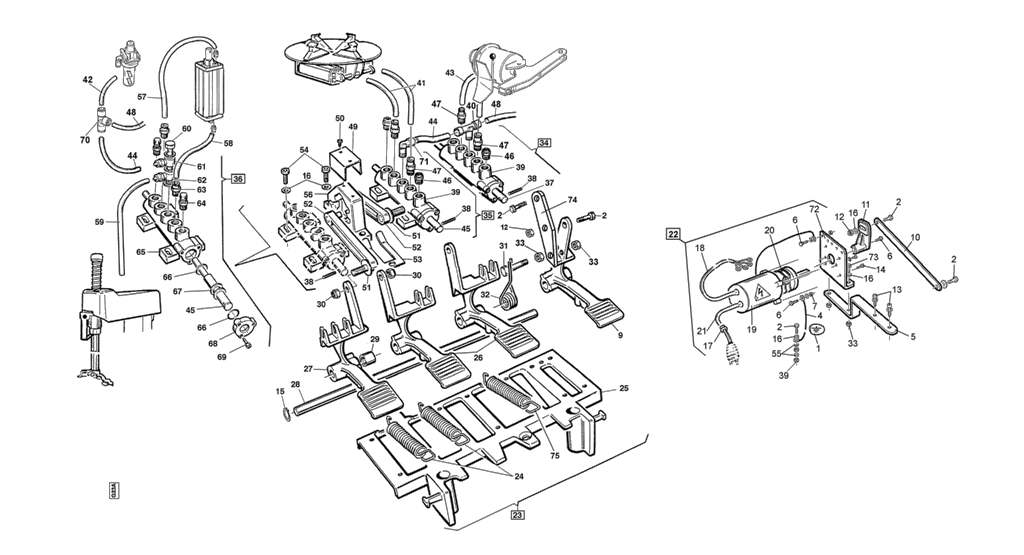

4 Pedals box

Notice:

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

click to enlarge

Pos	Article No.	Designation	Serial-No.
1	W342600190	STICKER	all
2		SCREW-M6X20	all
3		WASHER-DIN125-6	all
4	W342600009	CABLE-GROUND-L340	all
5	W342600279	BRACKET-BRACKET	all
6		SCREW-M4X12-8.8	all
7		NUT-DIN934-M4	all
8		WASHER-TOOTHED-3,2X12X0,5	all
9	W342600164	PEDAL-ALTERNATION	all
10	W342600278	ROD	all
11	W342600139	LEVER	all
12		NUT-DIN985-M6	all
13	W342600693		all
14	W342600736		all
15	W342600775	RING-DIN471-12	all
16		WASHER-DIN125-6	all
17	W342600852	LOCK-CABLE-D9	all
18	W342600001	CABLE-L1500	all
19	W342600281	CAP-UMSWITCH	all

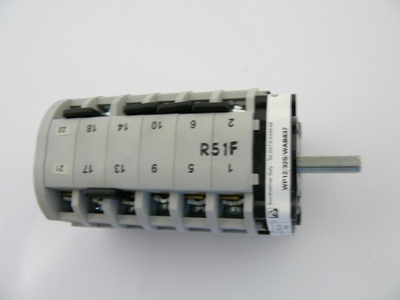

20	W342600837	SWITCH-2STEP-1PH	all
21	W342600002	CABLE-3PH	all

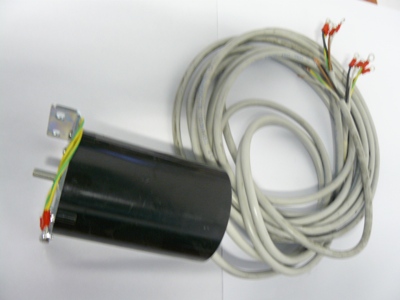

22	W342600038	SWITCH-3PH-25A2V	all
23	W342600027	PEDAL-SET	all
24	W342600199	SPRING-PEDAL-15X108X2,2	all
25	W342600167	FRAME-PEDAL	all
26	W342600165	PEDAL-TABLE	all
27	W342600166	PEDAL-PIVOT	all
28	W342600187	PIN-L337	all
29	W342600213	BUSHING-D18X12,5X21	all
30		NUT-DIN985-M8	all
31	W342600679		all
32	W342600132	SPRING-PEDAL	all
33		NUT-DIN934-M6	all

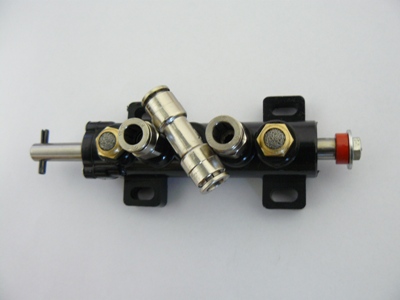

34	W342600010	VALVE	all
35	W342600005	VALVE	all
36	W342600006	VALVE-PIVOT	all
37	W342600207	PIN	all
38	W342600718	PIN-4X24-ISO8752	all
39	W342600004	VALVE	all
40	W342600522	UNION-6410-1/8IN-8	all
41	W342600466	TUBE-8X6-L750	all
42	W342600149	TUBE-8X6-L1000	all
43	W342600133	TUBE-6X4-L480	all
44	W342600179	TUBE-8X6-L100	all
45	W342600177	PIN	all
46	W342600542	ABSORBER-SCHALL-1/8IN	all
47	W342600534	CLUTCH-QUICK-1/8IN-8	all
48	W342600135	TUBE-8X6-L350	all
49	W342600604	GUIDANCE-CAM	all
50		SCREW-PLATE-2,9X6,5	all
51	W342600785	SPRING-8,2X18X1	all
52	W342600606	ROD-CAM	all
53	W342600605	SPRING-GABEL	all
54	W342600694		all
55		WASHER-TOOTHED-8,4X15X0,8	all
56	W342600607	GUIDANCE-NOCKE	all
57	W342600144	TUBE-6X4-L1200	all
58	W342600136	TUBE-6X4-L750	all
59	W342600141	TUBE-6X4-L2200	all

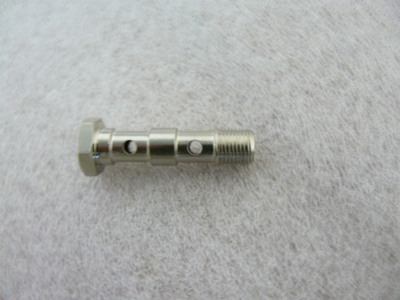

60	W342600552		all

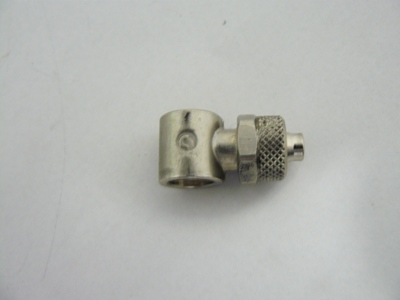

61	W342600548		all

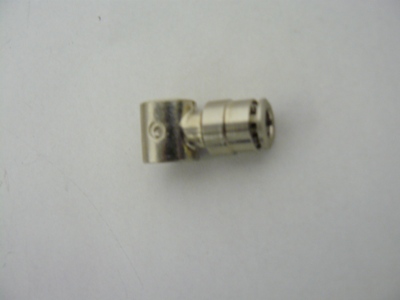

62	W342600551		all
63	W342600537	CLUTCH-QUICK-1/8IN	all

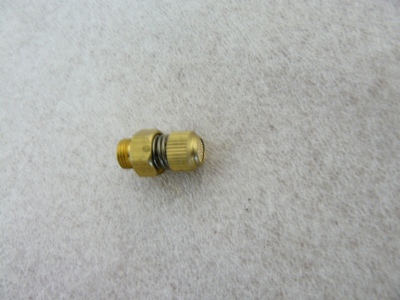

64	W342600549		all
65	W342600153	VALVE	all
66	W342600597	O-RING-D9,8X3,85	all
67	W342600154	SPACER	all
68	W342600155	FLANGE	all
69		SCREW-SELF TAPPING-3,5X13	all
70	W342600517	UNION-QUICK	all
71	W342600536	CLUTCH-QUICK-1/8IN-8	all
72	W342600099	BRACKET-WECHSLER	all
73	W342600713		all

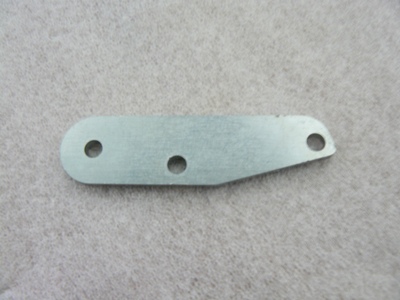

74	W342600250	LEVER-PEDAL	all
75	W342600992	SP-SPRING	all

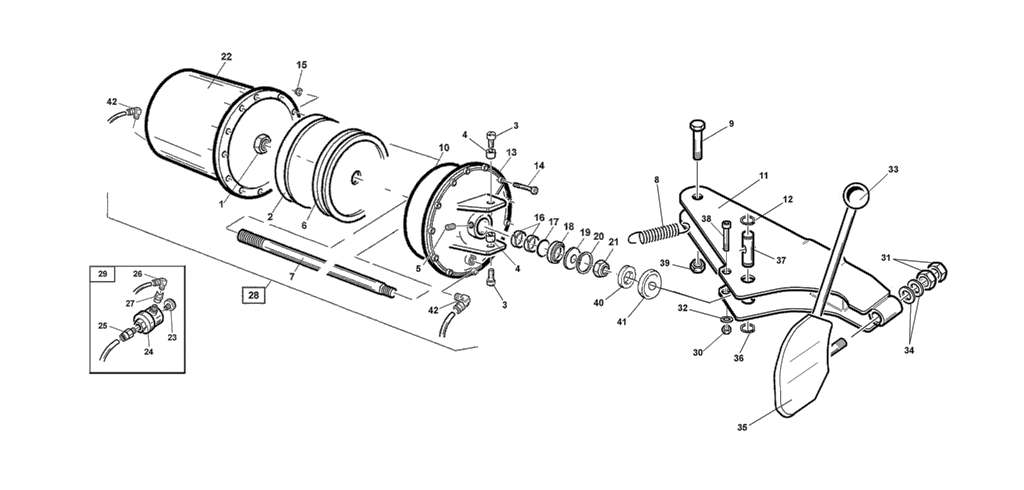

Bead breaker

Notice:

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

click to enlarge

Pos	Article No.	Designation	Serial-No.
1		NUT-DIN985-M18X1,5	all

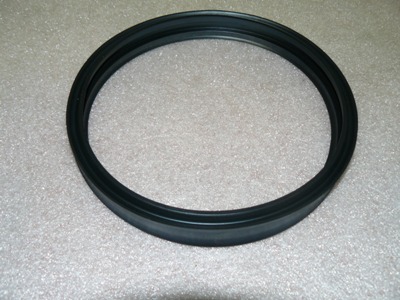

2	W342600484	SEAL-200X185X26	all
3		SCREW-M12X35	all
4	W342600130	BUSHING	all
5	W342600658		all

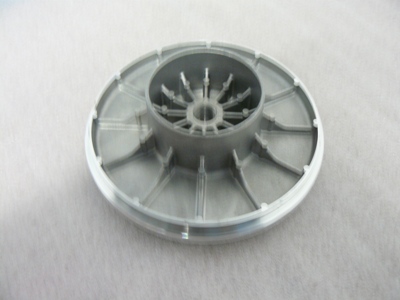

6	W342600300	PISTON-D200	all

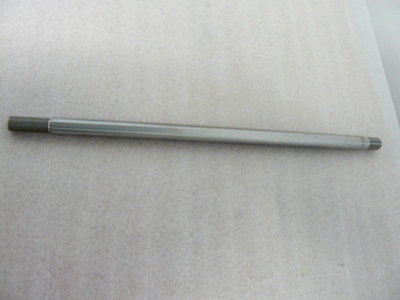

7	W342600301	CAM-L487	all
8	W342600129	SPRING-ARM	all
9		SCREW-M16X100	all

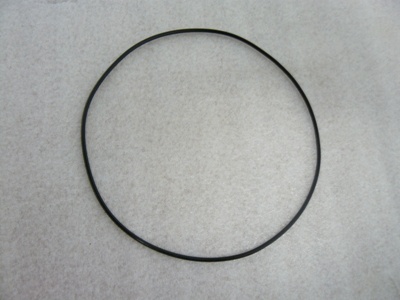

10	W342600512	O-RING-D196,4XH3,53	all
11	W342600885	ARM-BREAKER	all
12	W342600817	RING-DIN471-30	all

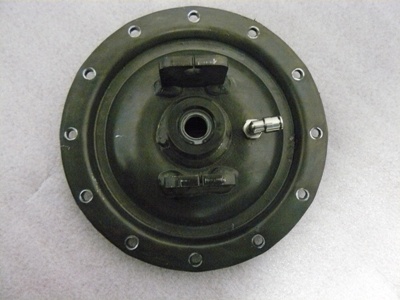

13	W342600097	FLANGE-CYLINDER	all
14	W342600712		all
15		NUT-M6	all
16	W342600594	GUIDANCE-NYLON	all
17	W342600599	O-RING-D20,29X2,62	all
18	W342600469	RING-GUMMI	all
19	W342600687		all
20	W342600468	RING-DIN471-30	all
21		NUT-DIN985-M18	all
22	W342600188	HOUSING-CYLINDER-D200	all
23	W342600523	ABSORBER-1/4IN	all
24	W342600543	VALVE-QUICK-1/4IN	all
25	W342600534	CLUTCH-QUICK-1/8IN-8	all
26	W342600516	UNION-6520-1/4ZO-8-6	all
27	W342600530	SOCKET-2543-1/4IN-F	all
28	W342600043	CYLINDER-PRESSURE	all

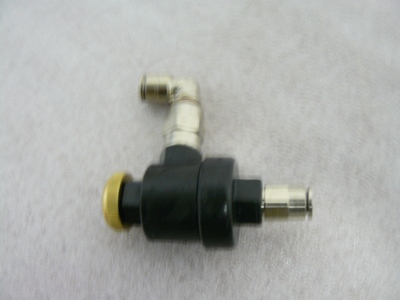

29	W342600015	VALVE	all
30		NUT-DIN985-M8	all
31		NUT-M14	all
32		WASHER-DIN125-8	all
33	W342600608	HANDLE-BALL-D14	all
34	W342600726		all
35	W342600094	PLATE-BREAKER	all
36	W342600815	RING-DIN471-20	all

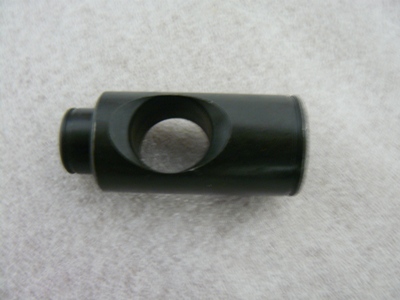

37	W342600210	PIVOT-D20	all
38		SCREW-M8X70	all
39		NUT-DIN985-M16	all

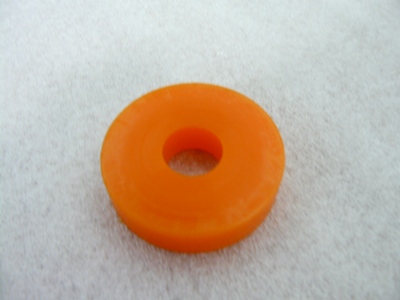

40	W342600163	ABSORBER-D21XD63XH14	all

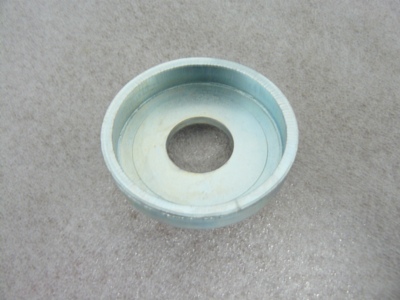

41	W342600185	WASHER-ABSORBER	all
42	W342600516	UNION-6520-1/4IN-8-6	all

Mounting Tools

Notice:

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

click to enlarge

Pos	Article No.	Designation	Serial-No.
1	W342600003	TOOL-INSTALLATION	all
2		SCREW-M10X16	all
3		WASHER-DIN6319-D14-G	all
4	W342600142	WHEEL	all
5	W342600198	COVER-PLASTICS	all
6	W342600653		all
7	W342600232	PIN-D5-M6-L26	all
8		WASHER-DIN6319-D10-C	all
9	W342600169	HEAD-INSTALLATION	all
10		SCREW-M10X16	all

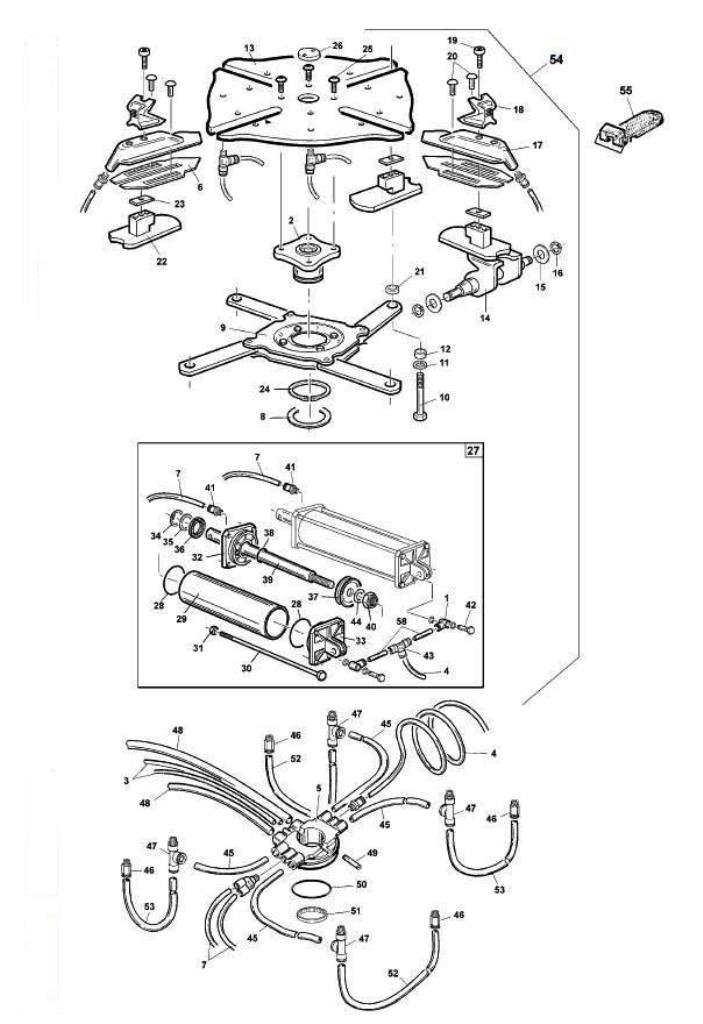

Self-Centering turntable 20" GT

Notice:

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

click to enlarge

Pos	Article No.	Designation	Serial-No.
1	W342600507	CLUTCH-1/8IN	all
2	W342600273	HUB	all
3	W342600466	TUBE-8X6-L750	all
4	W342600303	TUBE-SPIRAL-8X6-L560	all

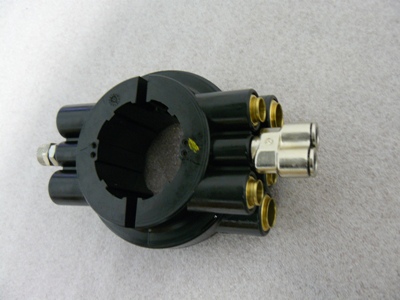

5	W342600572	VALVE-Y-GT	all
6	W342600298	PAD-SLIDE	all
7	W342600148	TUBE-8X6-L240	all
8	W342600644	RING-DIN471-85	all
9	W342600039	FLANGE	all
10		SCREW-M12X1,25X45	all
11		WASHER-D12X21X2,5	all
12	W342600203	SPACER	all
13	W342600276	TURNTABLE-20IN	all
14	W342600096	GUIDANCE-22IN	all
15	W342600775	RING-DIN471-12	all
16		WASHER-DIN125-12	all

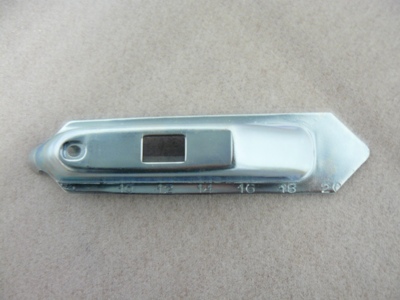

17	W342600084	SLIDE-GT	all
18	W342600174	SPANNCLAMP	all
19		SCREW-M10X1,25X25	all
20	W342600277	PIN	all
21	W342600202	SPACER	all
22	W342600095	GUIDANCE-22IN	all
23	W342600201	SPACER	all
24	W342600286	RING	all
25	W342600642		all
26	W342600127	COVER	all
27	W342600013	CYLINDER-TABLE-20IN	all
28	W342600593	O-RING-D68,26X3,53	all
29	W342600217	HOUSING-CYLINDER-20IN-L345	all
30		SCREW-M8X369	all
31		NUT-M8	all
32	W342600271	FLANGE	all
33	W342600270	FLANGE	all
34	W342600468	RING-DIN471-30	all
35	W342600687		all
36	W342600469	RING-GUMMI	all
37	W342600526	PISTON-D75	all
38	W342600599	O-RING-D20,29X2,62	all
39	W342600186	ROD-20IN-L400	all
40		NUT-DIN985-M12	all
41	W342600534	CLUTCH-QUICK-1/8IN-8	all
42	W342600861	CONNECTION-SCREW-INCL-SEALS	all
43	W342600535	CLUTCH	all
44		WASHER-D12,5X30X3	all

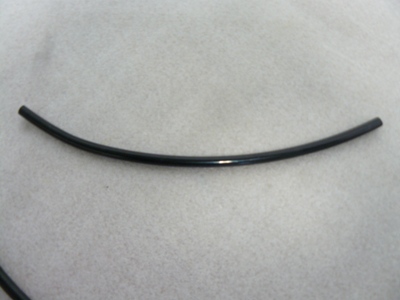

45	W342600193	TUBE-10X6,6-L335	all

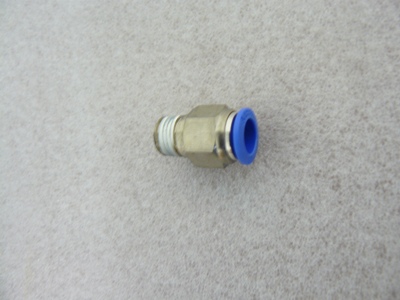

46	W342600509	UNION-1/4IN	all

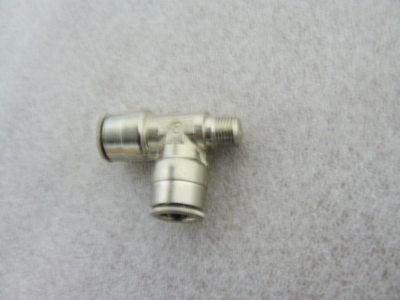

47	W342600498		all
48	W342600161	TUBE-14X11-L1070	all
49	W342600158	SCREW-VALVE	all

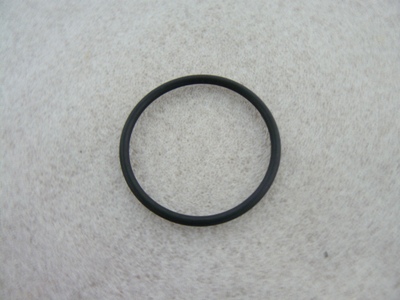

50	W342600586	O-RING-D49,21X3,53	all

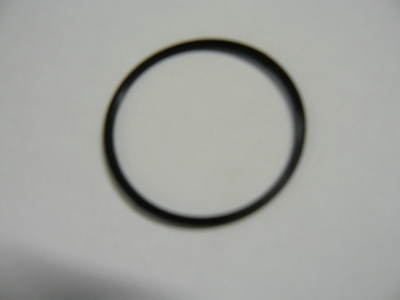

51	W342600225	SPACER	all

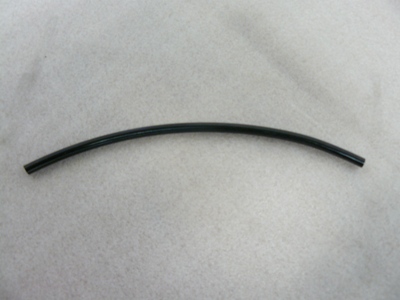

52	W342600195	TUBE-10X6,6-L430	all

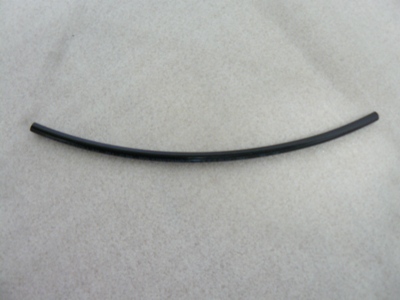

53	W342600194	TUBE-10X6,6-L310	all

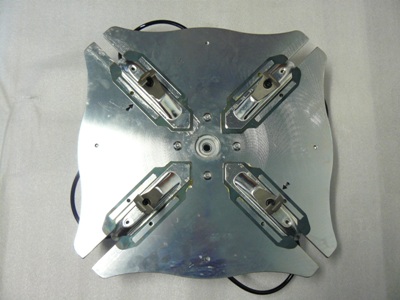

54A	W342600040	TURNTABLE-GT-20IN	all
55	W341600092	CLAMPPROTECTION-RUBBER (without clamp)	all
	W341600106	CLAMP-METAL	all
56		SCREW 16X1,5X45 8.8	all
57	W342600640	WASHER-DIN125-17	all
58	W342600302	TUBE-8X6-L75	all

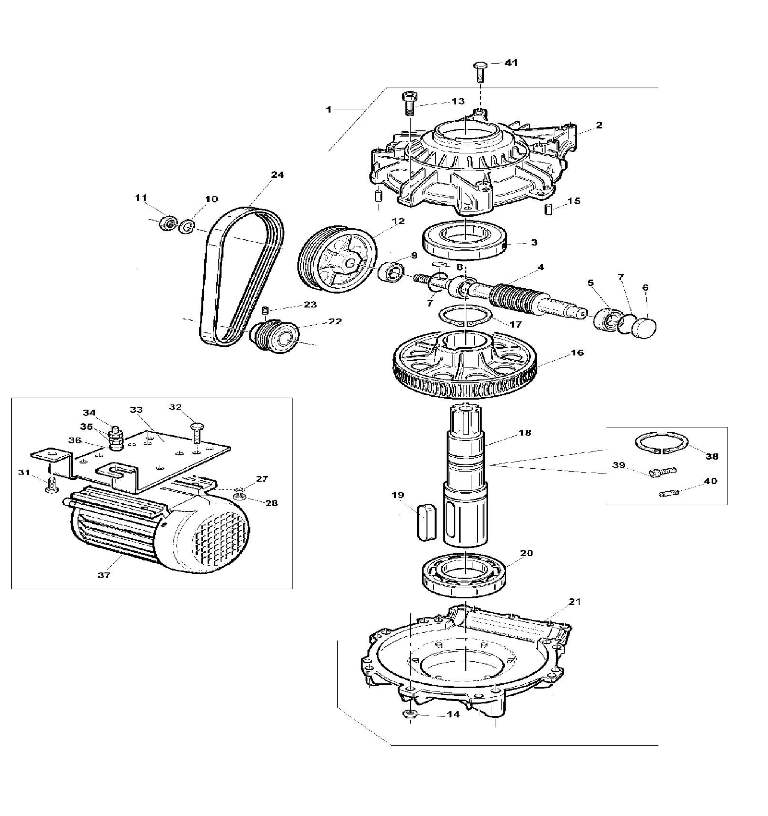

Motor-Reduction Gear Group

Notice:

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

click to enlarge

Pos	Article No.	Designation	Serial-No.
1	W342600026	HOUSING-GEAR	all
2	W342600242	HOUSING-GEAR	all
3	W342600584	PAD-60X110X22	all
4	W342600244	CAM-SCHNECKE	all
5	W342600583	BEARING	all
6	W342600247	CAP-SEAL	all
7	W342600582	O-RING-D34,52X3,53	all
8	W342600669		all
9	W342600581	O-RING-D20X35X10	all
10		WASHER-DIN125-14	all
11		NUT-M14	all
12	W342600240	GEAR-REDUCTION	all
13		SCREW-M8X30	all
14		NUT-DIN985-M8	all
15	W342600666		all
16	W342600245	GEAR	all
17	W342600668	RING-DIN471-60	all
18	W342600246	CAM	all
19	W342600670		all
20	W342600580	BEARING-60X110X22	all
21	W342600243	HOUSING-GEAR	all
22	W342600241	GEAR-ANTRIEB	all
23		SCREW-M8X14	all
24	W342600579	BELT	all
27		WASHER-DIN125-8	all
28		NUT-DIN934-M8	all
31		SCREW-M10X20-8.8	all
32		SCREW-M8X25	all
33	W342600137	BEARING-MOTOR	all
34		SCREW-M10X40-8.8	all
35		NUT-DIN934-M10	all
36	W342600138	BRACKET-CLAMP	all
37	W342600850	MOTOR-1PH-230V-50/60HZ	all
37A	W342600851	MOTOR-3PH-230/400V-50HZ	all
37B	W342600849	MOTOR-3PH-400V-50HZ-B3	all
37C	W342600846	MOTOR-1PH-115V	all
38	W342600665	RING-DIN471-50	all
39		SCREW-M6X10-8.8	all
40	W342600158	SCREW-VALVE	all
41		SCREW-M10X50	all

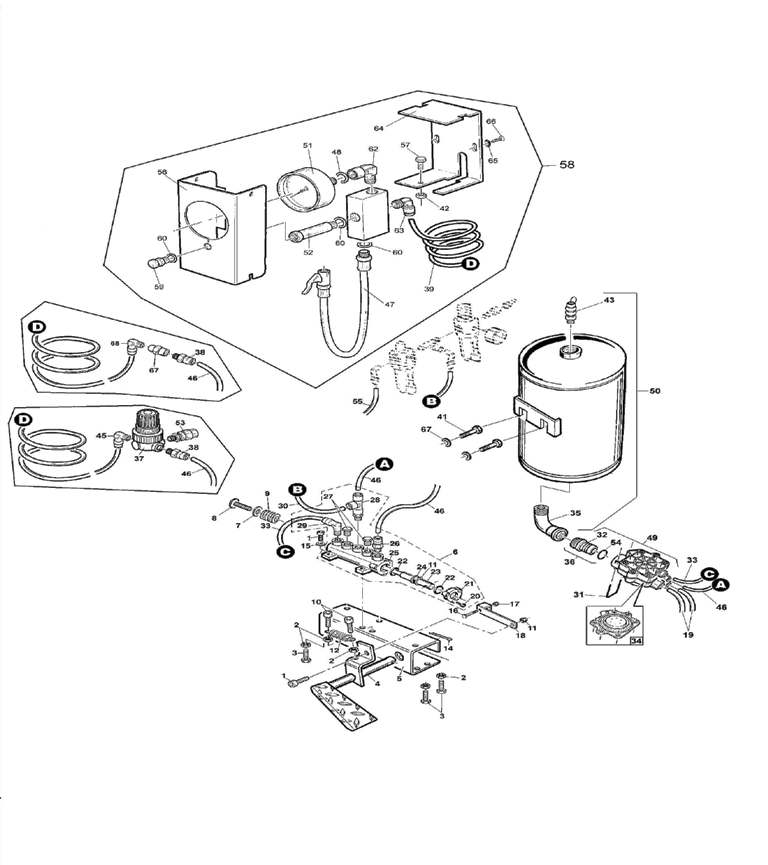

GT Inflating Device

Notice:

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

click to enlarge

Pos	Article No.	Designation	Serial-No.
1		SCREW-M6X20-8.8	all
2		NUT-DIN934-M6	all
3		SCREW-M6X20	all
4	W342600092	PEDAL-GT	all
5	W342600238	TUBE-8X6-L440	all
6	W342600023	VALVE	all
7		WASHER-DIN125-6	all
8		SCREW-M6X10	all
9	W342600595	SPRING-D20X26	all
10		SCREW-M6X25	all
12	W342600131	SPRING	all
14	W342600740	SPLINT-D3,2X30	all
15		WASHER-DIN125-6	all
16		SCREW-M4X25	all
17		NUT-DIN985-M4	all
18	W342600157	LEVER-VALVE	all
19	W342600161	TUBE-14X11-L1070	all
20		SCREW-SELF TAPPING-3,5X13	all
21	W342600155	FLANGE	all
22	W342600597	O-RING-D9,8XH3,85	all
23	W342600156	ROD-VALVE	all
24	W342600154	SPACER	all
25	W342600153	VALVE	all
26	W342600534	CLUTCH-QUICK-1/8IN-8	all
29	W342600538	CLUTCH-QUICK-1/8IN	all
30	W342600150	TUBE-8X6-L850	all
31	W342600321	FORK-U	all
32	W342600322	CLUTCH-QUICK	all
33	W342600162	TUBE-6X4-L580	all
34	W342600047	VALVE-SEAL	all
35	W342600525	UNION-1IN-FM-90	all
36	W342600050	CLUTCH-QUICK	all
37	W342600513	CONTROL-1/4IN-3,5BAR	all
37/A	W342600508	REGULATOR-1/4IN-5BAR	all
38	W342600528	CLUTCH-QUICK-1/4IN	all
39	W342600147	TUBE-8X6-L2300	all
41		SCREW-M6X12	all
42		NUT-DIN934-M8	all
43	W342600521	VALVE-1/4IN	all
44	W342600531	CLUTCH-2020-1/4IN	all
45	W342600516	UNION-6520-1/4IN-8-6	all
46	W342600239	TUBE-8X6-L440	all
47	W342600020	TUBE-L1400	all
48	W342600597	O-RING-D9,8XH3,85	all
49	W342600046	VALVE-1IN	all
50	W342600030	BOX-18L	all
51	W342600598	DISPLAY-PRESSURE-D80	all
51/A	W342600510	DISPLAY-PRESSURE -600KPA-6BAR-85PSI	all
51/B	W342600275	DISPLAY-PRESSURE-D80-1200KPA	all
53	W342600515	VALVE-1/8IN-4BAR	all
53/A	W342600520	VALVE-1/4IN-5BAR	all
54	W342600570	O-RING-D25,12XH1,78	all
55	W342600134	TUBE-8X6-L910	all
56	W342600886	PLATE-GT-FRONT	all
57		SCREW-M8X16	all
58	W342600034	KIT-AIR-GT	all
58/A	W342600035	KIT-AIR-GT-600KPA	all
58/B	W342600037	KIT-AIR-GT-1200KPA	all
59	W342600600	KNOB-PRESSURE	all
61	W342600274	VALVE	all
62	W342600531	CLUTCH-2020-1/4IN	all
63	W342600527	CLUTCH-QUICK-1/4IN	all
64	W342600887	PLATE-GT-REAR	all
65		WASHER-DIN125-4	all

Air Lubrication Group

Notice:

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

click to enlarge

Pos	Article No.	Designation	Serial-No.
1	W342600513	CONTROL-1/4IN-3,5BAR	all
2	W342600515	VALVE-1/8IN-4BAR	all
3	W342600528	CLUTCH-QUICK-1/4IN	all
4	W342600025	CONTROL-4BAR	all
5	W342600516	CLUTCH-6530-1/4IN-8-6	all
6	W342600545	CLUTCH-9AM-1/4IN	all
7	W342600488	OILUNIT-GLAS	all
8	W342600487	OILUNIT-HEAD	all
9	W342600492	OILUNIT-1/4IN	all
10	W342600524	CLUTCH-2070-1/4IN	all
11	W342600511	VALVE-400-1/4IN-FF	all
12	W342600554	CLUTCH-1/4IN	all
13	W342600527	CLUTCH-QUICK-1/4IN	all
14	W342600028	UNIT-LUBRICATOR	all
15	W342600533	CONTROL-1/4IN-12BAR	all
16	W342600528	CLUTCH-QUICK-1/4IN	all
