WEL 232B

Please choose the subassembly in the selection.

Selection of subassembly
control board
lifter complete







CONTROL BOARD

Notice:

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

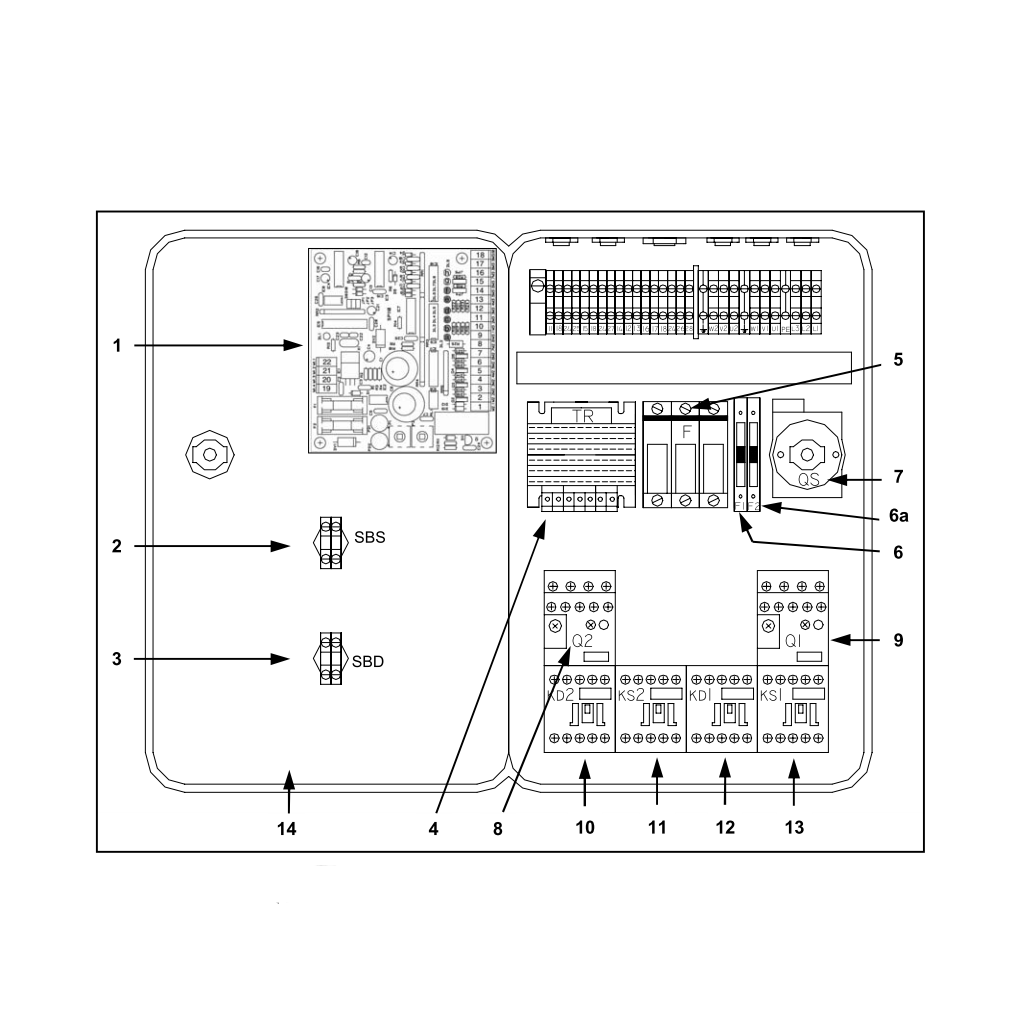

Exploded Drawing WEL 232B control board

Click to enlarge

PosArticle No.DesignationSerial-No.Picture
1W111400052SP-PCBall
2W111400053SP-CONTACTall
2W111400054SP-BUTTONall
4W111400050SP-TRANSFORMERall
5W111400048SP-HOLDERall
5W111400049SP-FUSEall
6W111400051SP-FUSEall
6W111400057SP-HOLDERall
7W111400055SP-SWITCHall

LIFTER COMPLETE

Notice:

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

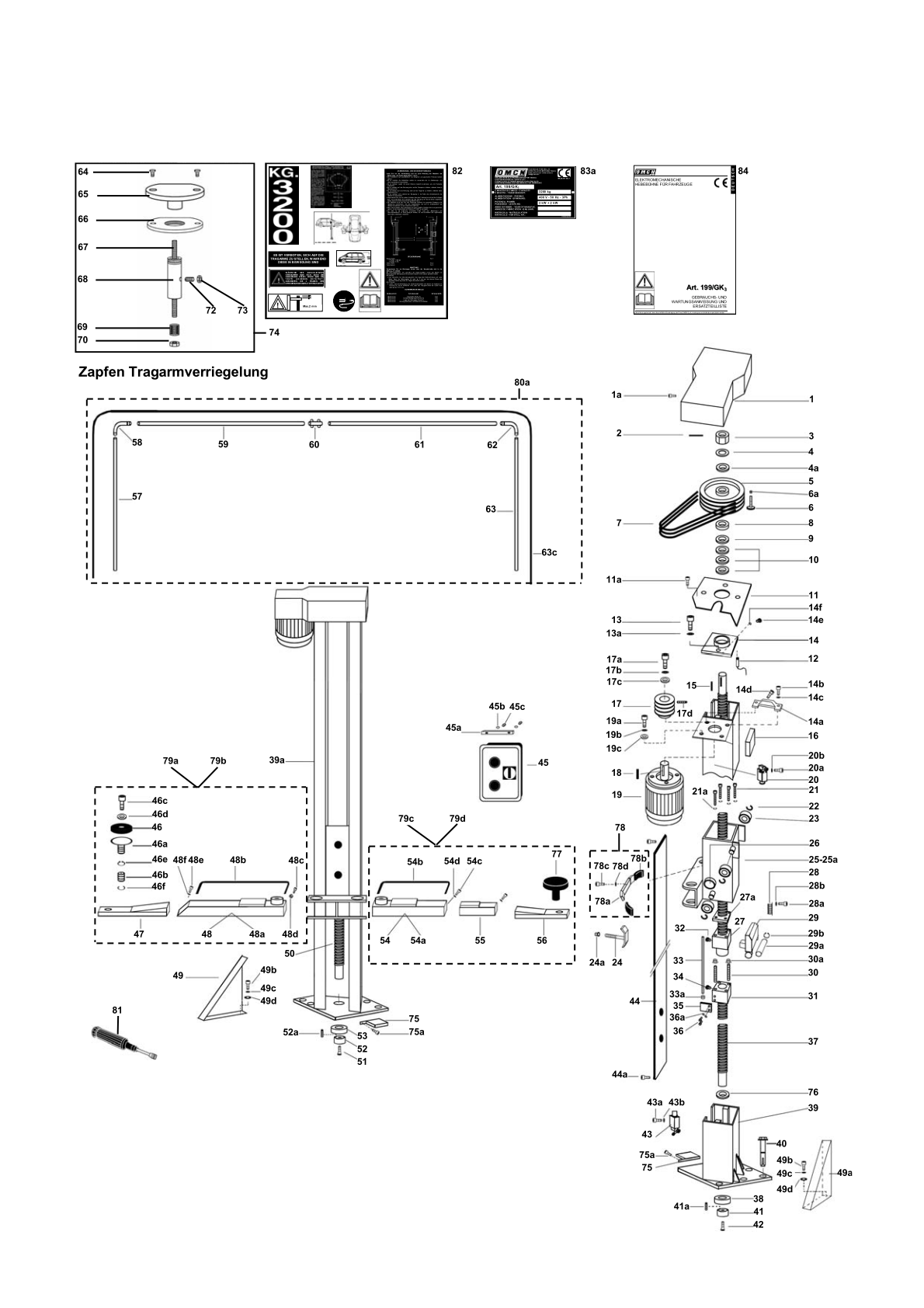

Exploded Drawing WEL 232B lifter complete

click to enlarge

PosArticle No.DesignationSerial-No.Picture
7W111400045SP-BELTall
8W111400042SP-BEARINGall
10W111400043SP-BEARINGall
12W111400056SP-SENSORall
20W111400058SP-SWITCHall
23W111400039SP-BLOCKall
38W111400044SP-BEARINGall
46W111400041SP-PADall
81W111400040SP-PUMPall
