Coolius 2000 - (Art.no. 0900764971)

Notice:

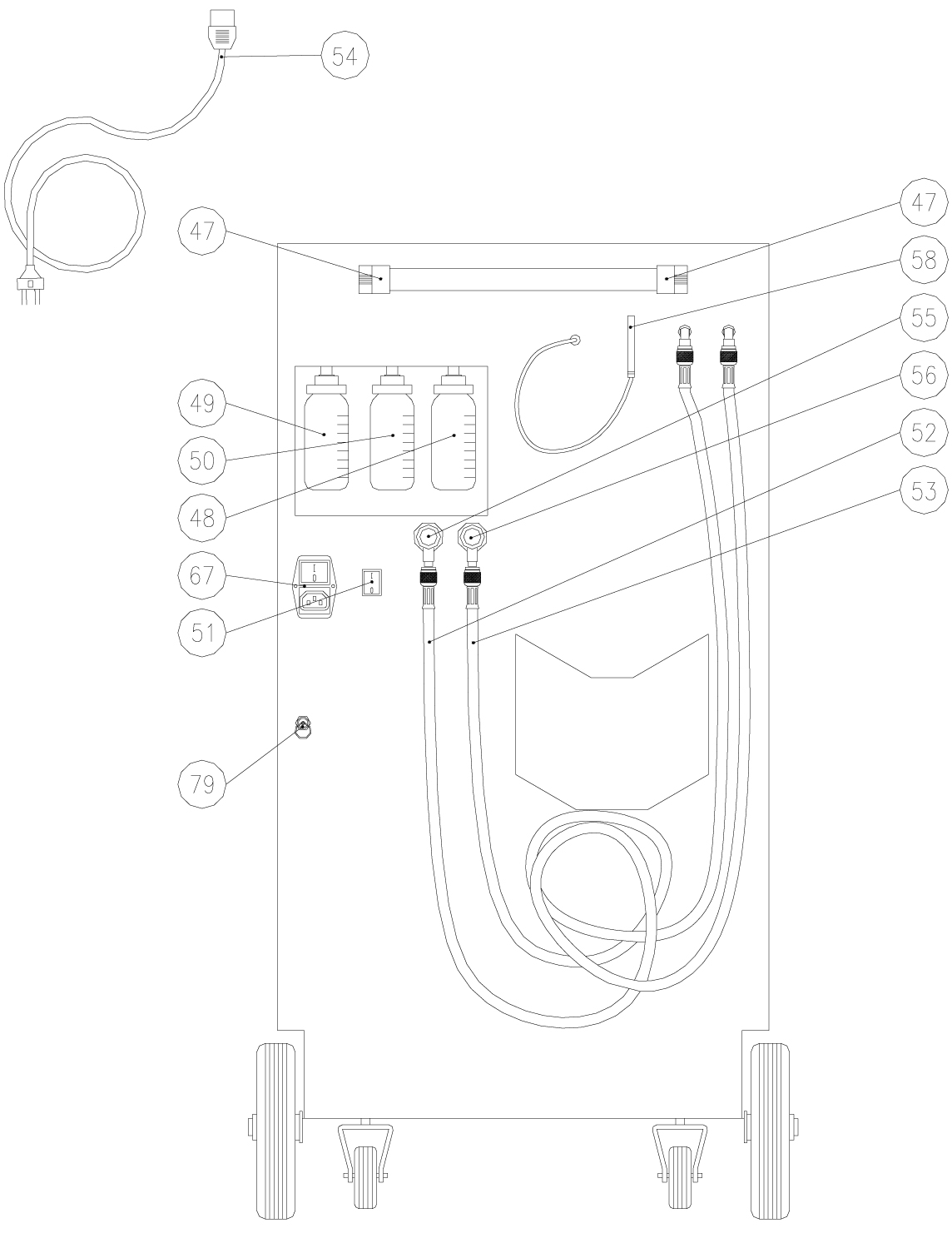

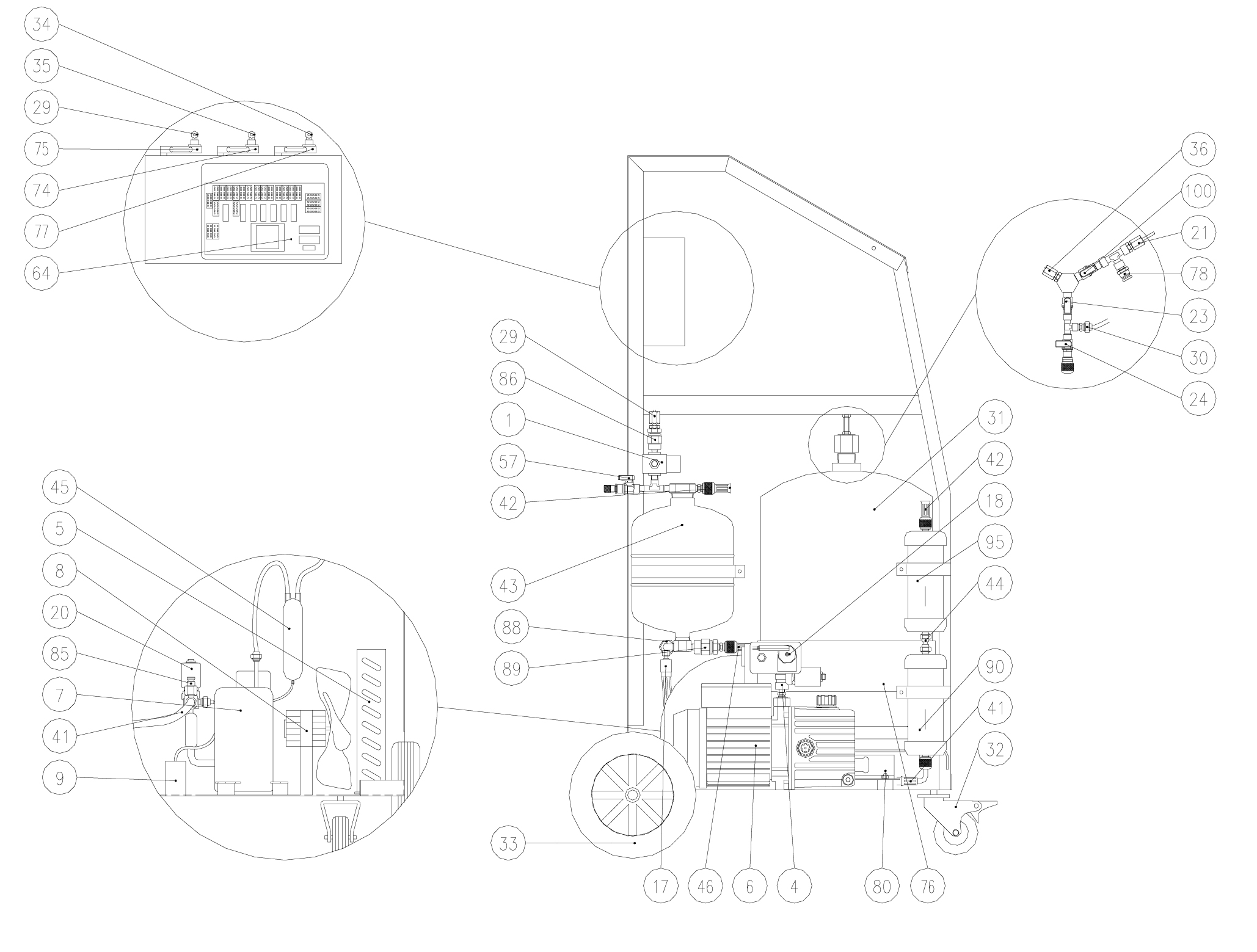

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

To maintenance parts To maintenance parts

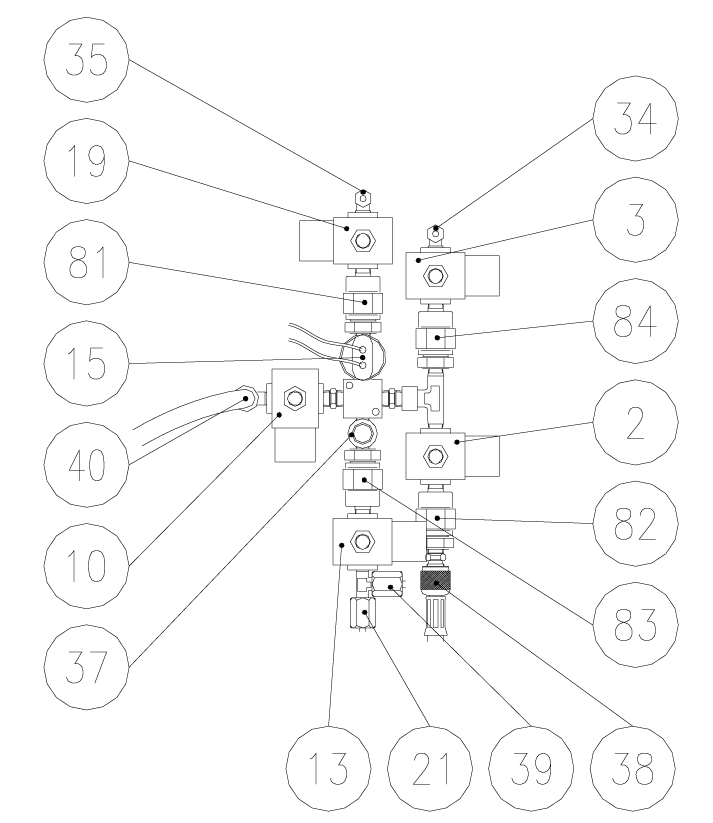

Service unit parts

PosArticle No.DesignationSerial-NoPicture
10707764007Solenoid valve001 - 920
1W052200070Solenoid valvefrom 921
20707764007Solenoid valve001 - 920
2W052200070Solenoid valvefrom 921
30707764007Solenoid valve001 - 920
3W052200070Solenoid valvefrom 921

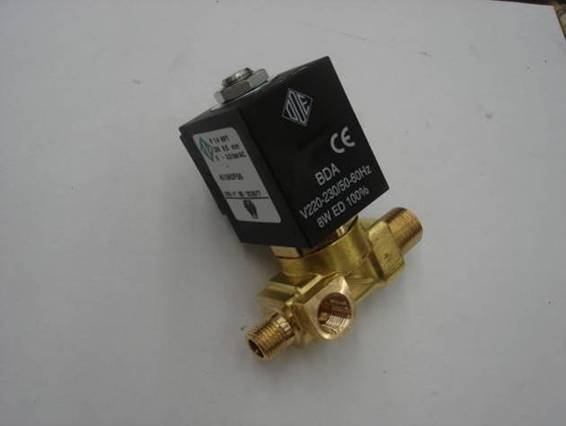

40707764203Solenoid valve001 - 020

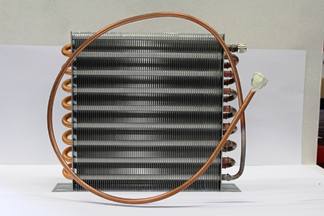

5W052200003Condenserall

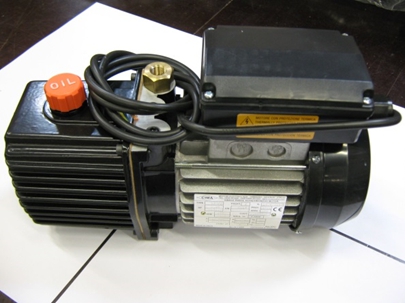

60707764259Vacuum pump001 - 1070

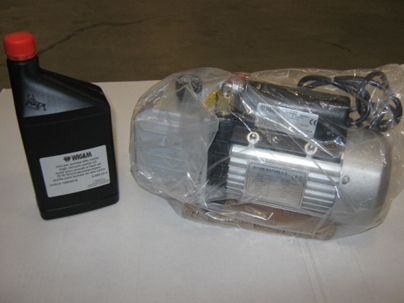

6W052200121Vacuum pumpfrom 1071
7W052200002Compressor001 - 920
7W052200117Compressorfrom 921

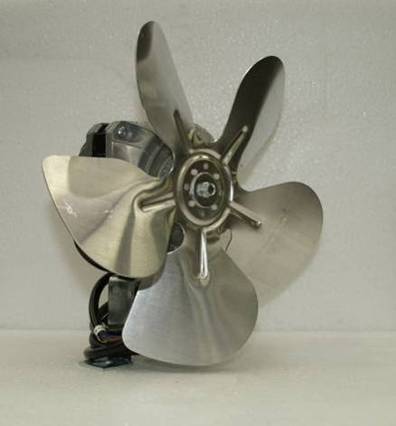

80707764058Fanall

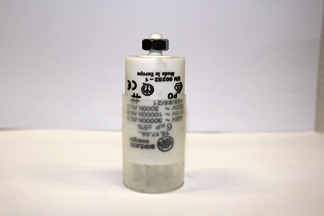

9W052200017Condenserall

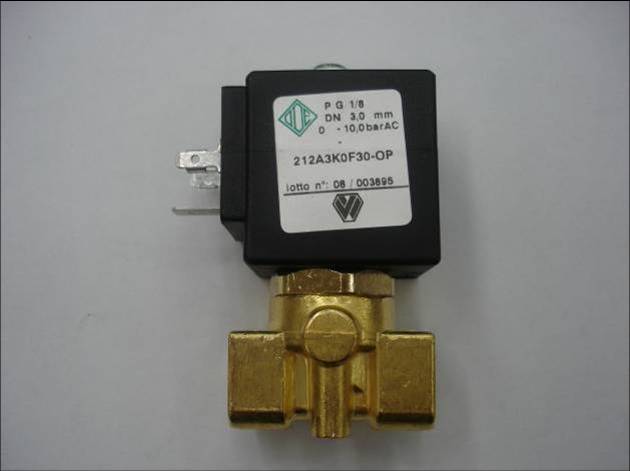

100707764007Solenoid valve001 - 920
10W052200070Solenoid valvefrom 921
130707764007Solenoid valve001 - 920
13W052200070Solenoid valvefrom 921

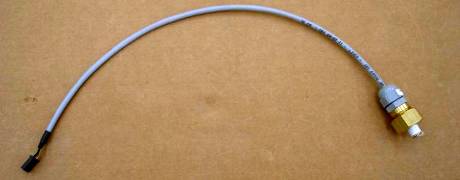

150707764046 Pressure vacuum switch001 - 020

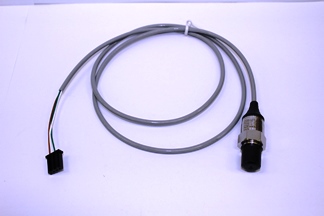

15W052200064Pressure transducerfrom 021

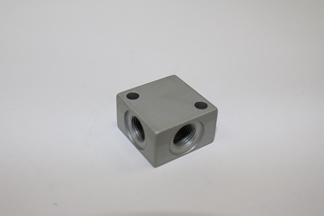

 0900901695T-connection for pressure sensorall
 W052200143Connector pressure sensorall

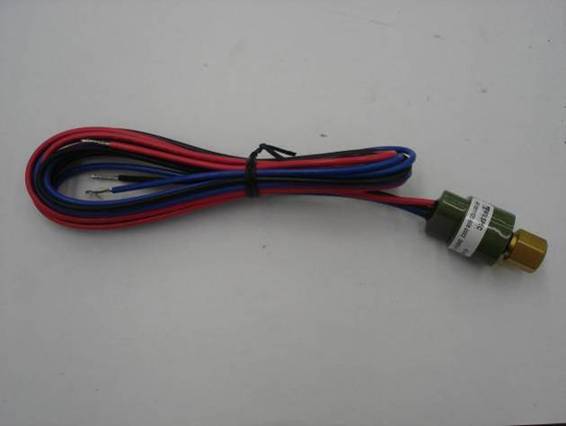

170900900603Safety switchall

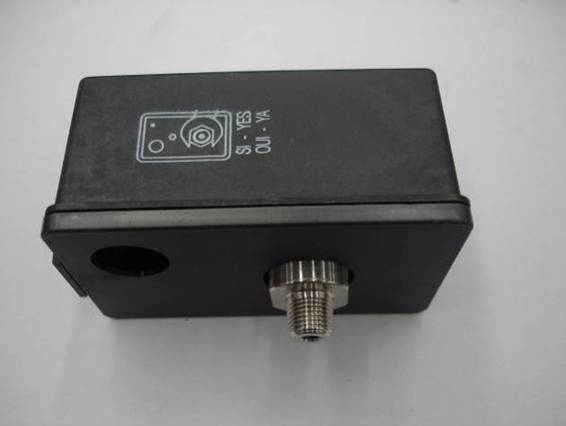

180707764014Vacuum switch001 - 020
190707764007Solenoid valve001 - 920
19W052200070Solenoid valvefrom 921

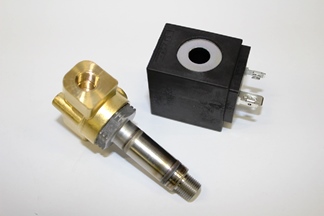

200707764025Solenoid valveall
20W052200114Solenoid valvefrom 921
21W052200089Capillary tubeall

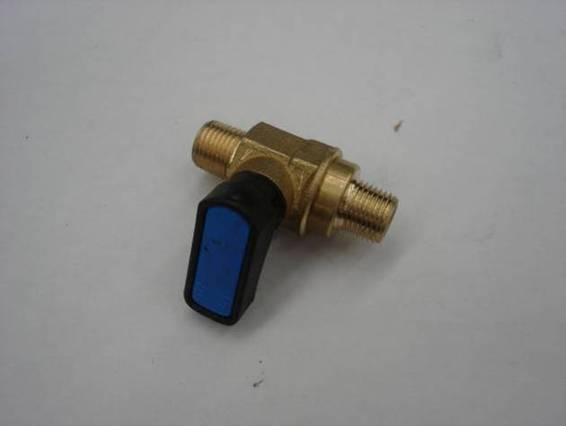

230707764208Valve on the bottleall
240707764001Bottle service valveall

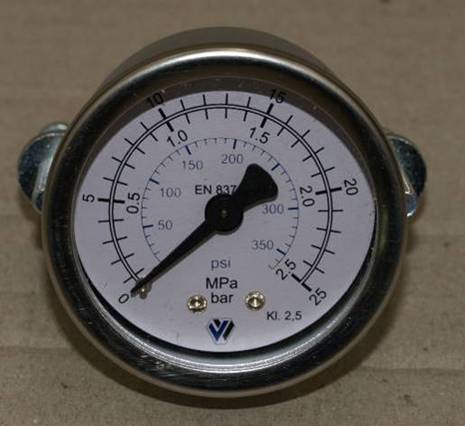

270707764210Bottle pressure gaugeall
29W052200089Capillary tubeall
31W052200004Bottle - 2000all

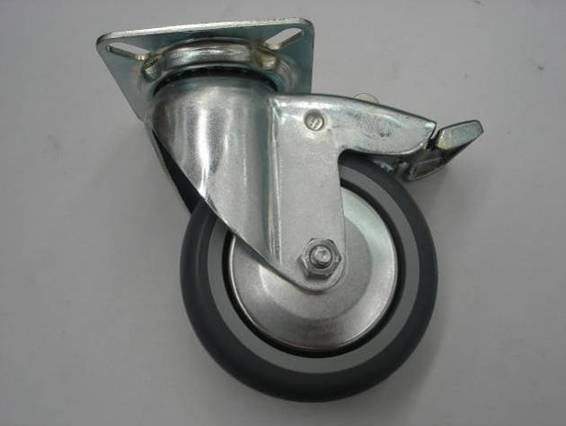

32W052200111Rotating wheelall

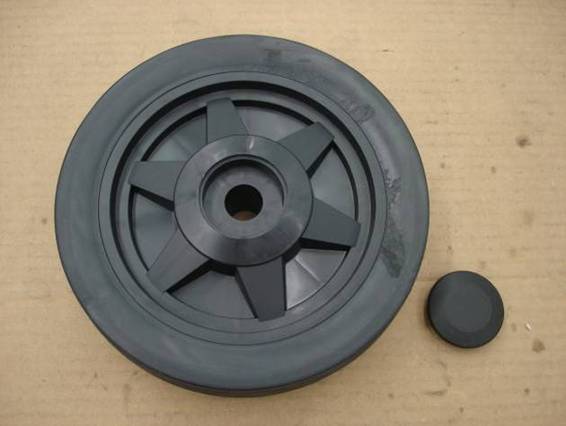

330707764214Wheel Ø 20cmall
34W052200089Capillary tubeall
35W052200089Capillary tubeall

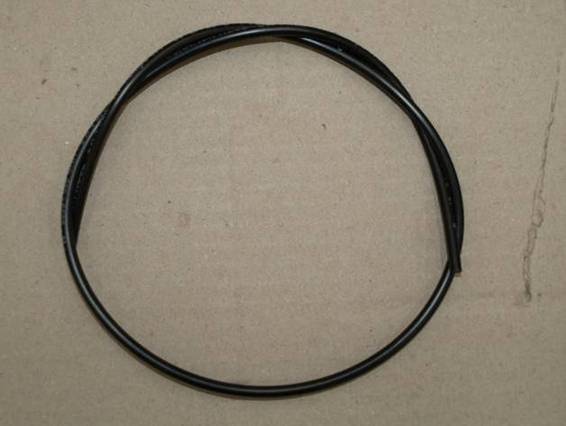

36W052200089Capillary tubeall
37W052200005Hose - 2000all
38W052200115Oil separator suction line hose001 - 020
38W052200116Oil separator suction line hosefrom 021
39W052200089Capillary tubeall

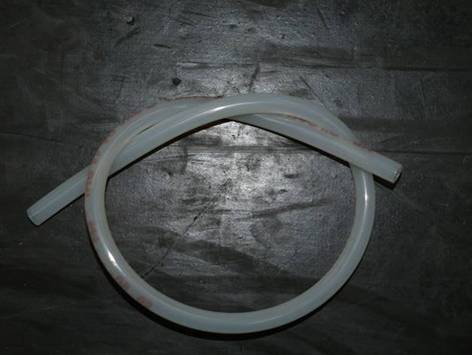

400707764220Vacuum hoseall
41W052200006Hose - Compressorall
42W052200007Hose - oil separatorall

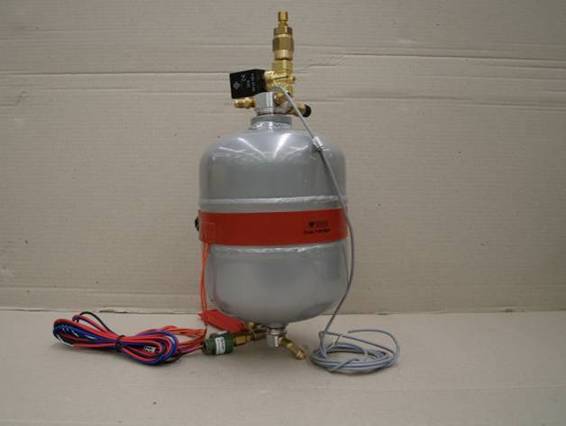

43W052200008Oil separator001 - 920

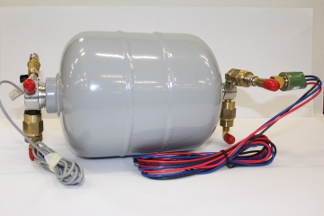

43W052200119Oil separatorfrom 921

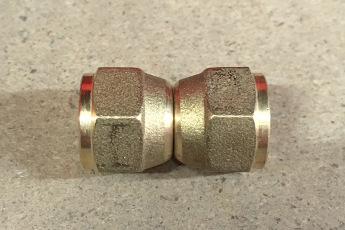

44W052200009 Fitting - 1/4"all

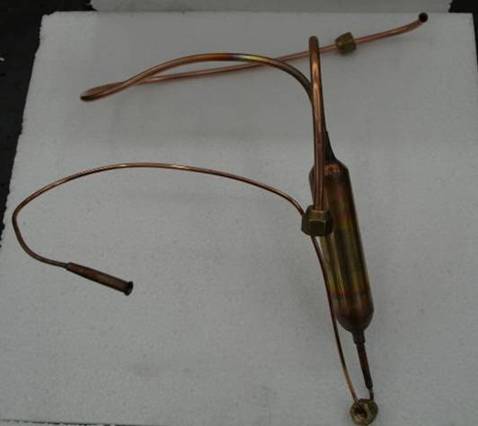

450707764225Compressor lubricant distillerall

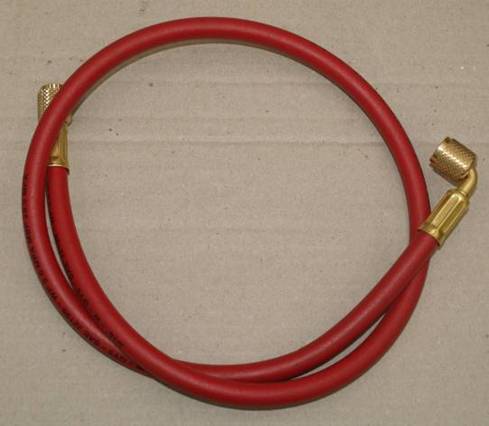

46W052200010Hose - Connection - 2000all

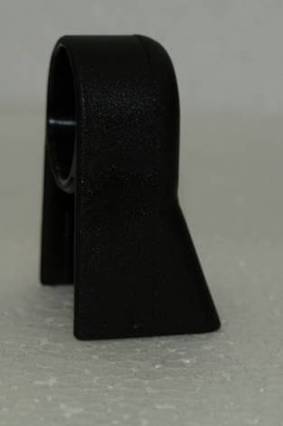

470707764227Handle supportall
48W052200113Oil drain bottle incl. lid (black)all

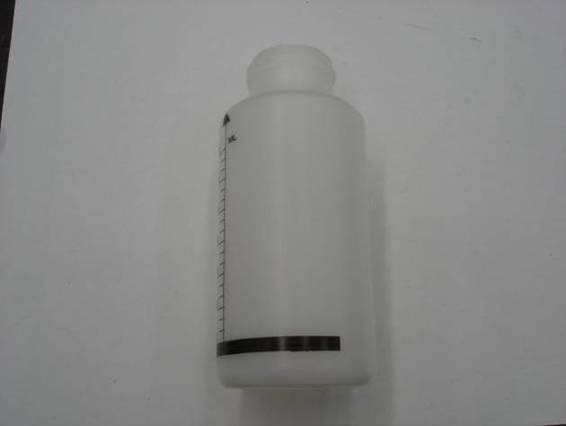

49W052200113UV dosimeter incl. lid (black)all
50W052200113Oil dosimeter incl. lid (black)all

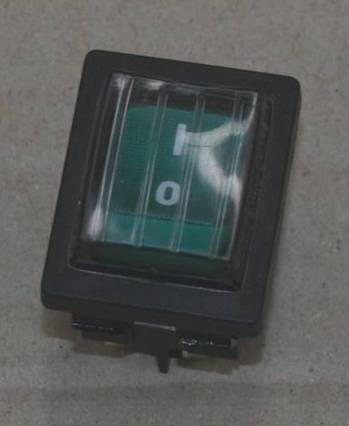

510900900643Heater switchall

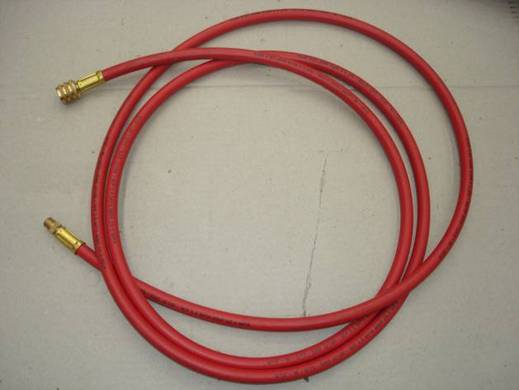

520707764228High pressure hose 3000 mmall
52W067000002High pressure hose 6000 mmall
530707764229Low pressure hose 3000 mmall

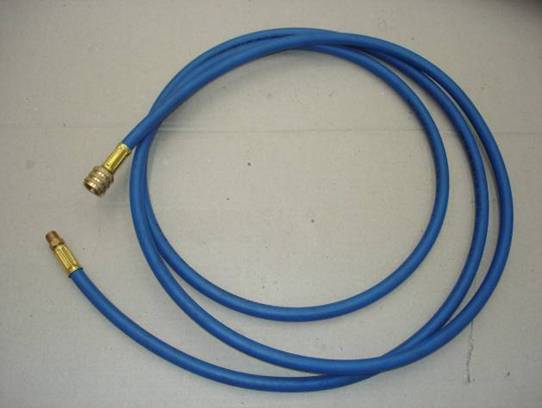

53W067000003Low pressure hose 6000 mmall
 0900901698Brass fittingall
 0900901699Brass fittingall
54W052200090Power cable (Europe standard)all

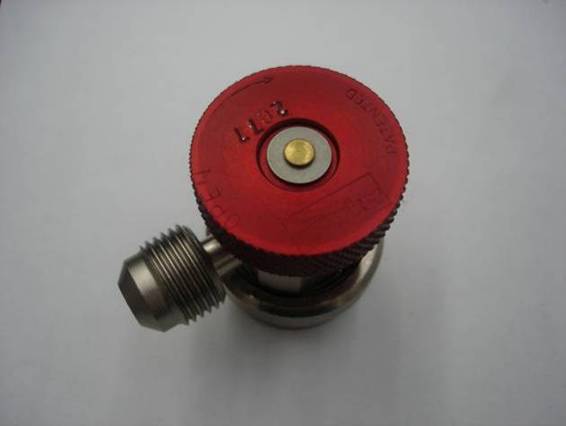

550707764019HP quick couplerall

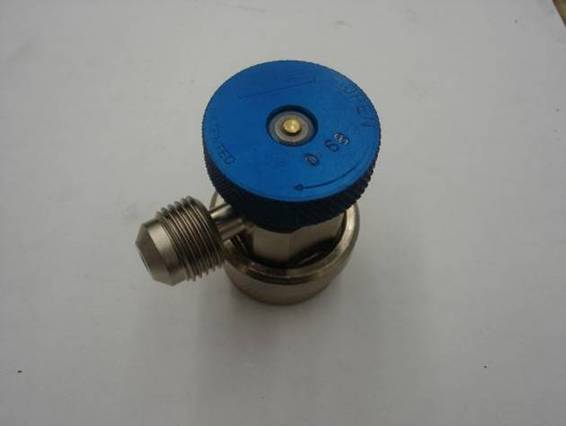

560707764020LP quick couplerall

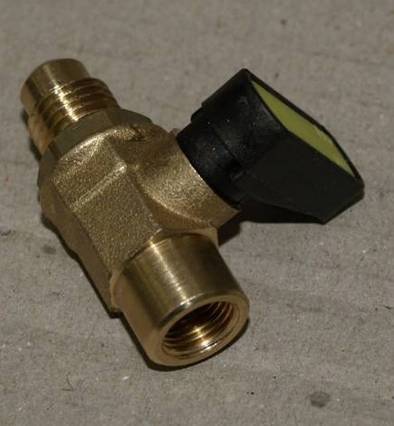

570707764041Manual discharge valve on distillerall

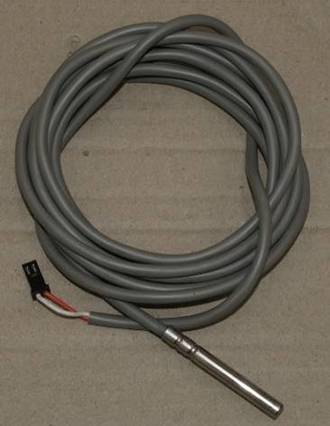

580707764231
no longer available
Temperature probeall

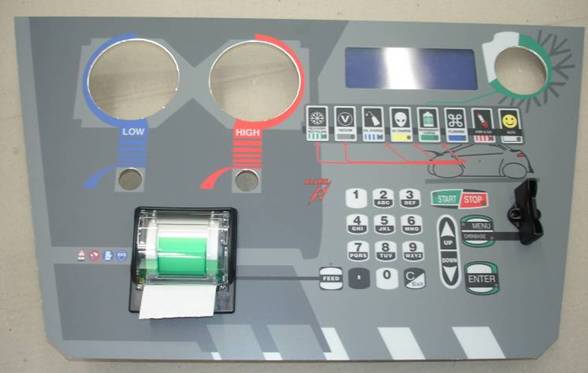

60no longer availableConsole - Compl. - 2000all

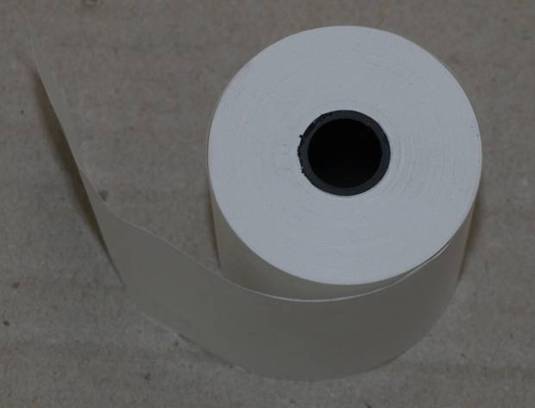

61076495 002Paper roll-A/C-printerall

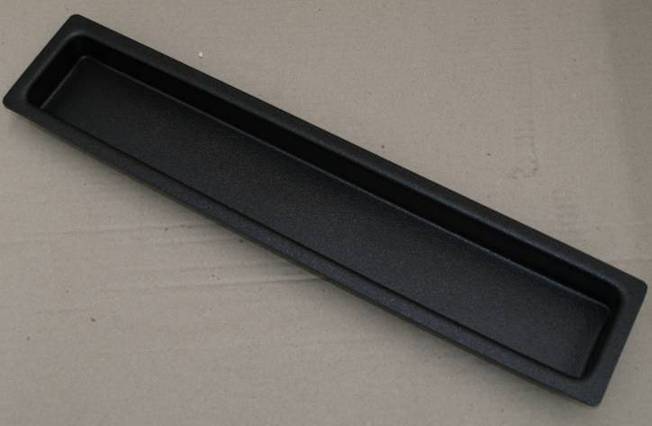

620707764238Black plastic basinall

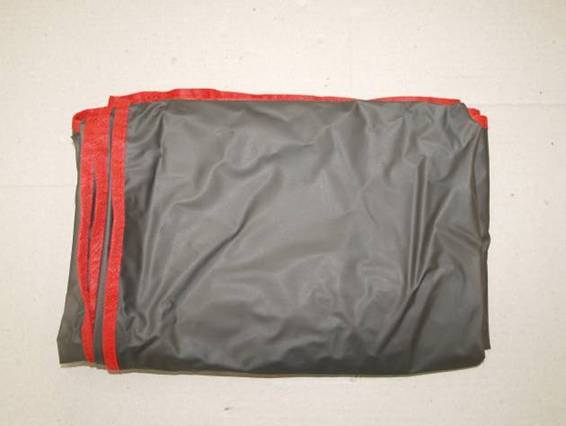

 W052200120Protection coverall

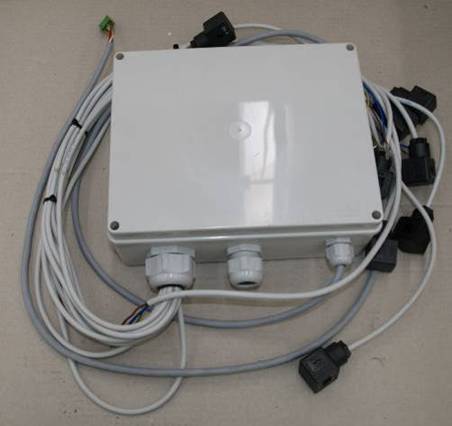

64W052200014Frame - Cards - 2000all

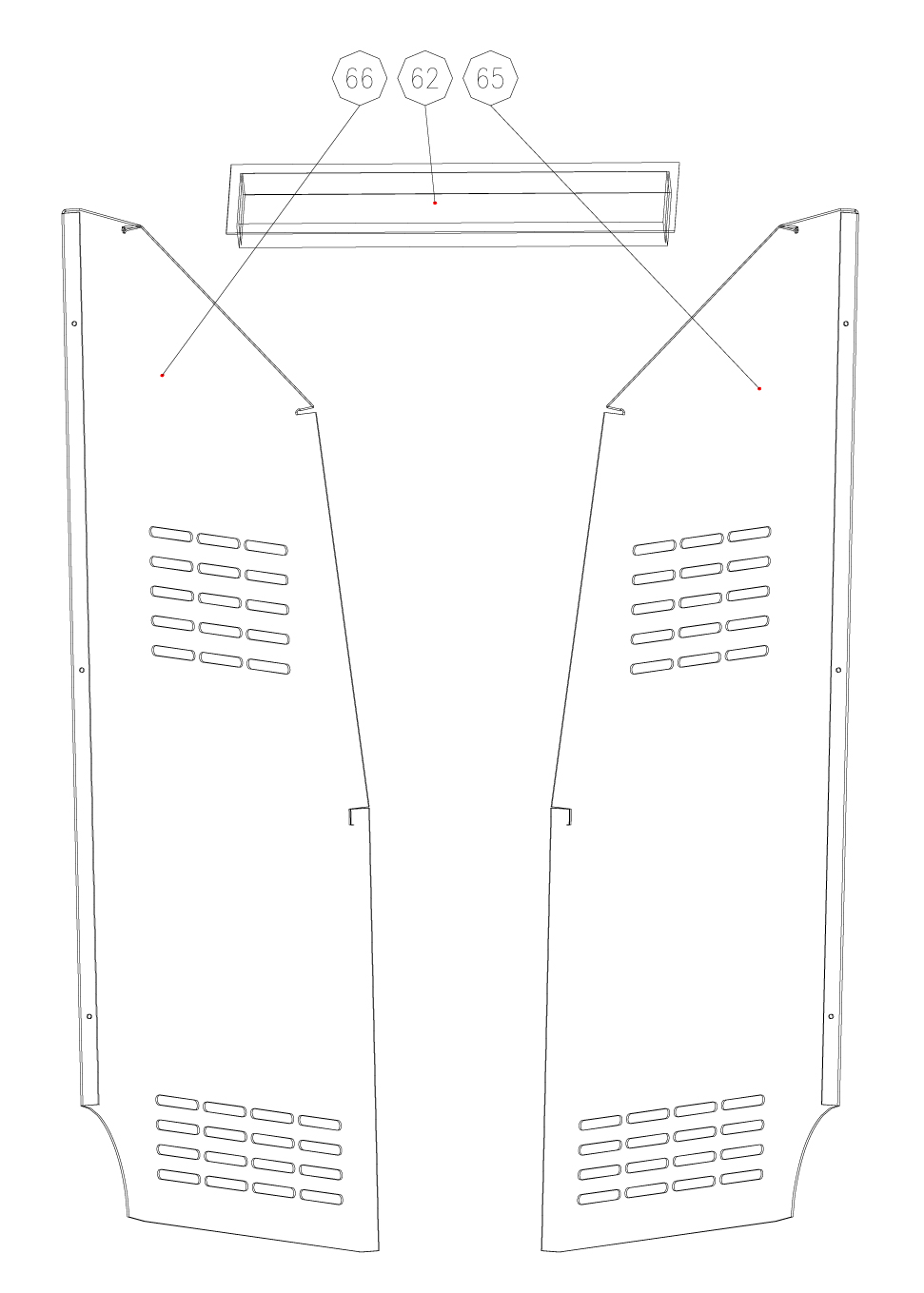

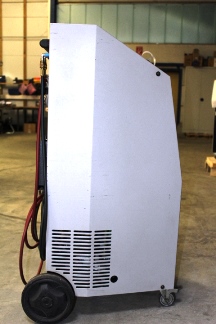

65W052200015Cover - Rightall

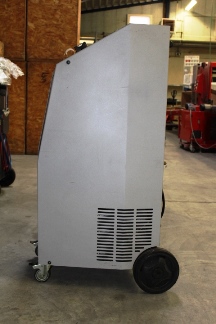

66W052200016Cover - Leftall

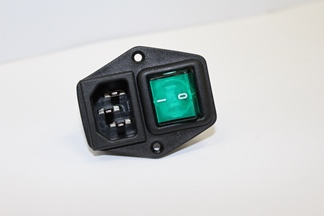

67W052200001Main switchall

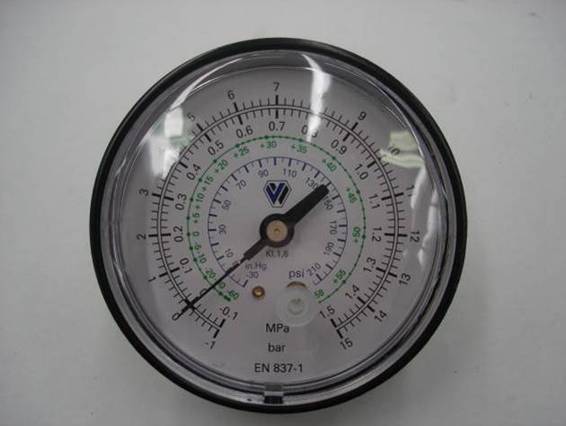

68W052200077Low pressure gaugeall

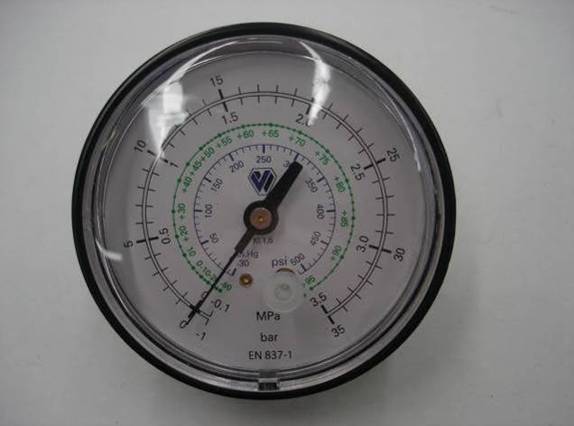

69W052200078High pressure gaugeall

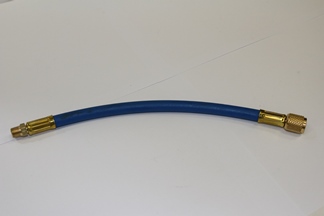

70W052200011Hose - Lowpressureall

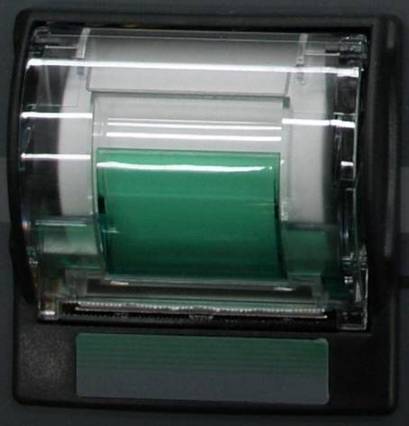

71no longer availablePrinterall

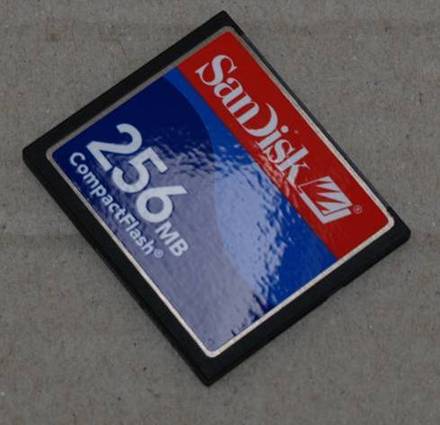

720707764241Memory cardall
72no longer availableUpdate cardall

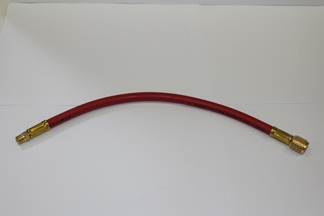

73W052200012Hose - Highpressureall
740707764232Oil load cellall

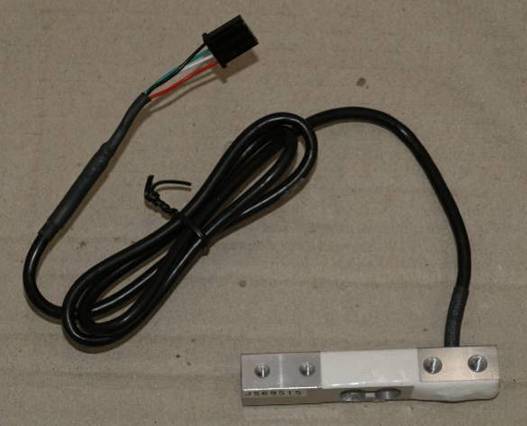

750707764232Oil drain load cellall

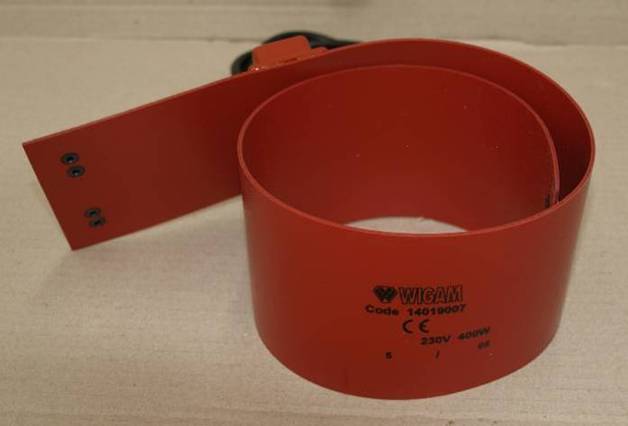

760707764034Heater on the bottle 400W + 2 springsall
770707764232UV load cellall
790900900613Safety valveall
800707764235Refrigerant load cellall
810707764006Check valve001 - 920
81W052200079Check valvefrom 921
820707764006Check valveall
830707764006Check valve001 - 921
83W052200079Check valvefrom 921
840707764006Check valve001 - 921
84W052200079Check valvefrom 921
860707764006Check valve001 - 920
86W052200079Check valvefrom 921
880707764006Check valveall
890707764006Check valveall

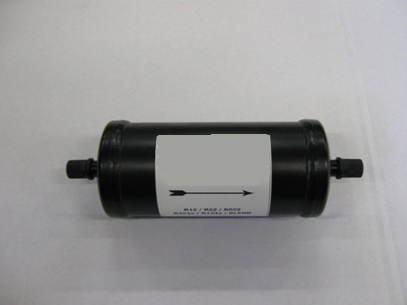

900707764052Filter dryerall
910707764001Valve 1/8" NPTf x 1/8" NPTfall
920707764001Valve 1/8" NPTf x 1/8" NPTfall
93W052200089Capillary tubeall
94W052200089Capillary tubeall
950707764052Filter dryerall

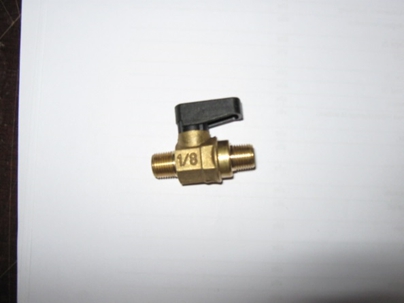

1000707764258Valve on the refrigerant bottle in charging lineall
 0900900606Calibration load cells kitall

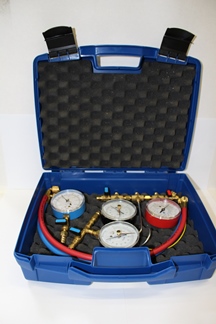

 0900800613 Pressure switches check kitall
 0900900605Discharge oil filterall

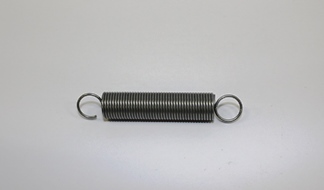

 0900900607 Spring for heaterall

Maintenance parts

PosArticle No.DesignationSerial-No.Picture
 0900800610Maintenance kitall
 0707764052Filter dryerall
 0900900605Discharge oil filterall
 W052200123Seal 3/8"all
 W052200122Seal 1/4"all
 W052200279Seal screw1 incl. seal ringall
 W052200280Seal screw2all
 W052200281Seal ringall
 0892764300Wurth vacuum pump oil ISO 12 - 2 pcs to order!all
