Secutronic Plus (Art.no. 076495)

Notice:

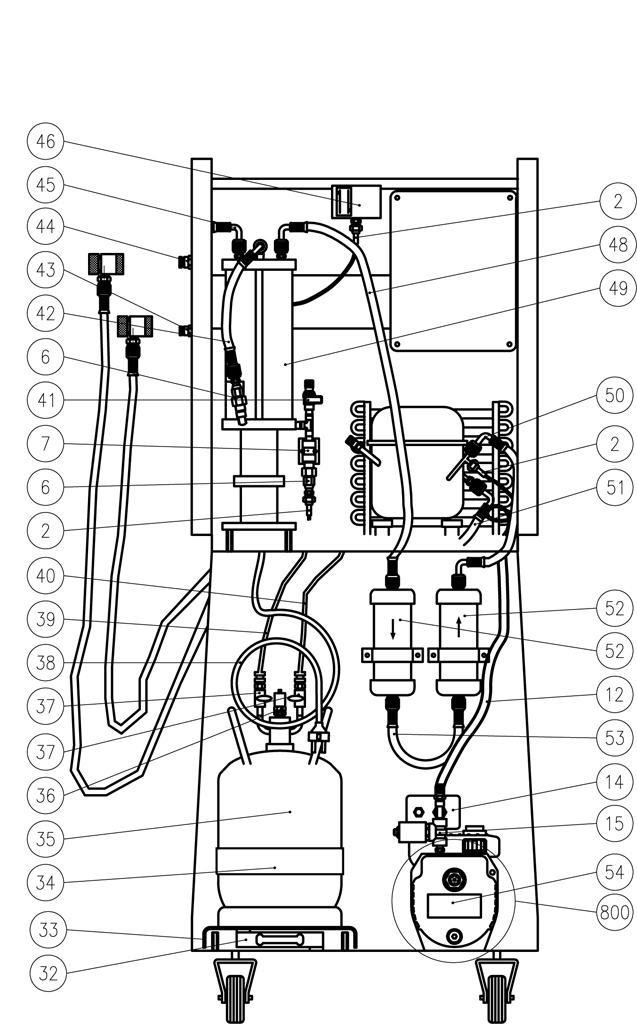

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

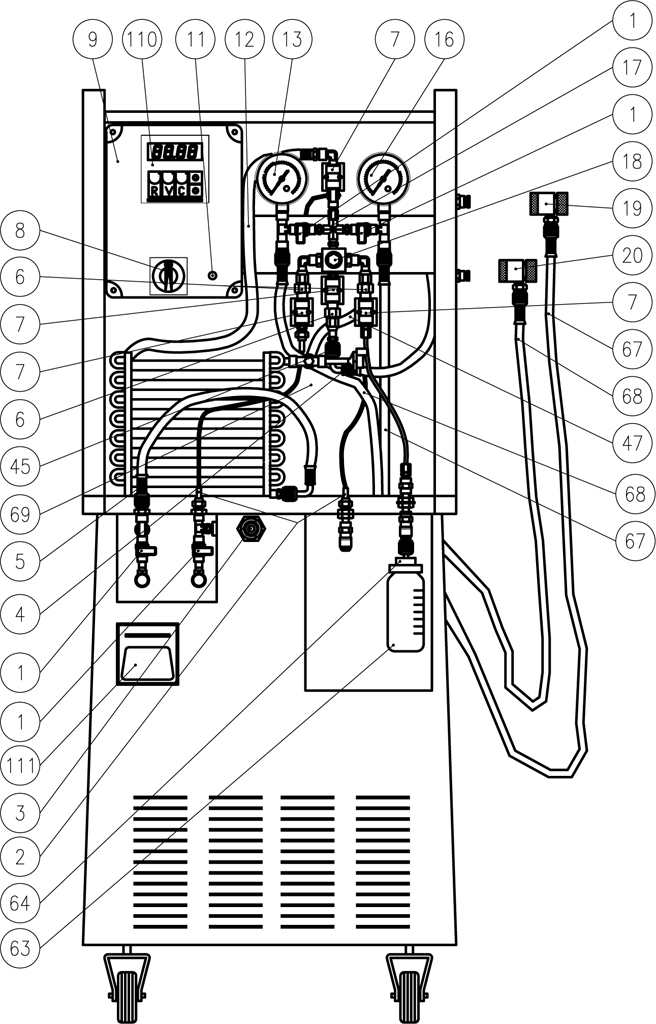

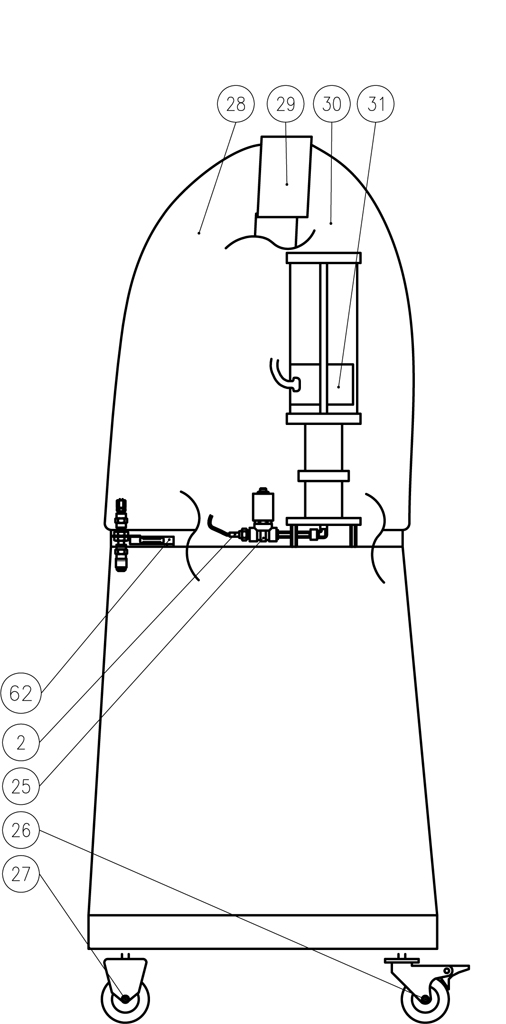

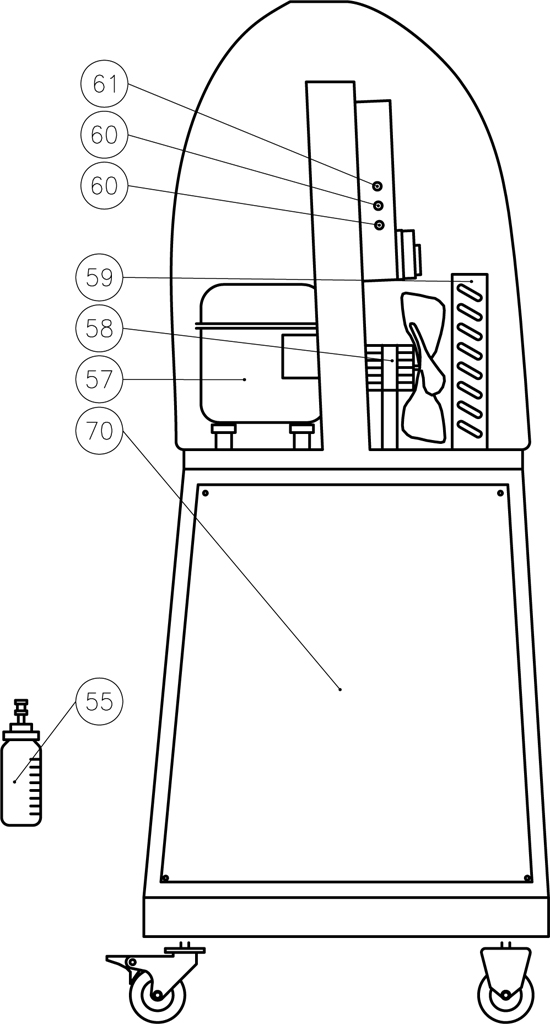

PosArticle No.DesignationSerial-No.Picture

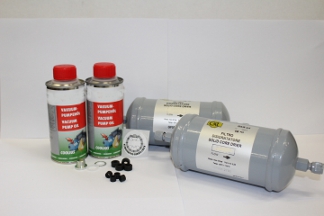

 0900800610Maintenance kitall
10707764001Valve 1/8" NPTf x 1/8" NPTfall
20707764002Capillary tubeall
30707764003Moisture indicatorall
40707764004Charge pressure switchall

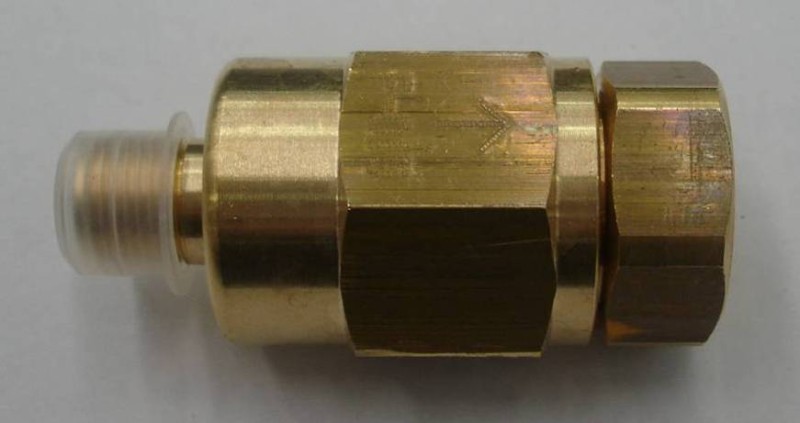

60707764006Check valveall

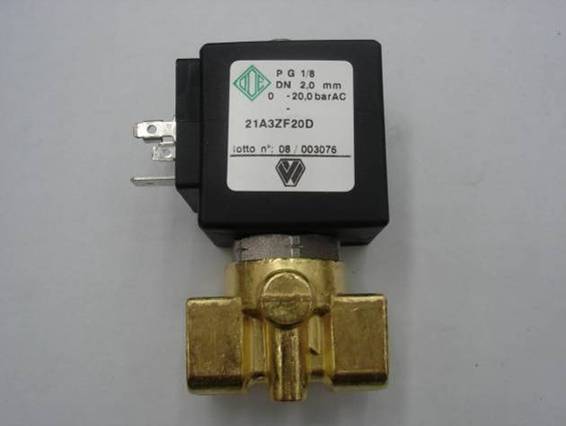

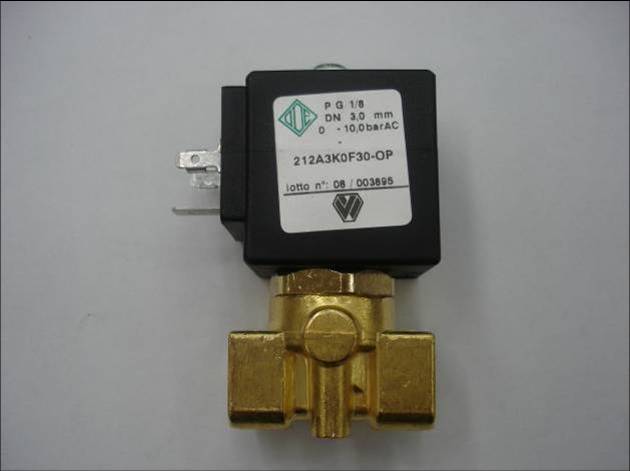

70707764007Solenoid valve 1/8"all

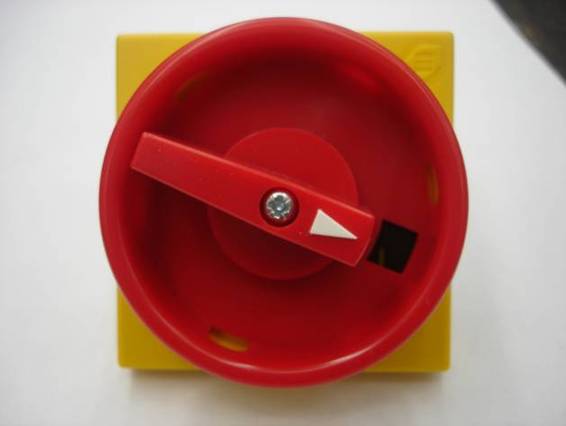

80707764008Main switchall

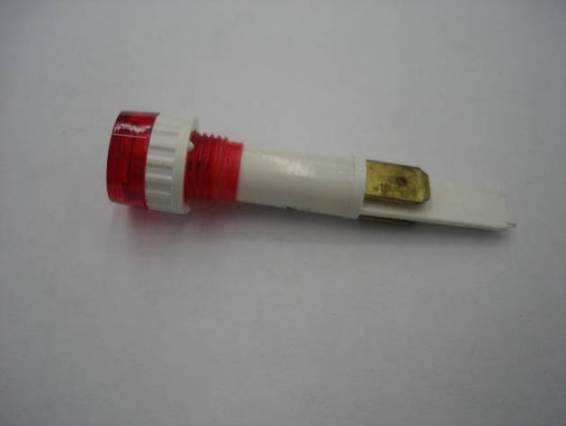

110707764011Red lightall
120707764012Capillary tube Ø 10 mmall

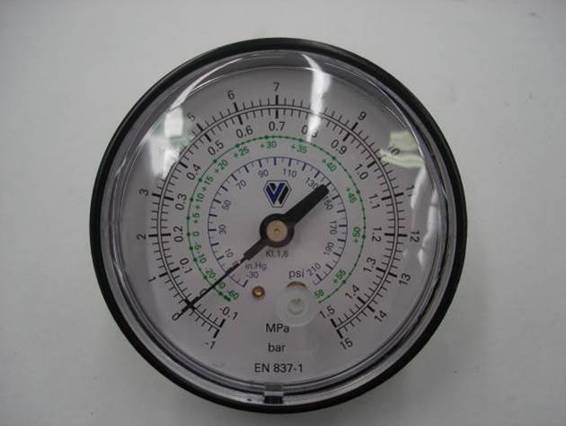

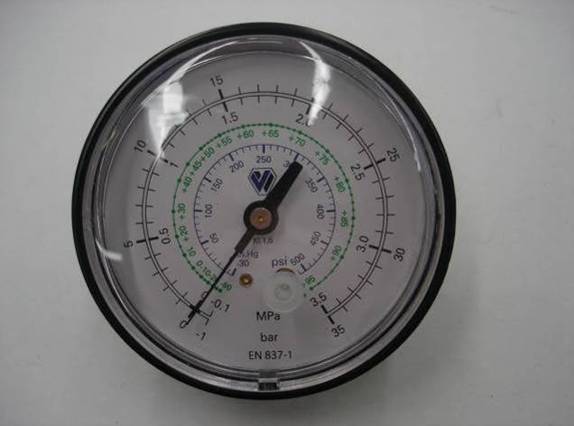

13W052200187LP pressure gauge R12 - R134aall
140707764014Protected vacuum switchall
150707764015Solenoid valve 1/4"all
160707764016HP pressure gauge R12 - R134aall

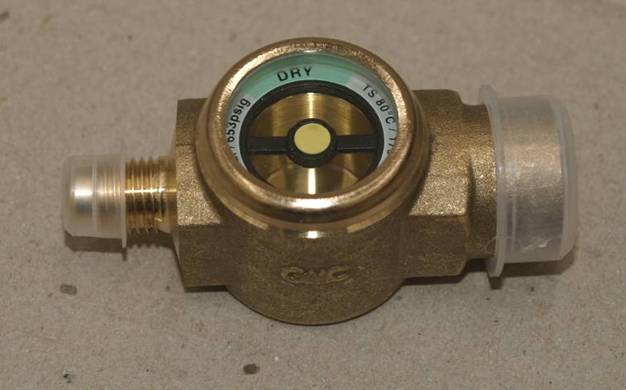

180707764018Sight glassall

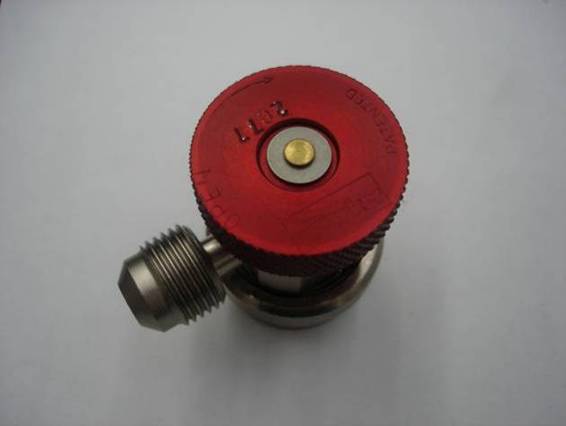

190707764019HP quick couplerall

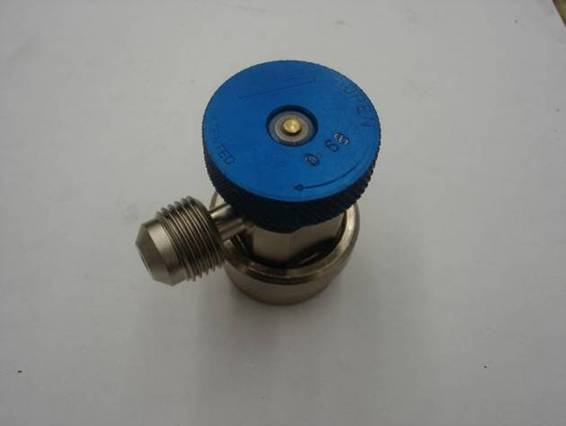

200707764020LP quick couplerall
250707764025Solenoid valve 1/8"all

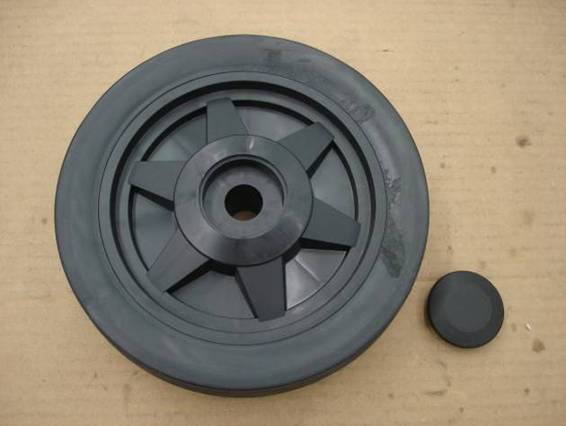

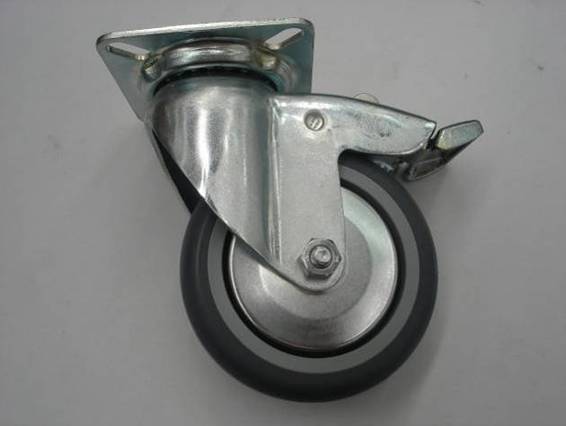

260707764026Wheel (with brake)all
270707764027Turning wheelall
28W052200062
no longer available
ABS front plastic cover (black)all

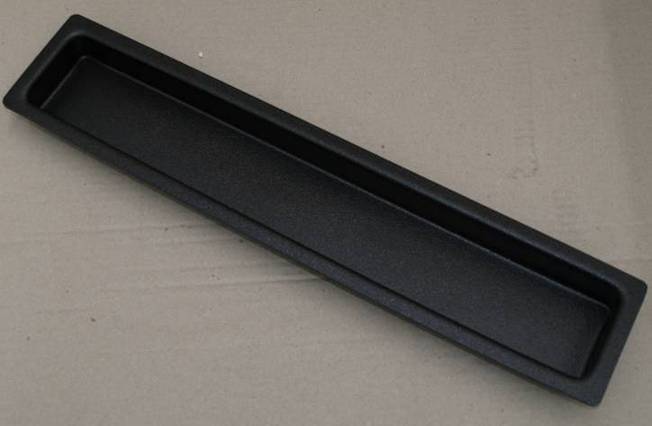

29no longer availableBlack basin of plastic coverall
300707764030ABS rear plastic cover (black)all

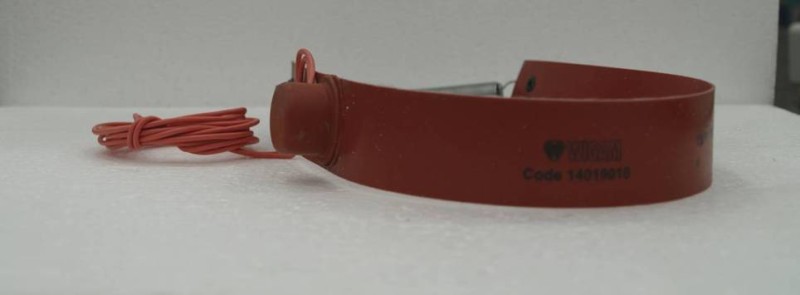

310707764031Heating element 85 Wall
320707764032Loadcell refrigerantall
340707764034Heating element 400 Wall

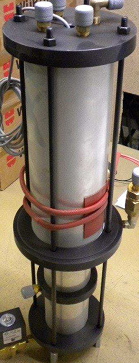

350707764035Complete bottle for Secutronicall

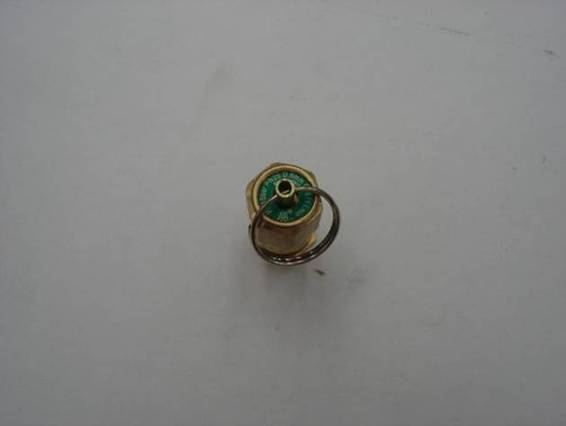

360900900613Safety valve 20 barall
370707764037Valve 1/4" SAE x 1/8" NPTall

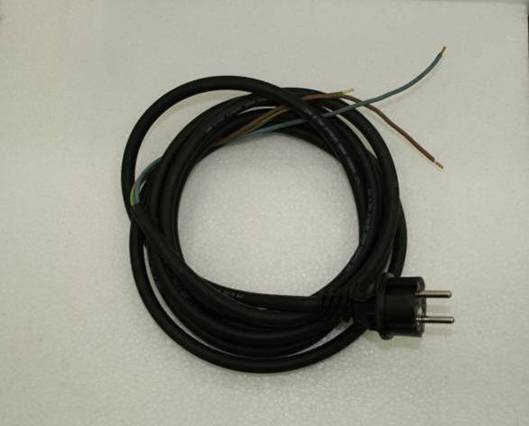

380707764038Power cableall
390707764039Flexible hose 470 mmall
400707764040Flexible hose 340 mmall

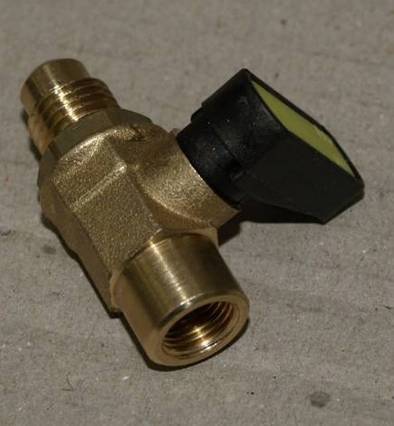

410707764041Valve 1/4" SAE x 1/8" NPTall

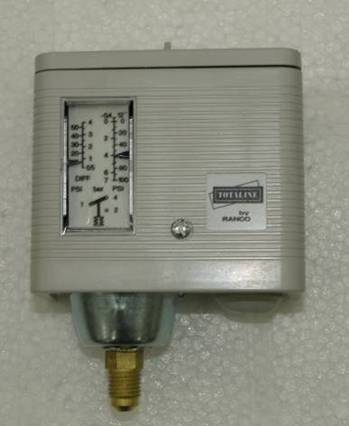

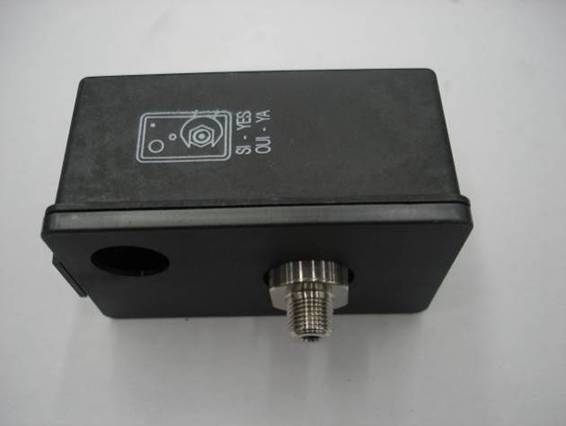

460707764046Pressure switchall
480707764048Flexible hoseall
49no longer availableComplete distillerall
500707764050Flexible hoseall
520707764052Filter dryerall

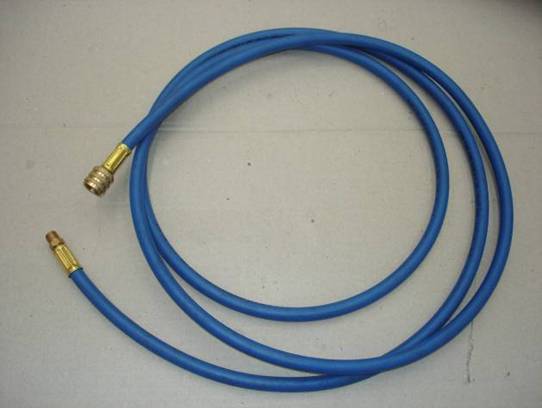

530707764053Flexible hoseall

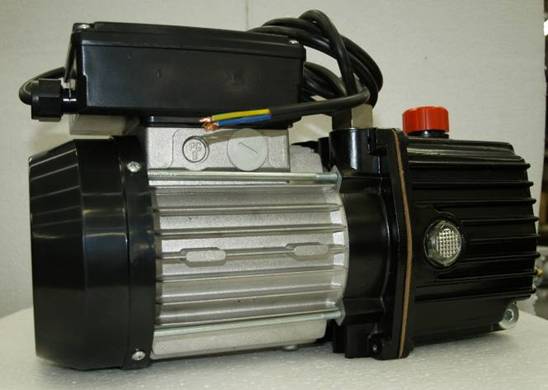

540900901692Single stage vacuum pumpall
550707764055Oil discharge receiver R134a/6 - 180°all

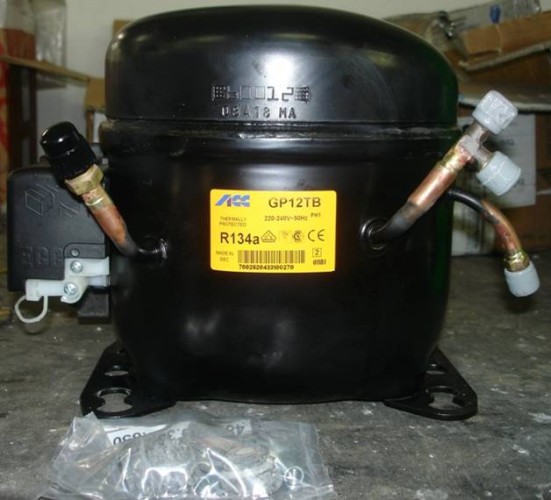

570707764057Complete compressor R134aall

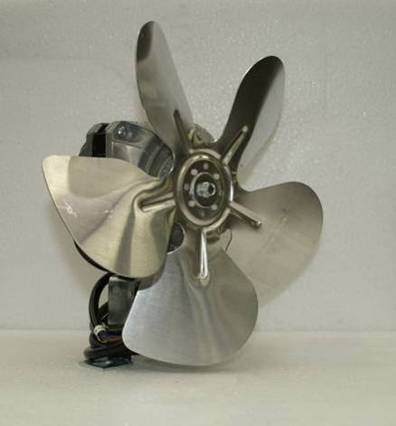

580707764058Motorfan with cableall

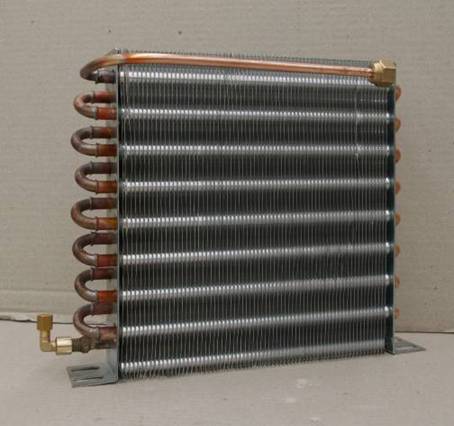

590707764059Complete condenserall

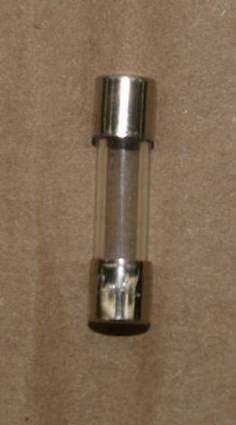

600707764060Fuse 10 Aall
610707764061Fuse 5 Aall

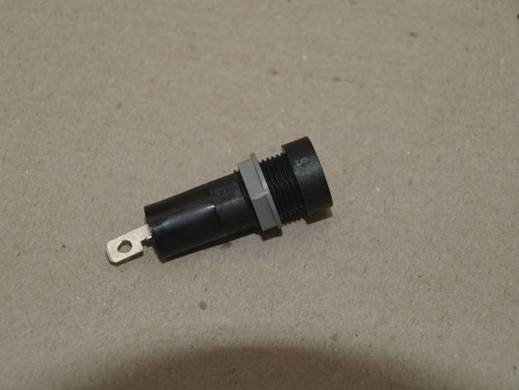

 0900900609Fuse protection
no longer available
all

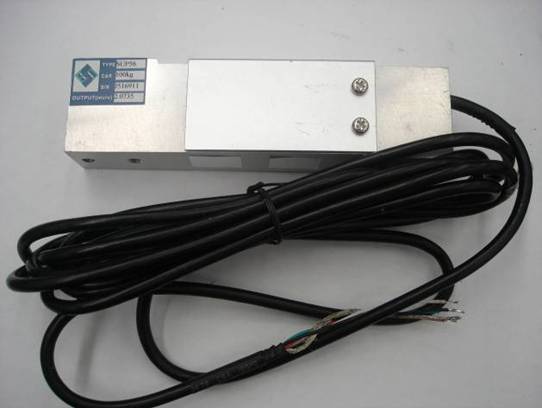

620707764062Load cell 5 kgall
63W052200113Oil dosimeter 180° R134a
incl. lid (black)
all
650707764065Printerall
 076495 002Paper rollall

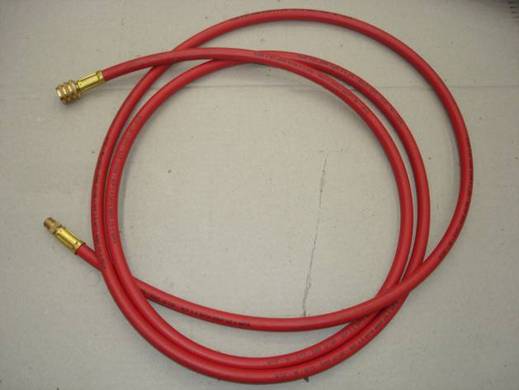

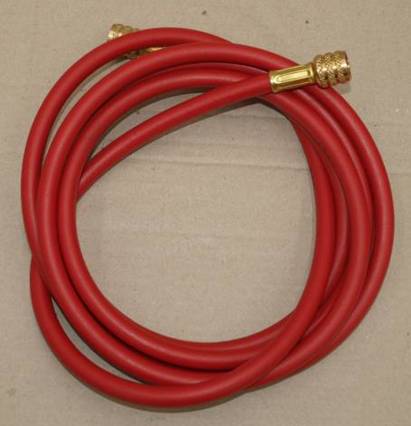

670707764228Flexible hose 3/8" SAE, 3000 mm incl. adapter 0900900601all
67W067000002Flexible hose 3/8" SAE,
6000 mm without adapter
all

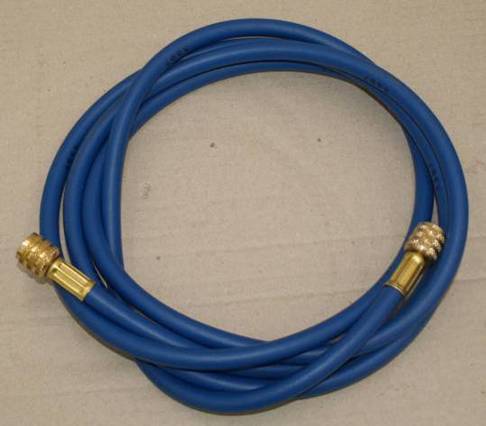

680707764229Flexible hose 3/8" SAE,
3000 mm incl. adapter 0900900601
all
68W067000003Flexible hose 3/8" SAE,
6000 mm without adapter
all

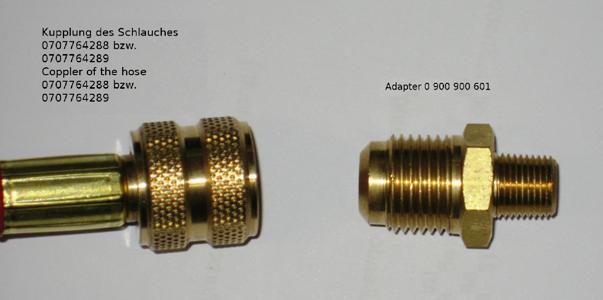

 0900900601Connection adapter for HP and LP hosesall
840707764110Electronic moduleall
840707764251WIG3 front panelall
