Spare parts COOLIUS A10
* also for cyrillic version
Notice:
Please note that some parts only exist in the exploded drawings but not in the spare parts table.
These parts can not be ordered separately!
To Accessory parts
To maintenance parts

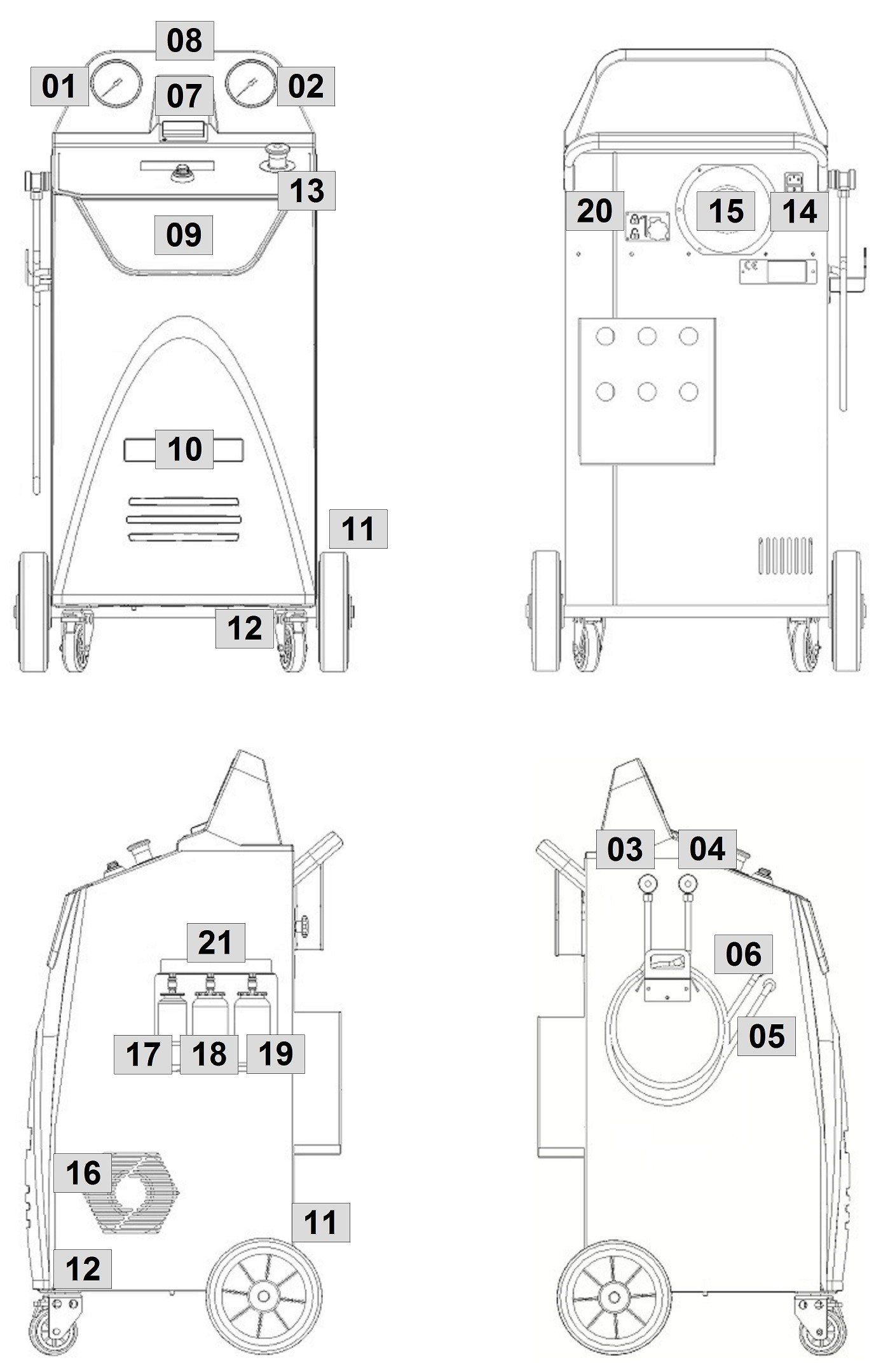

Service unit parts
click to enlarge
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|

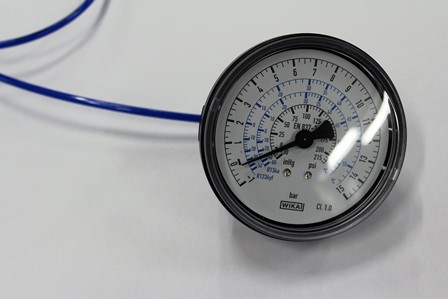

| 1 | W052200258 | SP-GAUGE-LP | all |  |

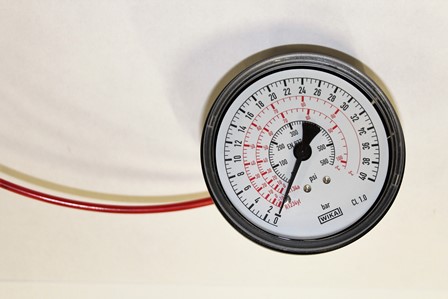

| 2 | W052200259 | SP-GAUGE-HP | all |  |
| W052100049 | SP-RINGS-RED-BLUE-GAUGES | all |  | |

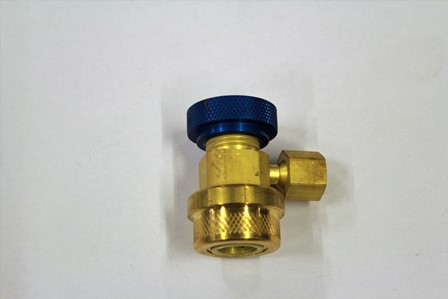

| 3 | W052200246 | SP-SERVICE-COUPLING-LP-A10 | all |  |

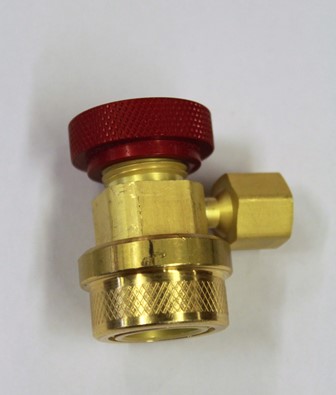

| 4 | W052200247 | SP-SERVICE-COUPLING-HP-A10 | all |  |

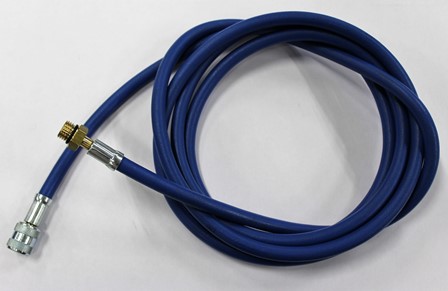

| 5 | W052200238 | SP-SERVICE-HOSE-LP-A10-3M | all |  |

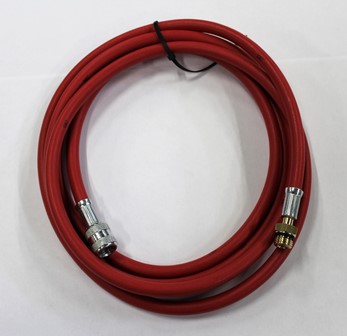

| 6 | W052200240 | SP-SERVICE-HOSE-HP-A10-3M | all |  |
| W052100159 | SP-O-RING-SERVICE-HOSE-M14-R134A | all | ||
| W052100178 | SP-GASKET for 1/4SAE and 1/2 ACME HOSES- A Series | all | ||
| W052100173 | SP-HOLDER-SERVICE-HOSES-10-30 | all | ||

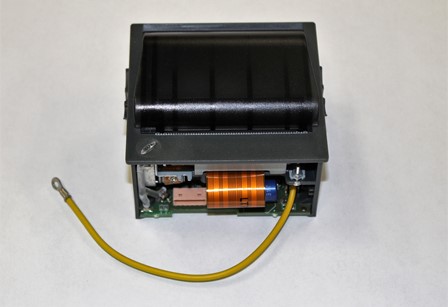

| 7 | W052200220 | SP-PRINTER-KIT | all |  |

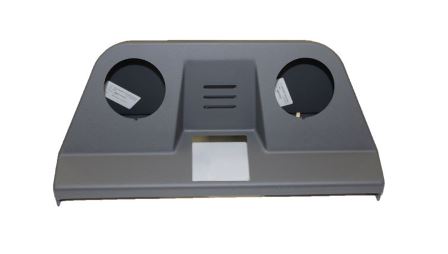

| 8 | W052200264 | SP-COVER-TOP | all |  |

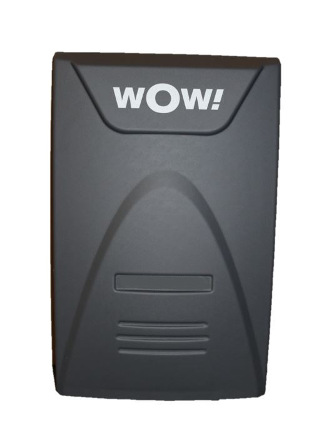

| 9 | W052200269 | SP-PANEL-FRONT-WOW | all |  |
| W052100128 | SP-PANEL-FRONT-WÜRTH-10 | all | ||
| W052100129 | SP-PANEL-FRONT-NEUTRAL-10 | all | ||
| W052200270 | SP-PANEL-FRONT-AUTOCOM | all | ||

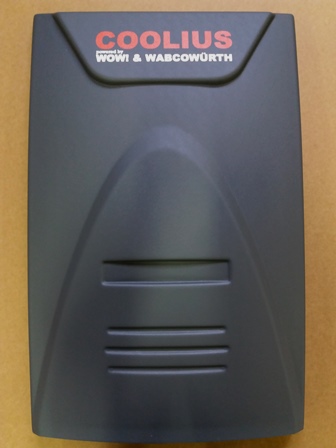

| W052200271 | SP-PANEL-FRONT-COOLIUS | all |  | |

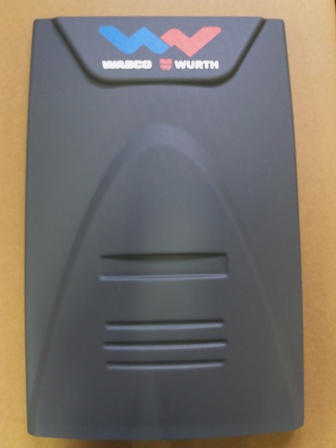

| W052100082 | SP-PANEL-FRONT-WWWS | all |  | |

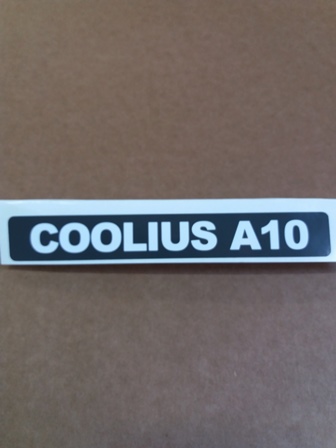

| 10 | W052200266 | SP-STICKER-A10 | all |  |
| 11 | W052200209 | SP-WHEEL-REAR | all |  |

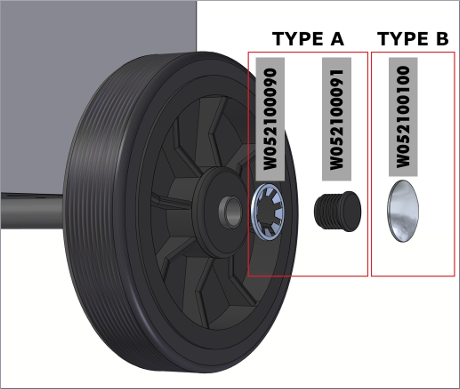

| W052100090 | SP-TYPE A - REAR WHEEL BLOCK =10pcs | all |  | |
| W052100091 | SP-TYPE A - REAR WHEEL STING =10pcs | all | | |
| W052100100 | SP-TYPE B - REAR WHEEL CAP =10pcs | all | | |
| 12 | W052200208 | SP-FRONT-WHEEL-WITH-BRAKE | all |  |

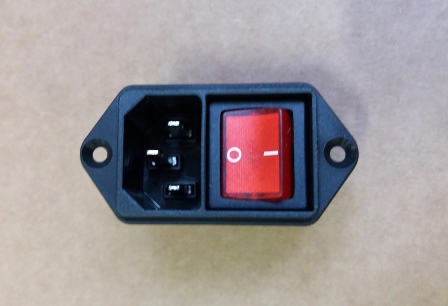

| 14 | W052100083 | SP-MAIN-SWITCH (VERSION WITH SCREWS) | all |  |

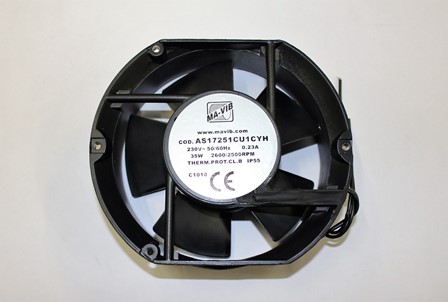

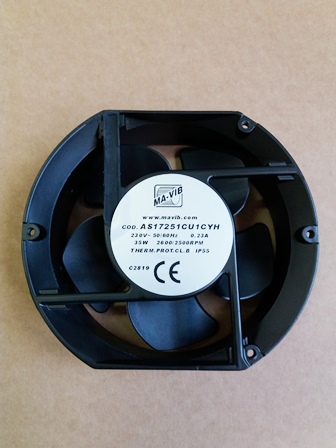

| 15 | W052200217 | SP-MAIN-FAN | all |  |
| 16 | W052200217 | SP-COMPRESSOR-FAN | all |  |

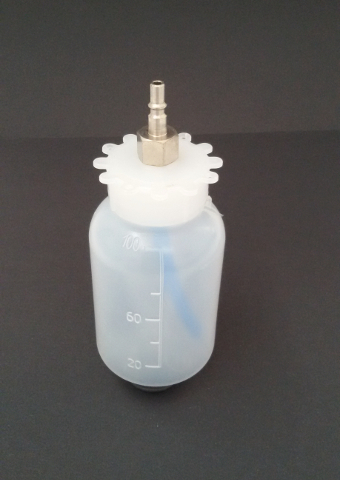

| 17 | W052100020 | SP-BOTTLE-UV-TRACER-100ML | all |  |
| 18 | W052200273 | SP-BOTTLE-NEW-OIL-250ML | all |  |
| W052100103 | SP-NEW OIL / POE OIL CONNECTOR G1/8 201 | all | ||
| 19 | W052200272 | SP-BOTTLE-USED-OIL-250ML | all |  |
| W052100098 | SP-CONNECTOR-OLD-OIL-UV-BOTTLE | all | ||
| W052100170 | SP-ADAPTER-KIT-FOR-SEALED-OIL-BOTTLES | all | ||
| W052100158 | SP-PIPE-OLD-OIL-DISCHARGE-CRISTAL | all | ||

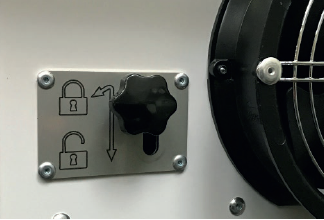

| 20 | W052200210 | SP-SCALE-LIFT-KNOB | all |  |

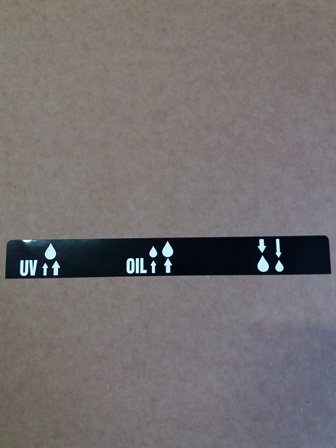

| 21 | W052200268 | SP-STICKER-OIL/UV/NEW-OIL | all |  |

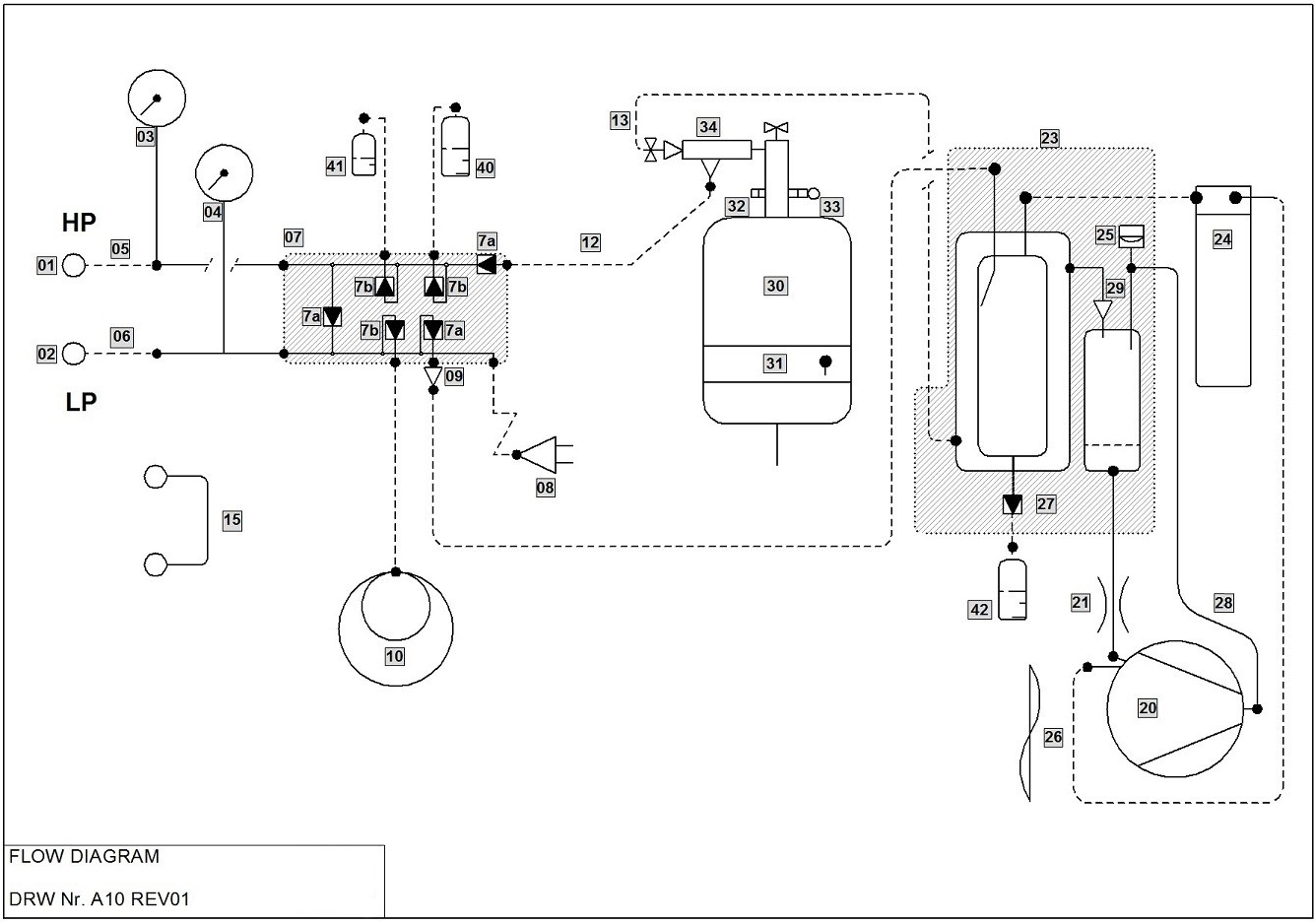

Flow diagram
click to enlarge
| Pos | Article-No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|
| 1 | W052200247 | SP-SERVICE-COUPLING-HP-A10 | all | |
| 2 | W052200246 | SP-SERVICE-COUPLING-LP-A10 | all | |
| 3 | W052200259 | SP-GAUGE-HP | all | |
| 4 | W052200258 | SP-GAUGE-LP | all | |
| 5 | W052200240 | SP-SERVICE-HOSE-HP-A10-3M | all | |
| 6 | W052200238 | SP-SERVICE-HOSE-LP-A10-3M | all | |

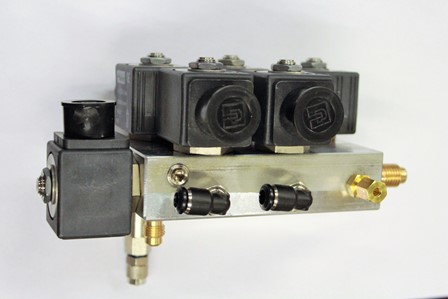

| 7 | W052200233 | SP-MANIFOLD-A10 | all |  |

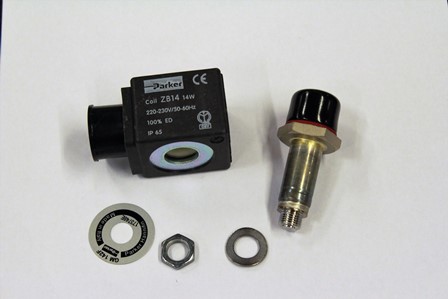

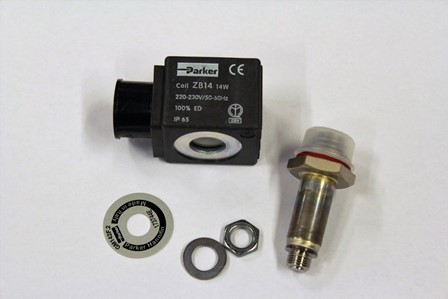

| 7A | W052200224 | SP-ELECTRIC-VALVE-GROUP-LP-XP-RF | all |  |
| W052100015 | SP-ELECTRIC-VALVE-OIL-DISCHARGE-COMPLETE | all | ||
| 7B | W052200225 | SP-ELECTRIC-VALVE-GROUP-NO-UV-VP | all |  |
| 8 | W052200262 | SP-PRESSURE-TRANSDUCER-ELECTRONIC | all |  |

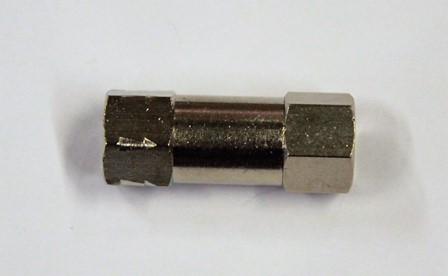

| 9 | W052200230 | SP-CHECKVALVE-A/C-CHARGE | all |  |
| W052100084 | SP-CHECKVALVE-RECOVERY | |||

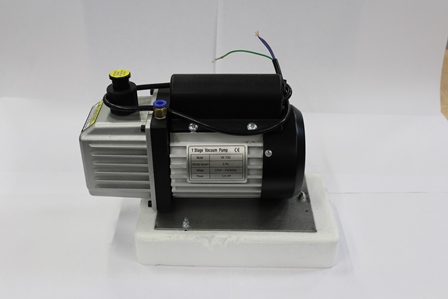

| 10 | W052200223 | SP-VACUUM-PUMP | all |  |
| W052100101 | SP-SHOCK-ABSORBER-VACUUMPUMP-COOLIUS | all | ||
| W052100172 | SP-SCREW-M8-WITH-O-RING-VACUUM-PUMP-100-128L | all | ||
| W052100195 | SP-CAP-VACUUM-PUMP-100L | all | ||

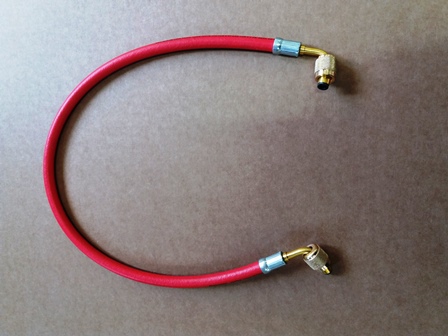

| 12 | W052200242 | SP-CHARGE-HOSE-RED-A10 | all |  |

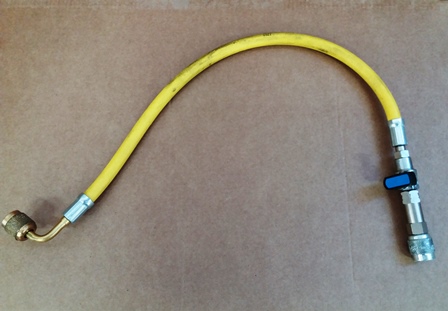

| 13 | W052100008 | SP-HOSE-YELLOW-W/VALVE | all |  |
| 15 | W052100152 | SP-CONNECTOR-INTERNAL-CLEANING-A-R134A | all |  |

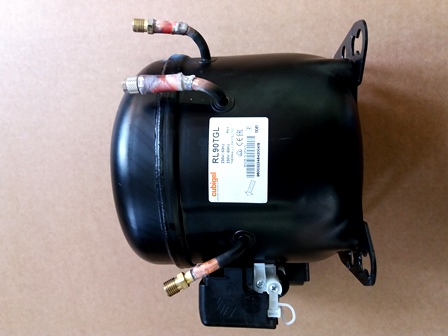

| 20 | W052200222 | SP-COMPRESSOR | all |  |

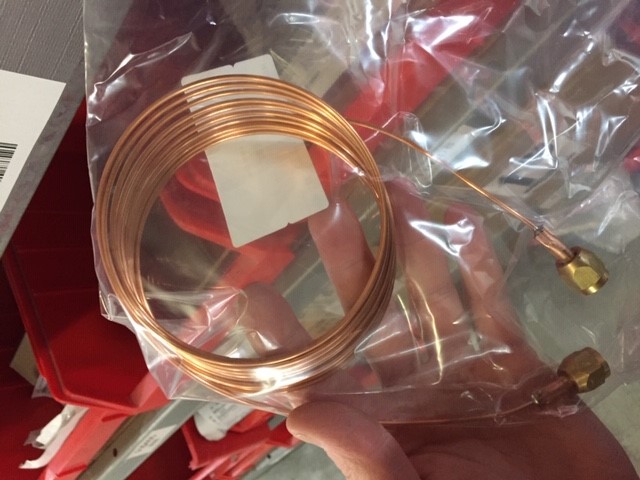

| 21 | W052100012 | SP-CAPILLARY | all |  |

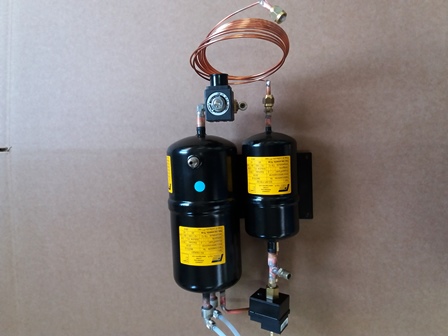

| 23 | W052200251 | SP-RECOVERY-COMPRESSOR DISTILLER-GROUP-A10 | all |  |

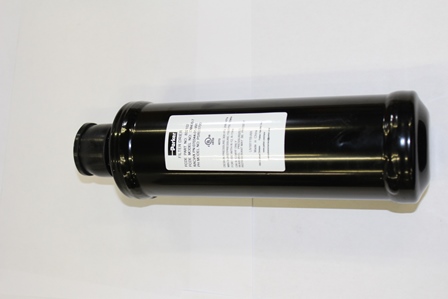

| 24 | W052200250 | SP-MAIN-FILTER | all |  |

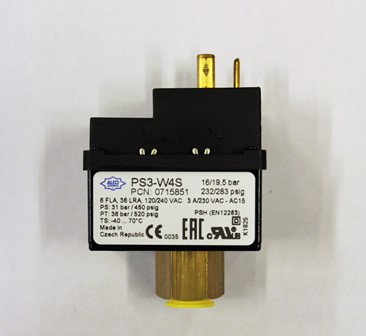

| 25 | W052100028 | SP-SWITCH-HIGHPRESSURE | all |  |
| 26 | W052200217 | SP-COMPRESSOR-FAN | all | |
| 27 | W052200224 | SP-ELECTRIC-VALVE-GROUP-LP-XP-RF | all | |
| W052100015 | SP-ELECTRIC-VALVE-OIL-DISCHARGE-COMPLETE | all | ||

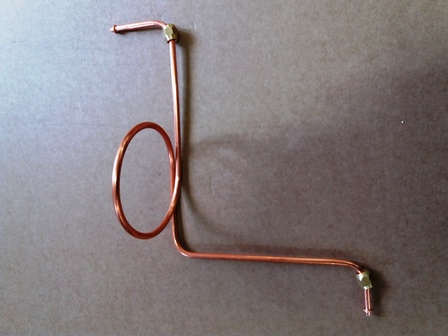

| 28 | W052200235 | SP-COPPER-PIPE-COMPRESSOR | all |  |

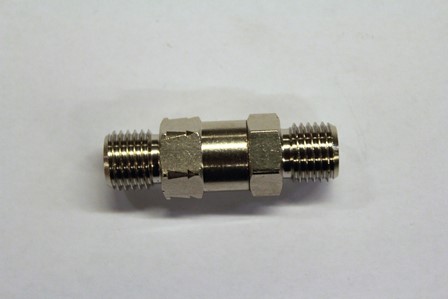

| 29 | W052100017 | SP-CHECKVALVE-OIL-SEPARATOR | all |  |

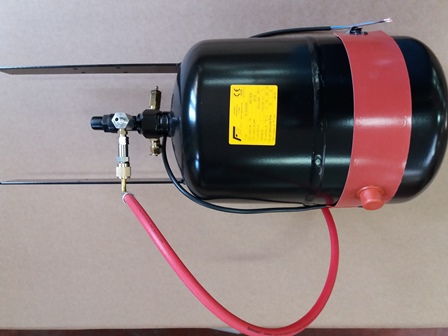

| 30 | W052200253 | SP-LIQUID-RECEIVER-VESSEL-A10 | all |  |
| W052100143 | SP-DISTANCE-PIECE-BOTTLE-BELOW-10 | all | ||
| W052100144 | SP-ALUMINUM-NUT-BOTTLE-BELOW-10 | all | ||
| W052100147 | SP-CENTERING-SPRING-REFRIGERANT-BOTTLE | all | ||

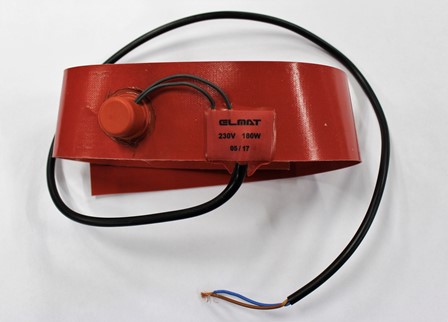

| 31 | W052200214 | SP-HEAT-BELT | all |  |

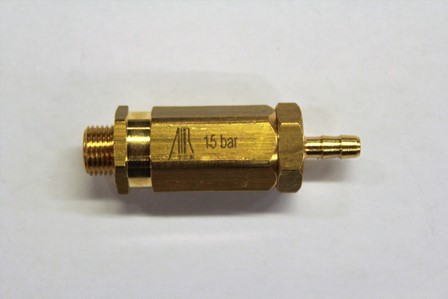

| 32 | W052200232 | SP-VALVE-OVERPRESSURE | all |  |
| 33 | W052200231 | SP-SAFETY-VALVE | all | |

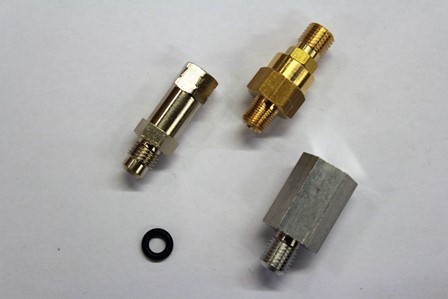

| 34 | W052200255 | SP-INT-VESSEL-ADAPTOR-A10 | all |  |
| 40 | W052200273 | SP-BOTTLE-NEW-OIL-250ML | all | |
| 41 | W052100020 | SP-BOTTLE-UV-TRACER-100ML | all | |
| 42 | W052200272 | SP-BOTTLE-USED-OIL-250ML | all | |

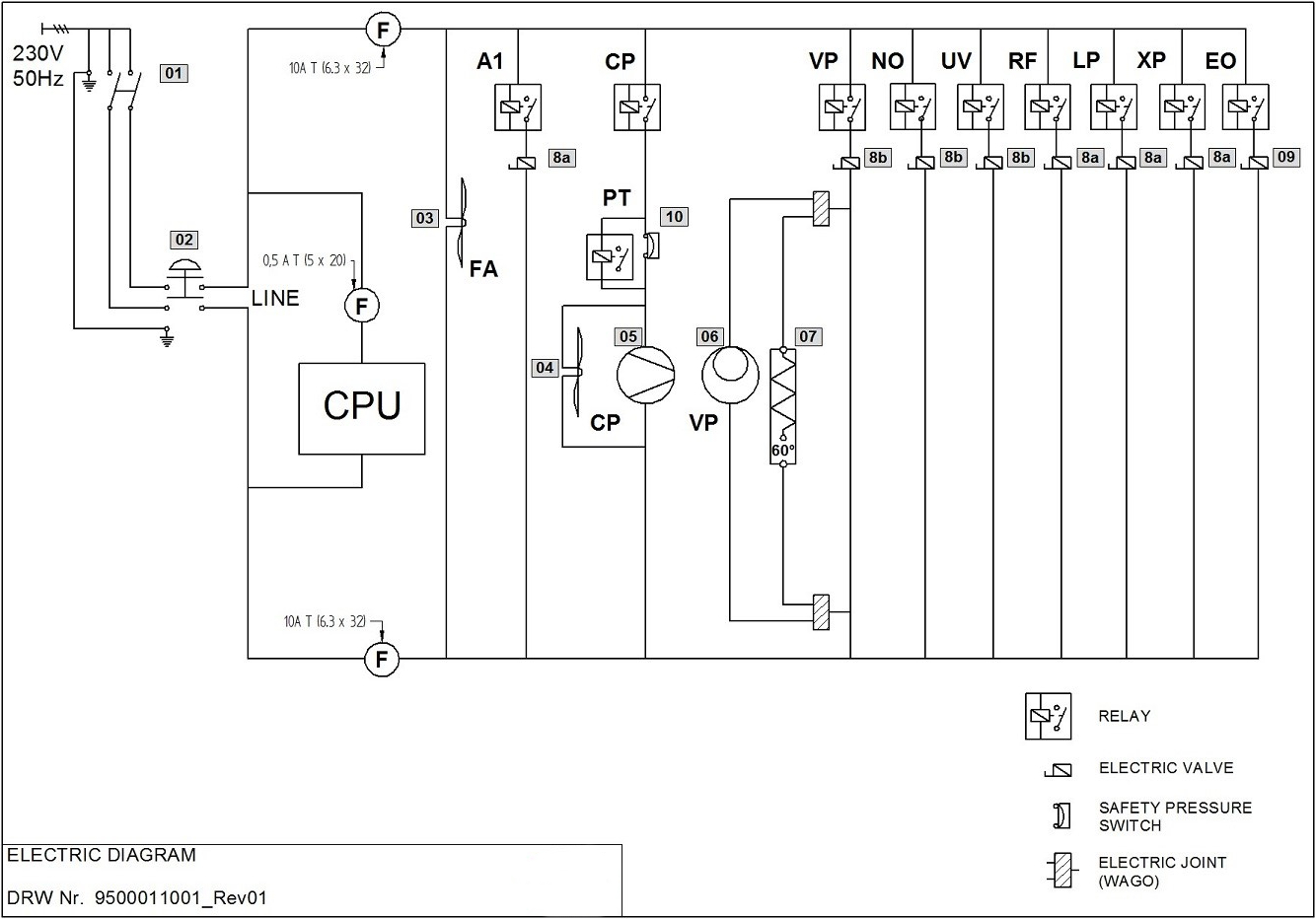

Electric diagram
click to enlarge
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|
| 1 | W052100083 | SP-MAIN-SWITCH (VERSION WITH SCREWS) | all | |
| 3 | W052200217 | SP-MAIN-FAN | all | |
| 4 | W052200217 | SP-COMPRESSOR-FAN | all | |
| 5 | W052200222 | SP-COMPRESSOR | all | |
| 6 | W052200223 | SP-VACUUM-PUMP | all | |
| 7 | W052200214 | SP-HEAT-BELT | all | |
| 8a | W052200224 | SP-ELECTRIC-VALVE-GROUP-LP-XP-RF | all | |
| W052100015 | SP-ELECTRIC-VALVE-OIL-DISCHARGE-COMPLETE | all | ||
| 8b | W052200225 | SP-ELECTRIC-VALVE-GROUP-NO-UV-VP | all | |
| 9 | W052200224 | SP-ELECTRIC-VALVE-GROUP-LP-XP-RF | all | |
| W052100015 | SP-ELECTRIC-VALVE-OIL-DISCHARGE-COMPLETE | all | ||
| 10 | W052100028 | SP-SWITCH-HIGHPRESSURE | all | |

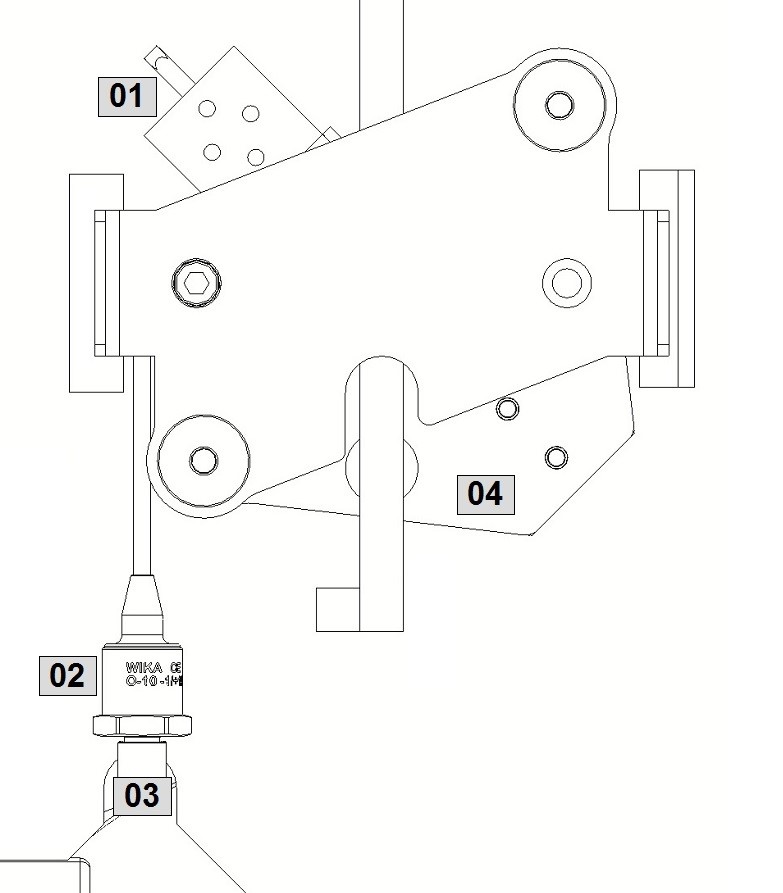

Assembly
click to enlarge
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|
| 1 | W052200263 | SP-LOAD-CELL-60KG | all |  |
| W052100163 | SP-CENTERING-CONE-WEIGHT SCALE-ALL | all | ||
| W052100193 | SP-BRACKET-REFRIGERANT-SCALE-10SERIE | |||
| 2 | W052200262 | SP-PRESSURE-TRANSDUCER-ELECTRONIC | all | |
| 3 | W052200277 | SP-PRESSURE-TRANSDUCER-CONNECTION-KIT | all | |
| 4 | W052200211 | SP-SCALE-KIT | all | |
| W052100102 | SP-LEVER-MODIFIED-10-SERIES | all |

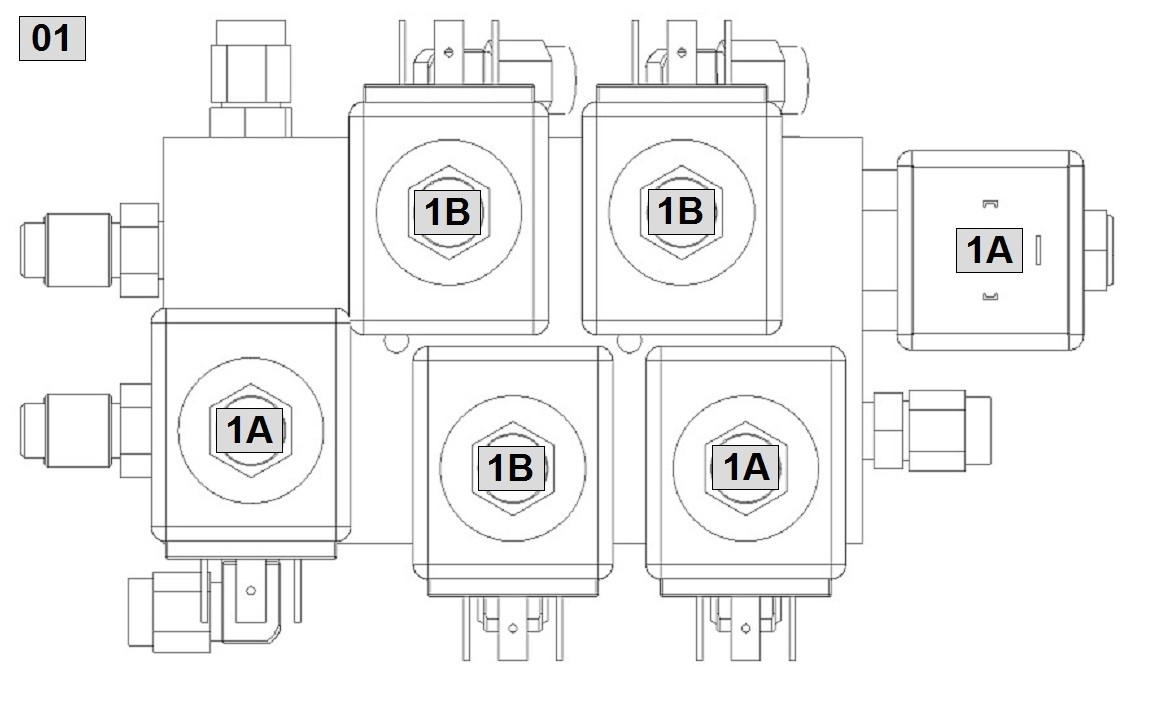

Manifold
click to enlarge
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|
| 1 | W052200233 | SP-MANIFOLD-A10 | all | |
| 1A | W052200224 | SP-ELECTRIC-VALVE-GROUP-LP-XP-RF | all | |
| W052100015 | SP-ELECTRIC-VALVE-OIL-DISCHARGE-COMPLETE | all | ||

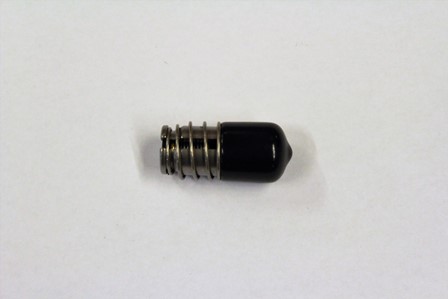

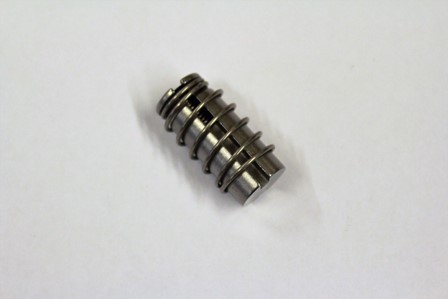

| W052200226 | SP-PISTON-FOR-ELEC-VALVE-LP-XP-RF | all |  | |
| 1B | W052200225 | SP-ELECTRIC-VALVE-GROUP-NO-UV-VP | all | |
| W052200227 | SP-PISTON-FOR-ELEC-VALVE-NO-UV-VP | all |  |
Other parts
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|
| W052200200 | SP-PIPE-PA11-SR-HL-4/6 | all | ||
| W052100039 | SP-PIPE-PA11-NEUTRAL-4/6 | all | ||
| W052100040 | SP-PIPE-PA11-BLUE-2/4 | all | ||
| W052100041 | SP-PIPE-BLUE-6/8 | all | ||
| W052100042 | SP-PIPE-PA11-RED-2/4 | all | ||
| W052100043 | SP-PIPE-PU-YELLOW-4/6 | all | ||
| W052100044 | SP-PIPE-PU-BLUE-4/6 | all | ||
| W052100045 | SP-PIPE-CRISTAL-4/6 | all | ||
| W052100194 | SP-RECOVERY-TUBE-4X&-YELLOW | from AA010000 | ||
| W052100167 | SP-BRASS-OGIVE-2/4 | all |  | |
| W052100168 | SP-INTERNAL-SUPPORT-BUSHING-2/4 | all |  | |
| W052100169 | SP-INTERNAL-SUPPORT-BUSHING-4/6 | all | | |
| W052100053 | SP-O-RING-FOR-TUBES | all | ||

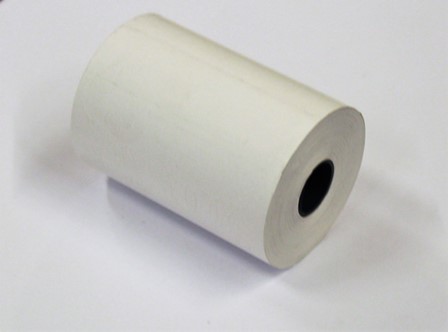

| W052200212 | SP-PRINTER-PAPERROLL | all |  | |

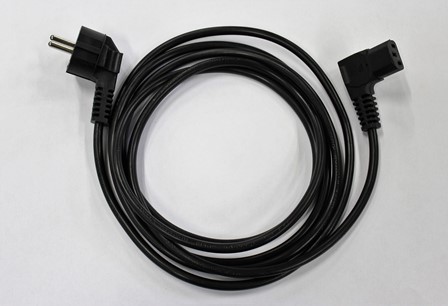

| W052200215 | SP-POWER-CORD-CEE7 | all |  | |
| W052100156 | SP-MAINBOARD-PWR-10SERIES | from AD000661 |  | |
| W052100153 | SP-MAINBOARD-PWR-10SERIES-PROTECTED* * for APAC Countries | all | | |

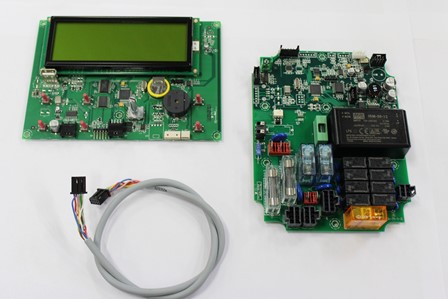

| W052200218 | SP-MAINBOARD-KIT-TO-SN-AD000660 | up to AD000660 |  | |
| W052100188 | SP-CABLE-MAINBOARD-DISPLAY | all | ||
| W052100056 | SP-DISPLAY-MAINBOARD | from AD000661 |  | |
| W052100123 | SP-DISPLAY-CYRILLIC | all | ||
| W052100138 | SP-CABLE-CONNECTOR | all |  | |

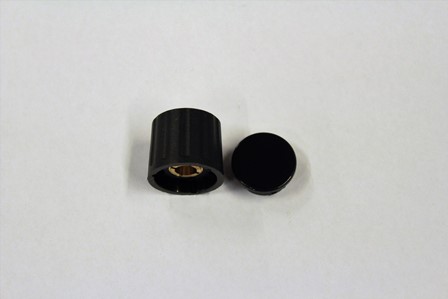

| W052200219 | SP-CONTROL-KNOB | all |  | |
| W052200265 | SP-KEY-BOARD-POLYESTER-PANEL | all | ||

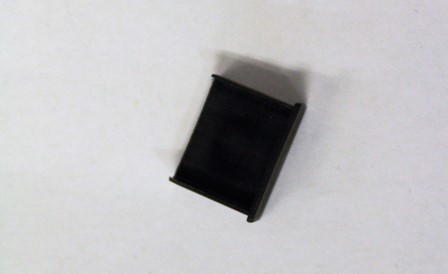

| W052200278 | SP-CAP-USB | all |  |
Accessory parts
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|
| W052100170 | ADAPTER-KIT-FOR-SEALED-OIL-BOTTLES | all | ||

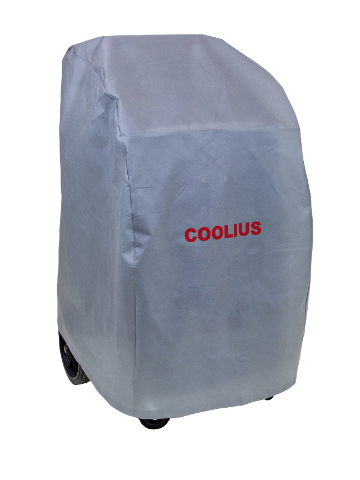

| W067100002 | AY-COVER-COOLIUS-LOGO | all |  | |

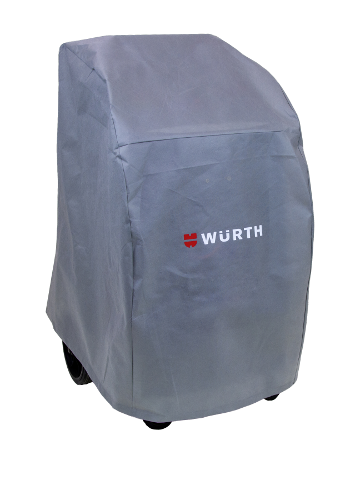

| W067100015 | AY-COVER-WURTH-LOGO | all |  | |
| W067100007 | AY-STICKER-R513A | all | ||
| W067100008 | AY-POWER-ADAPTER-APAC-COUNTRIES | all | ||
| W067100011 | AY-DATA-BASE-R134A-UNITS | all | ||
| W067100008 | AY-POWER-ADAPTER-APAC-COUNTRIES | all | ||

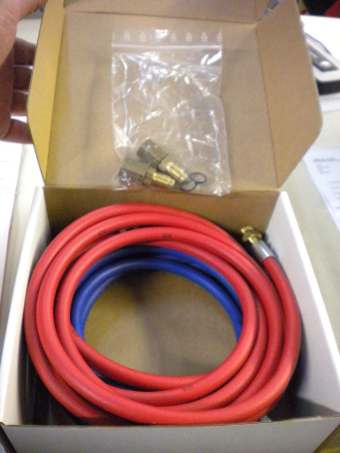

| W067200030 | AY-SERVICEHOSE-EXTENSION-KIT-R134A | all |  | |

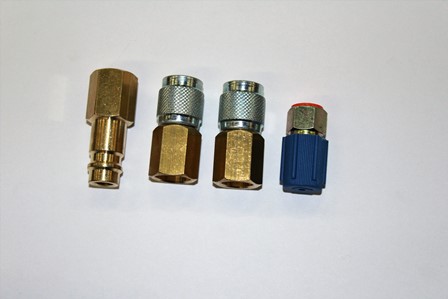

| W067200031 | AY-ADAPTER-COOLIUS-FLUSHINGKIT | all |  | |
| W067200032 | AY-COVER-TRANSPARENT-SET | all |
Maintenance parts
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|
| W052100048 | SP-MAINTENANCE-KIT (DRIER+VACUUM PUMP OIL+GASKETS) | all | ||
| W052100164 | SP-MAINTENANCE-KIT-AUS-NZ | all | ||
| W052200250 | SP-MAIN-FILTER (MAIN FILTER) | all | | |
| W052200279 | Seal screw1 incl. seal ring | all |  | |
| W052100096 | Seal ring1 | all | ||
| W052100172 | SP-SCREW-M8-WITH-O-RING-VACUUM-PUMP-100-128L | all |
