WAC 2000 R134a - (Art.no. W050200010)

Notice:

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

To maintenance parts To maintenance parts

Explo Front & left side WAC 2000

click to enlarge

Explo Backside WAC 2000

click to enlarge

Explo Right side WAC 2000

click to enlarge

Explo Sidepanel WAC 2000

click to enlarge

Explo Sidepanel 2 WAC 2000

click to enlarge

PosArticle No.DesignationSerial-No.Picture
 W067200007
no longer available!		AY-CONNECTIONKIT-WAC2000-R134Aall
 W067200008AY-USB-STICK-WAC2000-R134A-WITH-DATASall
1W052200070Solenoid valveall
2W052200070Solenoid valveall
3W052200070Solenoid valveall
4W052200070Solenoid valveall
5W052200071Condenserall
5W052200182
no longer available!		SP-CONDENSER-FROM-S-161from S/N 161
60707764259
no longer available!		Vacuum pumpall
7W052200072Compressor all
80707764058Fan with cableall
10W052200070Solenoid valveall
110707764052Filter drierall
12W052200073Bottle all
12W052200184SP-BOTTLE-REFRIGERANT-FROM-S-161from S/N 161
13W052200070Solenoid valveall
14W052200074Heater on the bottle 400Wall
15W052200075Oil separatorall
170900900603Safety swicthall
180900900613Safety valveall
19W052200070Solenoid valveall
20W052200076
no longer available!		Lubricant oil separatorall
21W052200077Low pressure gaugeall
22W052200078High pressure gaugeall
23W052200019Fan with cableall
24W052200070Solenoid valveall
25W052200070Solenoid valveall
26W052200070Solenoid valveall
27W052200070Solenoid valveall
280707764006Check valveall
29W052200070Solenoid valveall
30W052200070Solenoid valveall
310707764006Check valveall
320707764006Check valveall
33W052200079Check valveall
34W052200079Check valveall
35W052200079Check valveall
36W052200079Check valveall
370707764006Check valveall
380707764006Check valve001 - 050
38W052200079Check valvefrom 051
390707764006Check valve001 - 050
39W052200079Check valvefrom 051
400707764006Check valveall
410707764235Refrigerant load cellall
420707764232Oil PAG load cellall
430707764232Oil OIL load cellall
440707764232Oil POE load cellall
450707764232Uv load cellall
460707764232Oil discharge load cellall

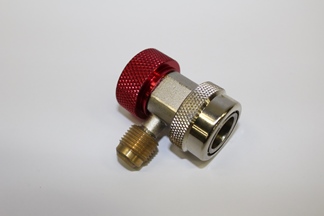

470764000154HP quick couplerall

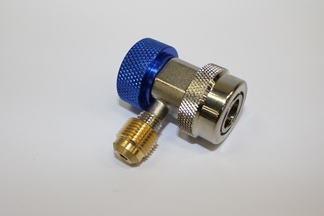

480764000153LP quick couplerall
52W052200082Oil PAG dosimeter with capall
53W052200082Oil OIL dosimeter with capall
54W052200082Oil POE dosimeter with capall
55W052200082UV dosimeter with capall
56W052200082Oil drain bottle with capall
 W067200019Oil / UV bottle with couplerall
57W052200138Low pressure hose 3 mall
57W052200189Low pressure hose 6 mall

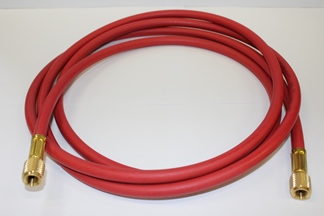

58W052200139High pressure hose 3 mall
58W052200190High pressure hose 6 mall
59W052200085Return oil to compressor hoseall
60W052200052Hose to inlet of distillerall
61W052200006Hose to inlet of filterall
62W052200087Hose to inlet compressorall
63W052200088Hose to inlet condenserall
64W052200089Oil discharge capillary hose (in)all
65W052200089Oil discharge capillary hose (out)all
66W052200089Low pressure gauge capillary hoseall
67W052200089High pressure gauge capillary hoseall
68W052200089Refrigerant charge capillary hoseall
69W052200089Bypass analyzer capillary hoseall
70W052200089Oil POE charge capillary hoseall
71W052200089UV charge capillary hoseall
72W052200089Oil OIL charge capillary hoseall
73W052200089Oil PAG charge capillary hoseall
740707764220Vacuum hoseall
75W052200090Power cable (Europe standard)all
760707764008Main power switchall
77W052200091Power plugall
78W052200025Printerall
79076495 002Paper for printerall
80W052200092
no longer available!		Complete console all
81W052200093
no longer available!		Frame Card all
82W052200094Power supplyall
83W052200095Plastic coverall
84W052200096Plastic box for moduleall
85W052200097Rear higher panelall
86W052200098Rear lower panelall
87W052200099Panel of oil bottlesall
88W052200100Front panelall
89W052200101Rear wheelall
90W052200102Frontal wheelall
91W052200103
no longer available!		Lockall
92W052200028Bottle pressure transducerall
93W052200104Low pressure transducerall
94W052200028High pressure transducerall
95W052200017Condenserall
960900900607Spring for heaterall
97-98-99W052200105
no longer available!		Kit Micro-switch (3 pcs)all
100W052200106
no longer available!		Push-pull closingall
101W052200107
no longer available!		Hingeall
107W052200191LP connector with capall
109W052200089Capyllary hose for quick couplerall
 W052200120Protection coverall
 W052200109Analyzer cableall
 W052200110USB cableall

Maintenance parts

PosArticle No.DesignationSerial-No.Picture
 0900800609Maintenance kitall
 0707764052Filter dryerall
 0900900605Discharge oil filterall
 W052200123Seal 3/8"all
 W052200122Seal 1/4"all
 W052200279Seal screw1 incl. seal ringall
 W052200280Seal screw2all
 W052200281Seal ringall
 0892764300Wurth vacuum pump oil ISO 12 - 2 pcs to order!all
​ ​
