Coolius A50
* also for cyrillic version
Notice:
Please note that some parts only exist in the exploded drawings but not in the spare parts table.
These parts can not be ordered separately!
To Accessory parts
To maintenance parts
Service unit parts
click to enlarge
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|
| 01 | W052200247 | SP-SERVICE-COUPLING-HP-A50 | all |  |
| 02 | W052200246 | SP-SERVICE-COUPLING-LP-A50 | all |  |
| 03 | W052200259 | SP-GAUGE-HP | all |  |
| 04 | W052200258 | SP-GAUGE-LP | all |  |
| 05 | W052200240 | SP-SERVICE-HOSE-HP-A50-3M | all |  |
| 06 | W052200238 | SP-SERVICE-HOSE-LP-A50-3M | all |  |
| W052100159 | SP-O-RING-SERVICE-HOSE-M14-R134A | all | ||
| W052100178 | SP-GASKET for 1/4SAE and 1/2 ACME HOSES- A Series | all | ||
| 07 | W052100010 | SP-BY-PASS-INTERNAL | all |  |
| W052100152 | SP-CONNECTOR-INTERNAL-CLEANING-A-R134A | all | ||
| 08 | W052100025 | SP-INTERNAL-VESSEL-PRESSURE-GAUGE | all |  |
| 10 | W052100071 | SP-TOP-COVER | all |  |
| 11 | W052100075 | SP-FRONT-PANEL | all | |
| 12 | W052100073 | SP-A50-STICKER | all | |
| 13 | W052100077 | SP-FRONT-POCKET-WOW!-LOGO | all | |

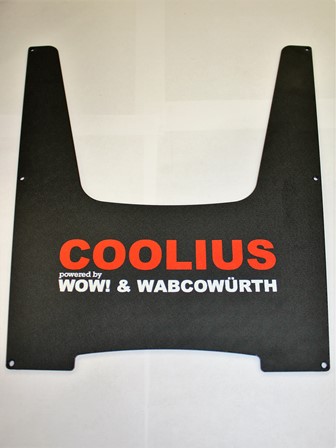

| W052100078 | SP-FRONT-POCKET-COOLIUS-LOGO | all |  | |
| W052100079 | SP-FRONT-POCKET-WABCOWÜRTH-LOGO | all | ||
| W052100080 | SP-FRONT-POCKET-AUTOCOM-LOGO | all | ||
| W052100131 | SP-FRONT-POCKET-WÜRTH-LOGO | all | ||
| W052100130 | SP-FRONT-POCKET-OPEL-LOGO-50 | |||
| 14 | W052100076 | SP-PAG/UV/POE-PLASTIC-FRAME | all | |
| 15 | W052200210 | SP-SCALE-LIFT-KNOB | all |  |

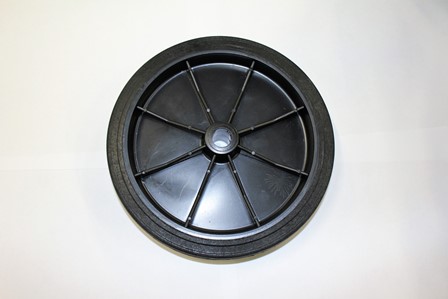

| 20 | W052100055 | SP-REAR-WHEEL | all |  |
| W052100090 | SP-TYPE A - REAR WHEEL BLOCK =10pcs | all |  | |
| W052100091 | SP-TYPE A - REAR WHEEL STING =10pcs | all | | |
| W052100100 | SP-TYPE B - REAR WHEEL CAP =10pcs | all | | |
| 21 | W052100034 | SP-FRONT-WHEEL-WITH-BRAKE | all |  |
| 22 | W052200216 | SP-MAIN-FAN | all |  |
| W052100162 | SP-AIR-FILTER-MAIN-FAN-D172 | all | ||
| 23 | W052100083 | SP-MAIN-SWITCH (VERSION WITH SCREWS) | all | |
| 24 | W052200217 | SP-COMPRESSOR-FAN | all | |
| 25 | W052200220 | SP-PRINTER-KIT | all |  |
| 30 | W052200273 | SP-BOTTLE-NEW-OIL-250ML-(YELLOW PIPE) | all |  |

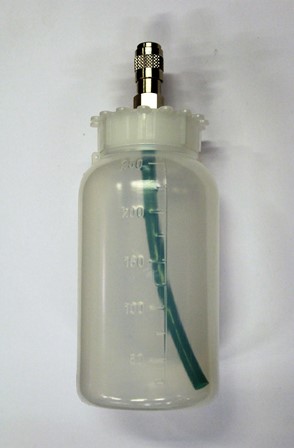

| 31 | W052200274 | SP-BOTTLE-POE-OIL-250ML-(GREEN PIPE) | all |  |
| W052100103 | SP-NEW OIL / POE OIL CONNECTOR G1/8 201 | all | ||
| 32 | W052100020 | SP-BOTTLE-UV-TRACER-100ML | all |  |

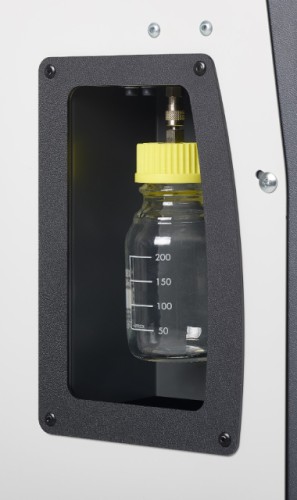

| 33 | W052100081 | SP-USED-OIL-SEALED-BOTTLE-250ML | all |  |
| W052100098 | SP-CONNECTOR-OLD-OIL-UV-BOTTLE | all |  | |
| W052100170 | SP-ADAPTER-KIT-FOR-SEALED-OIL-BOTTLES | all |
Flow diagram
click to enlarge
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|
| 01 | W052200247 | SP-SERVICE-COUPLING-HP | all | |
| 02 | W052200246 | SP-SERVICE-COUPLING-LP | all | |
| 03 | W052200259 | SP-GAUGE-HP | all | |
| 04 | W052200258 | SP-GAUGE-LP | all | |
| 05 | W052200240 | SP-SERVICE-HOSE-HP-3M | all | |
| 06 | W052200238 | SP-SERVICE-HOSE-LP-3M | all | |
| 07 | W052200062 | SP-MANIFOLD-A50 | all | |
| 08 | W052200262 | SP-PRESSURE-TRANSDUCER-ELECTRONIC | all |  |
| 09 | W052100025 | SP-INTERNAL-VESSEL-PRESSURE-GAUGE | all | |
| 10 | W052100059 | SP-VACUUM-PUMP | all | |
| W052100172 | SP-SCREW-M8-WITH-O-RING-VAC-PUMP-100-128L | all | ||

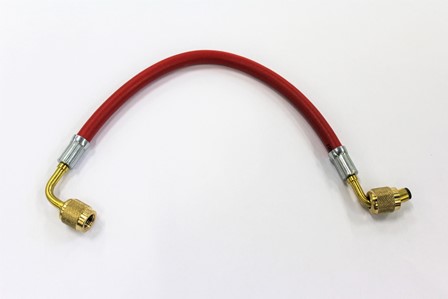

| 11 | W052200242 | SP-A50 RED CHARGE HOSE | all |  |
| 12 | W052200245 | SP-HOSE-YELLOW-7/16-UNF-ORING-Y10 (Y10 YELLOW HOSE 7/16 UNF(O-RING)) | all | |

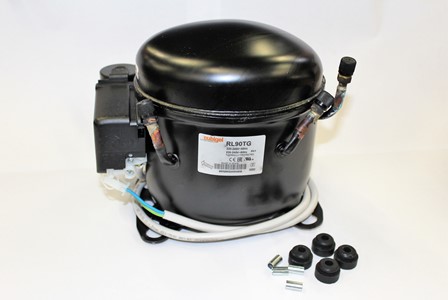

| 20 | W052100058 | SP-COMPRESSOR | all |  |
| 21 | W052100012 | SP-CAPILLARY | all |  |

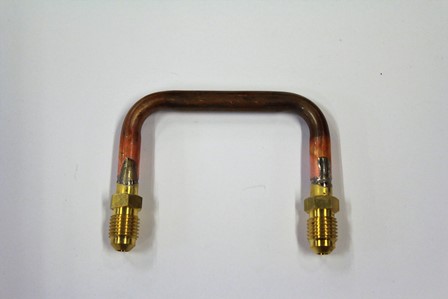

| 22 | W052200235 | SP-COPPER-PIPE-COMPRESSOR | all |  |
| 23 | W052100066 | SP-A50-RECOVERY/COMPRESSOR-DISTILLER-GROUP | all | |
| 24 | W052200250 | SP-MAIN-FILTER | all |  |
| 25 | W052100028 | SP-SWITCH-HIGHPRESSURE | all |  |
| 26 | W052200217 | SP-COMPRESSOR-FAN | all | |
| 27 | W052200224 | SP-ELECTRIC-VALVE-GROUP-LP-XP-RF | all |  |
| 28 | W052100084 | SP-CHECK-VALVE-RECOVERY | all | |
| 29 | W052100017 | SP-CHECKVALVE-OIL-SEPARATOR | all |  |
| 30 | W052100068 | SP-A50-LIQUID-RECEIVER-R134a-VESSEL-GROUP | all | |
| W052100145 | SP-DISTANCE-PIECE-BOTTLE-BELOW-50 | all | ||
| W052100146 | SP-ALUMINUM-NUT-BOTTLE-BELOW-50 | all | ||
| W052100147 | SP-CENTERING-SPRING-REFRIGERANT-BOTTLE | all | ||
| 31 | W052200214 | SP-HEAT-BELT | all |  |
| 32 | W052200232 | SP-VALVE-OVERPRESSURE | all |  |
| 33 | W052100060 | SP-A50-SAFETY-VALVE | all | |
| 38 | W052100064 | SP-MANIFOLD-FOR-PRESSURE-TEST | all | |
| 40 | W052200273 | SP-BOTTLE-NEW-OIL-250ML-(YELLOW PIPE) | all | |
| 41 | W052100020 | SP-BOTTLE-UV-TRACER-100ML | all | |
| 42 | W052200274 | SP-BOTTLE-POE-OIL-250ML-(GREEN PIPE) | all | |
| 43 | W052100081 | SP-USED-OIL-SEALED-BOTTLE-250ML | all | |
| W052100098 | SP-CONNECTOR-OLD-OIL-UV-BOTTLE | all | |
Electric diagram
click to enlarge
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|
| 01 | W052100083 | SP-MAIN-SWITCH-VERSION-WITH-SCREWS | all | |
| 03 | W052200216 | SP-MAIN-FAN | all | |
| 04 | W052200217 | SP-COMPRESSOR-FAN | all | |
| 05 | W052100058 | SP-COMPRESSOR | all | |
| 06 | W052100059 | SP-VACUUM-PUMP | all | |
| 07 | W052200214 | SP-HEAT-BELT | all | |
| 8a | W052200224 | SP-ELECTRIC-VALVE-GROUP-LP-XP-RF | all | |
| 8b | W052200225 | SP-ELECTRIC-VALVE-GROUP-NO-UV-VP | all |  |
| 09 | W052200224 | SP-ELECTRIC-VALVE-GROUP-LP-XP-RF | all | |
| 10 | W052100028 | SP-SWITCH-HIGHPRESSURE | all | |
Manifold
click to enlarge
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|
| 1 | W052100062 | SP-A50-MANIFOLD | all | |
| 1A | W052200224 | SP-ELECTRIC-VALVE-GROUP-LP-XP-RF | all | |
| W052200226 | SP-PISTON-FOR-ELEC-VALVE-LP-XP-RF | all |  | |
| 1B | W052200225 | SP-ELECTRIC-VALVE-GROUP-NO-UV-VP | all | |
| W052200227 | SP-PISTON-FOR-ELEC-VALVE-NO-UV-VP | all |  |
Other parts
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|
| W052100037 | SP-LOAD-CELL-15KG | all | ||
| W052200263 | SP-LOAD-CELL-60KG | all |  | |
| W052100163 | SP-CENTERING-CONE-WEIGHT SCALE-ALL | all | ||
| W052100176 | SP-SILENT-BLOCK-30X20-SCALE | all | ||
| W052200200 | SP-PIPE-RILSAN-PA11-SR-HL-4/6 | all | ||
| W052100039 | SP-PIPE-PA11-NEUTRAL | all | ||
| W052100054 | SP-RILSAN-GREEN-PIPE-2/4 | all | ||
| W052100040 | SP-PIPE-PA11-BLUE-2/4 | all | ||
| W052100041 | SP-PIPE-BLUE-6/8 | all | ||
| W052100042 | SP-PIPE-PA11-RED-2/4 | all | ||
| W052100043 | SP-PIPE-PU-YELLOW-4/6 | all | ||
| W052100044 | SP-PIPE-PU-BLUE-4/6 | all | ||
| W052100045 | SP-PIPE-CRISTAL-4/6 | all | ||
| W052100167 | SP-BRASS-OGIVE-2/4 | all |  | |
| W052100168 | SP-INTERNAL-SUPPORT-BUSHING-2/4 | all |  | |
| W052100169 | SP-INTERNAL-SUPPORT-BUSHING-4/6 | all | | |
| W052100053 | SP-O-RING-FOR-TUBES | all | ||
| W052200278 | SP-CAP-USB | all |  | |
| W052200212 | SP-PRINTER-PAPERROLL | all |  | |
| W052200215 | SP-POWER-CORD-CEE7 | all |  | |

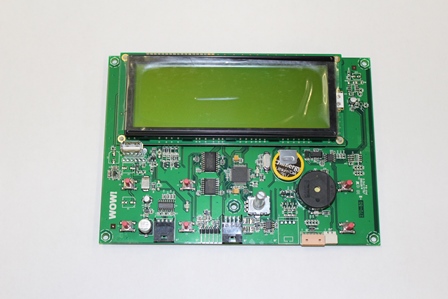

| W052100056 | SP-DISPLAY-MAINBOARD | all |  | |
| W052100123 | SP-POWER/CPU MAINBOARD-CYRILLIC | all | | |
| W052100138 | SP-CABLE-CONNECTOR | all |  | |
| W052100057 no longer available! | SP-POWER/CPU-MAINBOARD | all | ||
| W052100151 | NEW-PWR/CPU MAINBOARD (BOARD A) compatible for Y50A/ Y50 / A50 / A45 / A47 / Y42 | all | ||
| W052200219 | SP-CONTROL-KNOB | all |  | |
| W052100072 | SP-KEY-BOARD-(POLYESTER PANEL) | all | ||
| W052100049 | SP-GAUGES-RINGS-RED/BLUE | all |  | |
| W052100105 | SP-PACKAGING-30-40-50-SERIE-KIT | all |
Accessory parts
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|
| W052100170 | ADAPTER-KIT-FOR-SEALED-OIL-BOTTLES | all | ||
| W067100000 | AY-HOLDERKIT-NITROGEN-BOTTLE-A-Y50 | all | ||
| W067100003 | AY-COVER-30-50 COOLIUS LOGO | all |  | |
| W067100016 | AY-COVER-30-50 WURTH LOGO | all |  | |
| W067100005 | AY-COVER-TRANSPARENT-SET-50 | all | ||
| W067100007 | AY-STICKER-R513A | all | ||
| W067100010 | AY-AC-FLUSHING-KIT-COMPLETE-WITH-ADAPTERS | all | ||
| W067100135 | AY-BRKT-FLUSHINGKIT-A/CSERVUNT-COOLIUS | all | ||
| W067100009 | AY-AC-ADAPTER-KIT-FOR-FLUSHING-KIT-ALL-AC | all | ||
| W067100008 | AY-POWER-ADAPTER-APAC-COUNTRIES | all | ||
| W067100011 | AY-DATA-BASE-R134A-UNITS | all | ||
| W067200013 | AY-SERVICEHOSE-EXTENSION-KIT-R134A | all |  |
Maintenance parts
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|
| W052100048 | SP-MAINTENANCE-KIT (DRIER+VACUUM PUMP OIL+GASKETS) | all | ||
| W052100164 | SP-MAINTENANCE-KIT-AUS-NZ | all | ||
| W052200250 | SP-MAIN-FILTER (MAIN FILTER) | all | | |
| W052200279 | Seal screw1 incl. seal ring | all |  | |
| W052100096 | Seal ring1 | all | ||
| W052100172 | SP-SCREW-M8-WITH-O-RING-VACUUM-PUMP-100-128L | all |
