WB 100

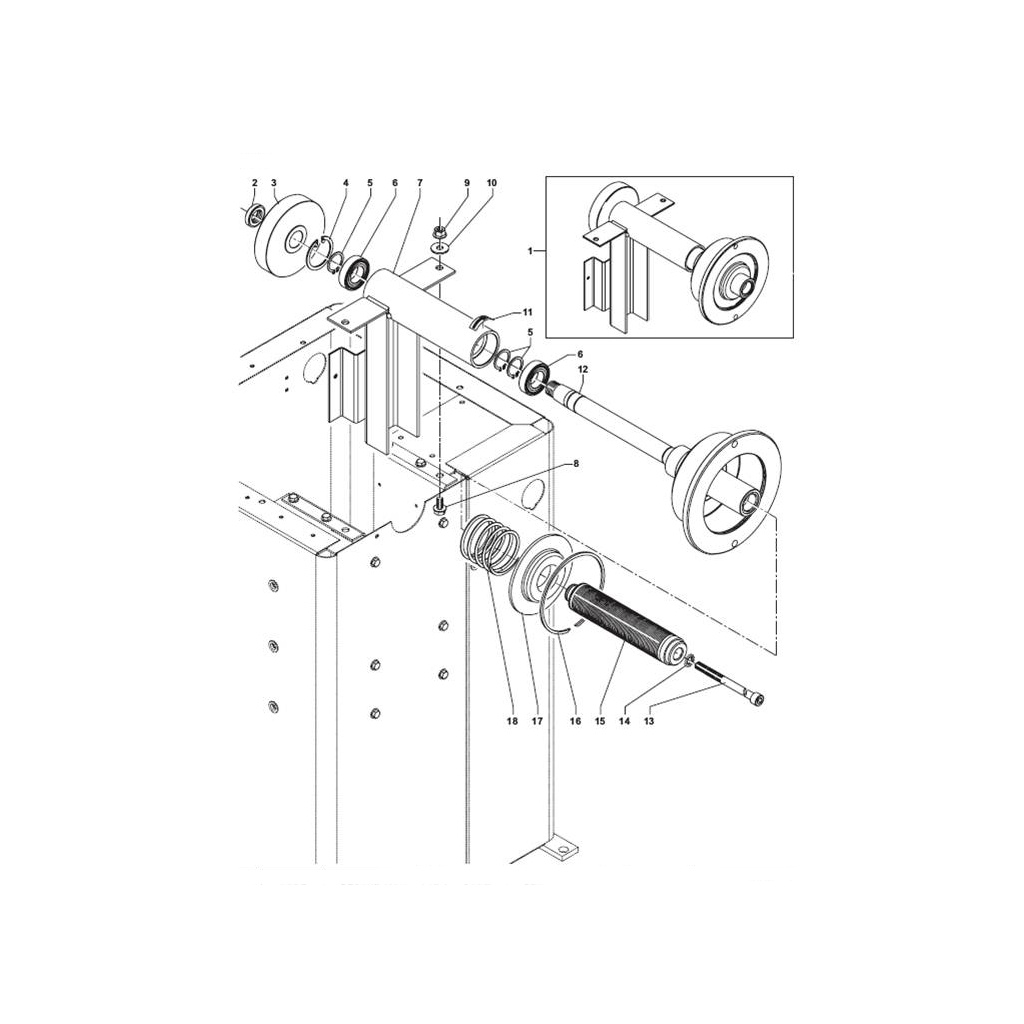

Shaft Assembly
Notice:
Please note that some parts only exist in the exploded drawings but not in the spare parts table.
These parts can not be ordered separately!
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|

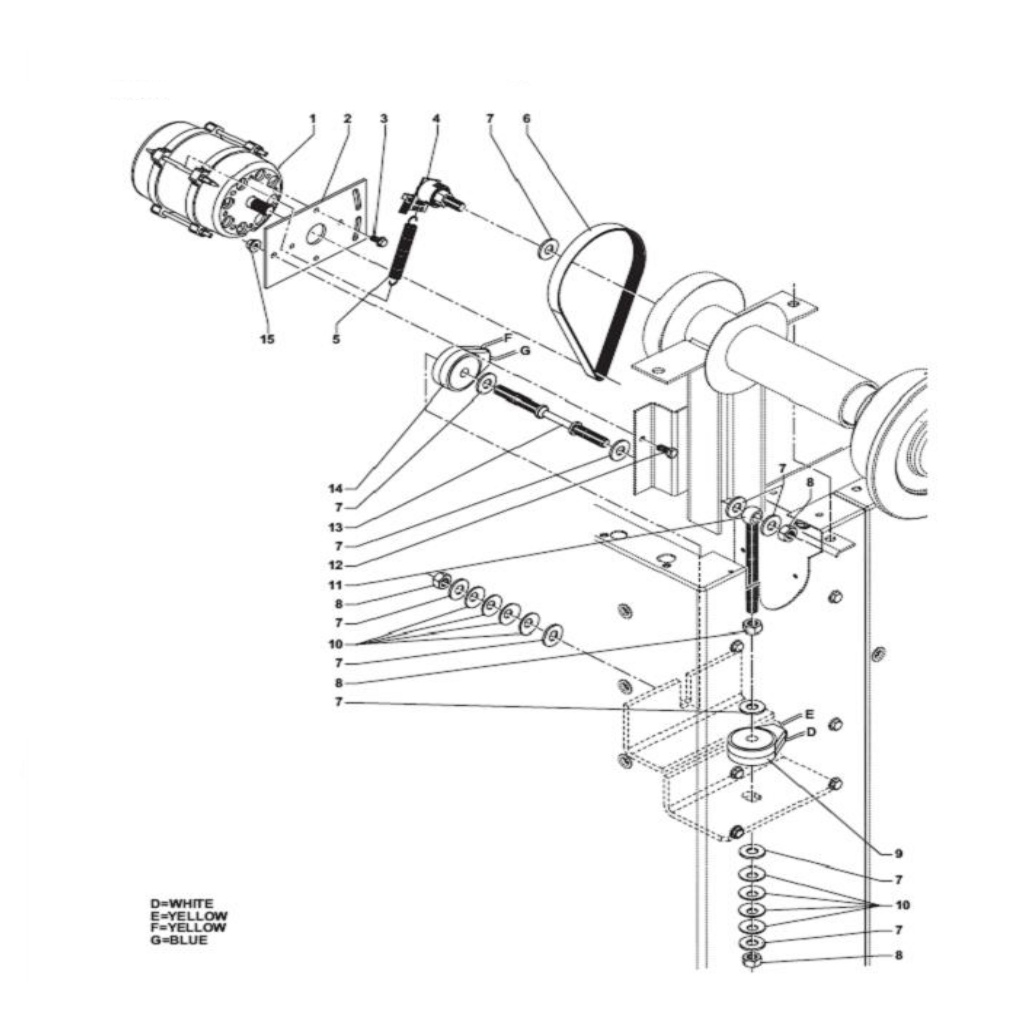

Motor + Position pick-up
Notice:
Please note that some parts only exist in the exploded drawings but not in the spare parts table.
These parts can not be ordered separately!
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|
| 4 | W345210001 | SP-ANGLE-DEVICE | all |  |
| 6 | W345210004 | SP-BELT | all |

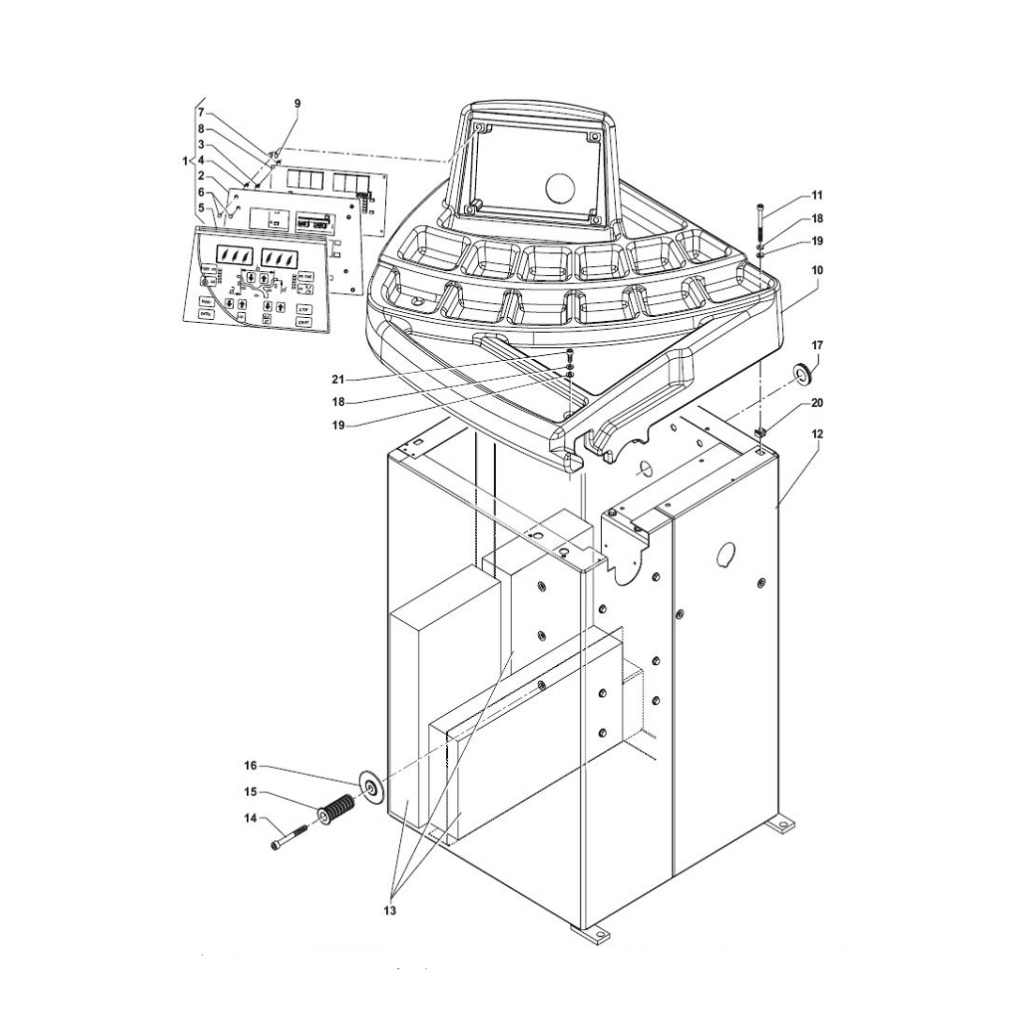

Piezo Transducer
Notice:
Please note that some parts only exist in the exploded drawings but not in the spare parts table.
These parts can not be ordered separately!
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|

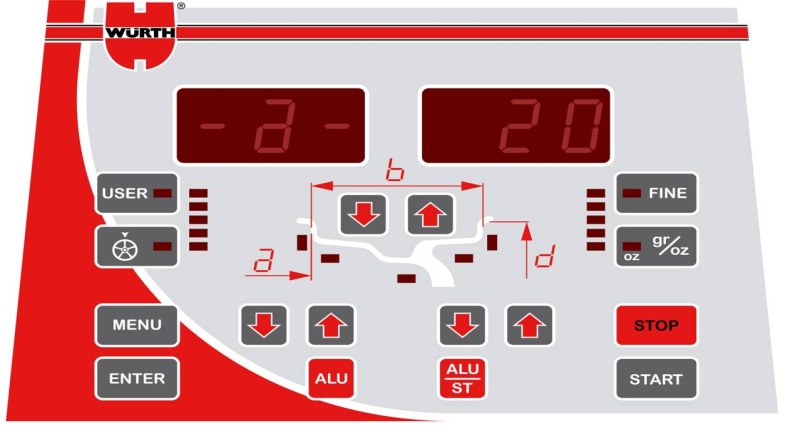

| 5 | W345210005 | SP-CONTROL | all |  |

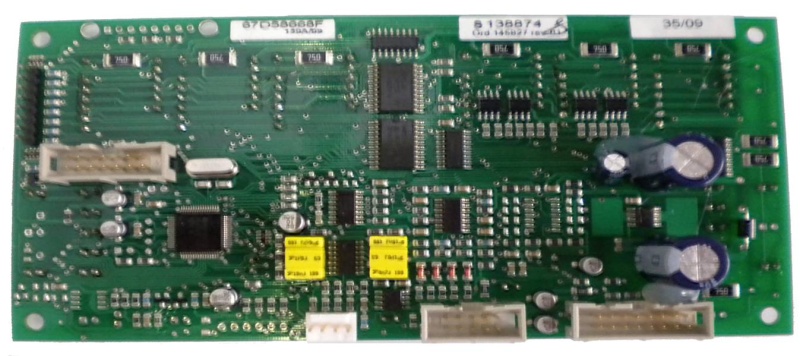

| 8 | W345210014 | SP-PCB-PC | all |  |

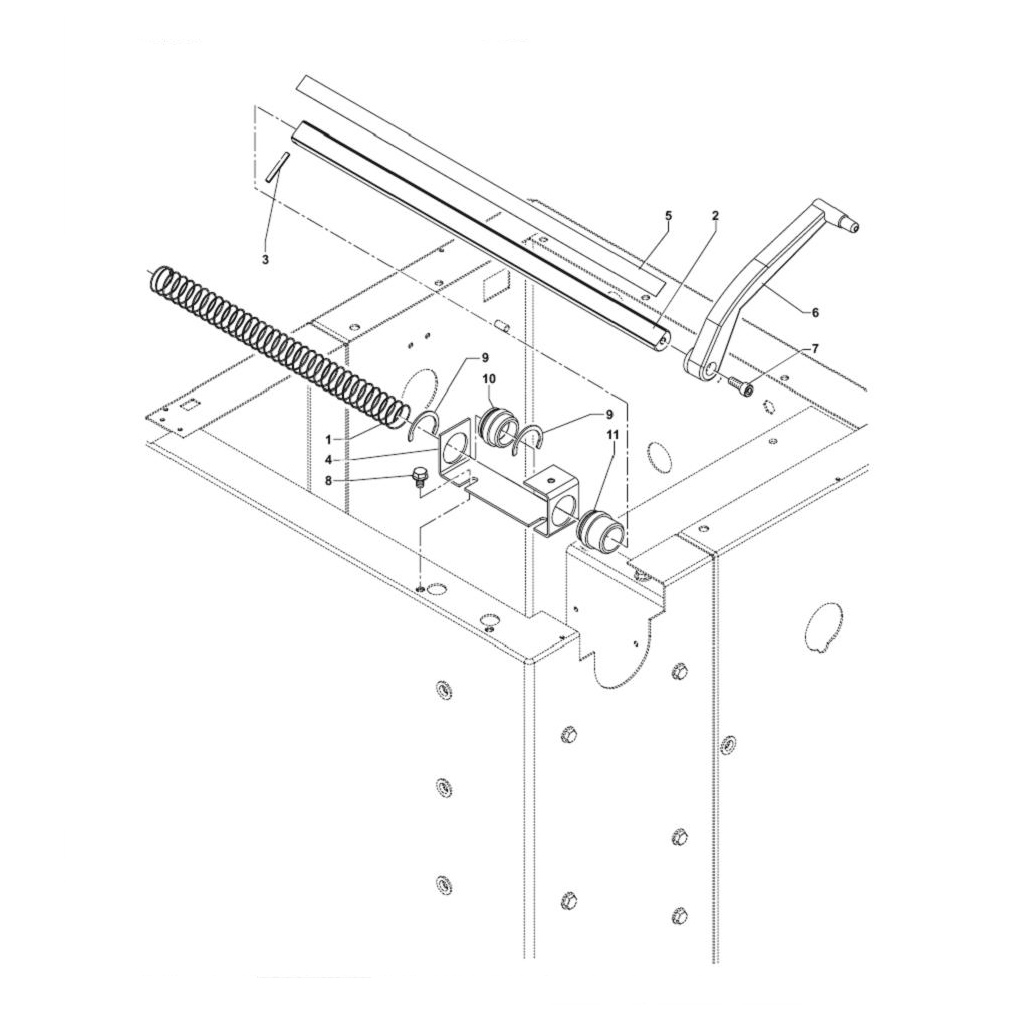

Casing
Notice:
Please note that some parts only exist in the exploded drawings but not in the spare parts table.
These parts can not be ordered separately!
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|

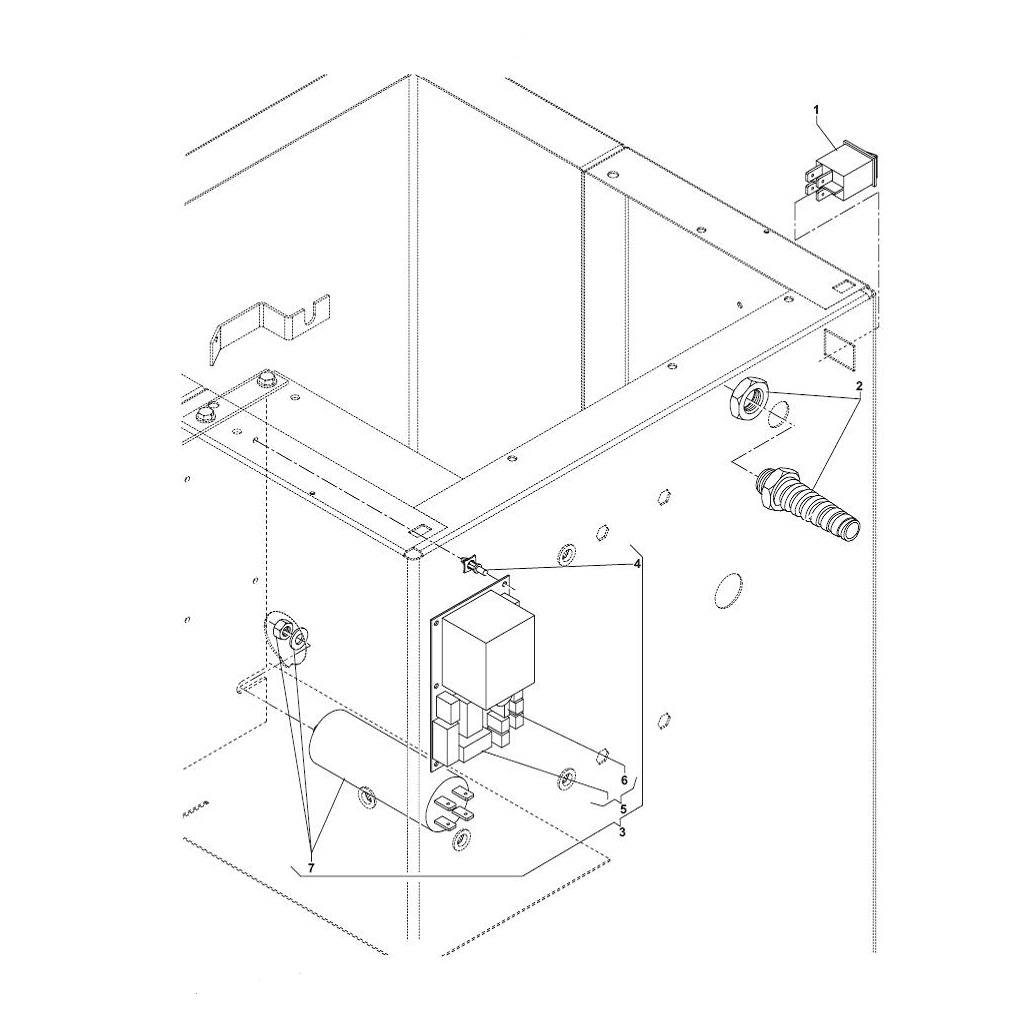

Distance Gauge (manual)
Notice:
Please note that some parts only exist in the exploded drawings but not in the spare parts table.
These parts can not be ordered separately!
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|
| 5 | W345210009 | SP-PCB | all |  |

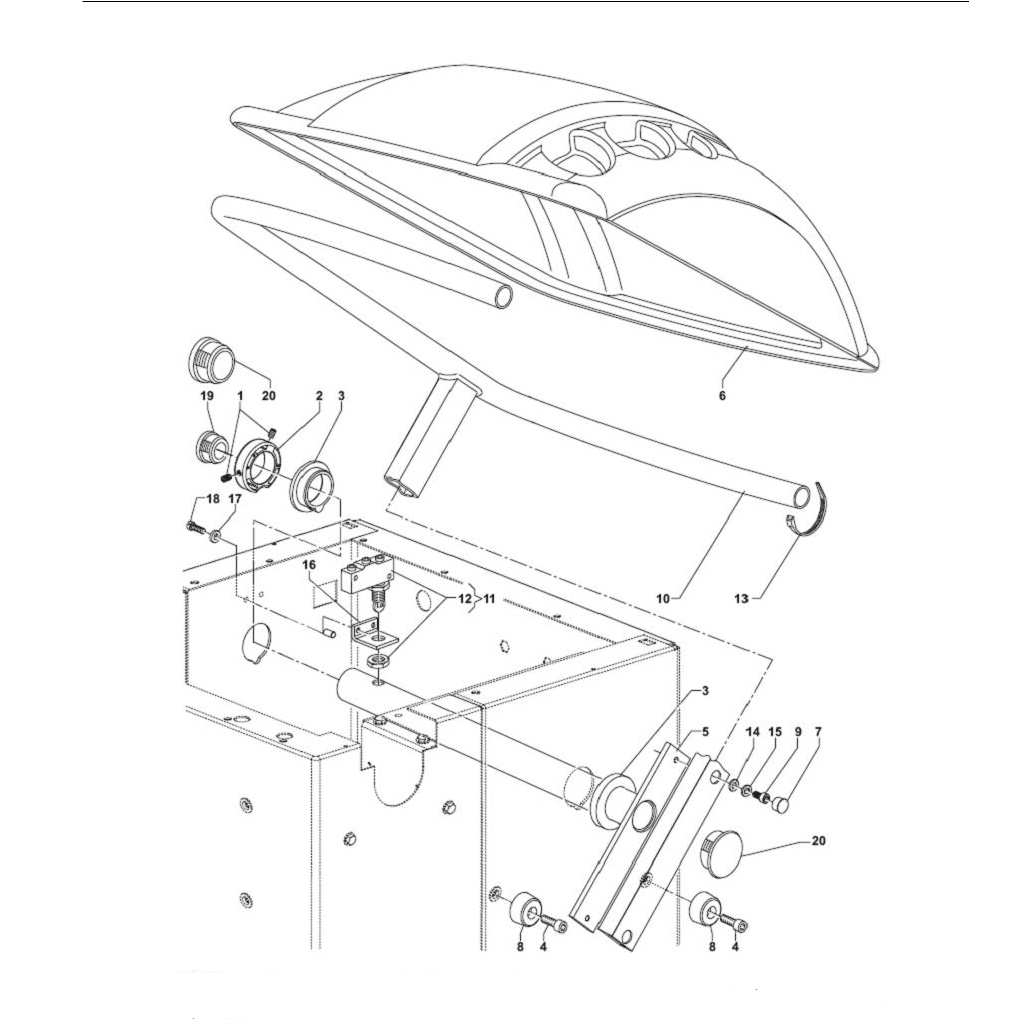

Power Unit GP
Notice:
Please note that some parts only exist in the exploded drawings but not in the spare parts table.
These parts can not be ordered separately!
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|
| 2 | W345210028 | SP-CAM | all | |
| 3 | W345210029 | SP-CAM-WB200 | all | |
| 11 | W345210021 | SP-SWITCH-COVER | all |  |
| 13 | W345210021 | SP-SWITCH-COVER | all | |

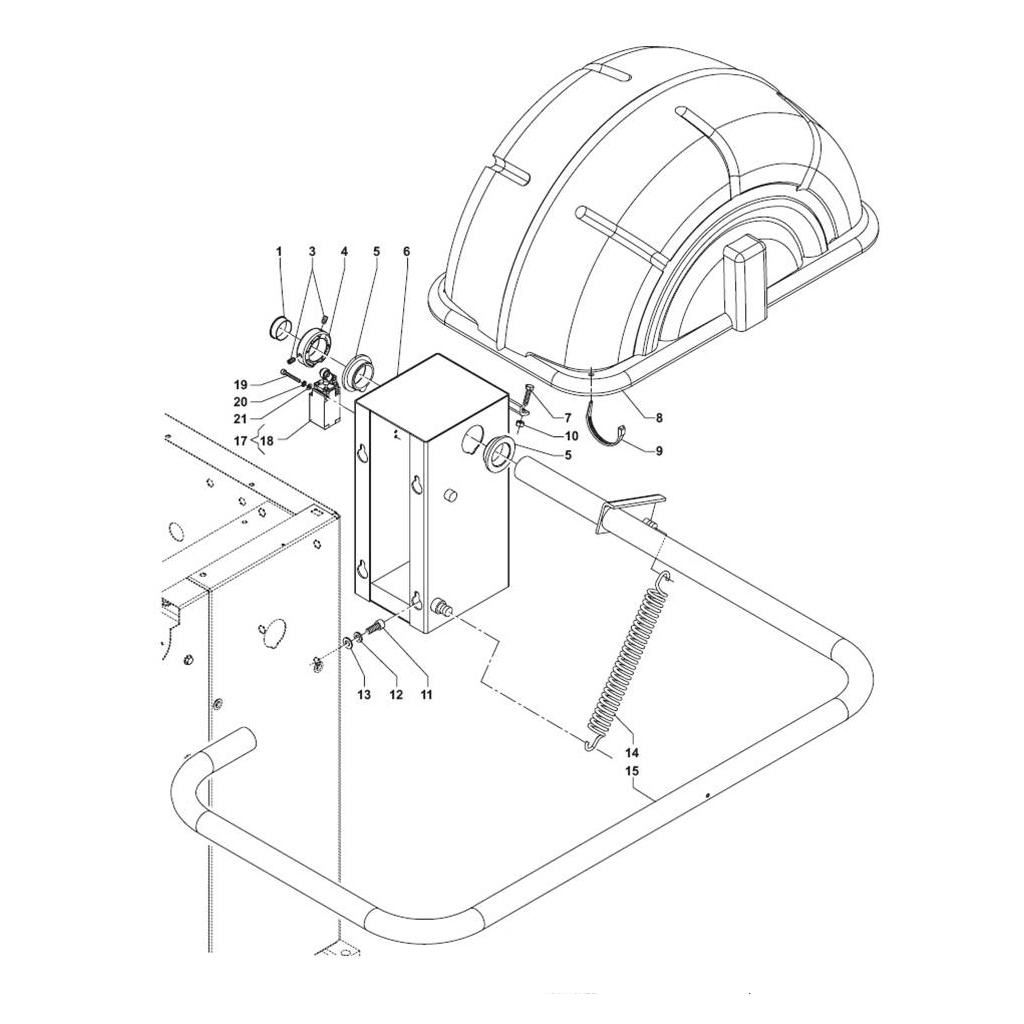

Wheel Guard
Notice:
Please note that some parts only exist in the exploded drawings but not in the spare parts table.
These parts can not be ordered separately!
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|
| 5 | W345210029 | SP-CAM-WB200 | all | |
| 14 | W345210019 | SP-SPRING-COVER | all |  |
| 17 | W345210022 | SP-SWITCH-COVER | all |  |
