WTM 100

Selection of subassembly
Body
Arms horizontal and vertical
3 Pedals box in aluminium
Bead breaker
Mounting head
Self-centering turntable 18"
Motor-reduction gear group
Air lubrication group

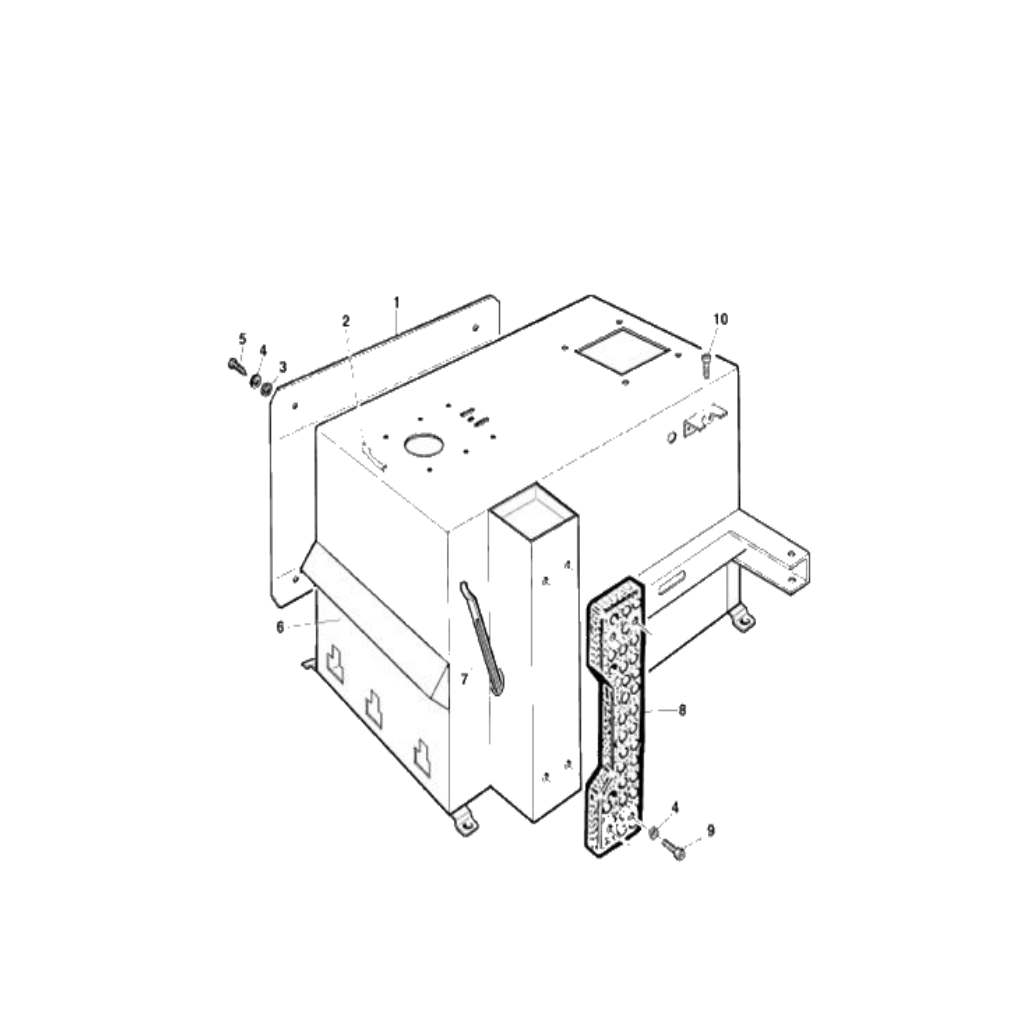

Body

Notice:

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

click to enlarge

Pos	Article No.	Designation	Serial-No.
1	W342600853	SP-PLATE-SIDE	all
2	W342601014	SP-STICKER	all
6	W342601067	SP-FRAME	all

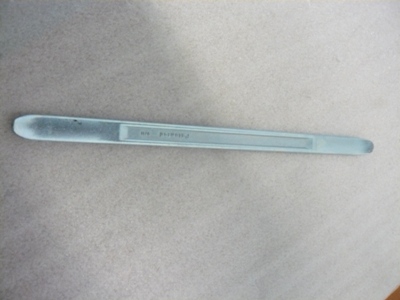

7	W342600205	SP-LEVER-PRESSURE	all
8	W342601023	SP-PROTECTION-TYRE	all

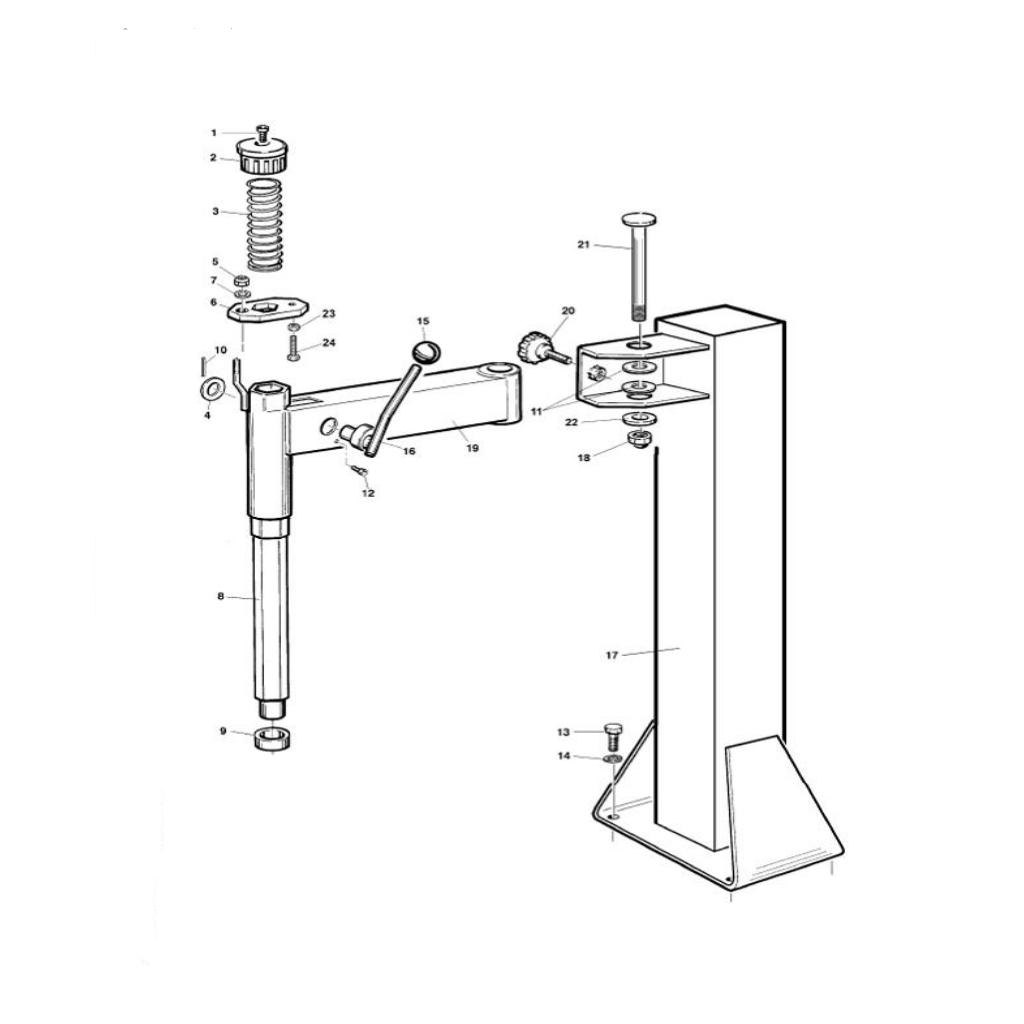

Arms horizontal and vertical

Notice:

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

click to enlarge

Pos	Article No.	Designation	Serial-No.
2	W342600126	SP-HANDLE-ARM	all
3	W342600960	SP-SPRING	all
6	W342601017	SP-PLATE	all
8	W342601015	SP-ARM-L565	all
9	W342601032	SP-ABSORBER	all
10	W342600718	SP-PIN-4X24-ISO8752	all
11	W342601060	SP-DISC	all
13	W342601059	SP-SCREW	all
15	W342600608	SP-HANDLE-BALL-D14	all
16	W342601006	SP-LEVER-LOCK	all
17	W342601068	SP-ARM-VERTICAL	all
19	W342601070	SP-ARM-HORIZONAL	all
20	W342601020	SP-HANDLE-M16	all
21	W342601024	SP-PIVOT	all
24	W342601061	SP-SCREW-BRASS	all

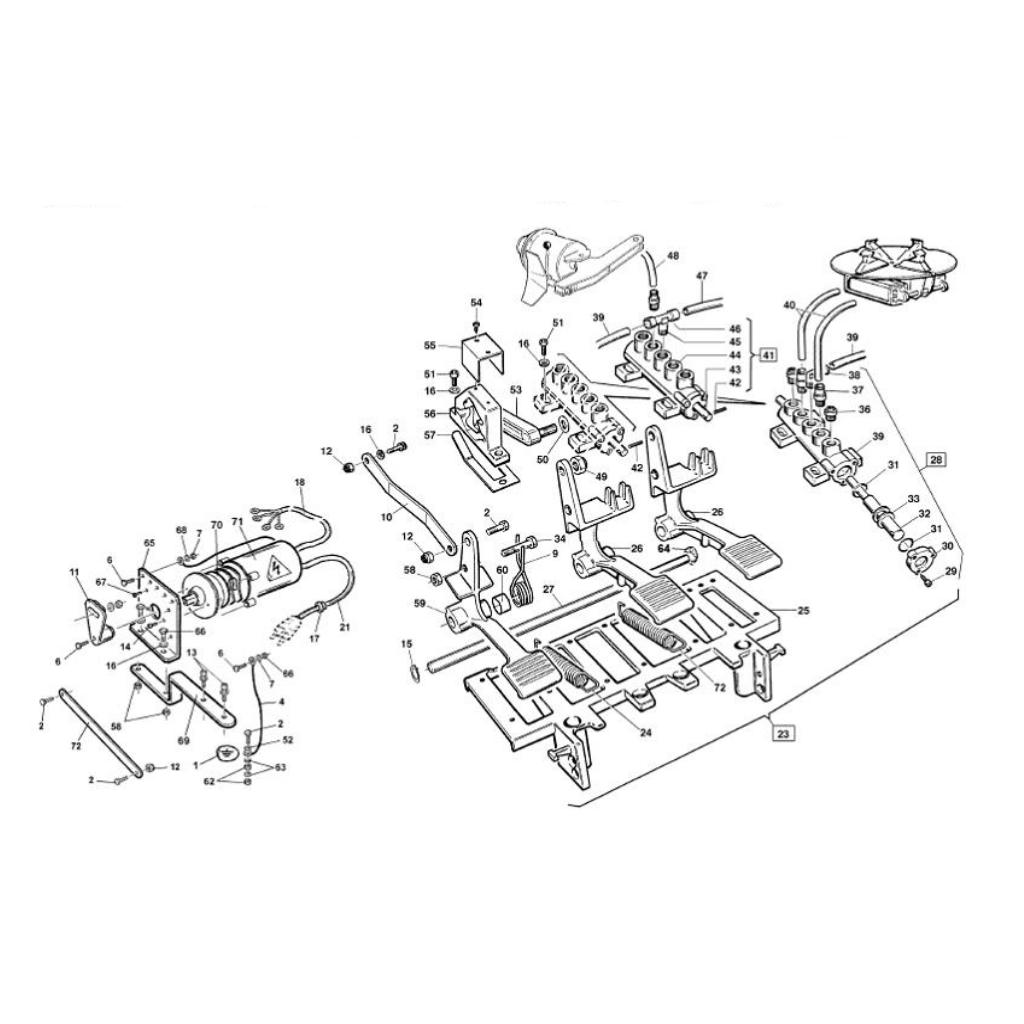

3 Pedals box in aluminium

Notice:

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

click to enlarge

Pos	Article No.	Designation	Serial-No.
1	W342600190	SP-STICKER	all
4	W342600009	SP-CABLE-GROUND-L340	all
9	W342600132	SP-SPRING-PEDAL	all
10	W342601021	SP-ROD	all
11	W342600963	SP-LEVER-PRESSURE	all
15	W342600775	SP-RING-DIN471-12	all
17	W342600852	SP-LOCK-CABLE-D9	all
18	W342600001	SP-CABLE-L1500	all
18 A	W342600964	SP-CABLE	all
21	W342600002	SP-CABLE-3PH	all
21 A	W342600965	SP-CABLE-1PH	all
23	W342600995	SP-PEDAL-UNIT	all
24	W342600969	SP-SPRING-PEDAL	all
25	W342600167	SP-FRAME-PEDAL	all
26	W342600165	SP-PEDAL-TABLE	all
27	W342601022	SP-PIN	all
28	W342600005	SP-VALVE	all
30	W342600155	SP-FLANGE	all
31	W342600597	SP-O-RING-D9,8XH3,85	all
32	W342600177	SP-PIN	all
33	W342600154	SP-SPACER	all
35	W342600153	SP-VALVE	all
37	W342600534	SP-CLUTCH-QUICK-1/8IN-8	all
38	W342600536	SP-CLUTCH-QUICK-1/8IN-8	all
39	W342600179	SP-TUBE-8X6-L100	all
40	W342600466	SP-TUBE-8X6-L750	all
41	W342600970	SP-VALVE	all
42	W342600718	SP-PIN-4X24-ISO8752	all
43	W342600178	SP-PIN	all
44	W342600004	SP-VALVE	all
46	W342600537	SP-CLUTCH-QUICK-1/8IN	all
47	W342600149	SP-TUBE-8X6-L1000	all
48	W342600133	SP-TUBE-6X4-L480	all
50	W342600785	SP-SPRING-8,2X18X1	all
53	W342600606	SP-ROD-CAM	all
55	W342600604	SP-GUIDANCE-CAM	all
56	W342600607	SP-GUIDANCE-NOCKE	all
57	W342600605	SP-SPRING-GABEL	all
59	W342600164	SP-PEDAL-ALTERNATION	all
60	W342600213	SP-BUSHING-D18X12,5X21	all
65	W342601036	SP-SUPPORT	all
68	W342601063	SP-WASHER	all
69	W342600279	SP-BRACKET-BRACKET	all
70	W342600838	SP-SWITCH-32A	all
71	W342600280	SP-BRACKET-BRACKET	all

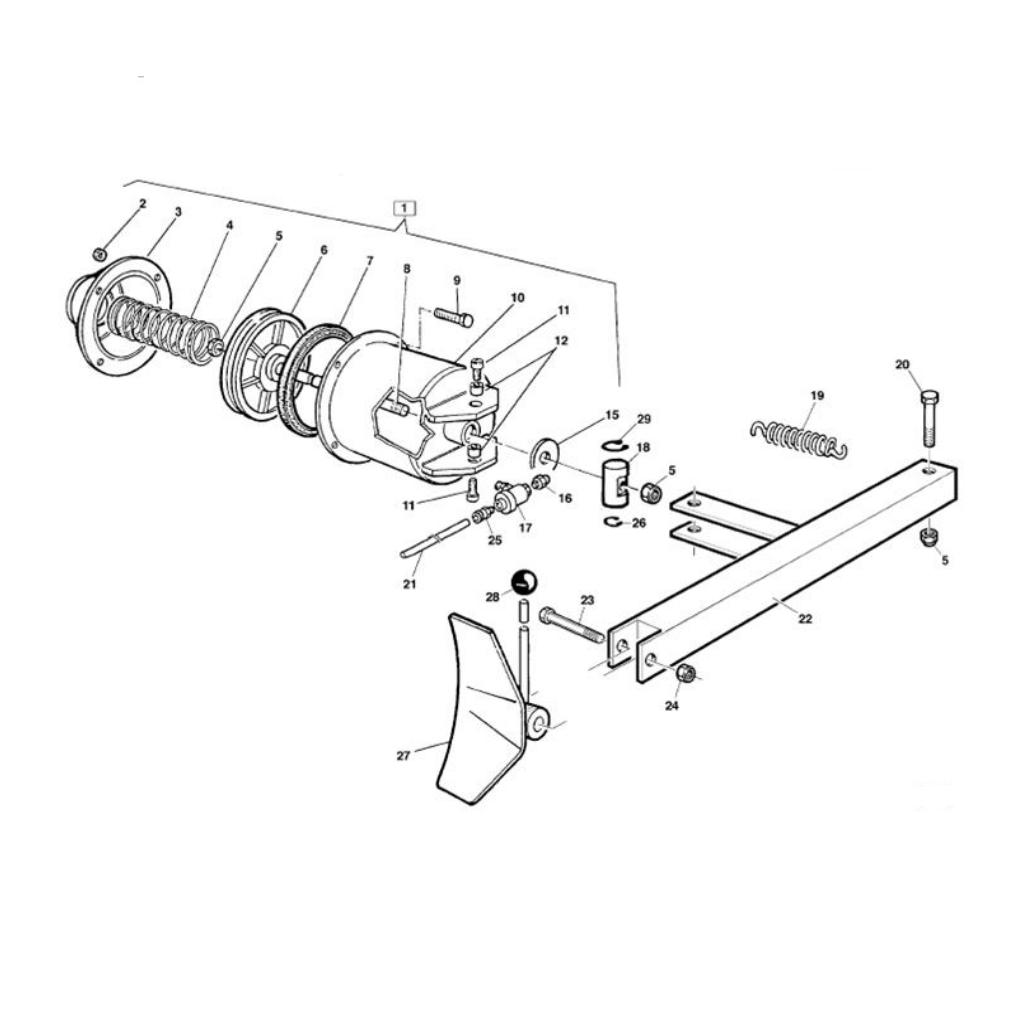

Bead breaker

Notice:

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

click to enlarge

Pos	Article No.	Designation	Serial-No.
1	W342600996	SP-CYLINDER-ASSY	all
3	W342601019	SP-BASE	all
4	W342600972	SP-SPRING	all
6	W342600973	SP-PISTON	all
7	W342601053	SP-GROMMET	all
8	W342601025	SP-SHAFT	all
10	W342600975	SP-CYLINDER-BREAKER	all
12	W342600130	SP-BUSHING	all
15	W342600976	SP-ABSORBER-16,5X59X5	all
16	W342600523	SP-ABSORBER-1/4IN	all
17	W342600543	SP-VALVE-QUICK-1/4IN	all
18	W342600978	SP-PIN-D16	all
19	W342600129	SP-SPRING-ARM	all
21	W342600133	SP-TUBE-6X4-L480	all
22	W342601071	SP-ARM	all
25	W342600537	SP-CLUTCH-QUICK-1/8IN	all
26	W342600815	SP-RING-DIN471-20	all
27	W342601008	SP-BLADE	all
28	W342600608	SP-HANDLE-BALL-D14	all
29	W342600817	SP-RING-DIN471-30	all

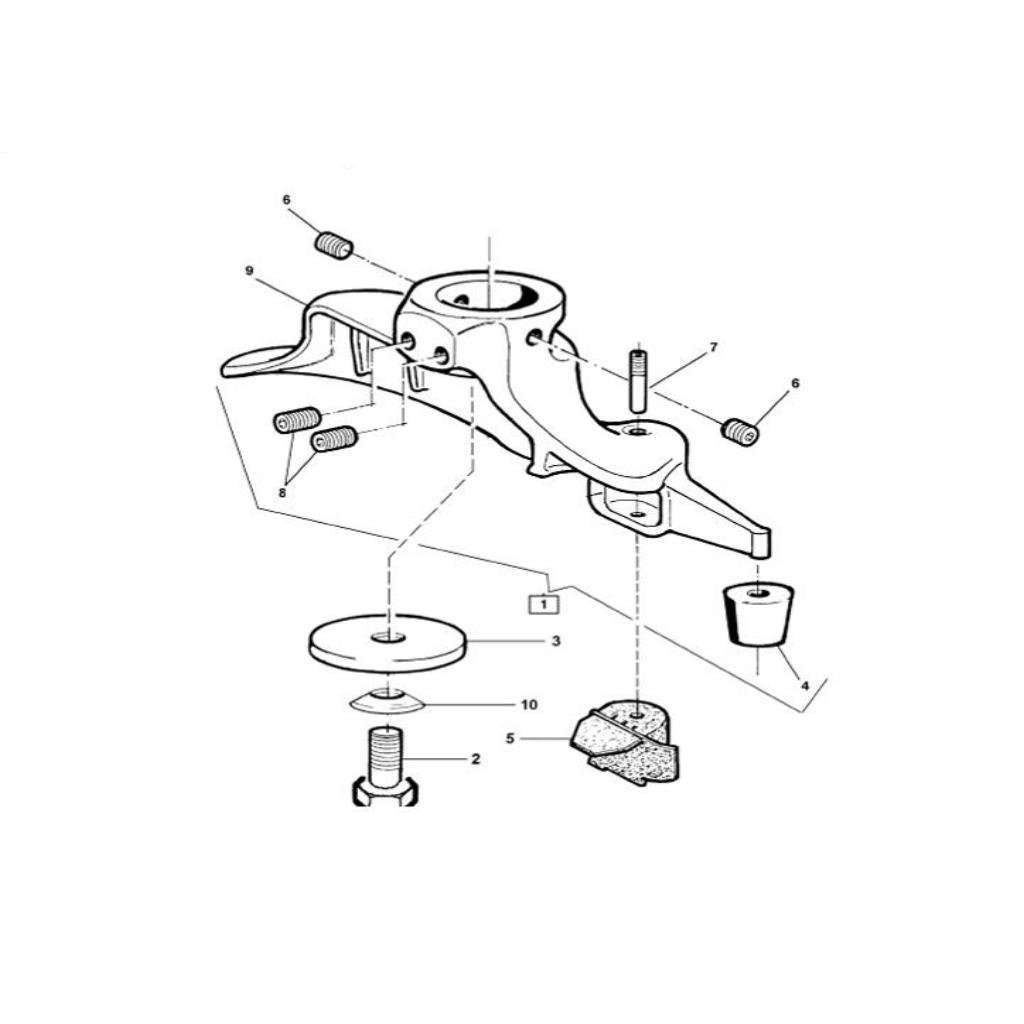

Mounting head

Notice:

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

click to enlarge

Pos	Article No.	Designation	Serial-No.
1	W342600003	SP-TOOL-INSTALLATION	all
4	W342600142	SP-WHEEL	all
5	W342600198	SP-COVER-PLASTICS	all
7	W342600232	SP-PIN-D5-M6-L26	all
8	W342601064	SP-SCREW	all
9	W342600169	SP-HEAD-INSTALLATION	all

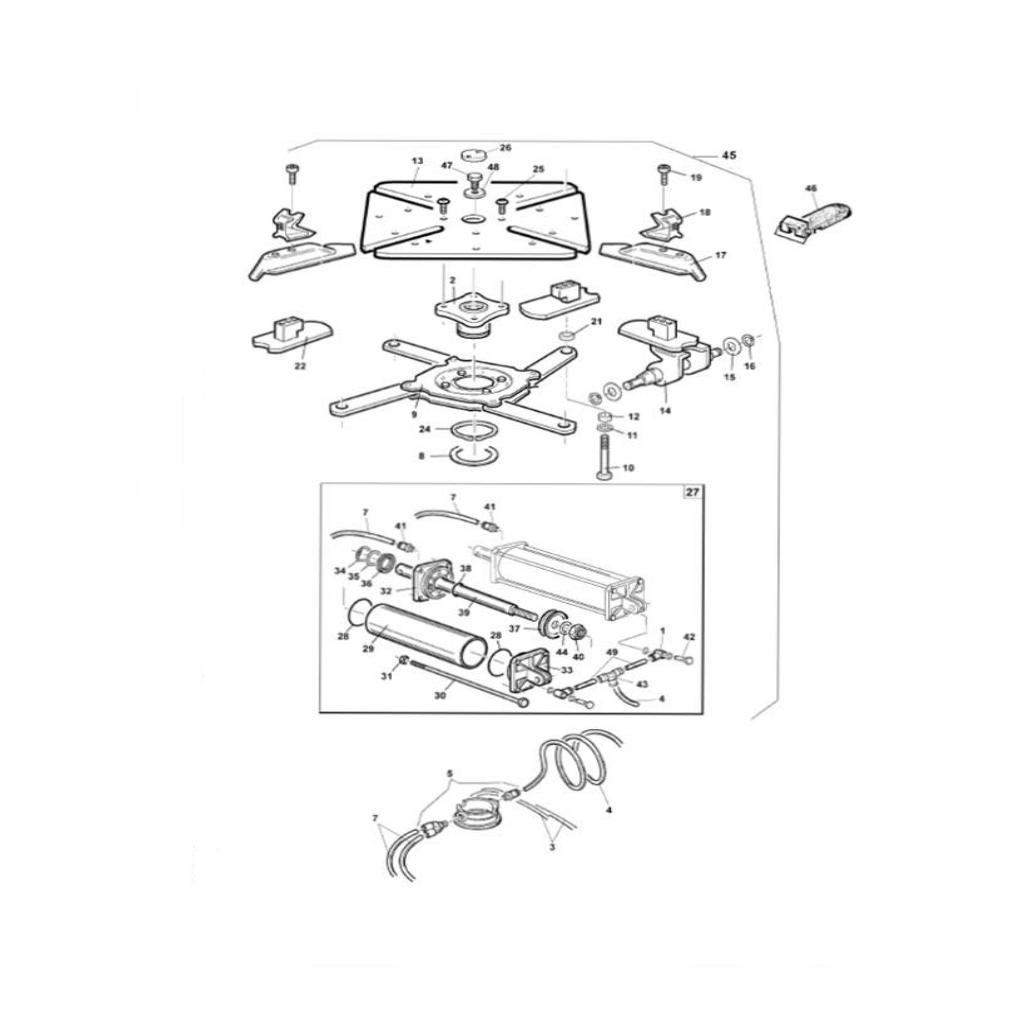

Self-centering turntable 18"

Notice:

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

click to enlarge

Pos	Article No.	Designation	Serial-No.
1	W342600507	SP-CLUTCH-1/8IN	all
2	W342600273	SP-HUB	all
3	W342600466	SP-TUBE-8X6-L750	all
4	W342600303	SP-TUBE-SPIRAL-8X6-L560	all
5	W342600981	SP-CLUTCH-ROTATION	all
7	W342600148	SP-TUBE-8X6-L240	all
8	W342600644	SP-RING-DIN471-85	all
9	W342600039	SP-FLANGE	all
12	W342600203	SP-SPACER	all
13	W342601039	SP-TABLE	all
14	W342600096	SP-GUIDANCE-22IN	all
16	W342600775	SP-RING-DIN471-12	all
17	W342600982	SP-SLIDE	all
18	W342600174	SP-SPANNCLAMP	all
21	W342600202	SP-SPACER	all
22	W342600095	SP-GUIDANCE-22IN	all
24	W342600286	SP-RING	all
26	W342600127	SP-COVER	all
27	W342600998	SP-CYLINDER-ASSY	all
28	W342600593	SP-O-RING-D68,26XH3,53	all
29	W342601028	SP-HOUSING	all
30	W342601026	SP-SCREW-SPECIAL	all
32	W342600271	SP-FLANGE	all
33	W342600270	SP-FLANGE	all
34	W342600468	SP-RING-DIN471-30	all
36	W342600469	SP-RING-GUMMI	all
37	W342600526	SP-PISTON-D75	all
38	W342600599	SP-O-RING-D20,29XH2,62	all
39	W342600186	SP-ROD-20IN-L400	all
41	W342600534	SP-CLUTCH-QUICK-1/8IN-8	all
43	W342600535	SP-CLUTCH	all
45	W342600983	SP-TABLE-20IN	all
46	W341600092	SP-CLAMPPROTECTION-RUBBER (without clamp)	all
	W341600106	SP-CLAMP-METAL	all
		SP-SCREW-16X1,5X45 8.8	all
	W342600640	SP-WASHER-DIN125-17	all
49	W342600302	SP-TUBE-8X6-L75	all

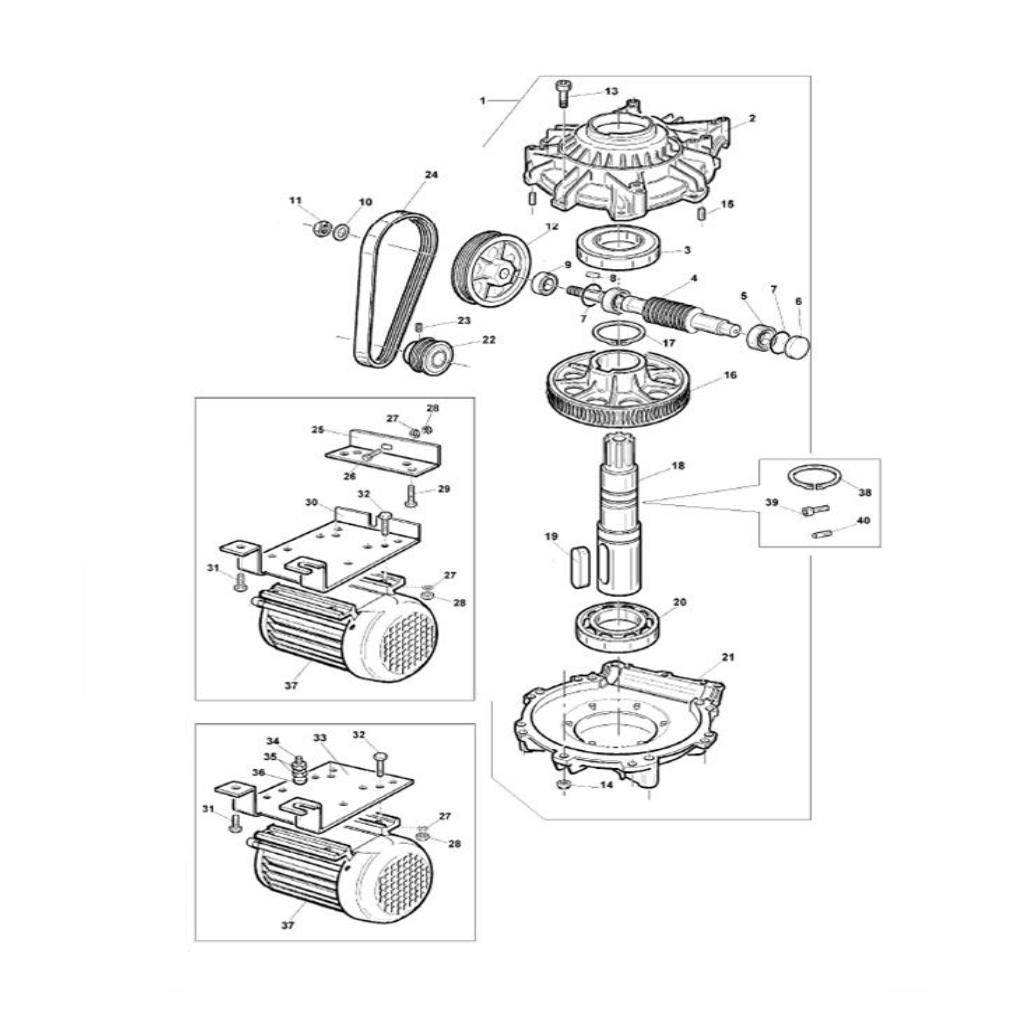

Motor-reduction gear group

Notice:

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

click to enlarge

Pos	Article No.	Designation	Serial-No.
1	W342600026	SP-HOUSING-GEAR	all
2	W342600242	SP-HOUSING-GEAR	all
3	W342600584	SP-PAD-60X110X22	all
4	W342600244	SP-CAM-SCHNECKE	all
5	W342600583	SP-BEARING	all
6	W342600247	SP-CAP-SEAL	all
7	W342600582	SP-O-RING-D34,52XH3,53	all
9	W342600581	SP-O-RING-D20XD35XH10	all
12	W342600240	SP-GEAR-REDUCTION	all
16	W342600245	SP-GEAR	all
17	W342600668	SP-RING-DIN471-60	all
18	W342600246	SP-CAM	all
20	W342600580	SP-BEARING-60X110X22	all
21	W342600243	SP-HOUSING-GEAR	all
22	W342600241	SP-GEAR-ANTRIEB	all
24	W342600579	SP-BELT	all
25	W342600988	SP-PLATE-ANGLE	all
30	W342600989	SP-SUPPORT-MOTOR	all
33	W342600137	SP-BEARING-MOTOR	all
36	W342600138	SP-BRACKET-CLAMP	all
37	W342600850	SP-MOTOR-1PH-230V-50/60HZ	all
37 A	W342600851	SP-MOTOR-3PH-230/400V-50HZ	all
37 B	W342600849	SP-MOTOR-3PH-400V-50HZ-B3	all
37 C	W342600846	SP-MOTOR-1PH-115V	all
38	W342600665	SP-RING-DIN471-50	all
40	W342600158	SP-SCREW-VALVE	all

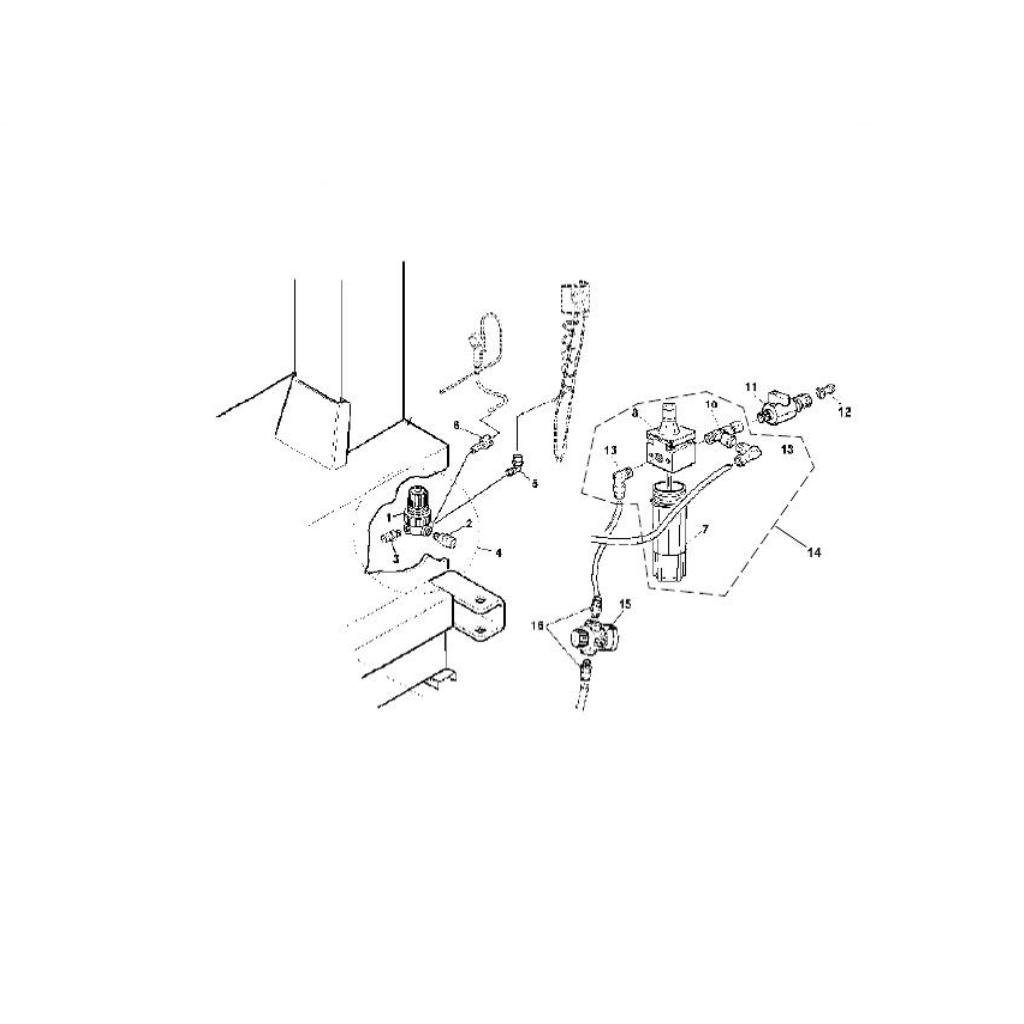

Air lubrication group

Notice:

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

click to enlarge

Pos	Article No.	Designation	Serial-No.
1	W342600513	SP-CONTROL-1/4IN-3,5BAR	all
2	W342600515	SP-VALVE-1/8IN-4BAR	all
3	W342600528	SP-CLUTCH-QUICK-1/4IN	all
4	W342600025	SP-CONTROL-4BAR	all
5	W342600516	SP-	all
6	W342600545	SP-CLUTCH-9AM-1/4IN	all
7	W342600488	SP-OILUNIT-GLAS	all
8	W342600487	SP-OILUNIT-HEAD	all
9	W342600492	SP-OILUNIT-1/4IN	all
10	W342600524	SP-	all
11	W342600511	SP-VALVE-400-1/4IN-FF	all
12	W342600554	SP-CLUTCH-1/4IN	all
13	W342600527	SP-CLUTCH-QUICK-1/4IN	all
14	W342600028	SP-WARTUNGSEINHEIT	all
15	W342600533	SP-CONTROL-1/4IN-12BAR	all
16	W342600528	SP-CLUTCH-QUICK-1/4IN	all
