Spare parts COOLIUS C20

Notice:

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

To Accessory parts To Accessory parts

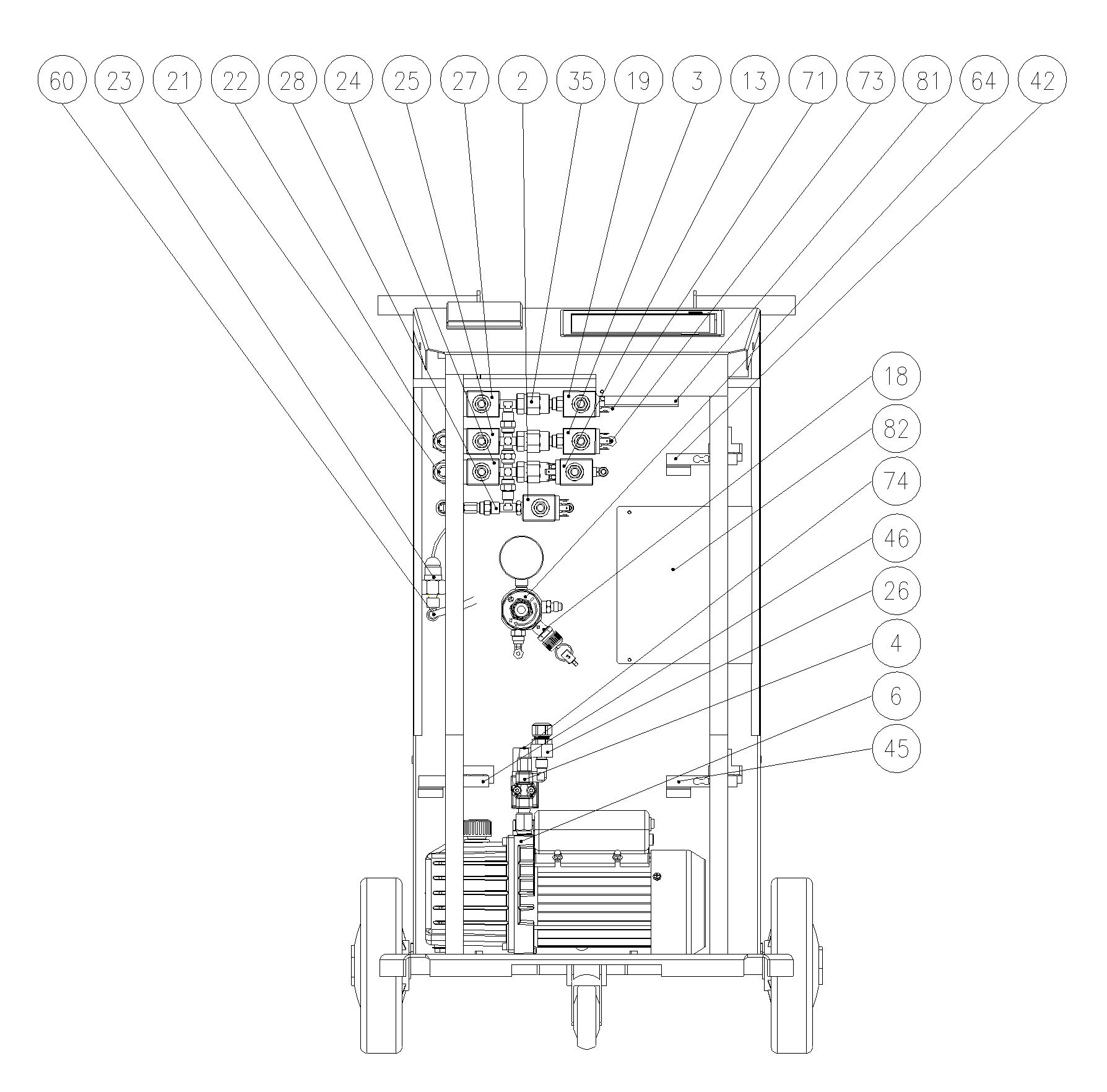

Exploded drawing C20 front

Click to enlarge

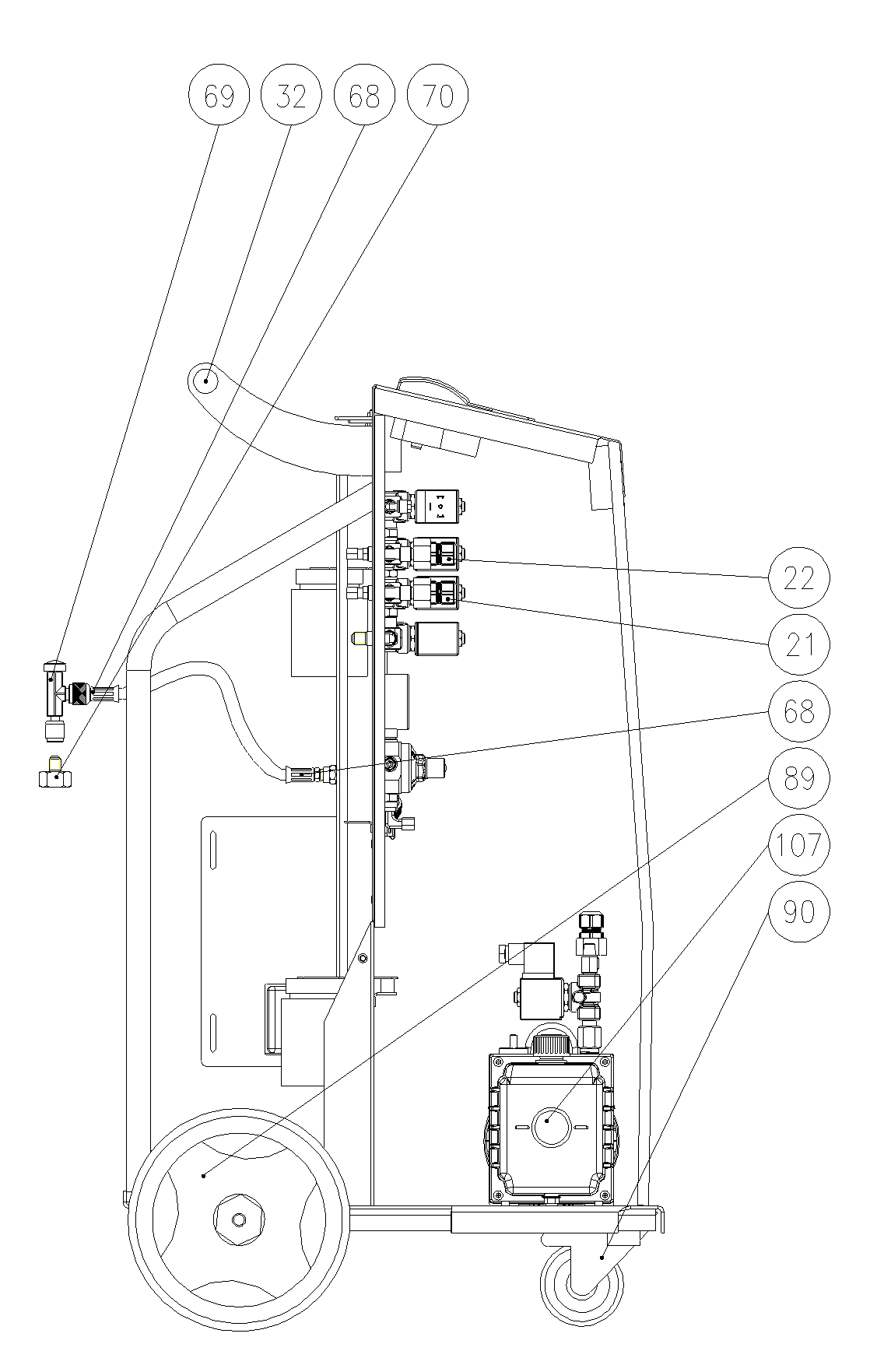

Exploded drawing C20 side

click to enlarge

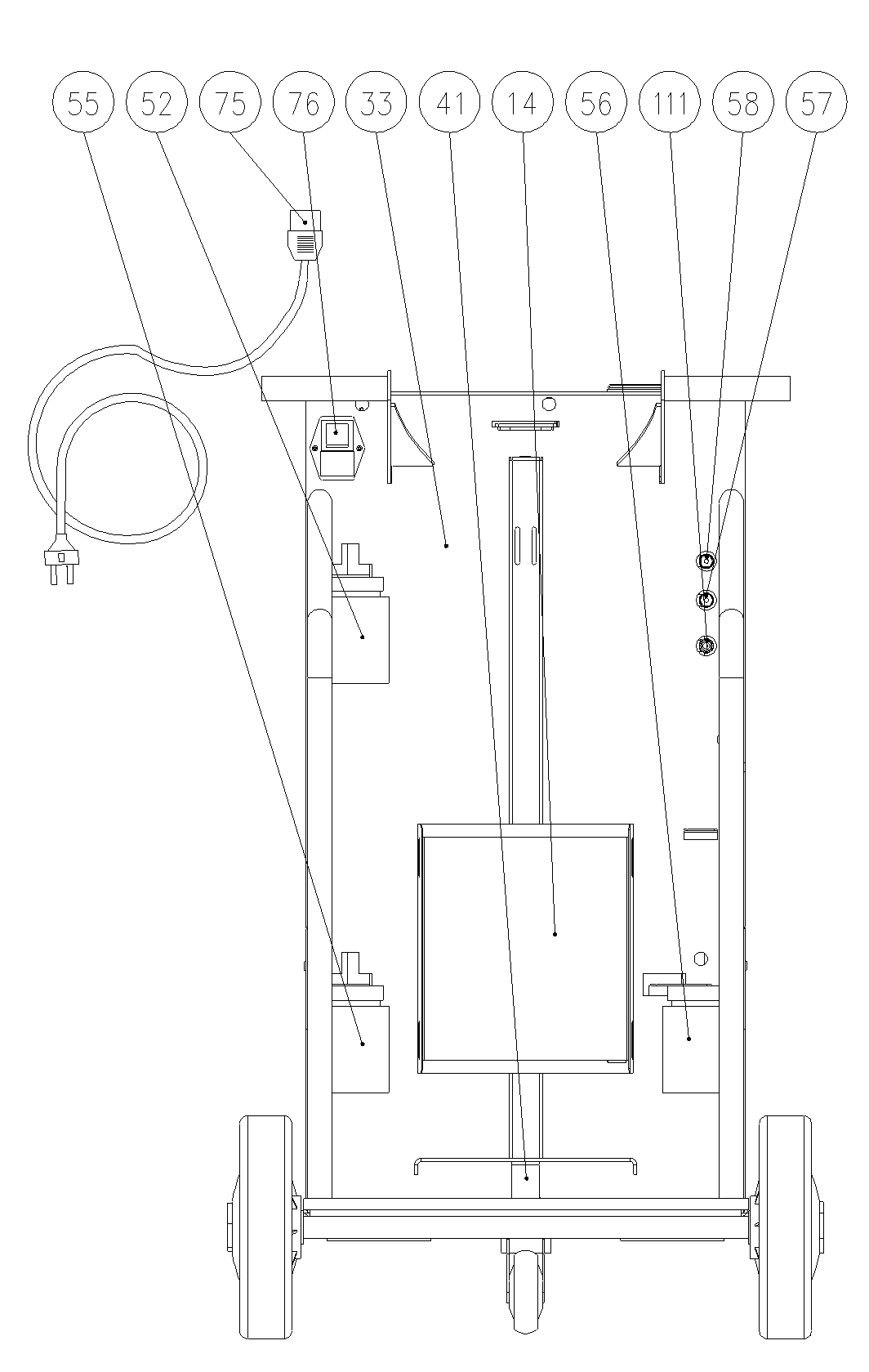

Exploded drawing C20 rear

click to enlarge

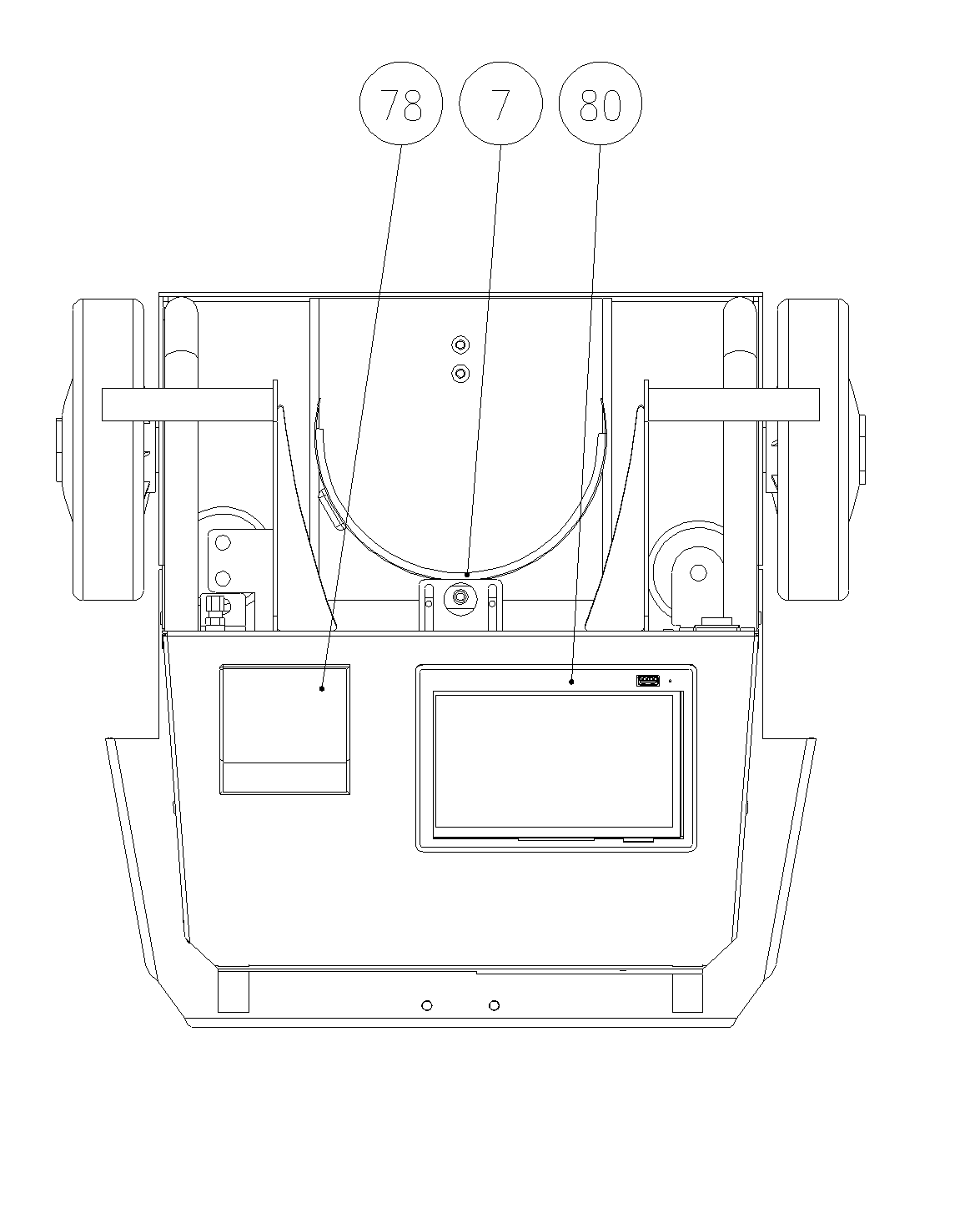

Exploded drawing C20 top

click to enlarge

Pos Article No. Designation Serial-No. Picture
2 W052100323 SP-SOLENOID-VALVE-1/4 all
3 W052100324 SP-SOLENOID-VALVE-1/8 all
4 W052100325 SP-SOLENOID-VALVE-1/4MX1/8 all
6 W052200121 SP-VACUUMPUMP-100L all
13 W0522100323 SP-SOLENOID-VALVE-1/4 all
14 W052100326 SP-HEAT-BELT-400W-C20 all
17 W052100327 SP-SAFETY-VALVE-C20 all
19 W052100324 SP-SOLENOID-VALVE-1/8 all
21 W052100328 SP-LOW PRESSURE-SENSOR all
22 W052100328 SP-LOW PRESSURE-SENSOR all
23 W052100328 SP-LOW PRESSURE-SENSOR all
24 W052100324 SP-SOLENOID-VALVE-1/8 all
25 W052100324 SP-SOLENOID-VALVE-1/8 all
26 W052100345 SP-SENSOR-VACUUM-C20 all
27 W052100324 SP-SOLENOID-VALVE-1/8 all
28 W052100329 SP-MANIFOLD-COMPLETE-C20 all
32 W052100330 SP-HANDLE-KNOB-C20 all
34 0707764006 SP-CHECK-VALVE all
35 0707764006 SP-CHECK-VALVE all
39 0707764006 SP-CHECK-VALVE all
41 0707764235 SP-REFRIGERANT-LOAD-CELL all
42 0707764232 SP-LOAD-CELL-OIL-UV all
45 0707764232 SP-LOAD-CELL-OIL-UV all
46 0707764232 SP-LOAD-CELL-OIL-UV all
47 W052100331 SP-QUICKCOUPLING-LOW-C20 all
48 W052100332 SP-QUICKCOUPLING-HP-C20 all
52 W052200082 SP-OIL-BOTTLE all
55 W052200082 SP-OIL-BOTTLE all
56 W052200082 SP-OIL-BOTTLE all
  W052100180 SP-ADAPTER-KIT-FOR-SEALED-OIL-BOTTLES all
57 W052100333 SP-SERVICE-HOSE-LOW-C20 all
58 W052100334 SP-SERVICE-HOSE-HP-C20 all
60 W052100335 SP-CO2-CHARGE-HOSE-450MM all
  W052100347 SP-BOTTLE-ADAPTER-WITH-INTER-MECHAN-GASKET all
  W052100348 SP-GASKET-BOTTLE-ADAPTER all
64 W052100336 SP-PRESSURE-REGULATOR-C20 all
68 W052100337 SP-CO2-CHARGE-HOSE-550MM all
69 W052100338 SP-LOCKVALVE-BOTTLE-CONNECTION all
  W052100346 SP-GASKET-LOCK-VALVE all
71 W052200089 SP-HOSE-CAPILLARHOSE all
73 W052200089 SP-HOSE-CAPILLARHOSE all
74 W052100339 SP-VACUUM-HOSE-8X6 all
75 W052200090 SP-POWER CABLE-EUROPE all
76 W052200001 SP-SWITCH-MAIN all
78 W052200025 SP-PRINTER all
80 W052100340 SP-CONSOLE-COMPLETE-C20 all
81 W052100341 SP-12V-POWER-CONTROL-BOARD all
82 W052100342 SP-AUXILIARY-COMPLETE-CONSOLE-C20 all
85 W052100343 SP-PLASTIC-COVER-GREY-C20 all
89 0707764214 SP-WHEEL-D200MM all
90 W052200111 SP-WHEEL-SMALL-BRAKE-D80 all
96 W052100344 SP-BELT-FOR-HEATER all

Accessory parts

PosArticle No.DesignationSerial-No.Picture
 076495 002PAPERROLL-A/C-PRINTERall
 W067200140WLAN-MODULE-C20all
 W067200141CALIBRATION-KIT-PRESSURE-SENSOR-C20all
​ ​
