WEL 2.30M

Please choose the subassembly in the selection.

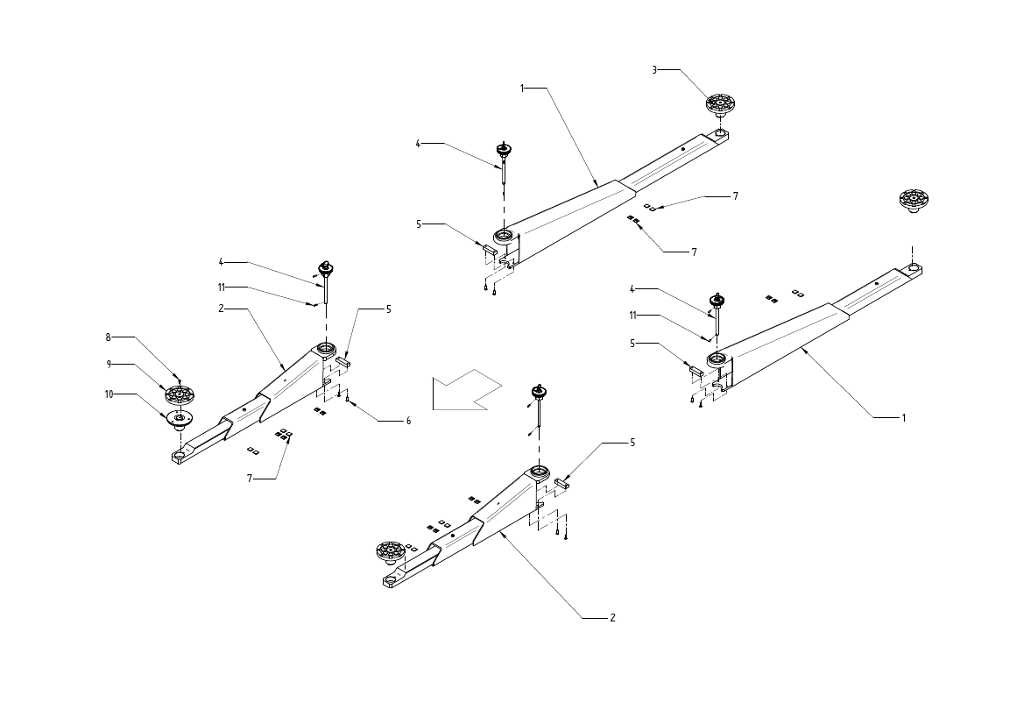

SWIVEL ARMS

Notice:

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

PosArticle No.DesignationSerial-No.Picture
1W105700062SP-ARM-LONGall
2W105700061SP-ARM-SHORTall
3, 8,
9, 10

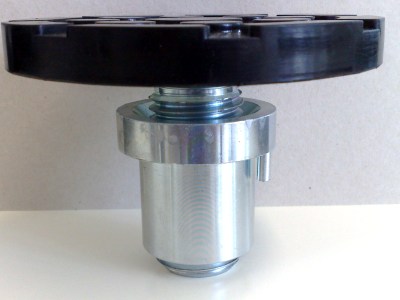

W105700103SP-FIXTURE-COMPLfrom 56462
4W105700066SP-SPERREall
5W105700086SP-BARall
6W105700068SP-SCREWall
7W105700022SP-BEARING-ARMall
9W105700024SP-PADall
11W105700071SP-PINall

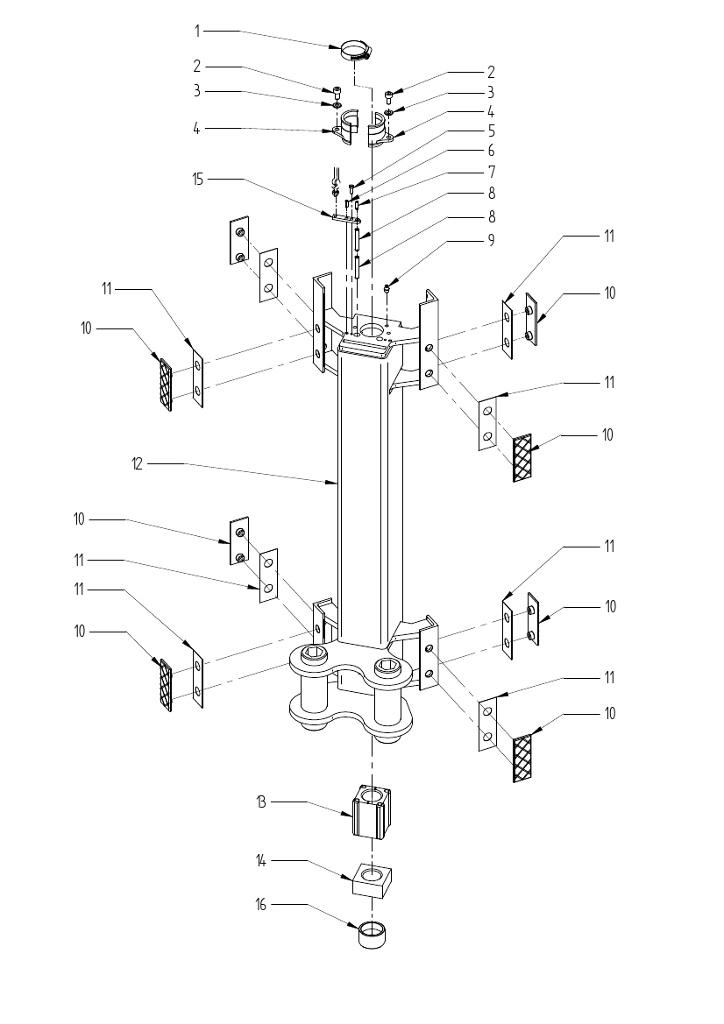

LIFTING WAGON

Notice:

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

PosArticle No.DesignationSerial-No.Picture
1W105700057SP-SCHELLEall
2W105700088SP-SCREWall
3W105700055SP-WASHERall
4W105700075SP-CENTERINGall
5W105700089SP-SCREWall
6W105700071SP-PINall
7W105700020SP-PINall
8W105700093SP-PINall
9W105700034SP-NIPPLEall
10W105700021SP-BEARING-CARRIERall
11W105700085SP-COVERall
12W105700027SP-CARRIERall
13W105700083SP-NUTall
14W105700069SP-NUTall
15W105700026SP-BRACKETall
16W105700039SP-LOCKall

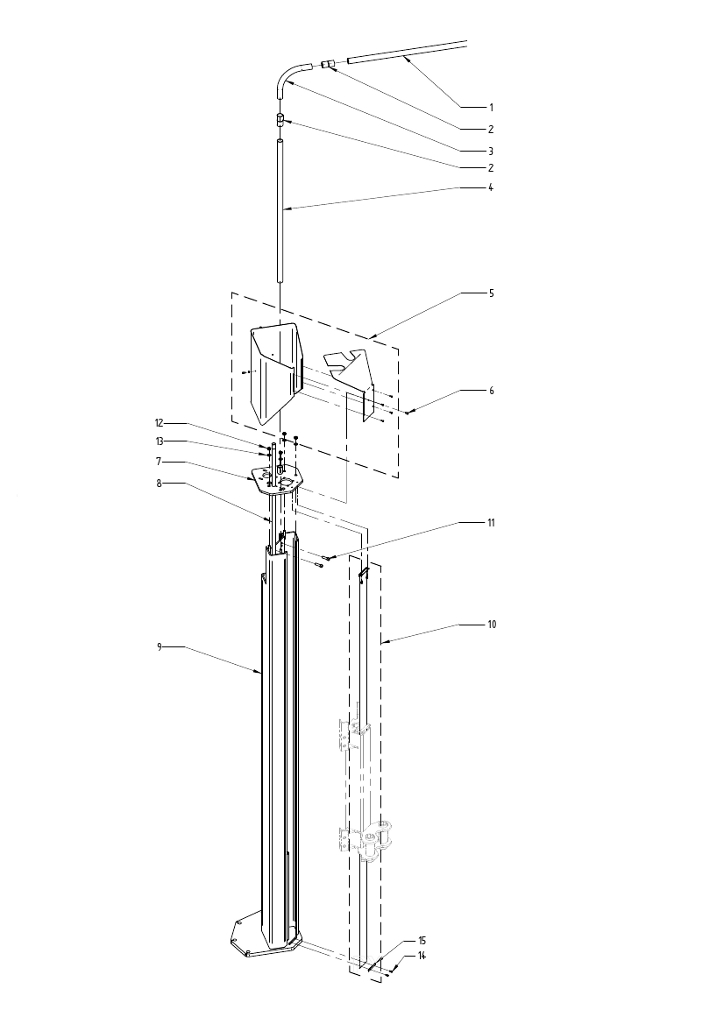

LIFTING COLUMN

Notice:

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

PosArticle No.DesignationSerial-No.Picture
1W105700005SP-TUBE-2560all
1W105700004SP-TUBE-2450all
2W105700002SP-TUBE-LINKall
3W105700001SP-TUBE-ELBOWall
4W105700003SP-TUBE-1000all
5W105700051SP-TOPall
6W105700092SP-SCREWall
7W105700030SP-PLATE-SECONDall
7W105700031SP-PLATE-MAINall
9W105700041SP-POST-SECONDall
9W105700081SP-POSTall
11W105700090SP-SCREWall
12W105700038SP-NUTall
13W105700053SP-WASHERall
14W105700091SP-SCREWall
15W105700008SP-COVERall

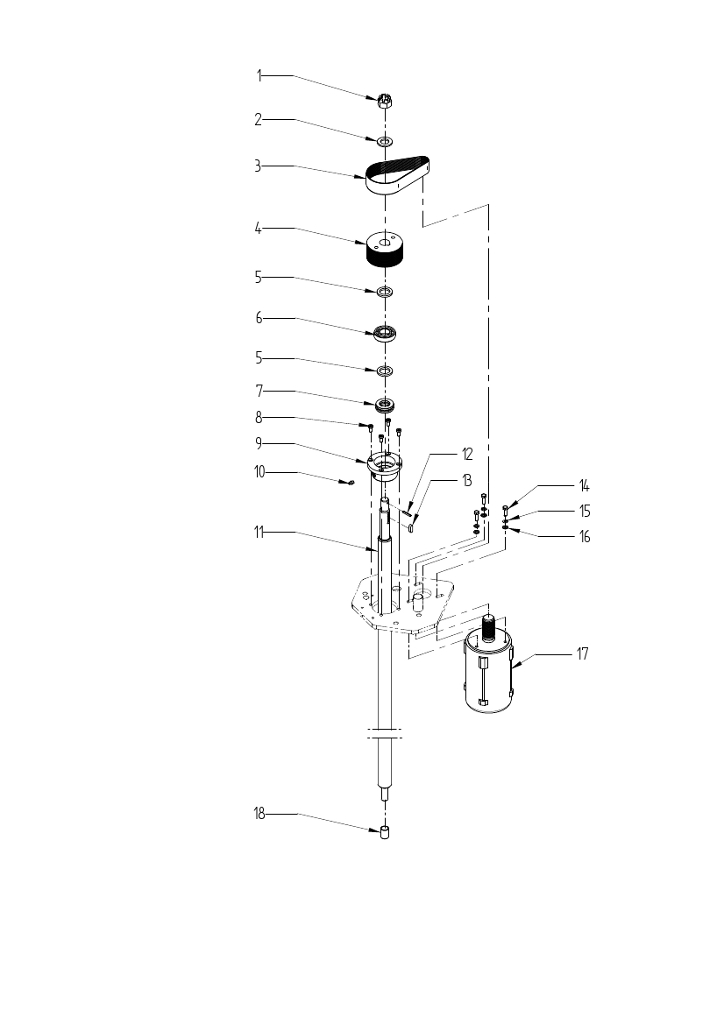

SPINDLE DRIVE

Notice:

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

PosArticle No.DesignationSerial-No.Picture
1W105700033SP-NUTall
2W105700054SP-WASHERall
3W105700029SP-BELTall
4W105700049SP-WASHERall
5W105700052SP-WASHERall
6W105700048SP-BEARINGall
7W105700007SP-BEARINGall
8W105700088SP-SCREWall
9W105700074SP-BEARINGall
10W105700034SP-NIPPLEall
11W105700072SP-SPINDLEall
12W105700070SP-PINall
14W105700067SP-SCREWall
15W105700015SP-WASHER-M8all
16W105700032SP-WASHERall
17W105700014SP-MOTOR-2,4KW-W7LIU4DEall
18W105700023SP-BEARINGall

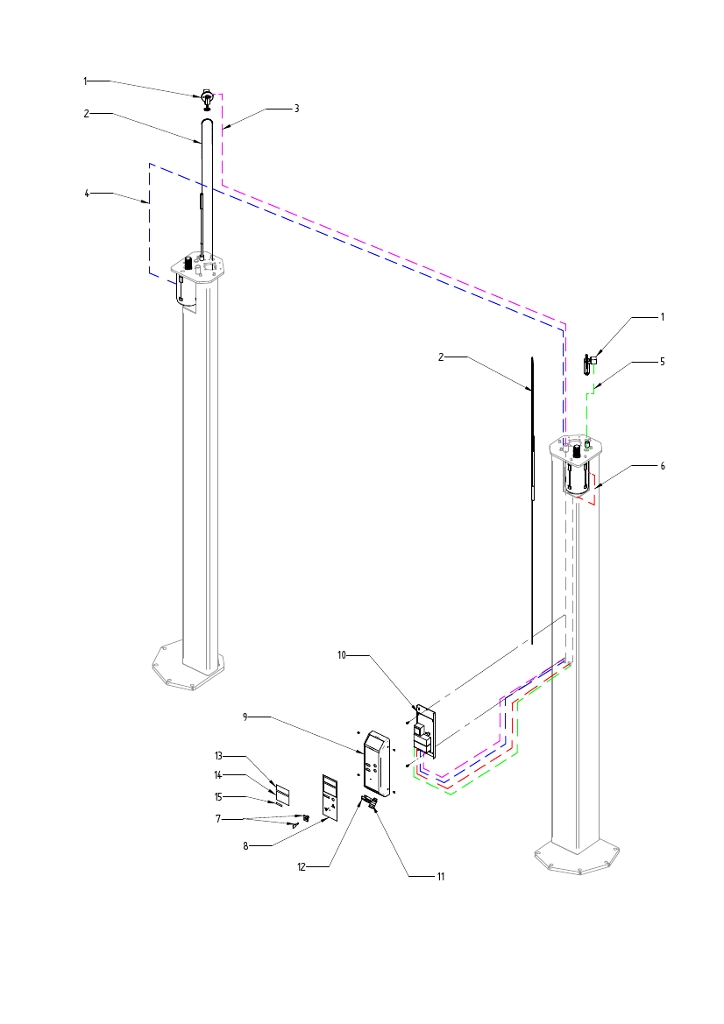

CONTROL UNIT

Notice:

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

PosArticle No.DesignationSerial-No.Picture
1W105700044SP-POTENTIOMETERall
2W105700019SP-COUNTERWEIGHTall
3W105700045SP-POTENTIOMETERall
4W105700036SP-CABLE-L8Mall
5W105700046SP-POTENTIOMETERall
6W105700037SP-CABLE-L1,8Mall
7W105700058SP-KEYall
8W105700017SP-CONTROLall
9W105700018SP-HOUSINGall
10W105700082SP-CONTROLall
12W105700006SP-PLUGall
13W105700013SP-LABEL-WUERTHall
14W105700009SP-LABEL-DEall
14W105700010SP-LABEL-ENall
14W105700011SP-LABEL-XXall
15W105700012SP-LABEL-3000all
