WB 300PL

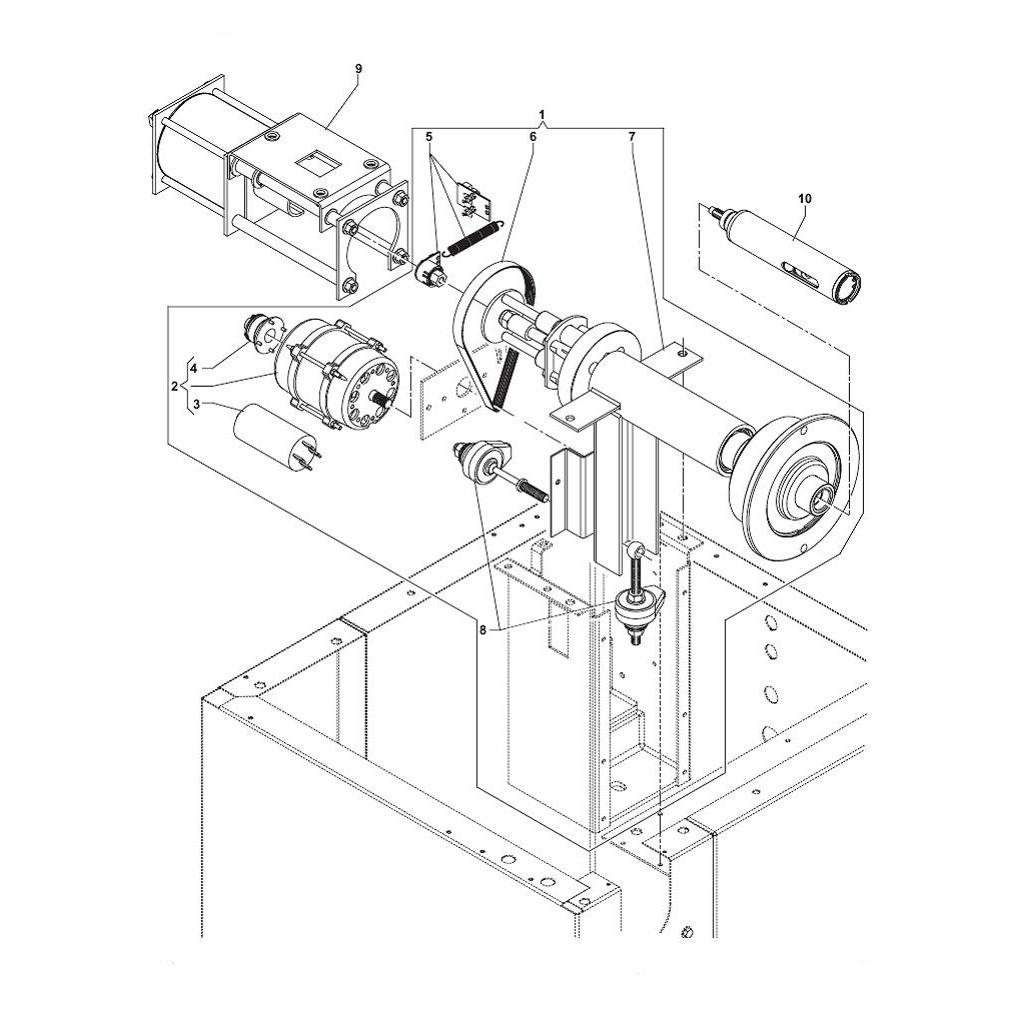

BP Shaft Assembly
Notice:
Please note that some parts only exist in the exploded drawings but not in the spare parts table.
These parts can not be ordered separately!
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|
| 5 | W345210003 | SP-ANGLE-DEVICE | all |  |
| 6 | W345210004 | SP-BELT | all |

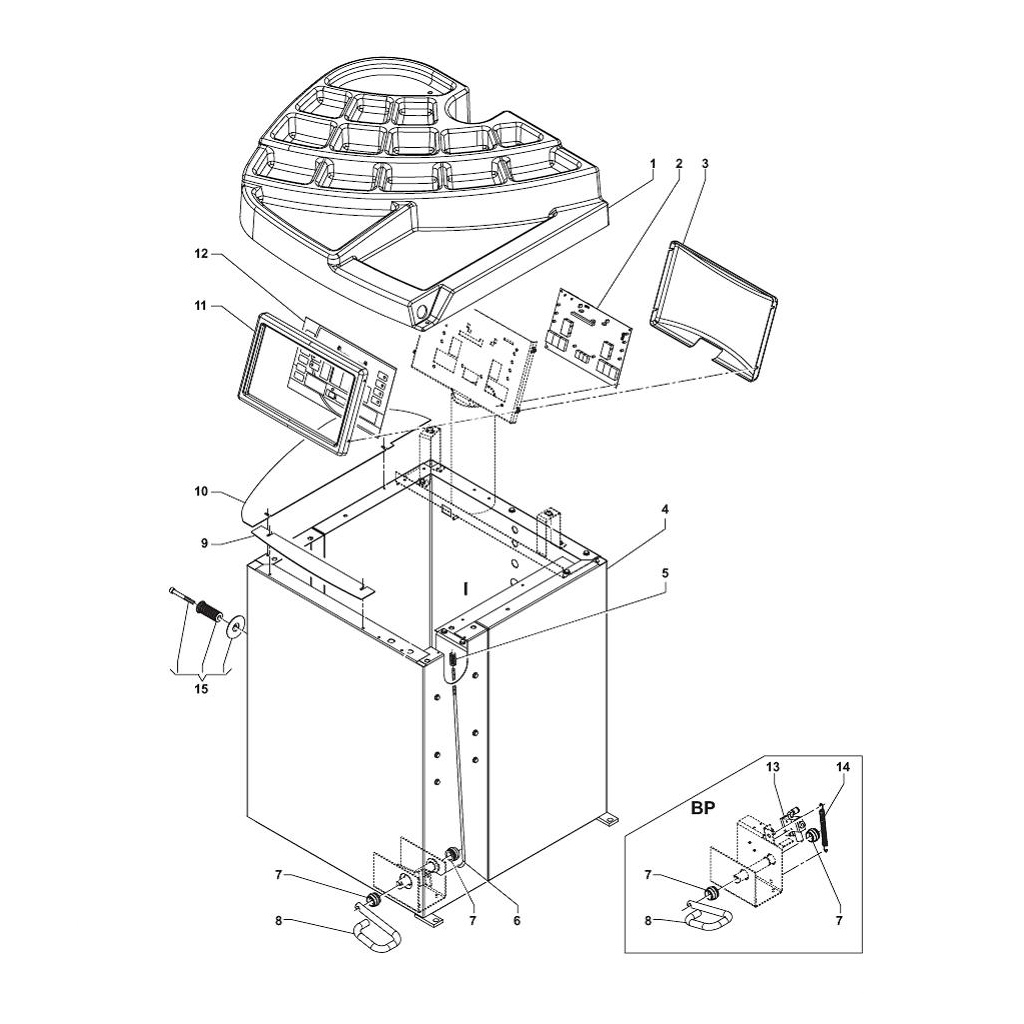

Casing + Brake + BP Pedal
Notice:
Please note that some parts only exist in the exploded drawings but not in the spare parts table.
These parts can not be ordered separately!
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|

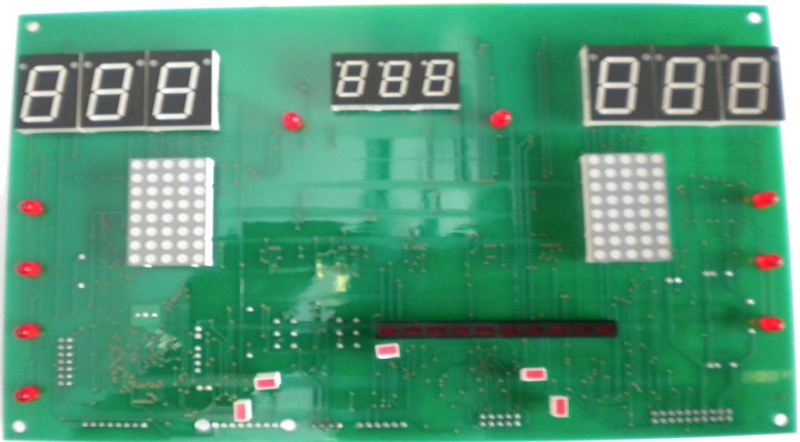

| 2 | W345210016 | SP-CARD-PC | all |  |

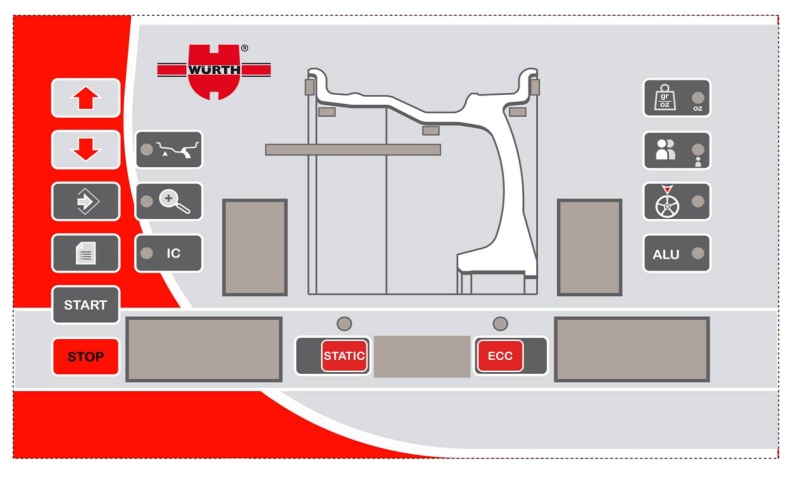

| 12 | W345210007 | SP-CONTROL | all |  |
| 13 | W345210025 | SP-CONTROL | all |  |
“Distance + Diameter” Autom. Gauge + Power Unit
Notice:
Please note that some parts only exist in the exploded drawings but not in the spare parts table.
These parts can not be ordered separately!
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|
| 2 | W345210018 | SP-ANGLE-DEVICE | all |  |
| 5 | W344210034 | AY-DISTANCEGAUGE | all | |
| 8 | W345210009 | SP-PCB | all |  |
| 9 | W345210013 | SP-PCB-SONAR | all |  |

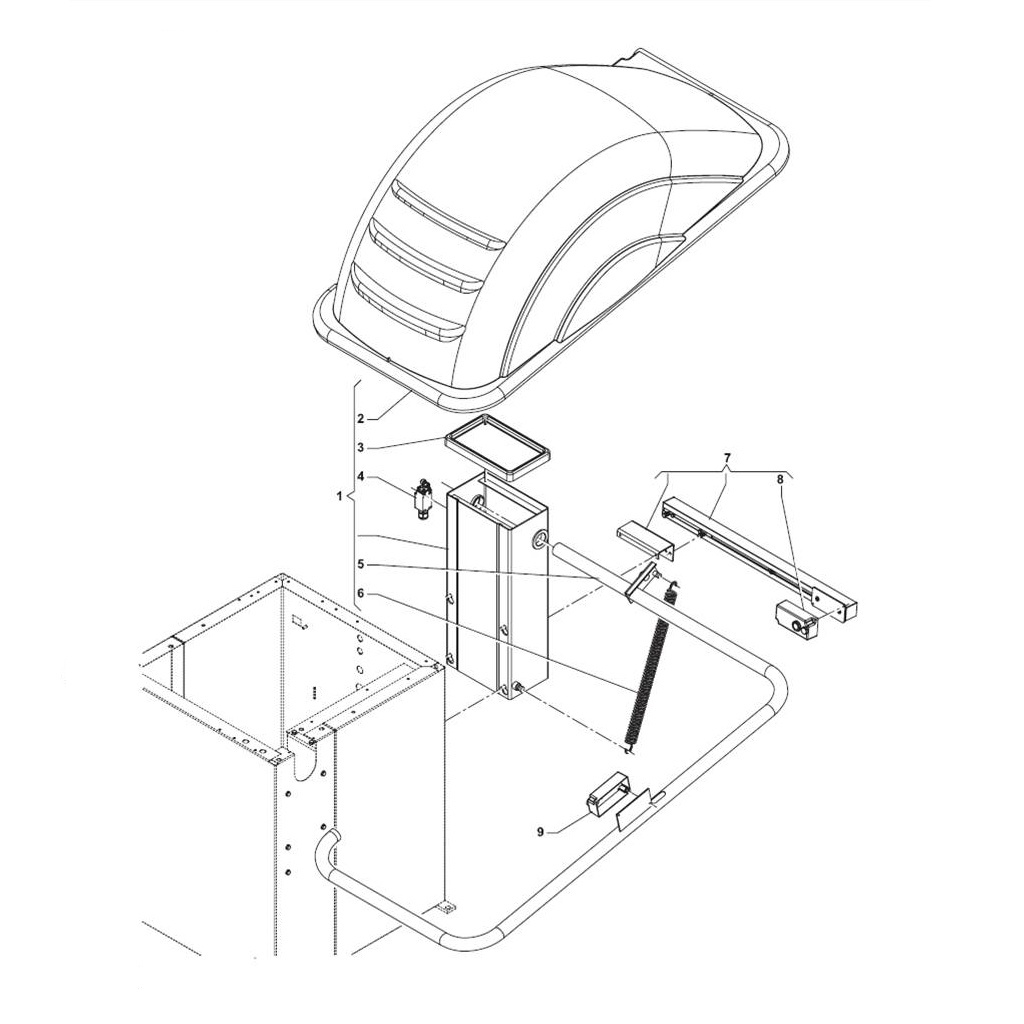

Wheel Guard
Notice:
Please note that some parts only exist in the exploded drawings but not in the spare parts table.
These parts can not be ordered separately!
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|
| 4 | W345210022 | SP-SWITCH-COVER | all |  |
| 6 | W345210020 | SP-SPRING-COVER | all |  |
| 7 | W344210002 | AY-SONAR-EMS-CAR | all | |
| 9 | W345210047 | SP-SENSOR | all |  |
