WTM 200

Selection of subassembly
Body
Arms horizontal and vertical
4 Pedals Box
Bead breaker
Mounting Tools
Self-Centering turntable 20" R12
Motor-Reduction Gear Group
GT Inflating Device

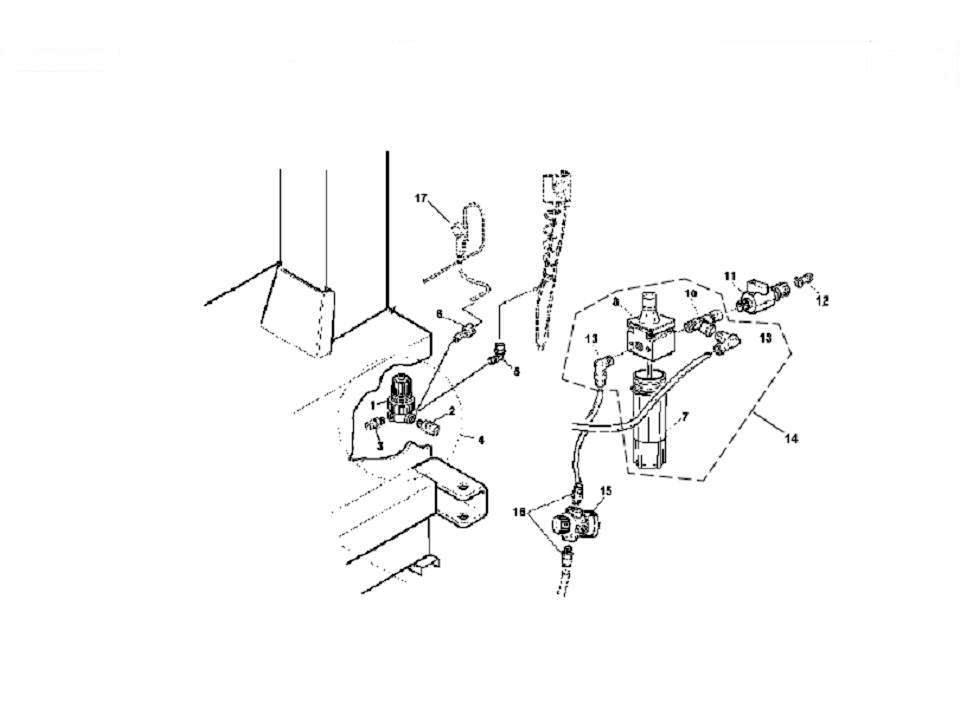

Air Lubrication Group

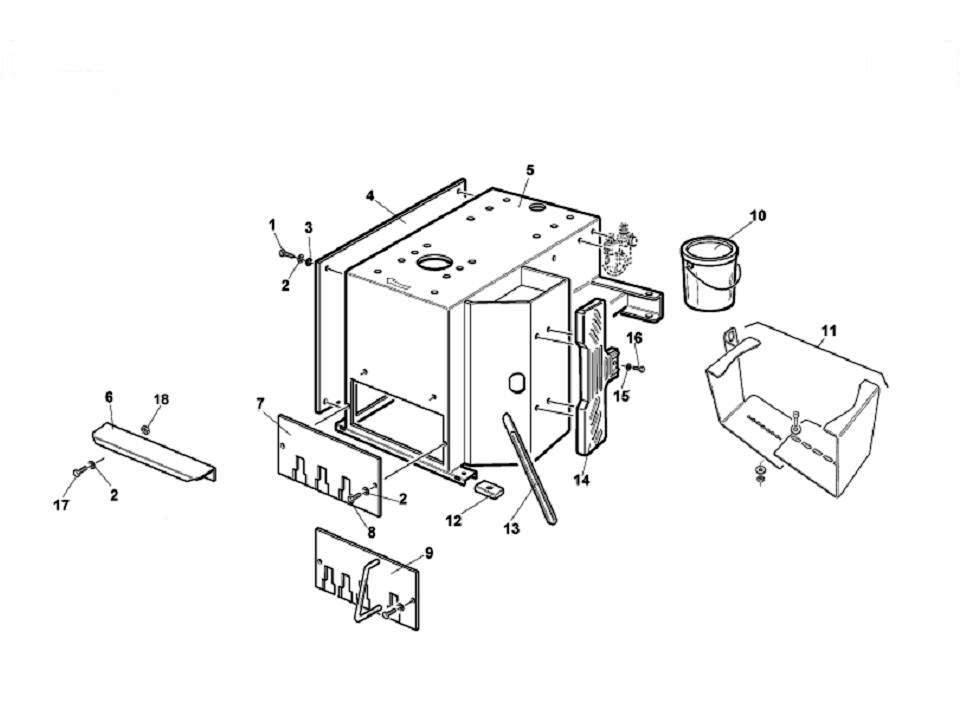

Body

Notice:

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

click to enlarge

Pos	Article No.	Designation	Serial-No
1		SCREW-SELFTAPPING-6,3X16	all
2		WASHER-DIN125-6	all
3	W342600753	WASHER-ZAHN-6,4X11X0,7	all

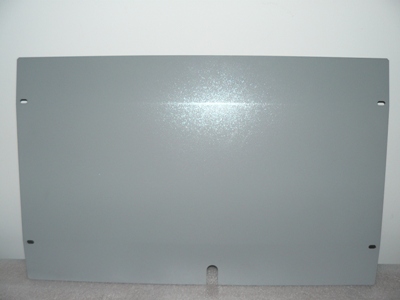

4	W342600853	PLATE-SIDE	all

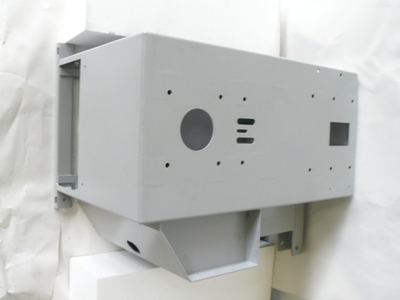

5	W342600854	FRAME	all

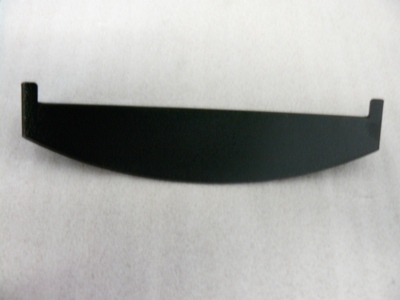

6	W342600880	COVER-PEDAL	all

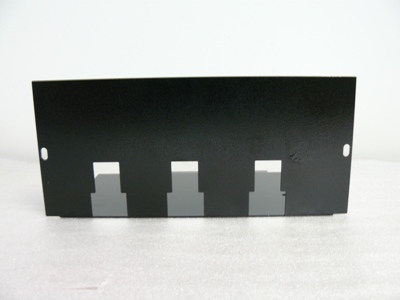

7	W342600879	BRACKET-PEDAL	all
8		SCREW-M6X12	all

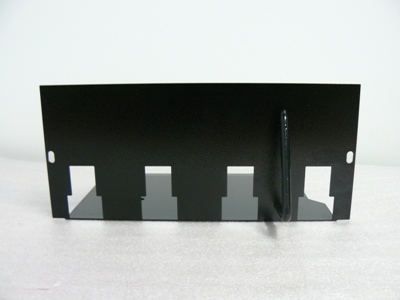

9	W342600883	BRACKET-PEDAL	all

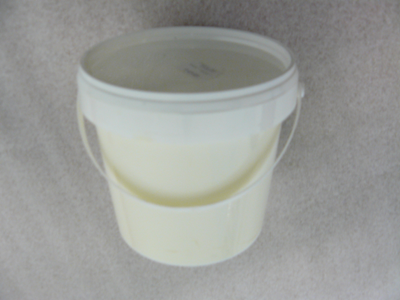

10	W342600609	BOX	all

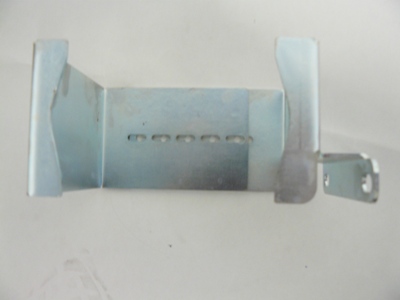

11	W342600068	BRACKET-LUBRICATION	all

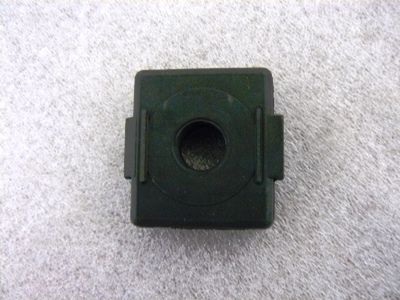

12	W342600159	Foot	all

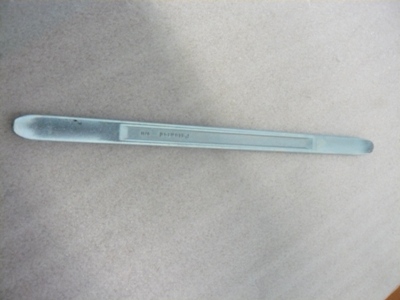

13	W342600205	LEVER-PRESSURE	all

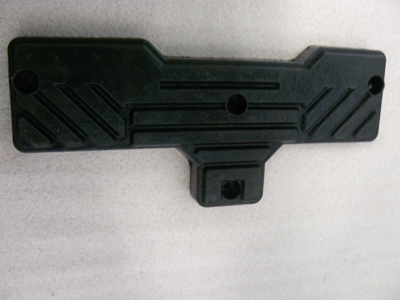

14	W342600160	BRACKET-RAD	all
15		WASHER-DIN125-6	all
16		SCREW-M6X25	all
17		SCREW-M6X20	all
18		NUT-DIN934-M6	all

Arms horizontal and vertical

Notice:

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

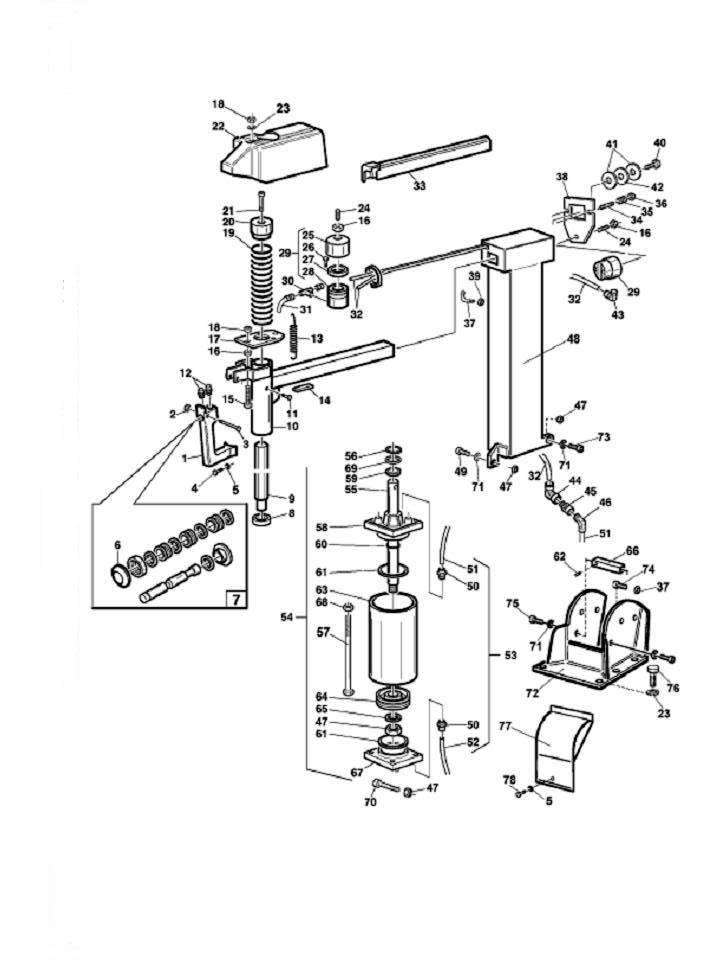

click to enlarge

Pos	Article No.	Designation	Serial-No.

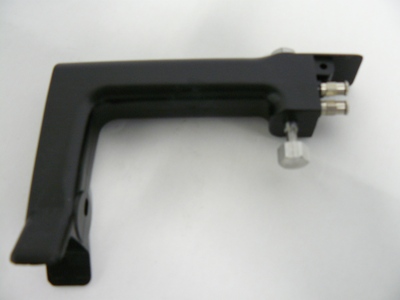

1	W342600954	HANDLE-LOCK	all
2		NUT-DIN985-M4	all
3		SCREW-M4X35	all
4		SCREW-M8X16-8.8	all
5		WASHER-DIN125-6	all
6	W342600955	COVER-PLASTIC	all

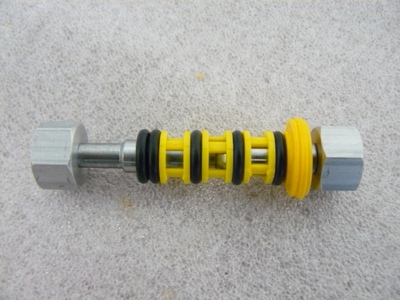

7	W342600018	KIT-ARMCONTROL	all

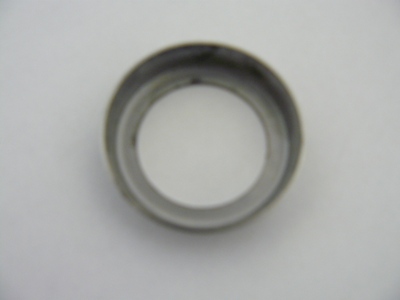

8	W342600337	CAP-ABSORBER	all

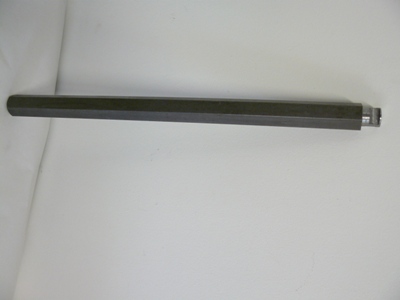

9	W342600956	ARM-HEX-36-L620	all

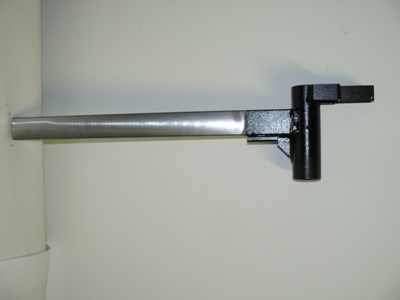

10	W342600957	ARM-HORIZONAL	all
11		SCREW-M8X16-8.8	all
12	W342600506	CLUTCH-1/8IN	all

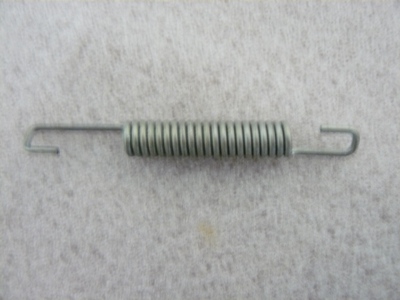

13	W342600170	SPRING	all

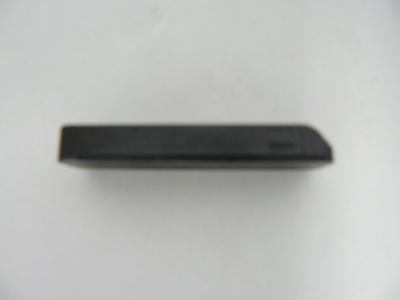

14	W342600958	ABSORBER	all
16		NUT-DIN934-M10	all

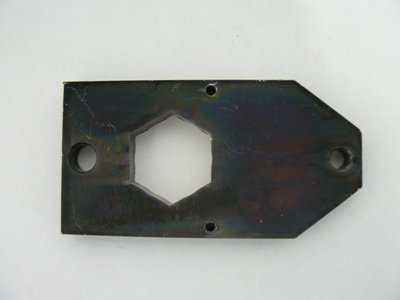

17	W342600959	PLATE-ARM-LOCKING	all
18		NUT-DIN985-M10	all

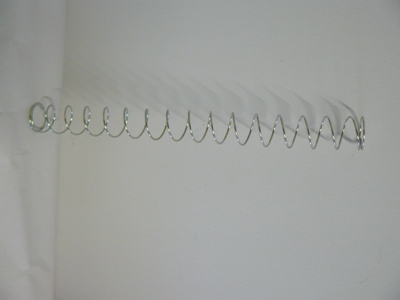

19	W342600960	SPRING	all

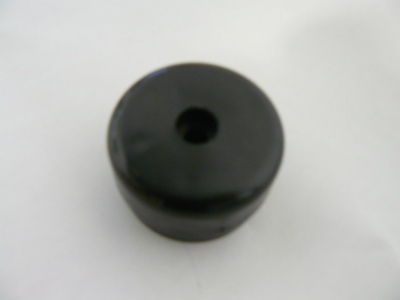

20	W342600126	HANDLE-ARM	all
21		SCREW-M8X20	all
22	W342600961	COVER-TOP	all
23		WASHER-DIN125-10	all

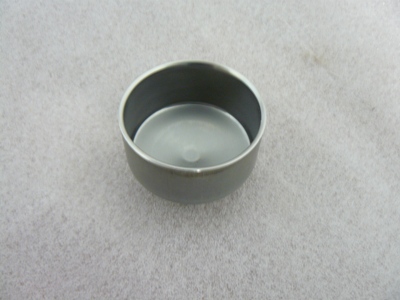

25	W342600603	HOUSING-CYLINDER-D60	all
26		SCREW-M6X35	all

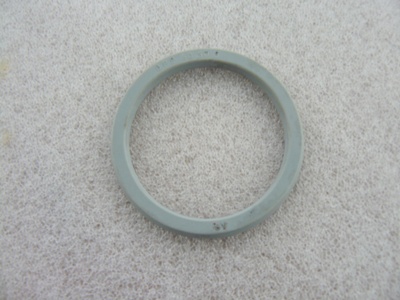

27	W342600601	O-RING	all

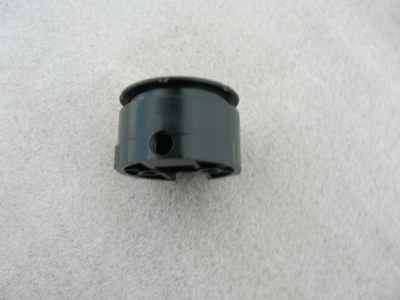

28	W342600602	PISTON-D60	all

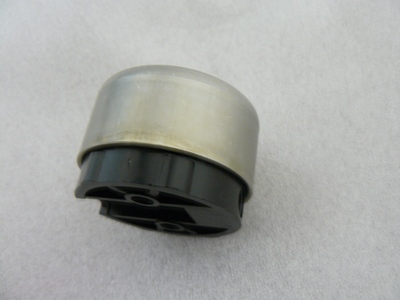

29	W342600081	CYLINDER-LOCK	all

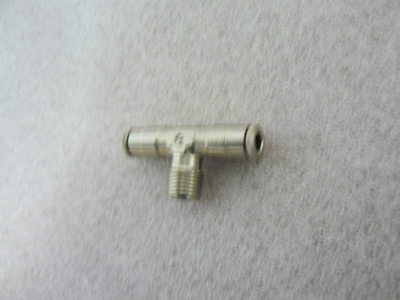

30	W342600503	CLUTCH-1/8IN	all

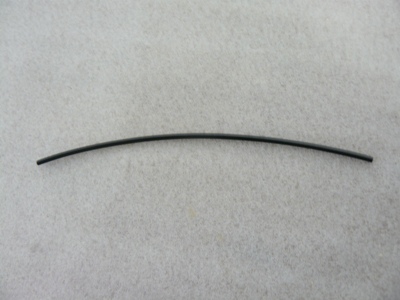

31	W342600215	TUBE-4X2-L220	all

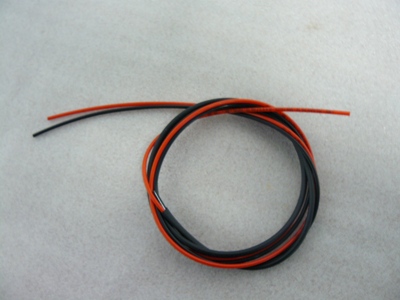

32	W342600214	TUBE-4X2,7-L2200	all

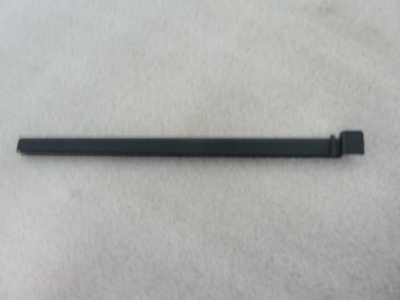

33	W342600182	GUIDANCE	all
34		SCREW-M12X60	all

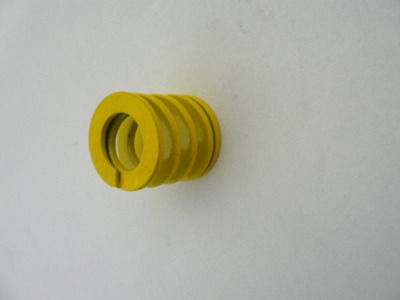

35	W342600571	SPRING-26X25	all
36		NUT-DIN985-M12	all

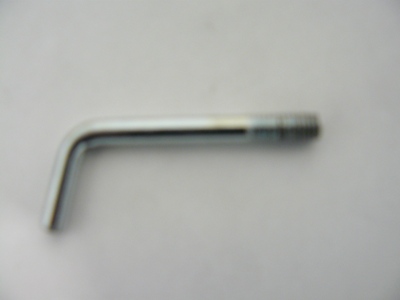

37	W342600261	HOOK	all
38	W342600282	CLAMP	all
39		NUT-DIN934-M6	all
40		SCREW-M8X20	all
42		WASHER	all
43	W342600504	CLUTCH-1/8IN	all

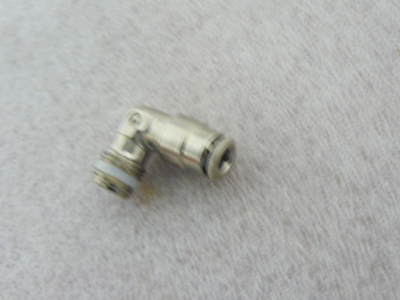

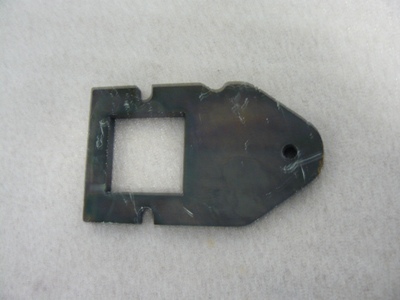

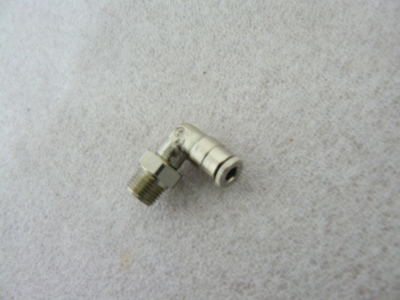

44	W342600500	CLUTCH-1/8IN	all

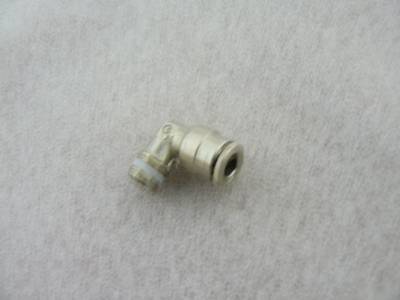

46	W342600538	CLUTCH-QUICK-1/8IN	all
47		NUT-DIN985-M12	all

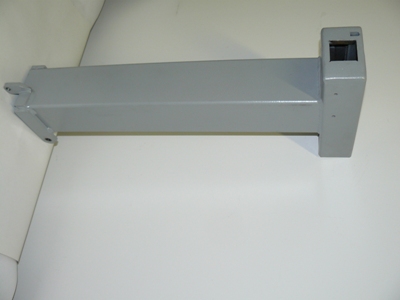

48	W342600962	ARM-VERTICAL	all

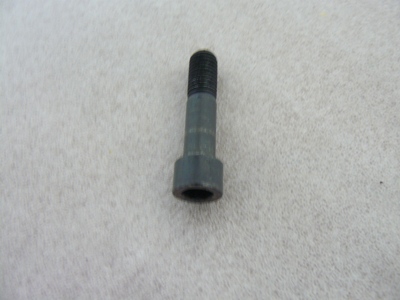

49	W342600146	PIN-M12X50	all
50	W342600537	CLUTCH-QUICK-1/8IN	all

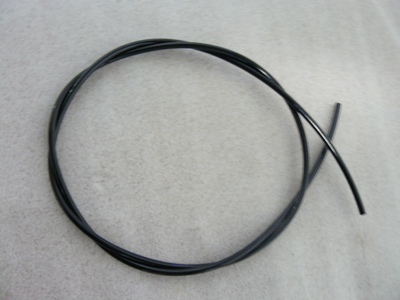

51	W342600144	TUBE-6X4-L1200	all
52	W342600143	TUBE-6X4-L840	all

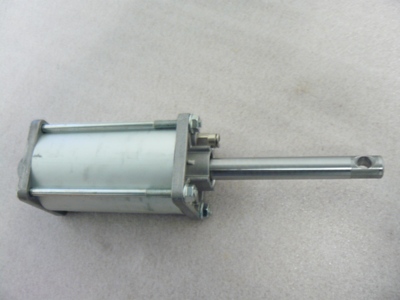

53	W342600014	CYLINDER-PIVOT	all
54	W342600007	CYLINDER-PIVOT	all

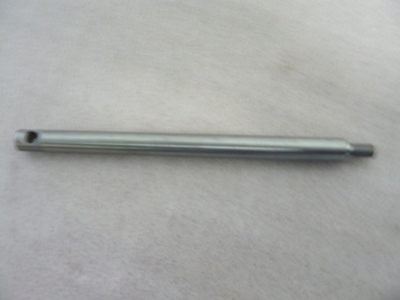

55	W342600183	ROD-CYLINDER-L309	all
56	W342600468	RING-DIN471-30	all
57		SCREW-M8X160	all

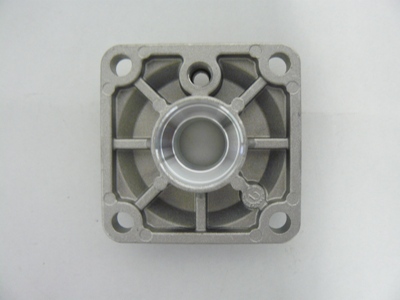

58	W342600173	FLANGE	all
59	W342600469	RING-GUMMI	all

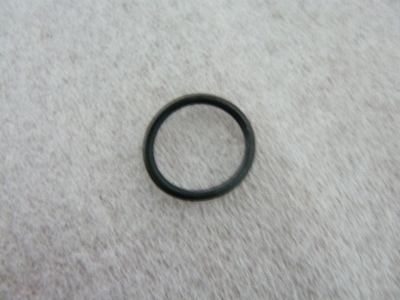

60	W342600599	O-RING-D20,29XH2,62	all
61	W342600593	O-RING-D68,26XH3,53	all
62		SCREW-M6X8	all

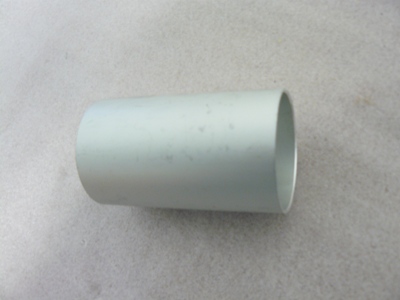

63	W342600218	HOUSING-CYLINDER-20IN-L135	all

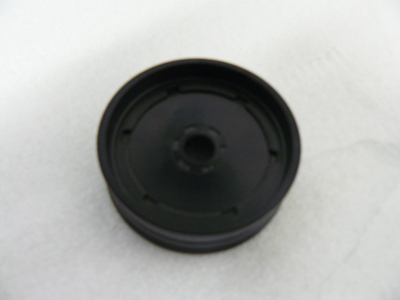

64	W342600526	PISTON-D75	all
65		WASHER-D12,5X30X3	all

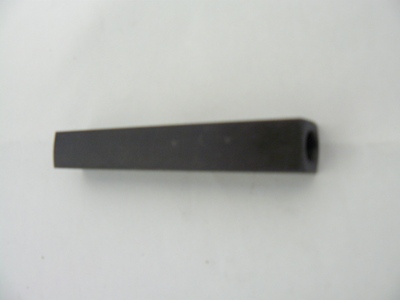

66	W342600252	SPACER	all

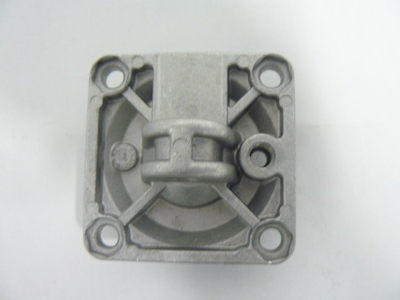

67	W342600172	FLANGE	all
68		NUT-M8	all
70		SCREW-M12X110	all
71		WASHER-DIN125-12	all

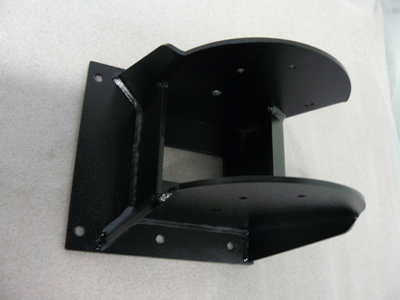

72	W342600881	BRACKET-ARM	all
73		SCREW-M12X35	all
74		SCREW-M8X16	all
76		SCREW-M10X60	all

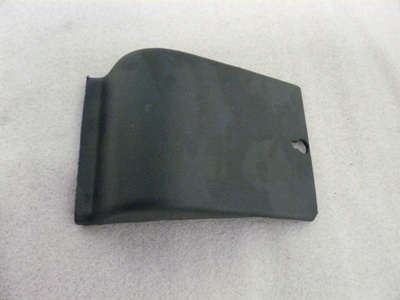

77	W342600256	COVER-FRONT	all
78		SCREW-M6X12	all

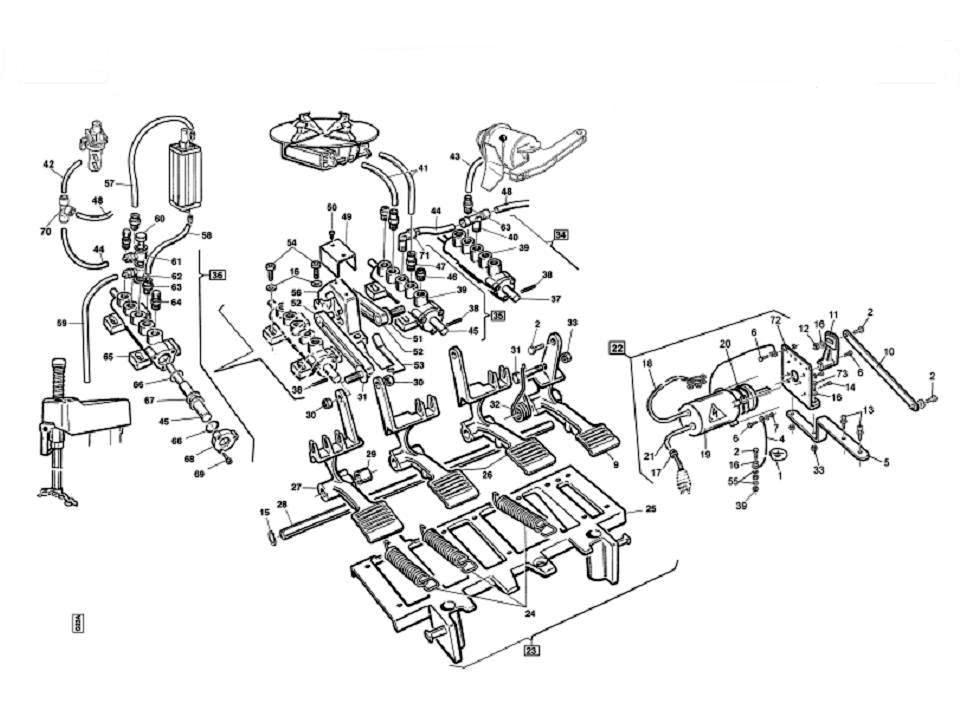

4 Pedals Box

Notice:

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

click to enlarge

Pos	Article No.	Designation	Serial-No.

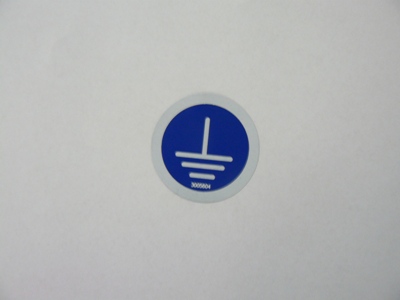

1	W342600190	STICKER	all
2		SCREW-M6X20	all
3		WASHER-DIN125-6	all

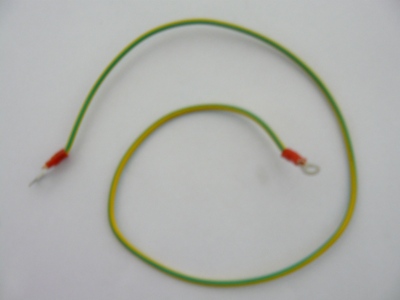

4	W342600009	CABLE-GROUND-L340	all

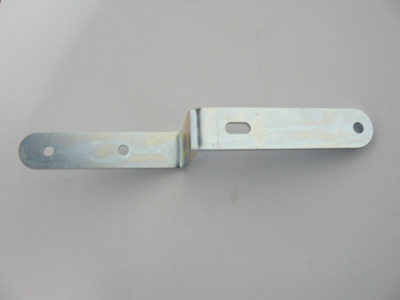

5	W342600279	BRACKET-BRACKET	all
6		SCREW-M4X12-8.8	all
7		NUT-DIN934-M4	all
8		WASHER-TOOTHED-3,2X12X0,5	all

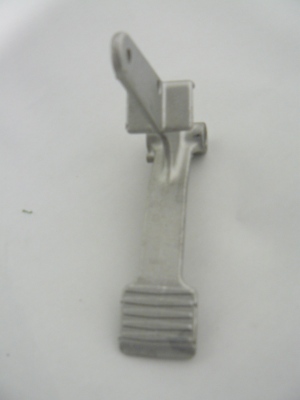

9	W342600164	PEDAL-ALTERNATION	all

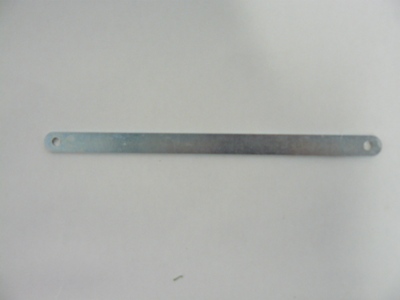

10	W342600278	ROD	all

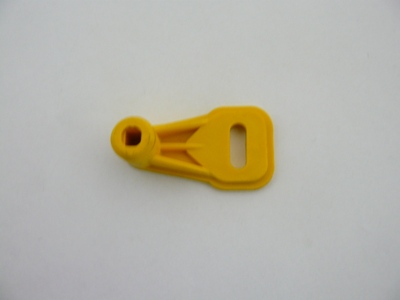

11	W342600963	LEVER-PRESSURE	all
12		NUT-DIN985-M6	all
15	W342600775	RING-DIN471-12	all
16		WASHER-DIN125-6	all

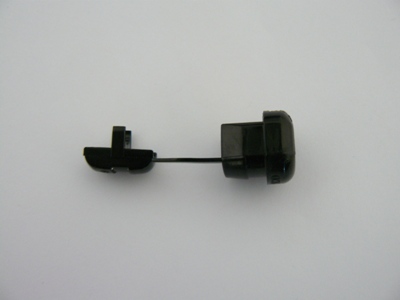

17	W342600852	LOCK-CABLE-D9	all

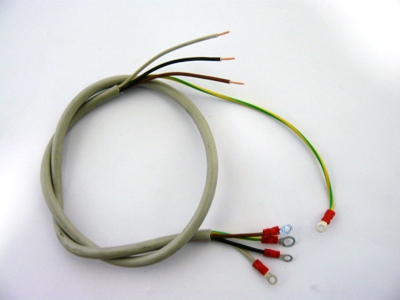

18	W342600001	CABLE-L1500	all
18A	W342600964	CABLE	all

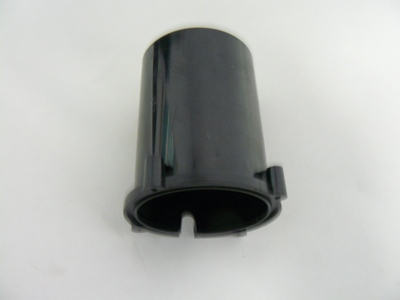

19	W342600280	BRACKET-ANGLE	all

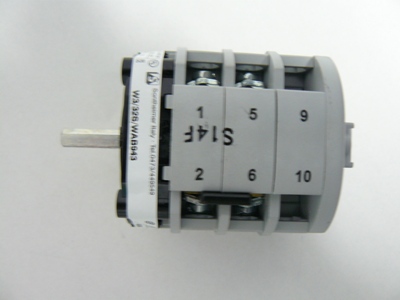

20	W342600838	SWITCH-32A	all

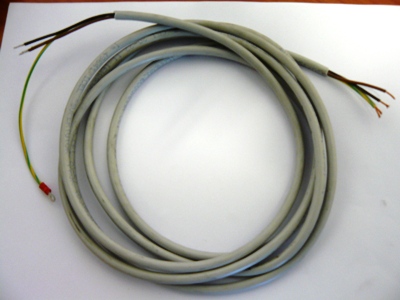

21	W342600002	CABLE-3PH	all
21A	W342600965	CABLE-1PH	all
22	W342600966	SWITCH-3PH	all

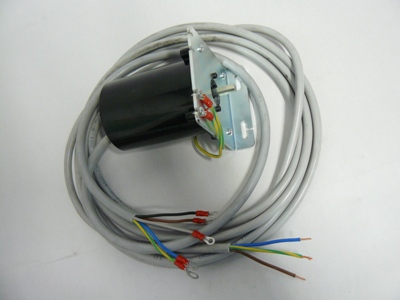

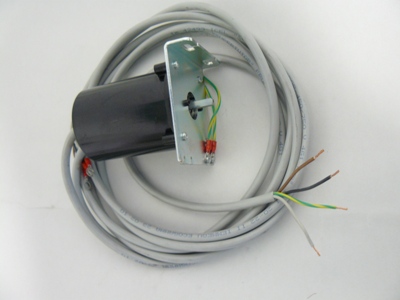

22A	W342600967	SWITCH-1PH	all

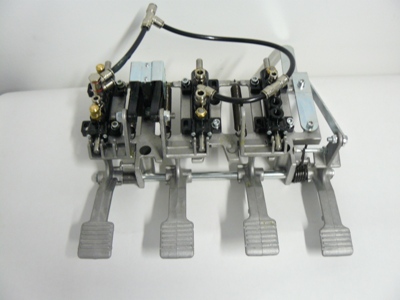

23	W342600968	PEDAL-ASSY	all
24	W342600969	SPRING-PEDAL	all

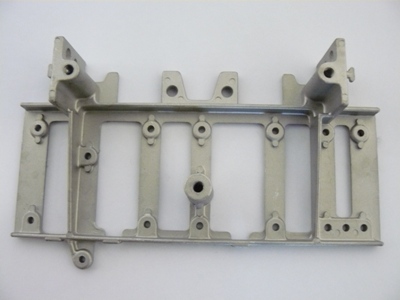

25	W342600167	FRAME-PEDAL	all

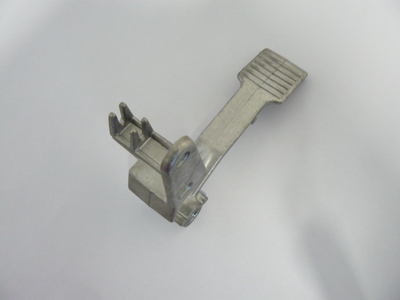

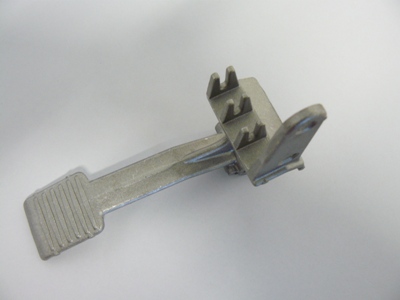

26	W342600165	PEDAL-TABLE	all
27	W342600166	PEDAL-PIVOT	all

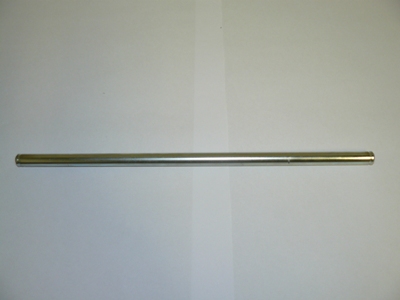

28	W342600187	PIN-L337	all

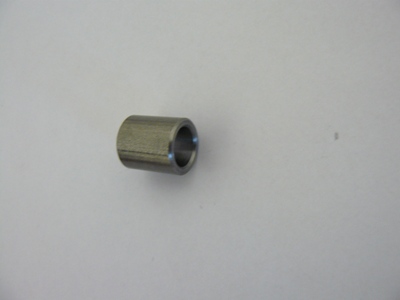

29	W342600213	BUSHING-D18X12,5X21	all
30		NUT-DIN985-M8	all

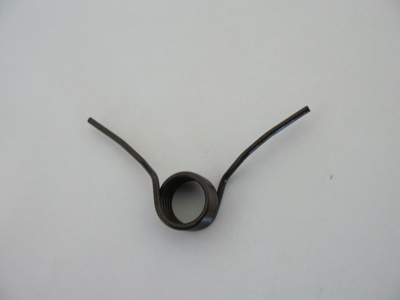

32	W342600132	SPRING-PEDAL	all
33		NUT-DIN934-M6	all

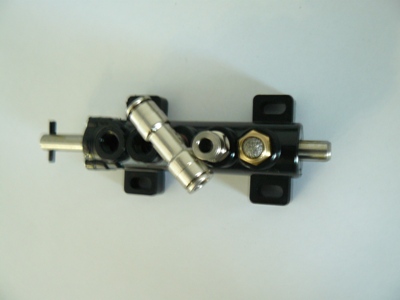

34	W342600970	VALVE	all

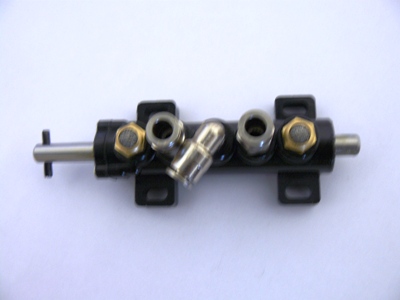

35	W342600005	VALVE	all

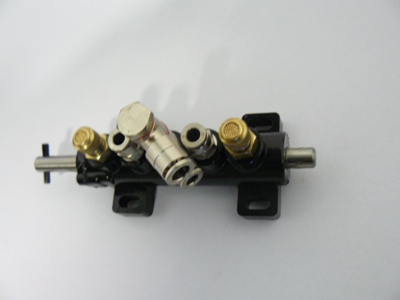

36	W342600006	VALVE-PIVOT	all

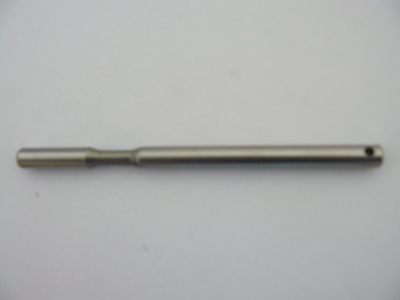

37	W342600178	PIN	all

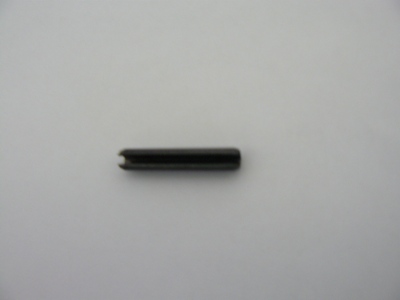

38	W342600718	PIN-4X24-ISO8752	all

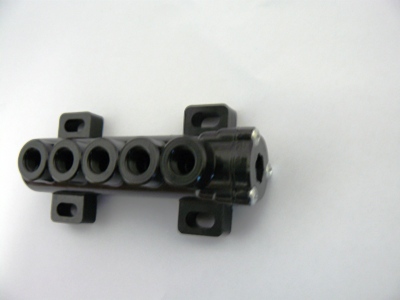

39	W342600004	VALVE	all

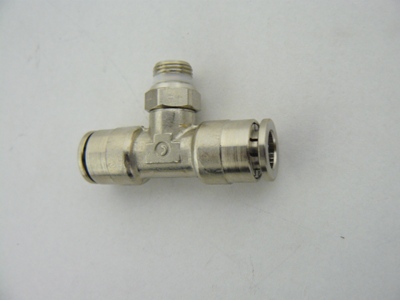

40	W342600522	UNION-6410-1/8ZO-8	all

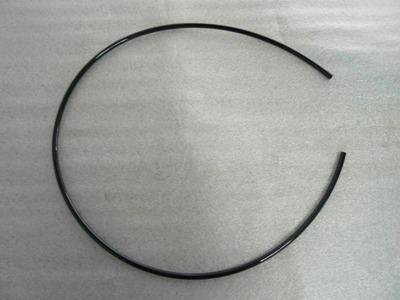

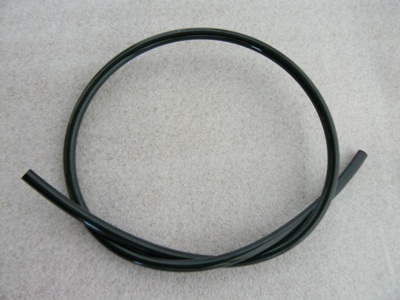

41	W342600466	TUBE-8X6-L750	all
42	W342600149	TUBE-8X6-L1000	all

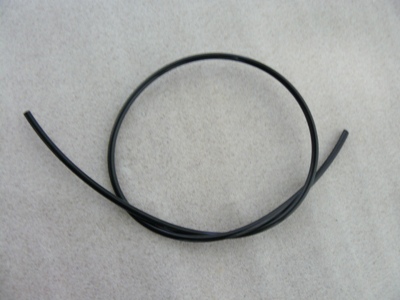

43	W342600133	TUBE-6X4-L480	all

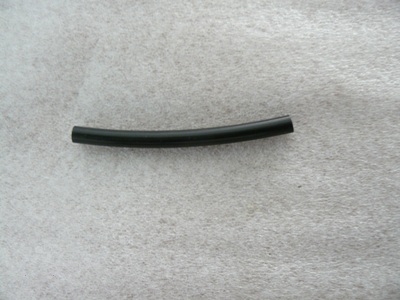

44	W342600179	TUBE-8X6-L100	all

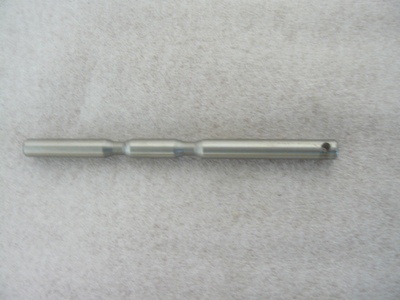

45	W342600177	PIN	all

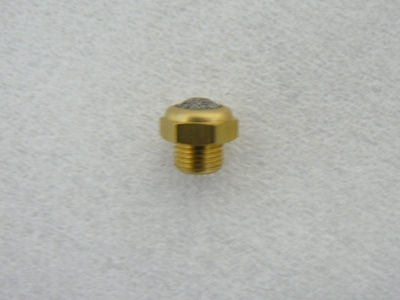

46	W342600542	ABSORBER-SCHALL-1/8IN	all

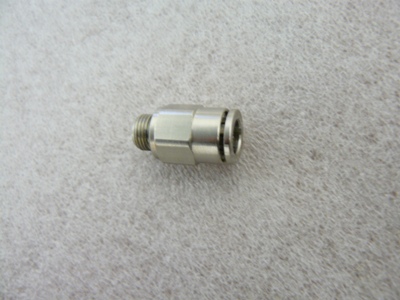

47	W342600534	CLUTCH-QUICK-1/8IN-8	all

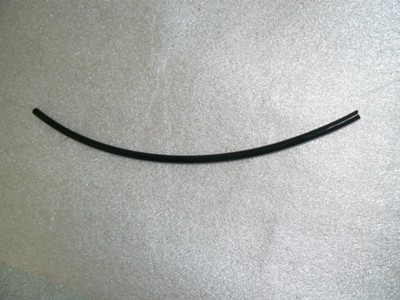

48	W342600135	TUBE-8X6-L350	all

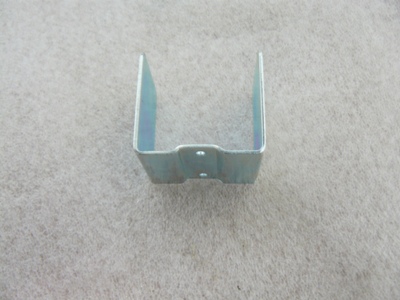

49	W342600604	GUIDANCE-CAM	all
50		SCREW-PLATE-2,9X6,5	all
51	W342600785	SPRING-8,2X18X1	all
52	W342600606	ROD-CAM	all

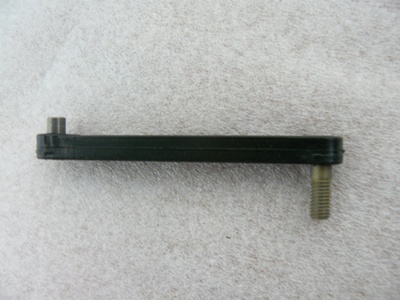

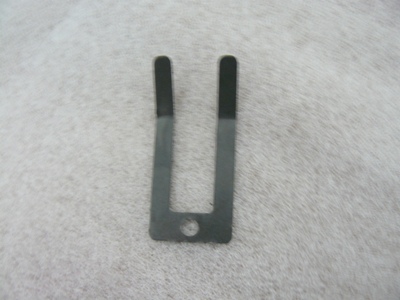

53	W342600605	SPRING-FORKED	all
55	W342600742	WASHER-TOOTHED-8,4X15X0,8	all

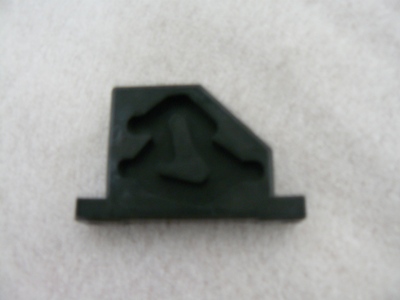

56	W342600607	GUIDANCE-NOCKE	all
57	W342600144	TUBE-6X4-L1200	all

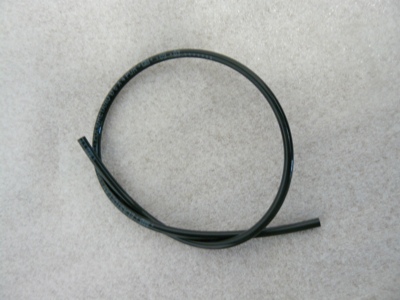

58	W342600136	TUBE-6X4-L750	all

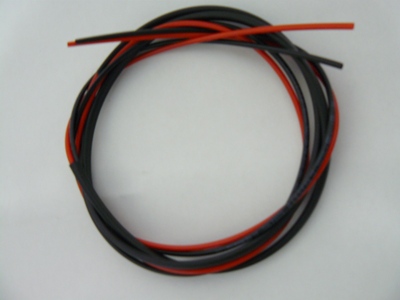

59	W342600141	TUBE-6X4-L2200	all

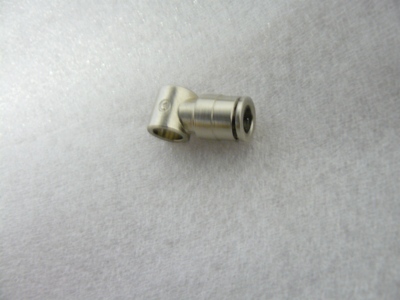

63	W342600537	CLUTCH-QUICK-1/8IN	all

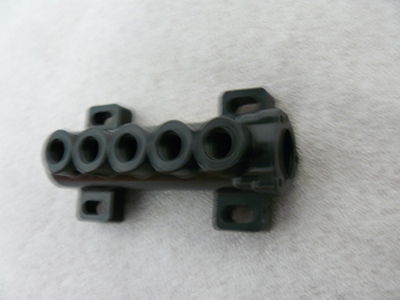

65	W342600153	VALVE	all

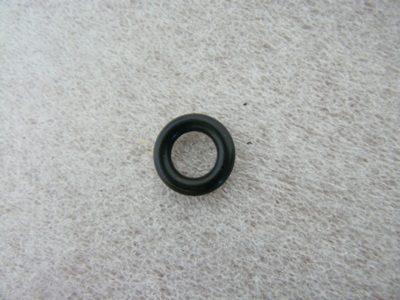

66	W342600597	O-RING-D9,8XH3,85	all
67	W342600154	SPACER	all
68	W342600155	FLANGE	all
69		SCREW-SELF TAPPING-3,5X13	all

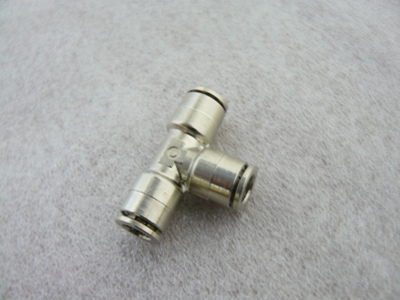

70	W342600517	UNION-QUICK	all

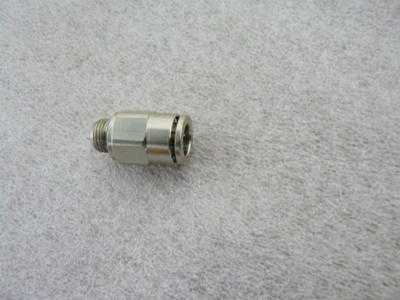

71	W342600536	CLUTCH-QUICK-1/8IN-8	all

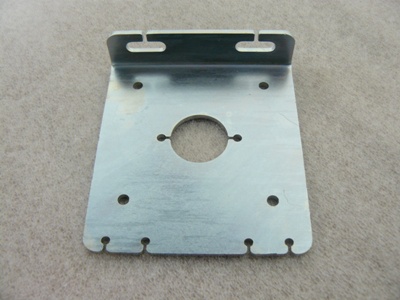

72	W342600099	BRACKET-WECHSLER	all
73		SCREW-M6X12	all

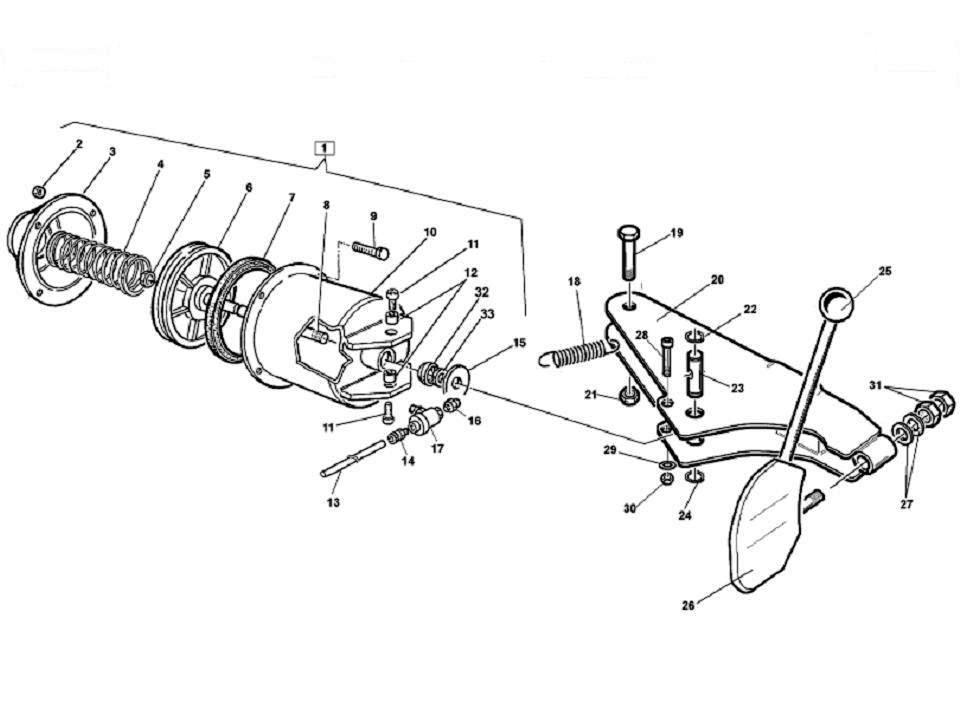

Bead breaker

Notice:

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

click to enlarge

Pos	Article No.	Designation	Serial-No.

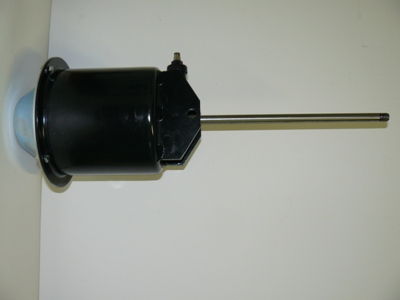

1	W342600971	CYLINDER-BREAKER-ASSY	all
2		NUT-DIN934-M8	all

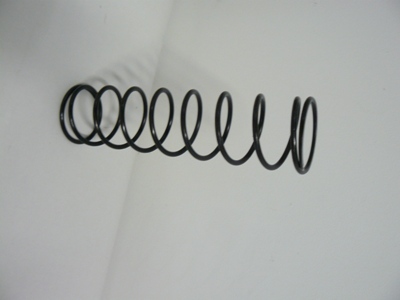

4	W342600972	SPRING	all
5		NUT-DIN985-M16	all

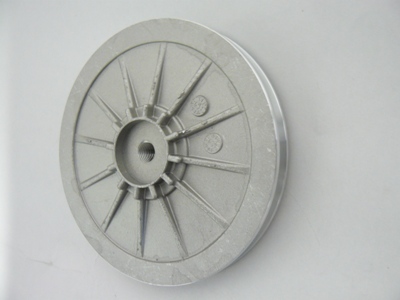

6	W342600973	PISTON	all

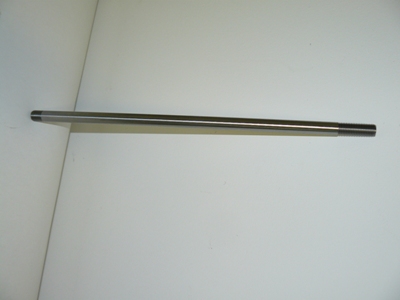

8	W342600974	SHAFT-PISTON-D16L465	all
9		SCREW-M8X16	all

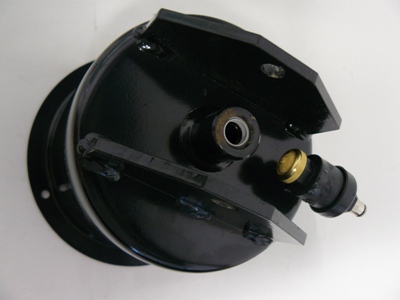

10	W342600975	CYLINDER-BREAKER	all
11		SCREW-M12X35	all

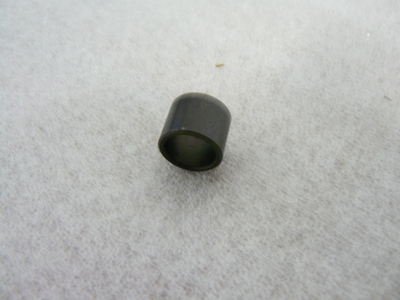

12	W342600130	BUSHING	all

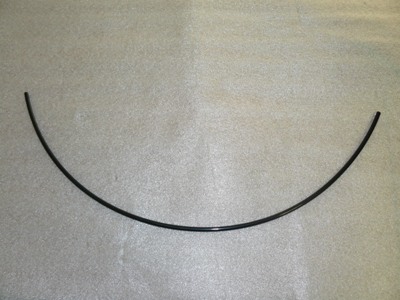

13	W342600133	TUBE-6X4-L480	all
14	W342600537	CLUTCH-QUICK-1/8IN	all

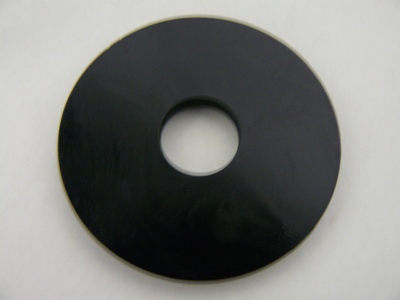

15	W342600976	ABSORBER-16,5X59X5	all

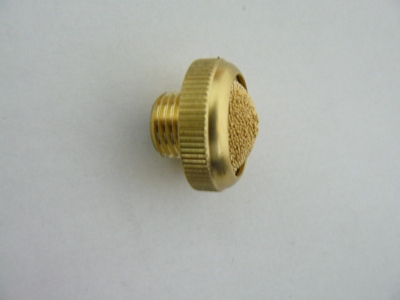

16	W342600523	ABSORBER-1/4ZO	all

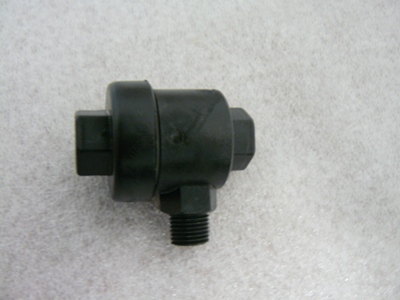

17	W342600543	VALVE-QUICK-1/4IN	all

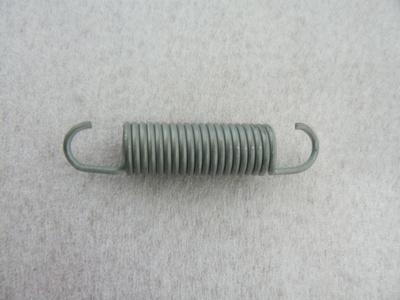

18	W342600129	SPRING-ARM	all
19		SCREW-M16X100	all

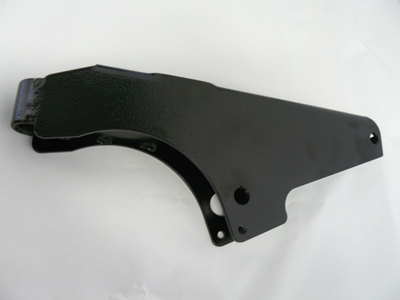

20	W342600977	ARM-BREAKER	all
21		NUT-DIN985-M16	all
22	W342600817	RING-DIN471-30	all

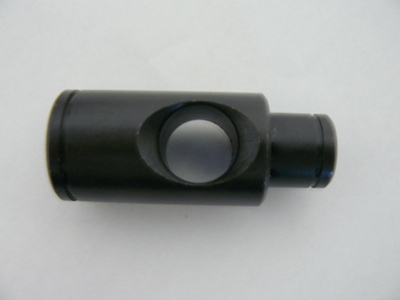

23	W342600978	PIN-D16	all
24	W342600815	RING-DIN471-20	all

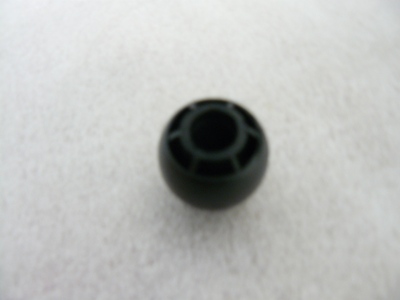

25	W342600608	HANDLE-BALL-D14	all

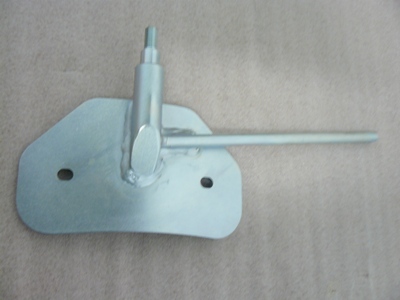

26	W342600094	PLATE-BREAKER	all
28		SCREW-M8X70	all
29		WASHER-DIN125-8	all
30		NUT-DIN985-M8	all
31		NUT-M14	all

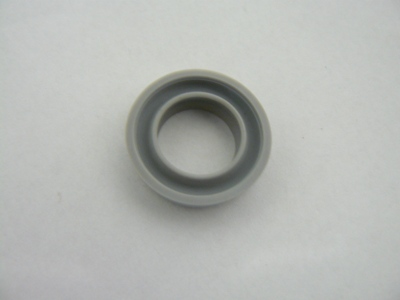

33	W342600979	RING	all

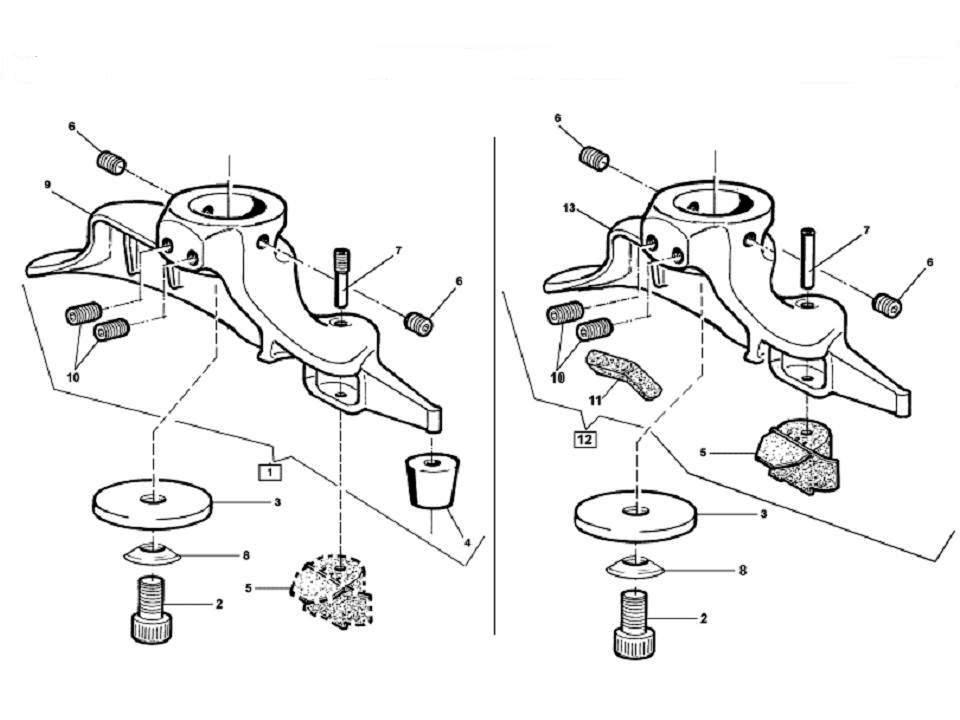

Mounting Tools

Notice:

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

click to enlarge

Pos	Article No.	Designation	Serial-No.

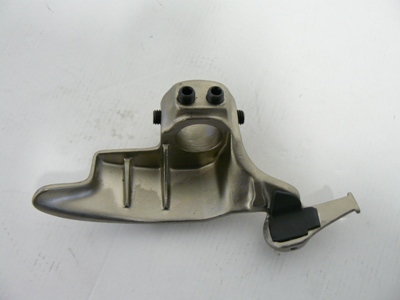

1	W342600003	TOOL-INSTALLATION	alle
2		SCREW-M10X16	alle
3		WASHER-DIN6319-D14-G	alle

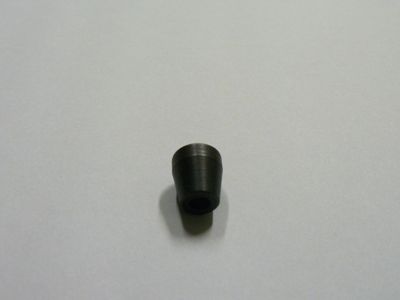

4	W342600142	WHEEL	alle

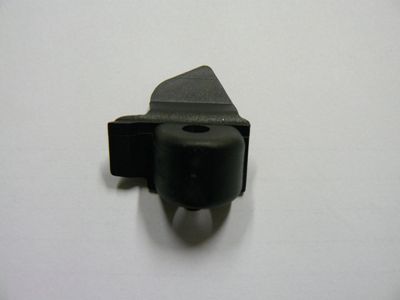

5	W342600198	COVER-PLASTICS	alle

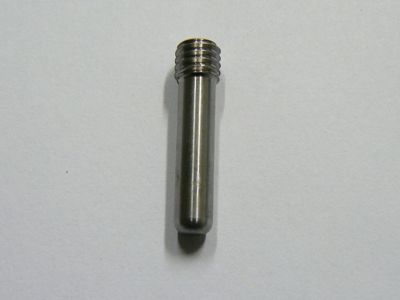

7	W342600232	PIN-D5-M6-L26	alle
8		WASHER-DIN6319-D10-C	alle

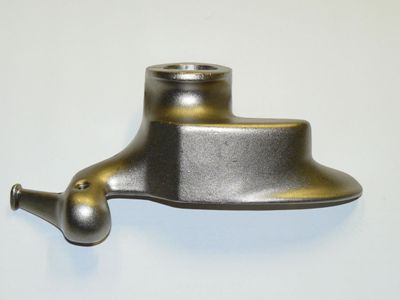

9	W342600169	HEAD-INSTALLATION	alle
11	W342600980	PROTECTION-PLASTIC	alle

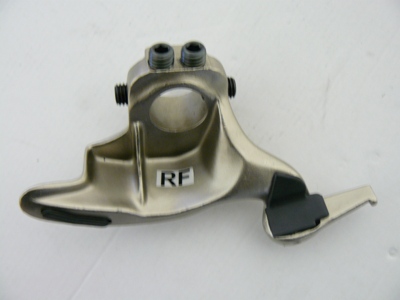

12	W342600036	TOOL-INSTALLATION	alle

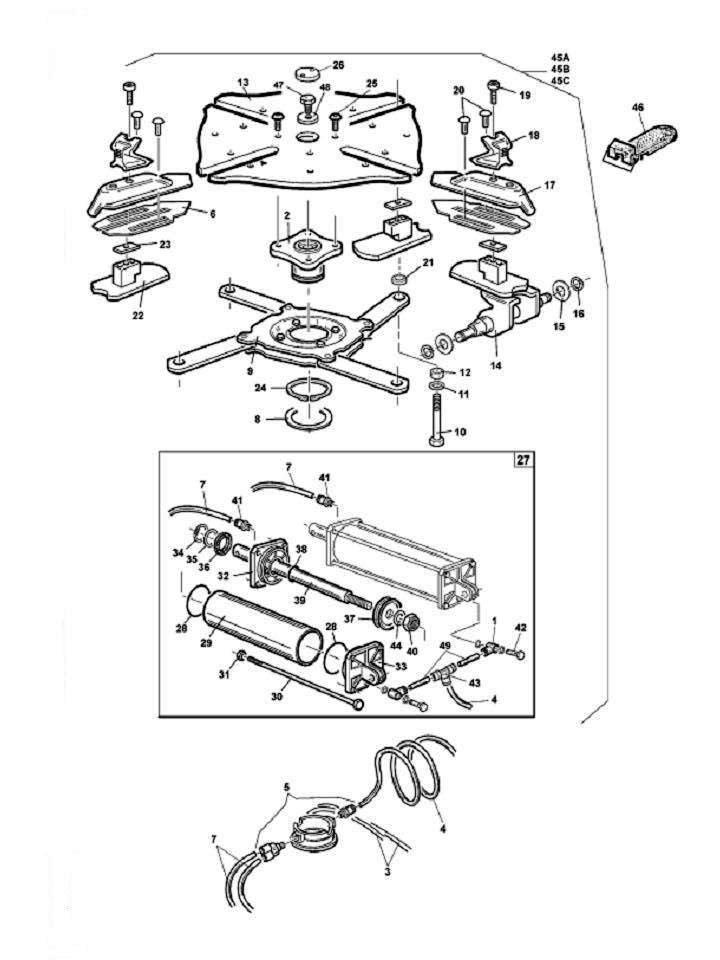

Self-Centering turntable 20" R12

Notice:

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

click to enlarge

Pos	Article No.	Designation	Serial-No.
1	W342600507	CLUTCH-1/8IN	all
2	W342600273	HUB	all
3	W342600466	TUBE-8X6-L750	all

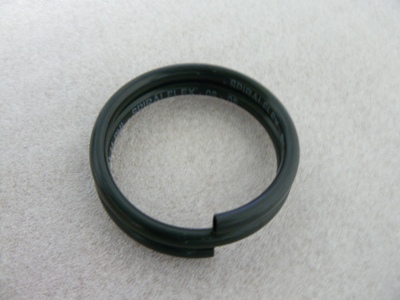

4	W342600303	TUBE-SPIRAL-8X6-L560	all

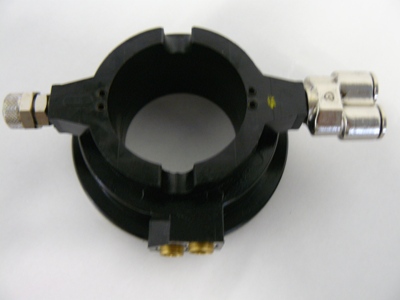

5	W342600981	CLUTCH-ROTATION	all

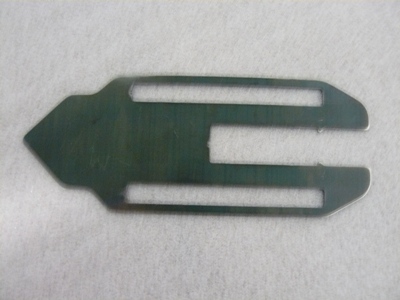

6	W342600298	PAD-SLIDE	all

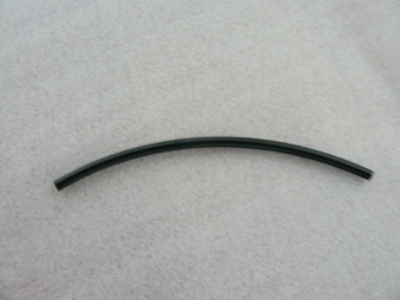

7	W342600148	TUBE-8X6-L240	all
8	W342600644	RING-DIN471-85	all

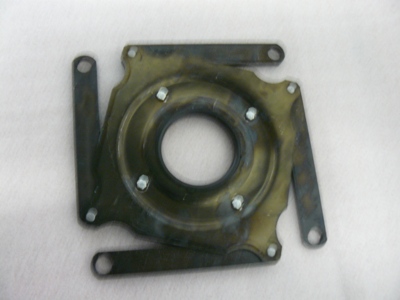

9	W342600039	FLANGE	all
10		SCREW-M12X1,25X45	all
11		WASHER-D12X21X2,5	all

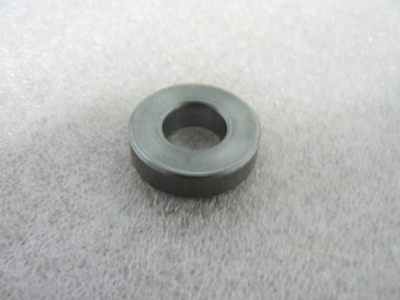

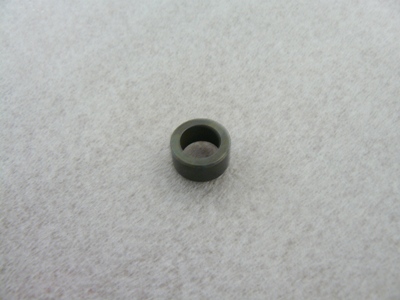

12	W342600203	SPACER	all

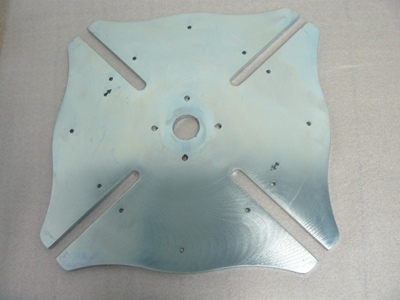

13	W342600276	TURNTABLE-20IN	all

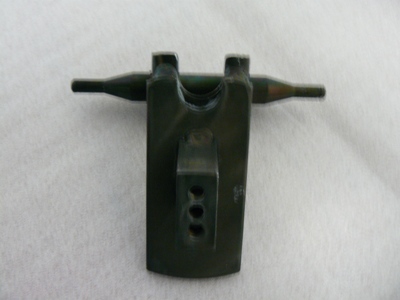

14	W342600096	GUIDANCE-22IN	all
15	W342600775	RING-DIN471-12	all
16		WASHER-DIN125-12	all

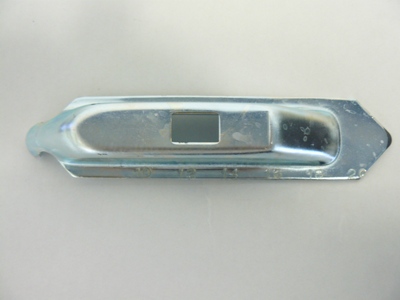

17	W342600982	SLIDE	all

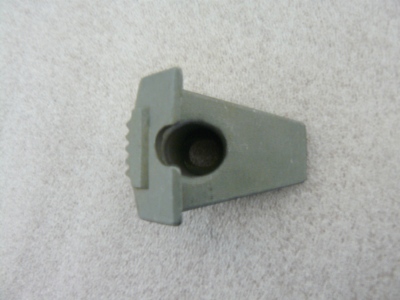

18	W342600174	SPANNCLAMP	all
19		SCREW-M10X1,25X25	all

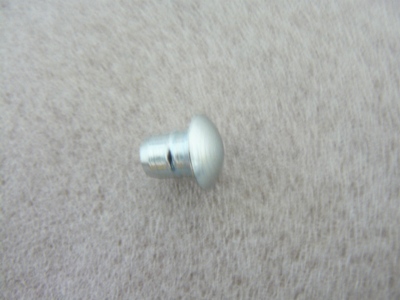

20	W342600277	PIN	all
21	W342600202	SPACER	all

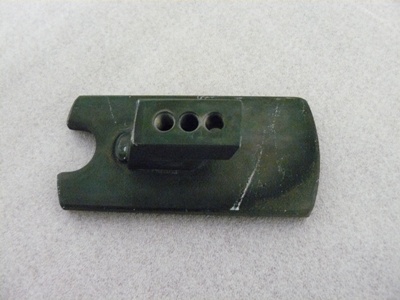

22	W342600095	GUIDANCE-22IN	all

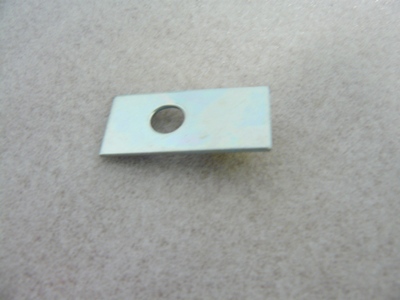

23	W342600201	SPACER	all

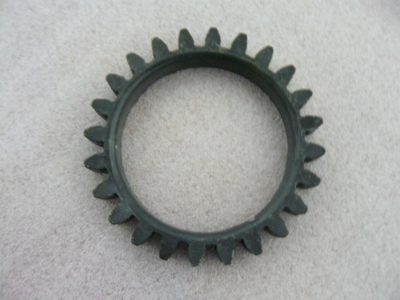

24	W342600286	RING	all

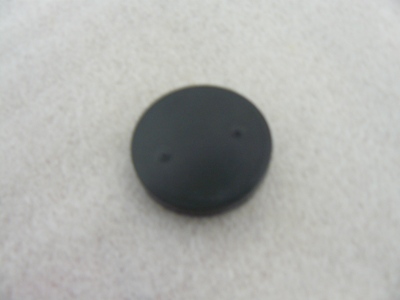

26	W342600127	COVER	all

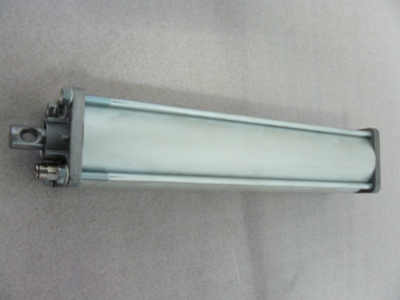

27	W342600013	CYLINDER-TABLE-20IN	all

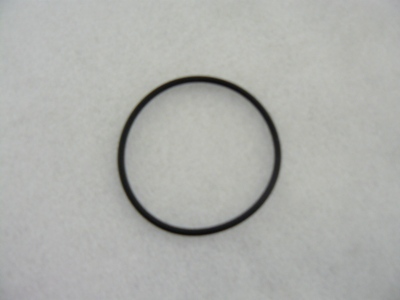

28	W342600593	O-RING-D68,26XH3,53	all

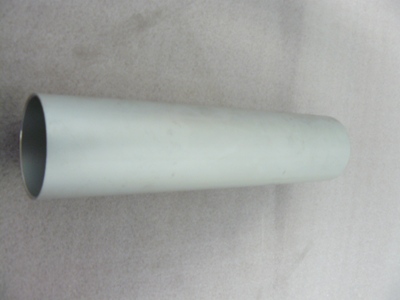

29	W342600217	HOUSING-CYLINDER-20IN-L345	all
30		SCREW-M8X369	all
31		NUT-M8	all

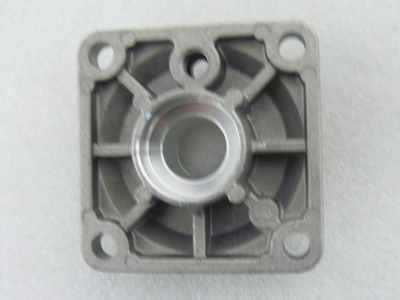

32	W342600271	FLANGE	all

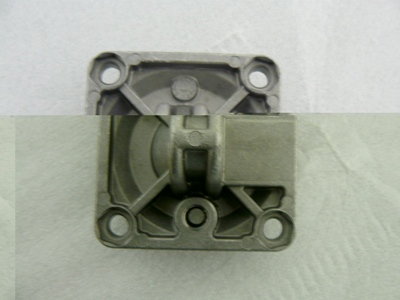

33	W342600270	FLANGE	all
34	W342600468	RING-DIN471-30	all

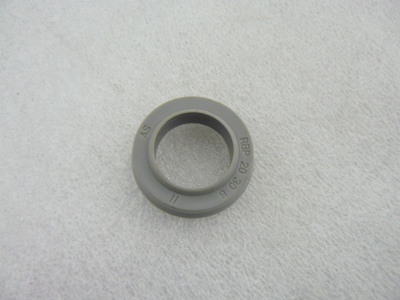

36	W342600469	RING-GUMMI	all
37	W342600526	PISTON-D75	all
38	W342600599	O-RING-D20,29XH2,62	all

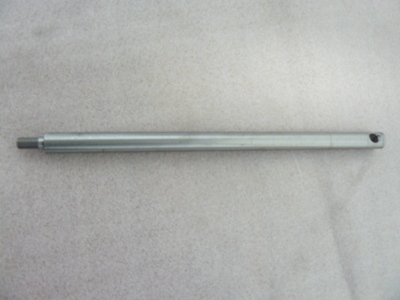

39	W342600186	ROD-20IN-L400	all
40		NUT-DIN985-M12	all
41	W342600534	CLUTCH-QUICK-1/8IN-8	all

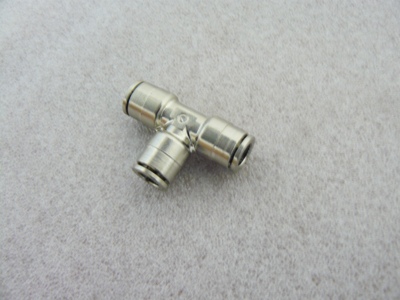

43	W342600535	CLUTCH	all
44		WASHER-D12,5X30X3	all

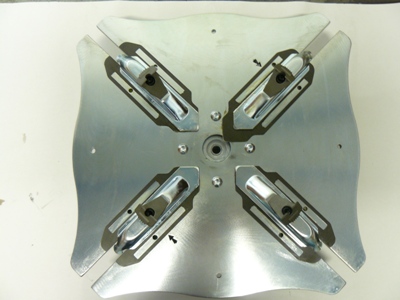

45A	W342600983	TABLE-20IN	all
45B	W342600984	TABLE-11-21IN	all
45C	W342600985	TABLE-12-22IN	all
46	W341600092	CLAMPPROTECTION-RUBBER (without clamp)	all
	W341600106	CLAMP-METAL	all
		SCREW 16X1,5X45 8.8	all
48	W342600640	WASHER-DIN125-17	all

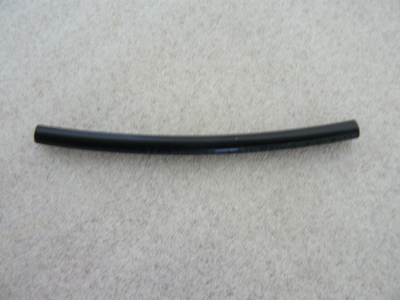

49	W342600302	TUBE-8X6-L75	all

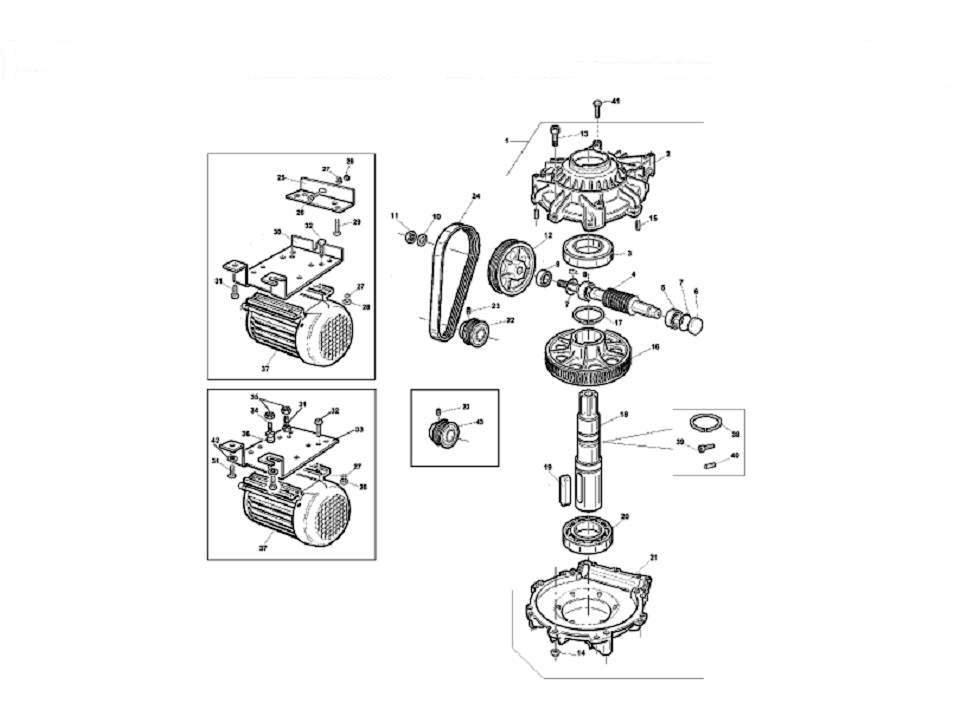

Motor-Reduction Gear Group

Notice:

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

click to enlarge

Pos	Article No.	Designation	Serial-No.

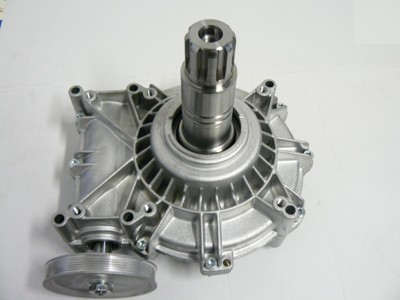

1	W342600026	HOUSING-GEAR	all

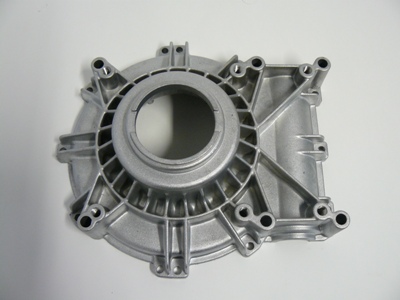

2	W342600242	HOUSING-GEAR	all
3	W342600584	PAD-60X110X22	all

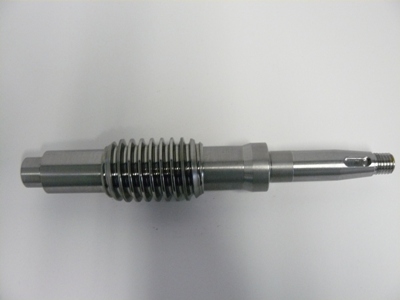

4	W342600244	CAM-SCHNECKE	all

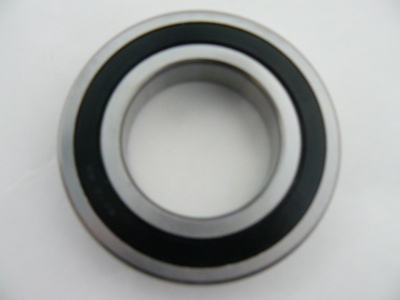

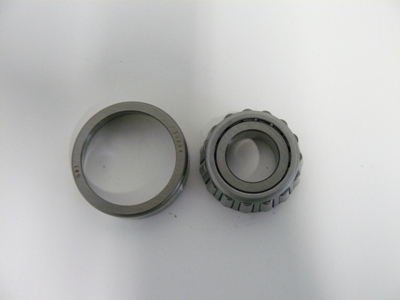

5	W342600583	BEARING	all

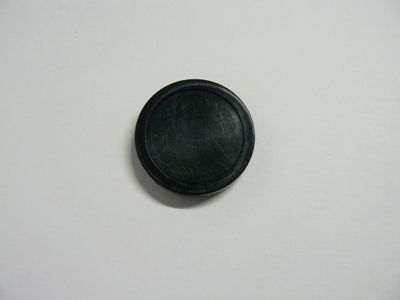

6	W342600247	CAP-SEAL	all

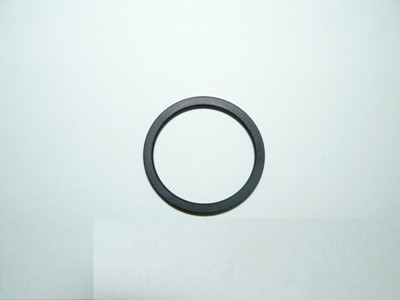

7	W342600582	O-RING-D34,52XH3,53	all

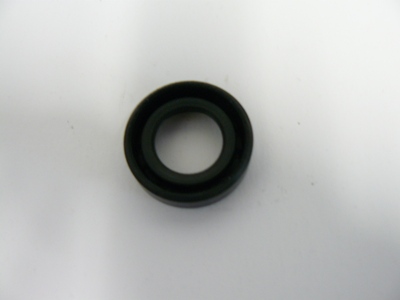

9	W342600581	O-RING-D20XD35XH10	all
10		WASHER-DIN125-14	all
11		NUT-M14	all

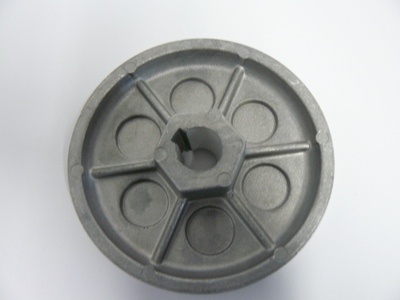

12	W342600240	GEAR-REDUCTION	all
13		SCREW-M8X30	all
14		NUT-DIN985-M8	all
16	W342600245	GEAR	all
17	W342600668	RING-DIN471-60	all

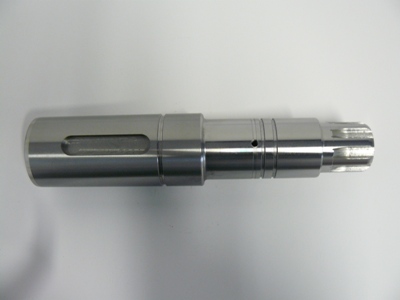

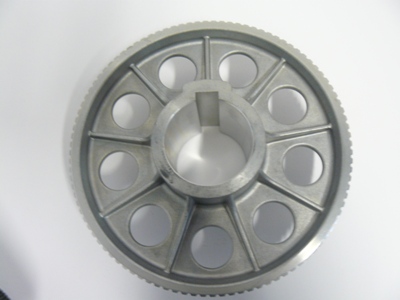

18	W342600246	CAM	all

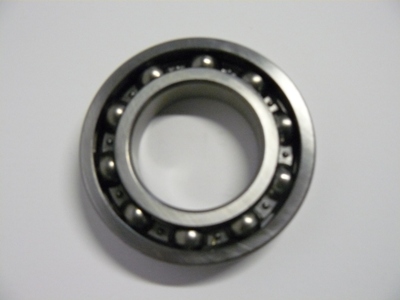

20	W342600580	BEARING-60X110X22	all

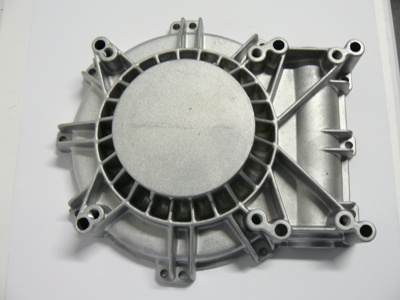

21	W342600243	HOUSING-GEAR	all

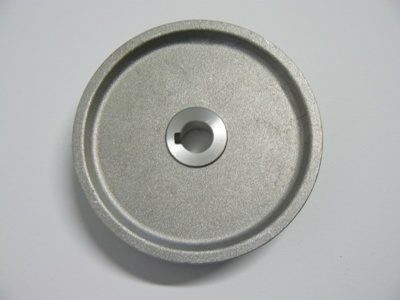

22	W342600241	GEAR-ANTRIEB	all
23		SCREW-M8X14	all

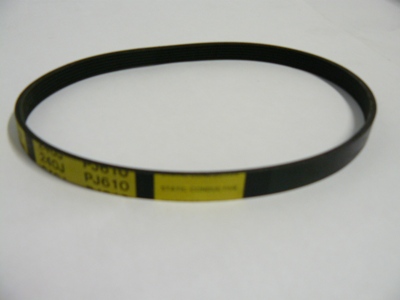

24	W342600579	BELT	all
25	W342600988	PLATE-ANGLE	all
26		SCREW-M8X16	all
27		WASHER-DIN125-8	all
28		NUT-DIN934-M8	all
30	W342600989	SUPPORT-MOTOR	all
31		SCREW-M10X25	all
32		SCREW-M8X25	all

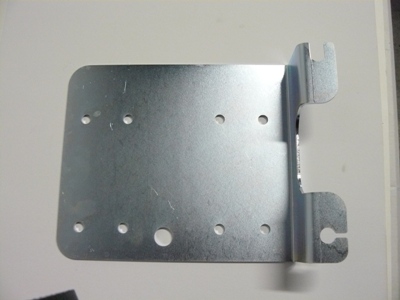

33	W342600137	BEARING-MOTOR	all
34		SCREW-M10X35	all
35		NUT-DIN934-M10	all

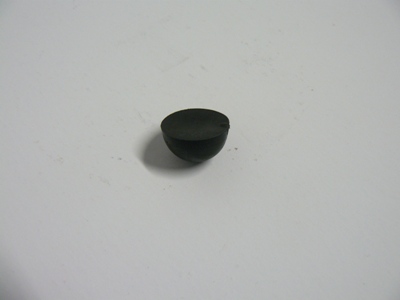

36	W342600138	BRACKET-CLAMP	all

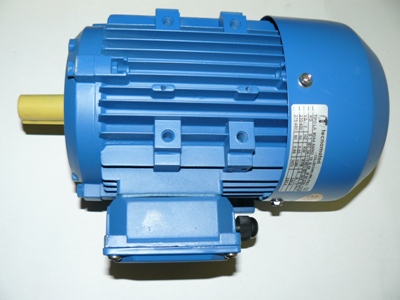

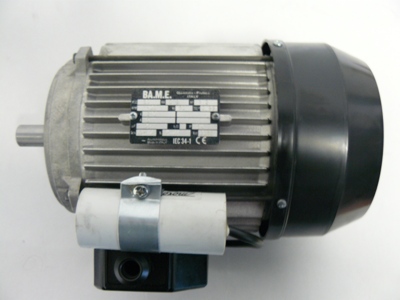

37	W342600850	MOTOR-1PH-230V-50/60HZ	all
37A	W342600851	MOTOR-3PH-230/400V-50HZ	all

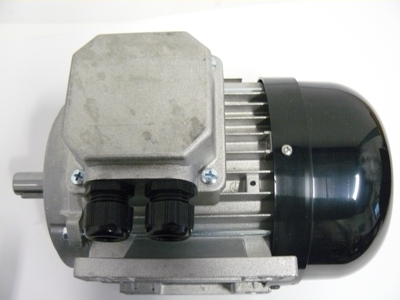

37B	W342600849	MOTOR-3PH-400V-50HZ-B3	all
37C	W342600846	MOTOR-1PH-115V	all
38	W342600665	RING-DIN471-50	all
39		SCREW-M6X10-8.8	all

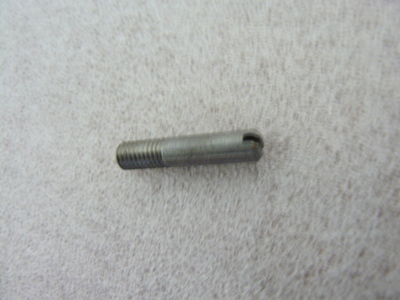

40	W342600158	SCREW-VALVE	all
41		SCREW-M10X50	all
43	W342600990	PULLEY-MOTOR	all

GT Inflating Device

Notice:

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

click to enlarge

Pos	Article No.	Designation	Serial-No.
1		SCREW-M6X20-8.8	all
2		NUT-DIN934-M6	all
3		SCREW-M6X20	all

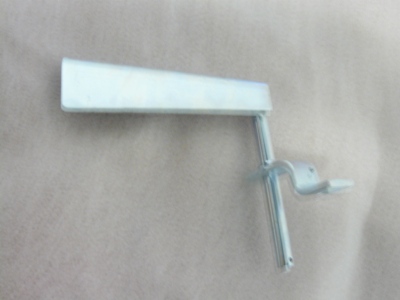

4	W342600092	PEDAL-GT	all

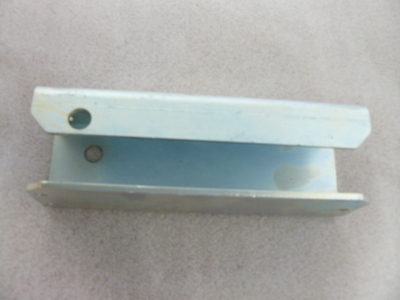

5	W342600238	TUBE-8X6-L440	all

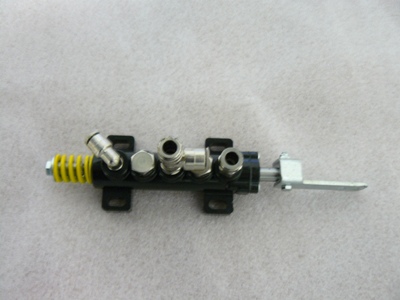

6	W342600023	VALVE	all
7		WASHER-DIN125-6	all
8		SCREW-M6X10	all

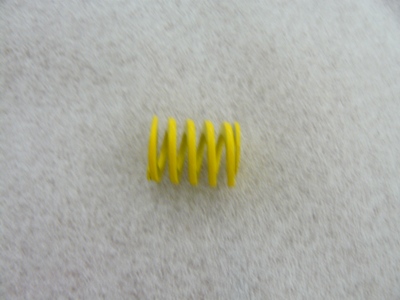

9	W342600595	SPRING-D20X26	all
10		SCREW-M6X25	all

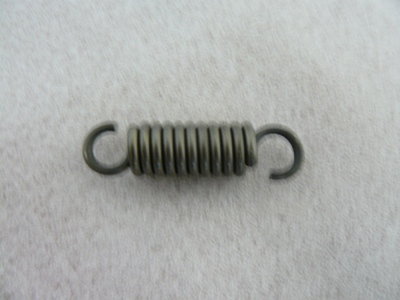

12	W342600131	SPRING	all
14	W342600740	SPLINT-D3,2X30	all
15		WASHER-DIN125-6	all
16		SCREW-M4X25	all
17		NUT-DIN985-M4	all

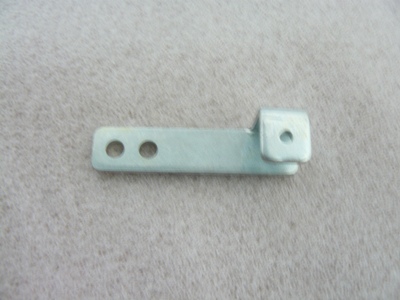

18	W342600157	LEVER-VALVE	all

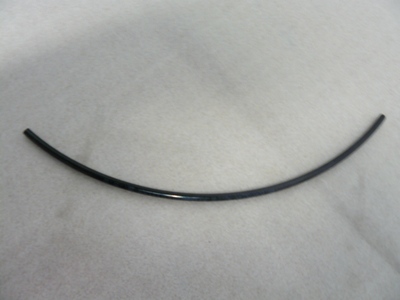

19	W342600161	TUBE-14X11-L1070	all
20		SCREW-SELF TAPPING-3,5X13	all

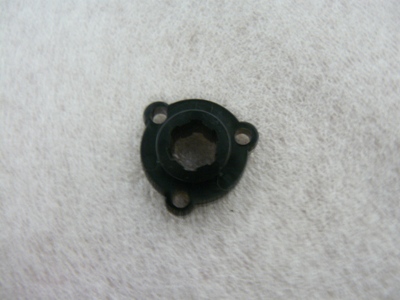

21	W342600155	FLANGE	all
22	W342600597	O-RING-D9,8XH3,85	all

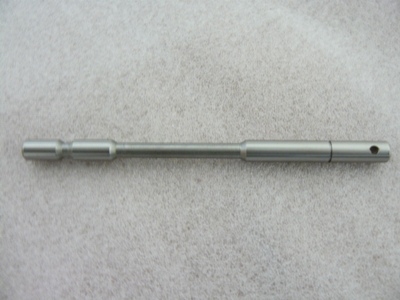

23	W342600156	ROD-VALVE	all

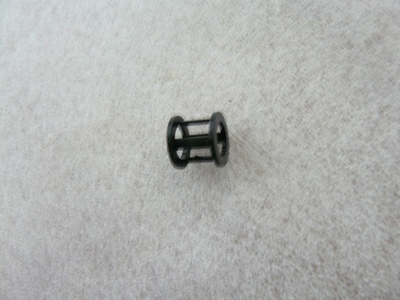

24	W342600154	SPACER	all
25	W342600153	VALVE	all
26	W342600534	CLUTCH-QUICK-1/8IN-8	all
29	W342600538	CLUTCH-QUICK-1/8IN	all

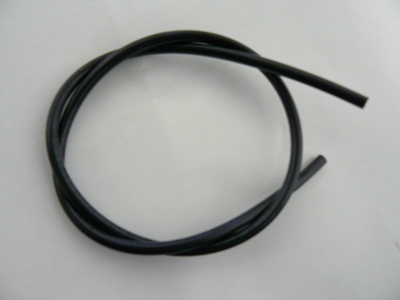

30	W342600150	TUBE-8X6-L850	all

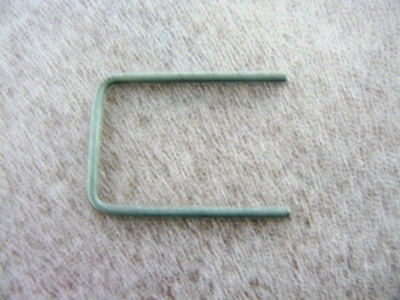

31	W342600321	FORK-U	all

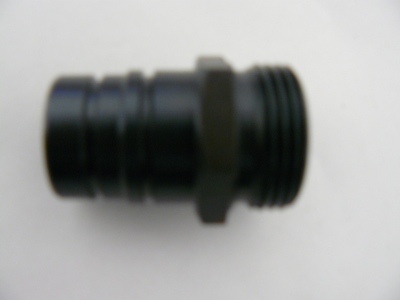

32	W342600322	CLUTCH-QUICK	all

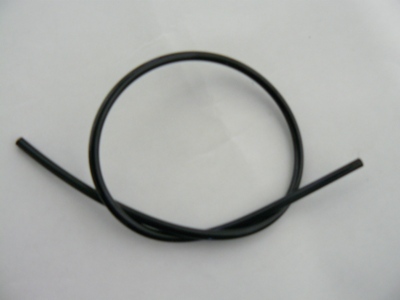

33	W342600162	TUBE-6X4-L580	all

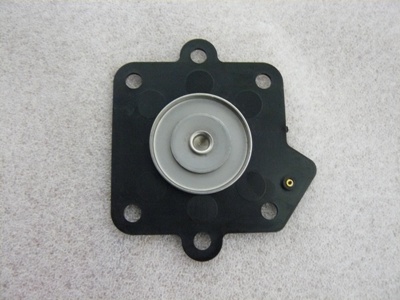

34	W342600047	VALVE-SEAL	all
35	W342600525	UNION-1IN-FM-90	all

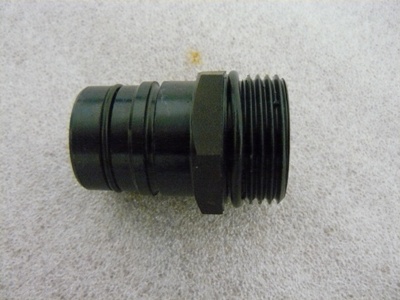

36	W342600050	CLUTCH-QUICK	all

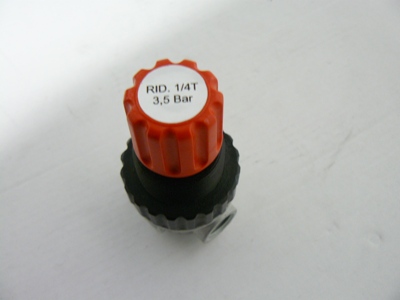

37	W342600513	CONTROL-1/4IN-3,5BAR	all
37/A	W342600508	REGULATOR-1/4IN-5BAR	all

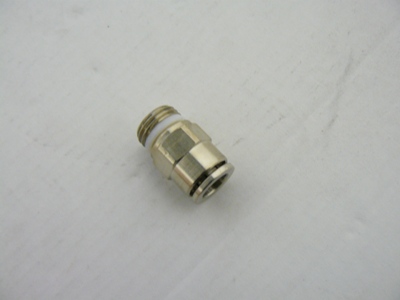

38	W342600528	CLUTCH-QUICK-1/4IN	all

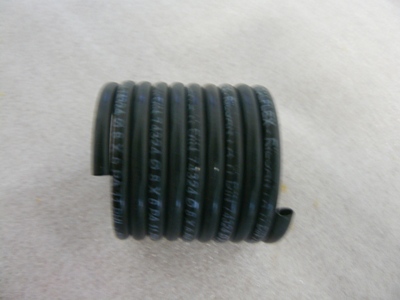

39	W342600147	TUBE-8X6-L2300	all
41		SCREW-M6X12	all
42		NUT-DIN934-M8	all

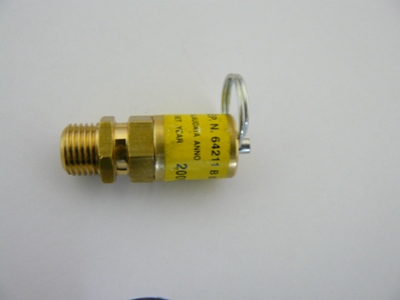

43	W342600521	VALVE-1/4IN	all

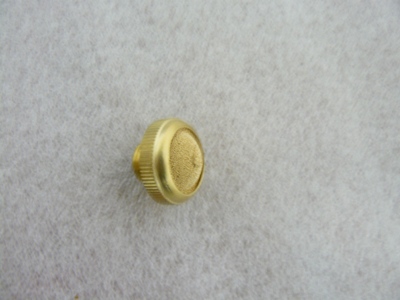

44	W342600531	CLUTCH-2020-1/4IN	all

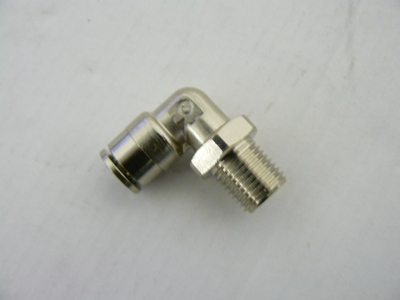

45	W342600516	CLUTCH-6520-1/4ZO-8-6	all

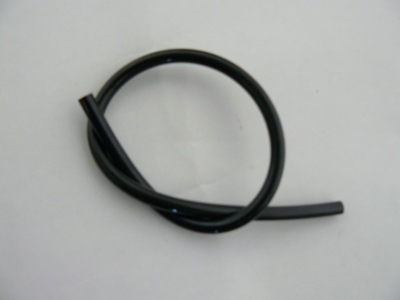

46	W342600239	TUBE-8X6-L440	all

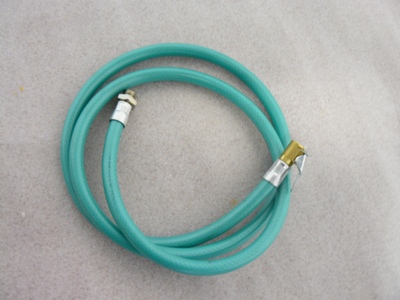

47	W342600020	TUBE-L1400	all
48	W342600597	O-RING-D9,8XH3,85	all

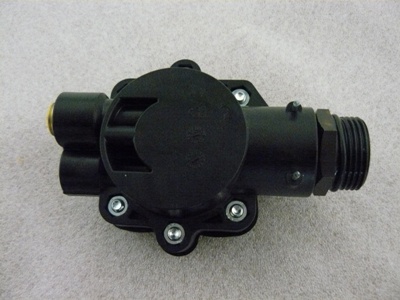

49	W342600046	VALVE-1IN	all

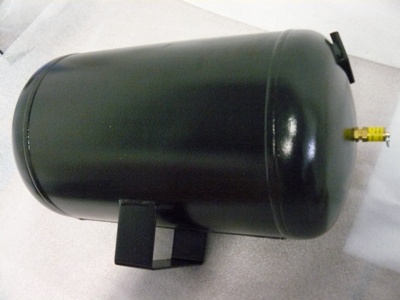

50	W342600030	BOX-18L	all

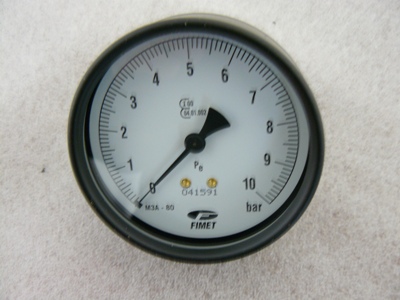

51	W342600598	DISPLAY-PRESSURE-D80	all
51/A	W342600510	DISPLAY-PRESSURE -600KPA-6BAR-85PSI	all
51/B	W342600275	DISPLAY-PRESSURE-D80-1200KPA	all

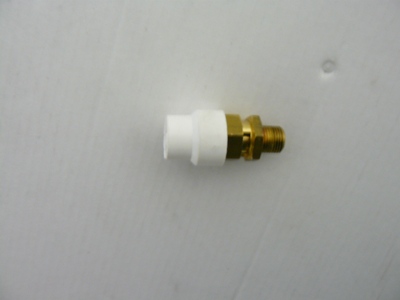

53	W342600515	VALVE-1/8IN-4BAR	all
53/A	W342600520	VALVE-1/4IN-5BAR	all

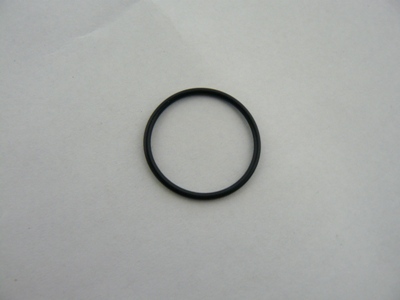

54	W342600570	O-RING-D25,12XH1,78	all

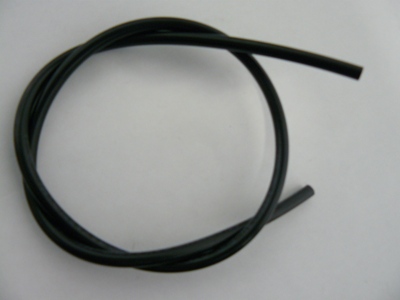

55	W342600134	TUBE-8X6-L910	all

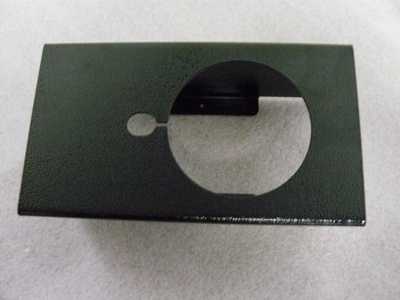

56	W342600886	PLATE-GT-FRONT	all
57		SCREW-M8X16	all

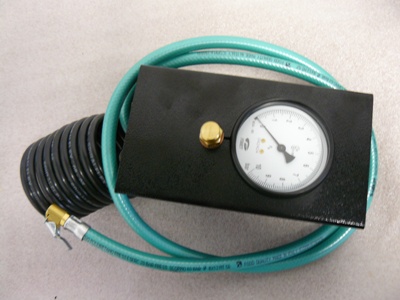

58	W342600034	KIT-AIR-GT	all
58/A	W342600035	KIT-AIR-GT-600KPA	all
58/B	W342600037	KIT-AIR-GT-1200KPA	all

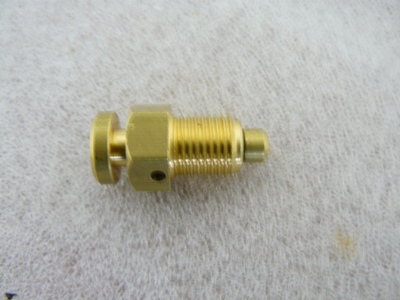

59	W342600600	KNOB-PRESSURE	all

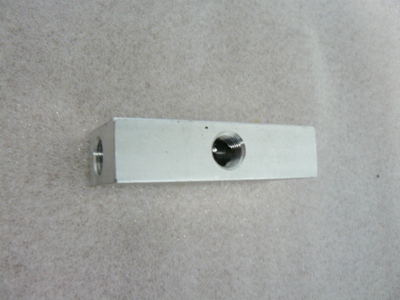

61	W342600274	VALVE	all
62	W342600531	CLUTCH-2020-1/4IN	all
63	W342600527	CLUTCH-QUICK-1/4IN	all

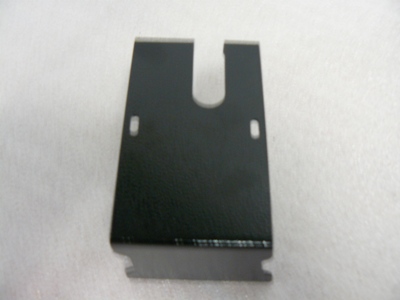

64	W342600887	PLATE-GT-REAR	all
65		WASHER-DIN125-4	all

Air Lubrication Group

Notice:

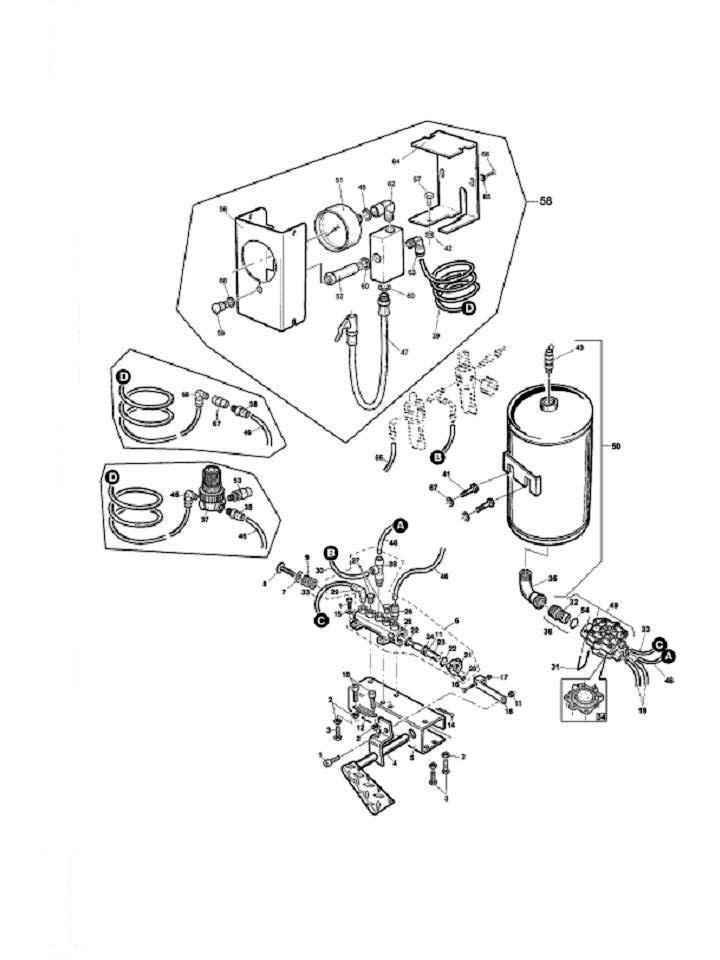

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

click to enlarge

Pos	Article No.	Designation	Serial-No.
1	W342600513	CONTROL-1/4IN-3,5BAR	all
2	W342600515	VALVE-1/8IN-4BAR	all
3	W342600528	CLUTCH-QUICK-1/4IN	all

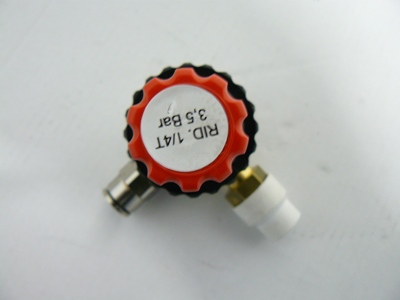

4	W342600025	CONTROL-4BAR	all
5	W342600516	UNION-6520-1/4IN-8-6	all

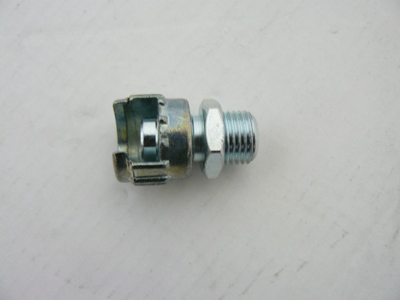

6	W342600545	CLUTCH-9AM-1/4IN	all

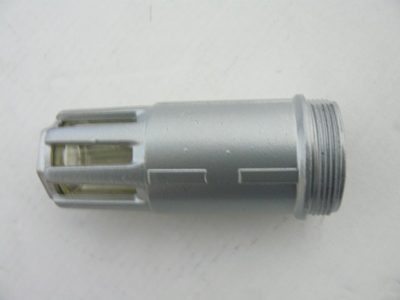

7	W342600488	OILUNIT-GLAS	all

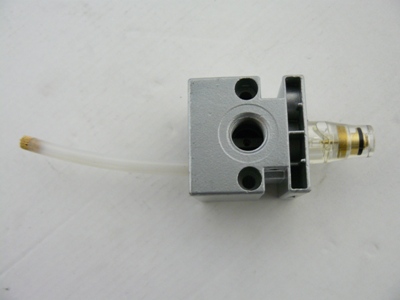

8	W342600487	OILUNIT-HEAD	all

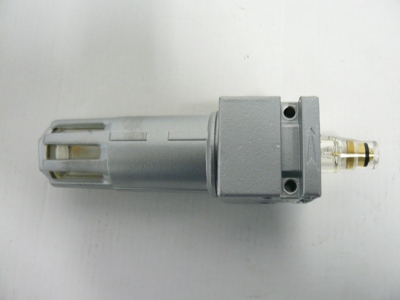

9	W342600492	OILUNIT-1/4IN	all
10	W342600524	UNION-2070-1/4IN	all

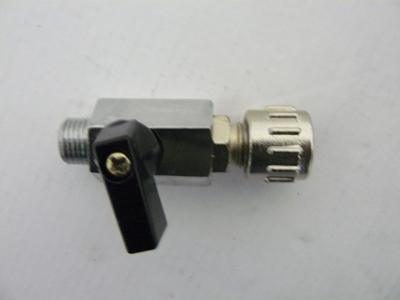

11	W342600511	VALVE-400-1/4IN-FF	all

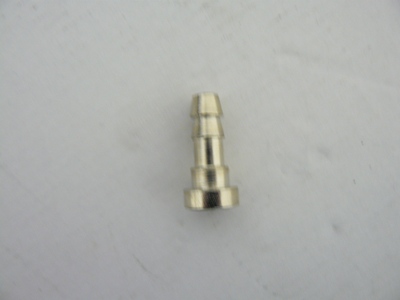

12	W342600554	CLUTCH-1/4IN	all

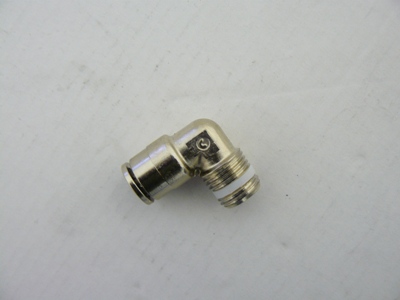

13	W342600527	CLUTCH-QUICK-1/4IN	all

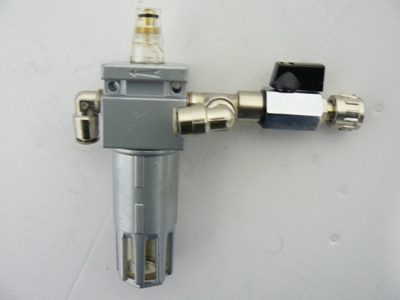

14	W342600028	UNIT-LUBRICATOR	all

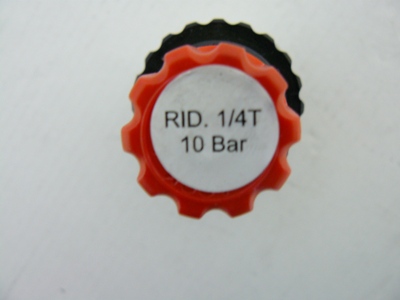

15	W342600533	CONTROL-1/4IN-12BAR	all
16	W342600528	CLUTCH-QUICK-1/4IN	all
17A	W342600991	PUMP-METAL	all
