Coolius Y50A
* also for cyrillic version

Notice:

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

Service unit parts



click to enlarge

PosArticle No.DesignationSerial-No.Picture

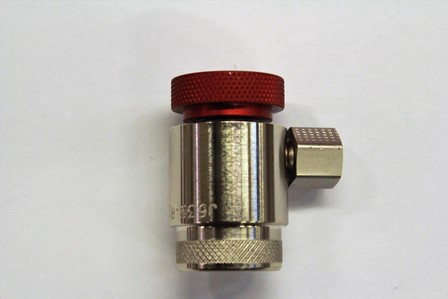

01W052200249SP-SERVICE-COUPLING-HP-Y50all

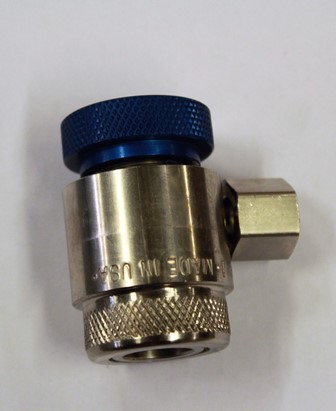

02W052200248SP-SERVICE-COUPLING-LP-Y50all
03W052200259SP-GAUGE-HP-R134A-R1234YFall
04W052200258SP-GAUGE-LP-R134A-R1234YFall

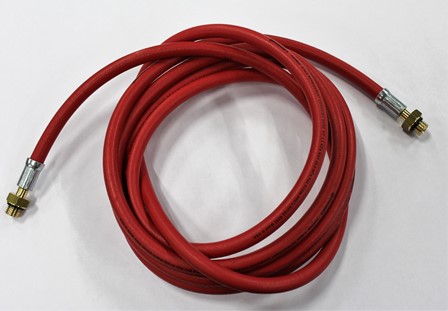

05W052200241SP-SERVICE-HOSE-HP-Y50-3Mall

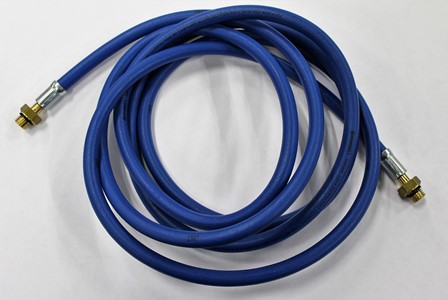

06W052200239SP-SERVICE-HOSE-LP-Y50-3Mall
 W052100161SP-O-RING-SERVICE-HOSE-M12-R1234YFall
07W052100010SP-BY-PASS-INTERNALall
 W052100124SP-CONNECTOR-INTERNAL-CLEANING-Yall
08W052100025SP-INTERNAL-VESSEL-PRESSURE-GAUGEall
10W052100071SP-TOP-COVERall
11W052100075SP-FRONT-PANELall
12W052100074SP-Y50-STICKERall
13W052100077SP-FRONT-POCKET-WOW!-LOGOall
 W052100078SP-FRONT-POCKET-COOLIUS-LOGOall
 W052100079SP-FRONT-POCKET-WABCOWÜRTH-LOGOall
 W052100080SP-FRONT-POCKET-AUTOCOM-LOGOall
 W052100131SP-FRONT-POCKET-WÜRTH-LOGOall
 W052100130SP-FRONT-POCKET-OPEL-LOGO-50all
14W052100076SP-PAG/UV/POE-PLASTIC-FRAMEall
15W052200210SP-SCALE-LIFT-KNOBall
16W052200221SP-EMERGENCY-SAFETYSWITCH-Y50all
20W052100055SP-REAR-WHEELall
 W052100090SP-TYPE A - REAR WHEEL BLOCK =10pcsall
 W052100091SP-TYPE A - REAR WHEEL STING =10pcsall
 W052100100SP-TYPE B - REAR WHEEL CAP =10pcsall
21W052100034SP-FRONT-WHEEL-WITH-BRAKEall
22W052200216SP-MAIN-FANall
 W052100162SP-AIR-FILTER-MAIN-FAN-D172all
23W052100083SP-MAIN-SWITCH (VERSION WITH SCREWS)all
24W052200217SP-COMPRESSOR-FANall
25W052200220SP-PRINTER-KITall
30W052200273SP-BOTTLE-NEW-OIL-250ML-(YELLOW PIPE)all
31W052200274SP-BOTTLE-POE-OIL-250ML-(GREEN PIPE)all
 W052100103SP-NEW OIL / POE OIL CONNECTOR G1/8 201all
32W052100020SP-BOTTLE-UV-TRACER-100MLall
33W052100081SP-USED-OIL-SEALED-BOTTLE-250MLall
 W052100098SP-CONNECTOR-OLD-OIL-UV-BOTTLEall
 W052100170SP-ADAPTER-KIT-FOR-SEALED-OIL-BOTTLESall

Flow diagram



click to enlarge

PosArticle No.DesignationSerial-No.Picture
01W052200249SP-SERVICE-COUPLING-HP-Y50all
02W052200248SP-SERVICE-COUPLING-LP-Y50all
03W052200259SP-GAUGE-HPall
04W052200258SP-GAUGE-LPall
05W052200241SP-SERVICE-HOSE-HP-Y50-3Mall
06W052200239SP-SERVICE-HOSE-LP-Y50-3Mall
07W052100063SP-MANIFOLD-Y50all
08W052200262SP-PRESSURE-TRANSDUCER-ELECTRONICall
09W052100025SP-INTERNAL-VESSEL-PRESSURE-GAUGEall
10W052100059SP-VACUUM-PUMPall
 W052100172SP-SCREW-M8-WITH-O-RING-VACUUM-PUMP-100-128Lall
11W052100085SP-Y50-RED-CHARGE-HOSE-7/16-UNF(O-RING)all
12W052200245SP-HOSE-YELLOW-7/16-UNF-ORING-Y50all
20W052100058SP-COMPRESSORall
21W052100012SP-CAPILLARYall
22W052200235SP-COPPER-PIPE-COMPRESSORall
23W052100067SP-Y50-RECOVERY/COMPRESSOR-DISTILLER-GROUPall
24W052200250SP-MAIN-FILTERall
25W052100028SP-SWITCH-HIGHPRESSUREall
26W052200217SP-COMPRESSOR-FANall
27W052200224SP-ELECTRIC-VALVE-GROUP-LP-XP-RFall
28W052100084SP-CHECK-VALVE-RECOVERYall
29W052100017SP-CHECKVALVE-OIL-SEPARATORall
30W052100069SP-Y50-LIQUID-RECEIVER-R1234YF-VESSEL-GROUPall
 W052100145SP-DISTANCE-PIECE-BOTTLE-BELOW-50all
 W052100146SP-ALUMINUM-NUT-BOTTLE-BELOW-50all
 W052100147SP-CENTERING-SPRING-REFRIGERANT-BOTTLEall

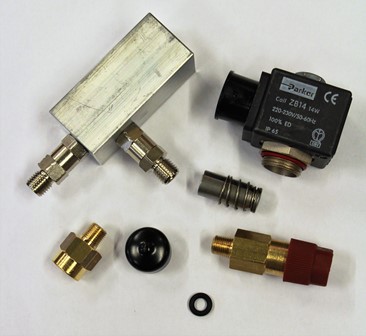

 W052100070SP-Y50 INTERNAL VESSEL ADAPTER GROUPall
 W052100127SP-CAP-SCHRADER-VALVE-1234YFall
31W052200214SP-HEAT-BELTall
32W052200232SP-VALVE-OVERPRESSUREall
33W052100061SP-Y50-SAFETY-VALVEall
34W052100070SP-Y50-INTERNAL-VESSEL-ADAPTER-GROUPall
38W052100064SP-MANIFOLD-FOR-PRESSURE-TESTall
40W052200273SP-BOTTLE-NEW-OIL-250ML-(YELLOW PIPE)all
41W052100020SP-BOTTLE-UV-TRACER-100MLall
42W052200274SP-BOTTLE-POE-OIL-250ML-(GREEN PIPE)all
43W052100081SP-USED-OIL-SEALED-BOTTLE-250MLall
 W052100098SP-CONNECTOR-OLD-OIL-UV-BOTTLEall

Electric diagram



click to enlarge

PosArticle No.DesignationSerial-No.Picture
01W052100083SP-MAIN-SWITCH-VERSION-WITH-SCREWSall
02W052200221SP-EMERGENCY-SAFETYSWITCH-Y50 all
03W052200216SP-MAIN-FANall
04W052200217SP-COMPRESSOR-FANall
05W052100058SP-COMPRESSORall
06W052100059SP-VACUUM-PUMPall
07W052200214SP-HEAT-BELTall
8aW052200224SP-ELECTRIC-VALVE-GROUP-LP-XP-RFall
8bW052200225SP-ELECTRIC-VALVE-GROUP-NO-UV-VPall
09W052200224SP-ELECTRIC-VALVE-GROUP-LP-XP-RFall
10W052100028SP-SWITCH-HIGHPRESSUREall

Manifold



click to enlarge

PosArticle No.DesignationSerial-No.Picture
1W052100063SP-Y50-MANIFOLDall
1AW052200224SP-ELECTRIC-VALVE-GROUP-LP-XP-RFall
 W052200226SP-PISTON-FOR-ELEC-VALVE-LP-XP-RFall
1BW052200225SP-ELECTRIC-VALVE-GROUP-NO-UV-VPall
 W052200227SP-PISTON-FOR-ELEC-VALVE-NO-UV-VPall

Parts refrigerant analyser

PosArticle No.DesignationSerial-No.Picture
 W052100086SP-EXTERNAL WHITE FILTER all
 W052100087SP-EXTERNAL TRANSPARENT BOWLall
 W052100126SP-O-RING-FILTER-GLASS-29X2all

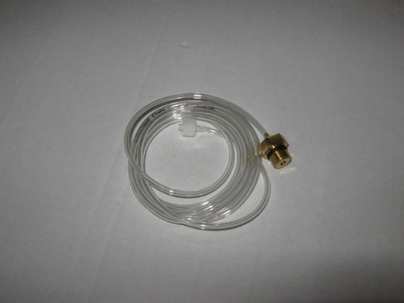

 W052000134SP-FLOW RESTRICTORall
 W052100088SP-E3 VALVE GROUPall
 W052100089SP-REFRIGERANT ANALYZERall

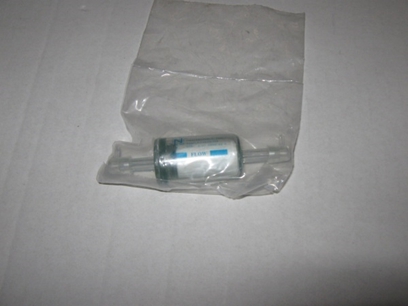

 W052000133SP-FILTER FOR REFRIGERANT ANALYZERall
 W052100160SP-O2-SENSOR-ANALYZER-Y50Aall

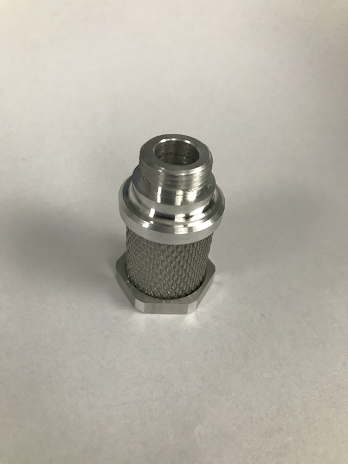

 W052100142SP-COALESCENT-FILTERall

Other parts

PosArticle No.DesignationSerial-No.Picture
 W052100037SP-LOAD-CELL-15KGall
 W052200263SP-LOAD-CELL-60KGall
 W052100163SP-CENTERING-CONE-WEIGHT SCALE-ALLall
 W052100176SP-SILENT-BLOCK-30X20-SCALEall
 W052200200SP-PIPE-RILSAN-PA11-SR-HL-4/6all
 W052100039SP-PIPE-PA11-NEUTRAL all
 W052100054SP-RILSAN-GREEN-PIPE-2/4all
 W052100040SP-PIPE-PA11-BLUE-2/4all
 W052100041SP-PIPE-BLUE-6/8 all
 W052100042SP-PIPE-PA11-RED-2/4all
 W052100043SP-PIPE-PU-YELLOW-4/6 all
 W052100044SP-PIPE-PU-BLUE-4/6 all
 W052100045SP-PIPE-CRISTAL-4/6 all
 W052100167SP-BRASS-OGIVE-2/4all
 W052100168SP-INTERNAL-SUPPORT-BUSHING-2/4all
 W052100169SP-INTERNAL-SUPPORT-BUSHING-4/6all
 W052100053SP-O-RING-FOR-TUBESall
 W052200278SP-CAP-USBall
 W052200212SP-PRINTER-PAPERROLLall
 W052200215SP-POWER-CORD-CEE7all
 W052100056SP-DISPLAY-MAINBOARDall
 W052100123SP-POWER/CPU MAINBOARD-CYRILLICall
 W052100138SP-CABLE-CONNECTORall
 W052100057
no longer available!
SP-POWER/CPU-MAINBOARDall
 W052100151NEW-PWR/CPU MAINBOARD (BOARD A) compatible for Y50A/ Y50 / A50 / A45 / A47 / Y42all
 W052200219SP-CONTROL-KNOBall
 W052100072SP-KEY-BOARD-(POLYESTER PANEL)all
 W052100049SP-GAUGES-RINGS-RED/BLUE all
 W052100139SP-HAND-VALVE-G-1/8all
 W052100105SP-PACKAGING-30-40-50-SERIE-KITall

Accessory parts

PosArticle No.DesignationSerial-No.Picture
 W052100170ADAPTER-KIT-FOR-SEALED-OIL-BOTTLESall
 W067100001AY-SERVICEHOSE-EXTENSION-KIT-3M-R1234YFall
 W067100003AY-COVER-30-50 COOLIUS LOGOall
 W067100016AY-COVER-30-50 WURTH LOGOall
 W067100005AY-COVER-TRANSPARENT-SET-50all
 W067100004AY-ADAPTER-DISPOSAL-REFRIGERANT-YFall
 W067100010AC-FLUSHING-KIT-COMPLETE-WITH-ADAPTERSall
 W067100135AY-BRKT-FLUSHINGKIT-A/CSERVUNT-COOLIUSall
 W067100009AC-ADAPTER-KIT-FOR-FLUSHING-KIT-ALL-ACall
 W067100008AY-POWER-ADAPTER-APAC-COUNTRIESall
 W067100013AY-DISPOSALKIT-WITH-BAG-AKTIONall
 W067100022AY-DATA-BASE-R1234YF-UNITSall

Maintenance parts

PosArticle No.DesignationSerial-No.Picture
 W052100048SP-MAINTENANCE-KIT (DRIER+VACUUM PUMP OIL+GASKETS)all

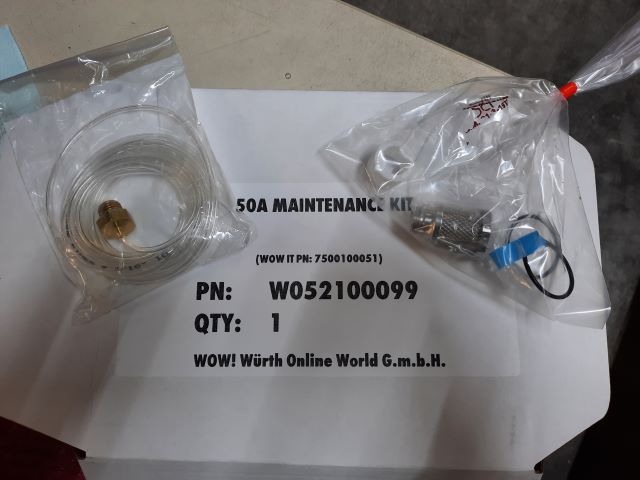

 W052100099SP-MAINTENANCE-KIT ANALYSIS UNITall
 W052100166SP-MAINTENANCE-KIT-AUS-NZall
 W052200250SP-MAIN-FILTER (MAIN FILTER)all
 W052200279Seal screw1 incl. seal ringall
 W052100096Seal ring1all
 W052100172SP-SCREW-M8-WITH-O-RING-VACUUM-PUMP-100-128Lall
