WEL 2.35

Please choose the subassembly in the selection.

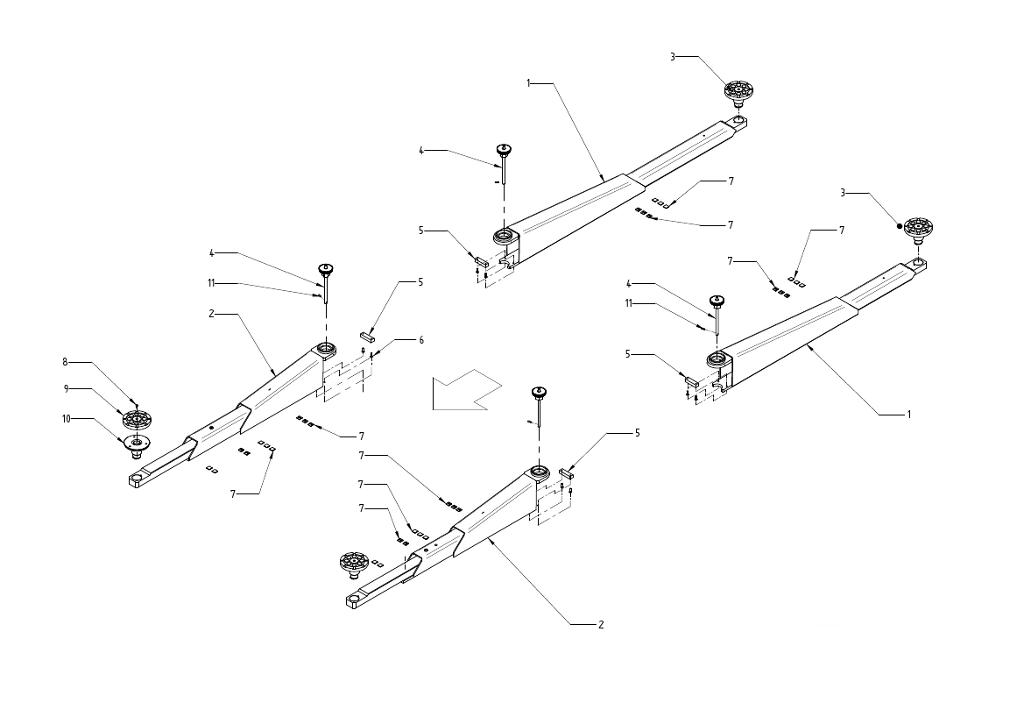

swivel arms

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

Pos	Article No.	Designation	Serial-No.
1	W105700059	SP-ARM-2	all
2	W105700060	SP-ARM-3	all
3, 8, 9, 10	W105700103	SP-FIXTURE-COMPL	from 56462
4	W105700066	SP-SPERRE	all
5	W105700086	SP-BAR	all
6	W105700068	SP-SCREW	all
7	W105700022	SP-BEARING-ARM	all
9	W105700024	SP-PAD	all
11	W105700071	SP-PIN	all

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

Pos	Article No.	Designation	Serial-No.
1	W105700057	SP-SCHELLE	all
2	W105700088	SP-SCREW	all
3	W105700055	SP-WASHER	all
4	W105700075	SP-CENTERING	all
5	W105700089	SP-SCREW	all
6	W105700071	SP-PIN	all
7	W105700020	SP-PIN	all
8	W105700093	SP-PIN	all
9	W105700034	SP-NIPPLE	all
10	W105700021	SP-BEARING-CARRIER	all
11	W105700085	SP-COVER	all
12	W105700027	SP-CARRIER	all
13	W105700083	SP-NUT	all
14	W105700069	SP-NUT	all
15	W105700026	SP-BRACKET	all
16	W105700039	SP-LOCK	all

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

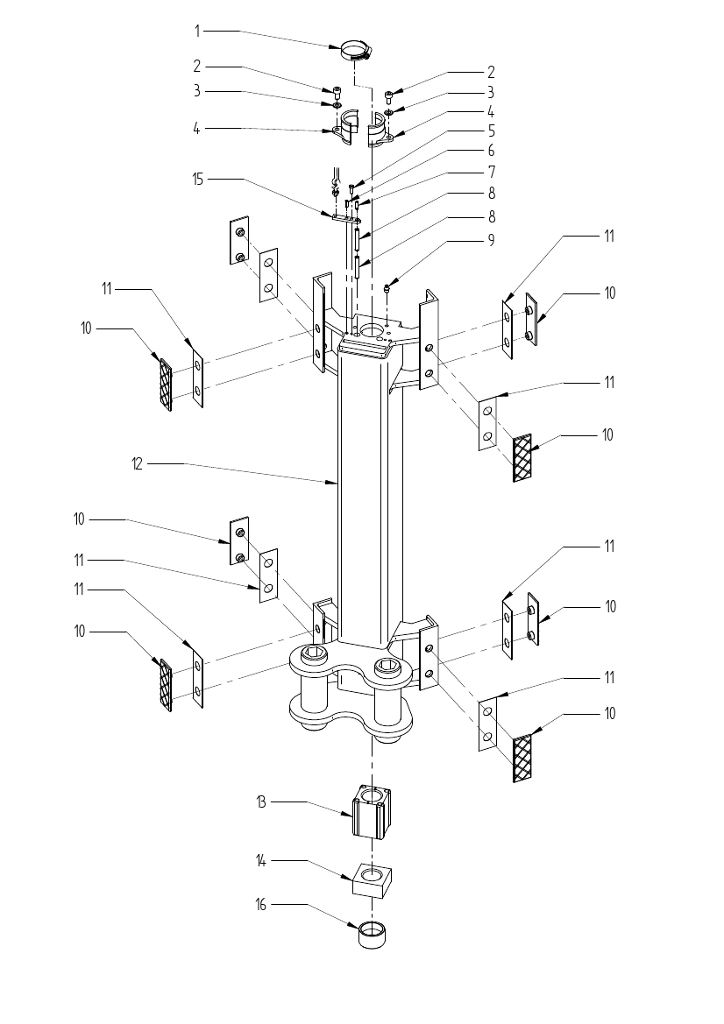

Pos	Article No.	Designation	Serial-No.
1	W105700005	SP-TUBE-2560	all
1	W105700004	SP-TUBE-2450	all
2	W105700002	SP-TUBE-LINK	all
3	W105700001	SP-TUBE-ELBOW	all
4	W105700003	SP-TUBE-1000	all
5	W105700051	SP-TOP	all
6	W105700092	SP-SCREW	all
7	W105700030	SP-PLATE-SECOND	all
7	W105700031	SP-PLATE-MAIN	all
9	W105700040	SP-POST-SECOND-3,5	all
9	W105700080	SP-POST	all
11	W105700090	SP-SCREW	all
12	W105700038	SP-NUT	all
13	W105700053	SP-WASHER	all
14	W105700091	SP-SCREW	all
15	W105700008	SP-COVER	all

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

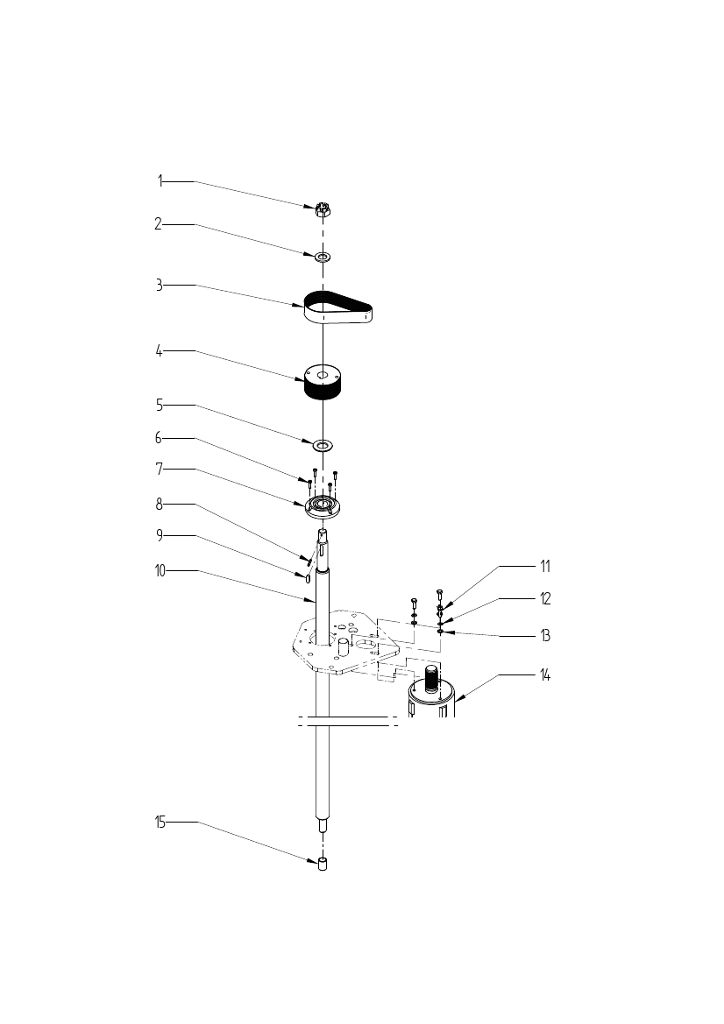

Pos	Article No.	Designation	Serial-No.
1	W105700033	SP-NUT	all
2	W105700054	SP-WASHER	all
3	W105700029	SP-BELT	all
4	W105700050	SP-WASHER	all
5	W105700056	SP-WASHER	all
6	W105700087	SP-SCREW	all
7	W105700016	SP-BEARING	all
8	W105700070	SP-PIN	all
10	W105700072	SP-SPINDLE	all
11	W105700067	SP-SCREW	all
12	W105700015	SP-WASHER-M8	all
13	W105700032	SP-WASHER	all
14	W105700014	SP-MOTOR-2,4KW-W7LIU4DE	all
15	W105700023	SP-BEARING	all

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

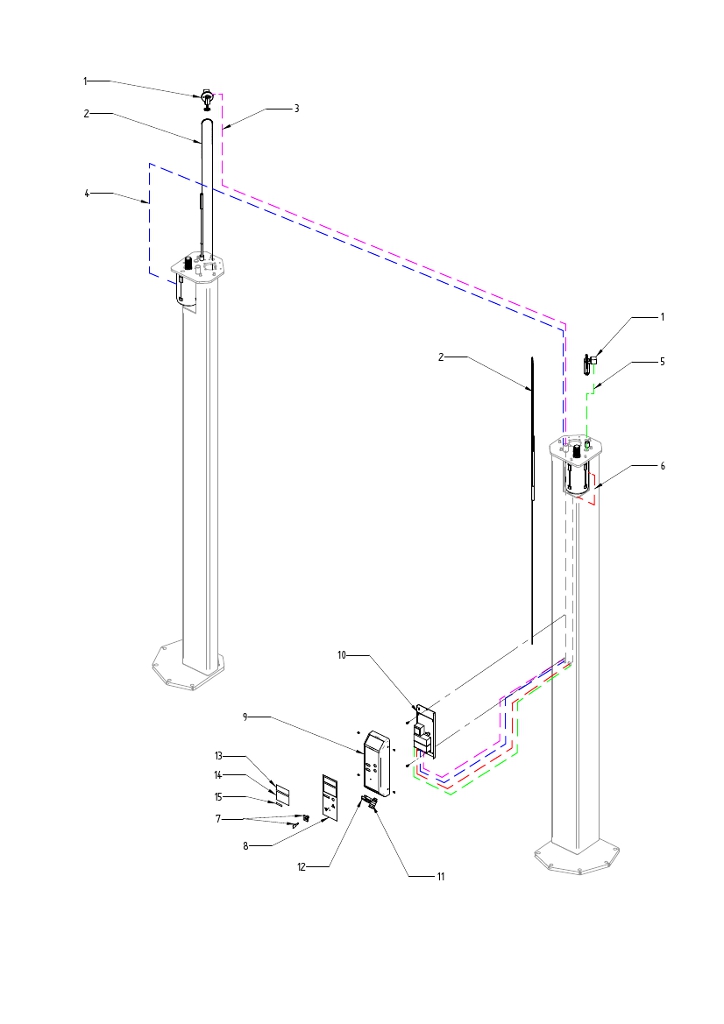

Pos	Article No.	Designation	Serial-No.
1	W105700044	SP-POTENTIOMETER	all
2	W105700019	SP-COUNTERWEIGHT	all
3	W105700045	SP-CABLE-POTENTIOMETER-SECOND COLUMN	all
4	W105700036	SP-CABLE-L8M	all
5	W105700046	SP-CABLE-POTENTIOMETER-CONTROL COLUMN	all
6	W105700037	SP-CABLE-L1,8M	all
7	W105700058	SP-KEY	all
8	W105700017	SP-CONTROL	all
9	W105700018	SP-HOUSING	all
10	W105700082	SP-CONTROL	all
12	W105700006	SP-PLUG	all
13	W105700013	SP-LABEL-WUERTH	all
14	W105700009	SP-LABEL-DE	all
14	W105700010	SP-LABEL-EN	all
14	W105700011	SP-LABEL-XX	all
15	W105700012	SP-LABEL-3000	all
