WTM 400 and WTM 400 RF
Body
Notice:
Please note that some parts only exist in the exploded drawings but not in the spare parts table.
These parts can not be ordered separately!
| Pos | Article No. | Designation | Serial-No | Picture |
|---|---|---|---|---|
| 1 | SCREW-SELFTAPPING-6,3X16 | all | ||
| 2 | WASHER-DIN125-6 | all | ||
| 3 | W342600753 | WASHER-ZAHN-6,4X11X0,7 | all | |
| 4 | W342600082 | CYLINDER-LOCK | all | |
| 5 | W342600866 | FRAME | all | |
| 6 | W342600880 | COVER-PEDAL | all |  |
| 7 | W342600879 | BRACKET-PEDAL | all |  |
| 8 | SCREW-M6X12 | all | ||
| 9 | W342600883 | BRACKET-PEDAL | all |  |
| 10 | W342600609 | BOX | all |  |
| 11 | W342600068 | BRACKET-LUBRICATION | all |  |
| 12 | W342600159 | Foot | all |  |
| 13 | W342600205 | LEVER-PRESSURE | all |  |
| 14 | W342600160 | BRACKET-WHEEL | all |  |
| 15 | WASHER-DIN125-6 | all | ||
| 16 | SCREW-M6X25 | all | ||
| 17 | SCREW-M6X20 | all | ||
| 18 | NUT-DIN934-M6 | all |

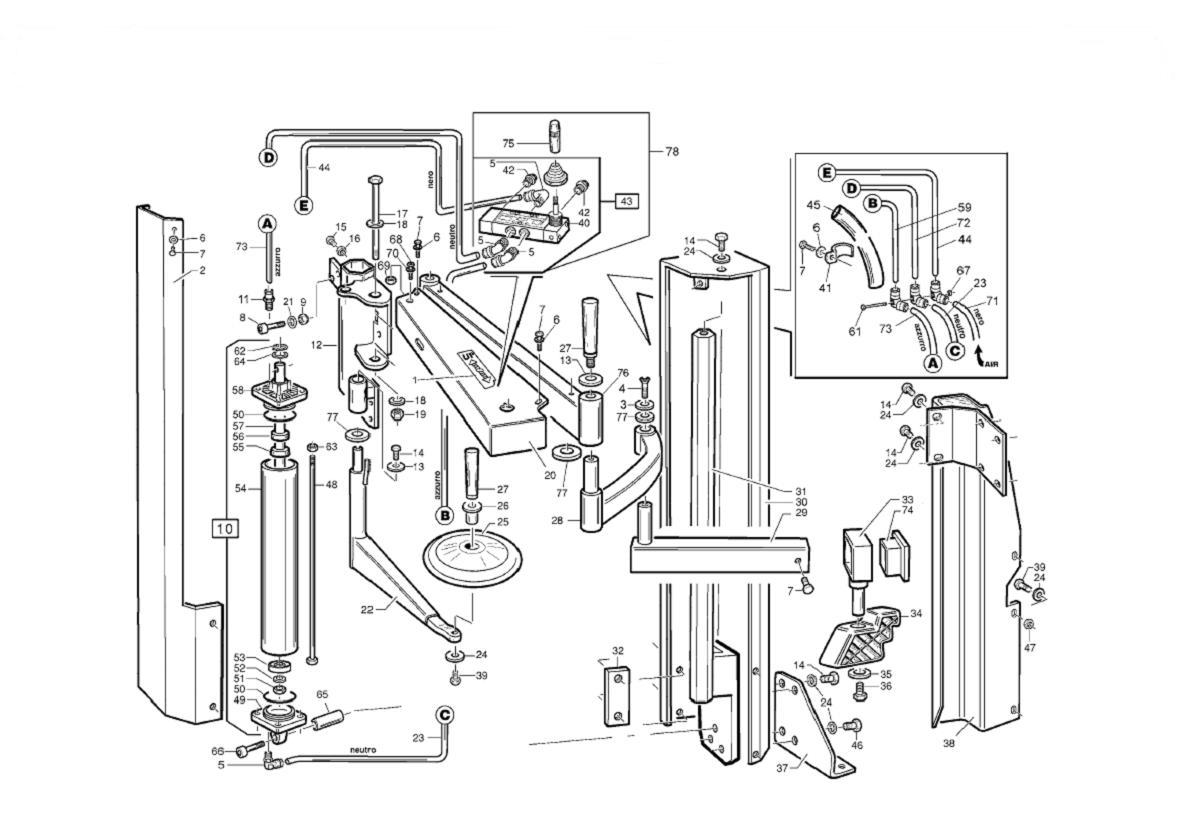

Arms horizontal and vertical
Notice:
Please note that some parts only exist in the exploded drawings but not in the spare parts table.
These parts can not be ordered separately!
| Pos | Article No. | Designation | Serial No. | Picture |
|---|---|---|---|---|
| 1 | W342600033 | CONTROL-ROBOT | all |  |
| 2 | NUT-DIN985-M4 | all | ||
| 3 | SCREW-M4X35 | all | ||
| 5 | SCREW-M6X20 | all | ||
| 6 | W342600260 | CAP-SEAL | all |  |
| 7 | W342600018 | KIT-ARMCONTROL | all |  |
| 8 | W342600181 | ABSORBER-INSTALLATION-WZ | all |  |
| 9 | W342600253 | ROD-HEXAGON-41-L723 | all |  |
| 10 | W342600882 | ARM-HORIZONTAL | all |  |
| 11 | SHIM-35X45X1,5 | all | ||
| 12 | W342600506 | CLUTCH-1/8IN | all | |
| 13 | W342600170 | SPRING | all |  |
| 14 | W342600211 | ABSORBER | all |  |
| 15 | W342600257 | ROD-M10X120 | all | |
| 16 | NUT-DIN934-M10 | all | ||
| 17 | W342600191 | COVER-ARM | all |  |
| 18 | NUT-DIN985-M10 | all | ||
| 22 | W342600254 | BRACKET-ARM | all |  |
| 23 | WASHER-DIN125-10 | all | ||
| 24 | W342600695 | all | ||
| 25 | W342600603 | HOUSING-CYLINDER-D60 | all |  |
| 26 | SCREW-M6X35 | all | ||
| 27 | W342600601 | O-RING | all |  |
| 28 | W342600602 | PISTON-D60 | all |  |
| 29 | W342600081 | CYLINDER-LOCK | all |  |
| 30 | W342600503 | CLUTCH-1/8IN | all |  |
| 31 | W342600215 | TUBE-4X2-L220 | all |  |
| 32 | W342600214 | TUBE-4X2,7-L2200 | all |  |
| 36 | NUT-DIN934-M8 | all | ||
| 37 | W342600182 | GUIDANCE | all |  |
| 38 | W342600282 | CLAMP | all |  |
| 40 | SCREW-M8X20 | all | ||
| 41 | W342600800 | all | ||
| 42 | WASHER | all | ||
| 43 | W342600504 | CLUTCH-1/8IN | all |  |
| 44 | W342600500 | CLUTCH-1/8IN | all |  |
| 45 | W342600499 | all |  | |
| 46 | W342600538 | CLUTCH-QUICK-1/8IN | all |  |
| 47 | NUT-DIN985-M12 | all | ||
| 48 | W342600855 | ARM-VERTICAL | all |  |
| 49 | W342600146 | PIN-M12X50 | all |  |
| 50 | W342600537 | CLUTCH-QUICK-1/8IN | all |  |
| 51 | W342600143 | TUBE-6X4-L840 | all |  |
| 52 | W342600144 | TUBE-6X4-L1200 | all |  |
| 53 | W342600014 | CYLINDER-PIVOT | all |  |
| 54 | W342600007 | CYLINDER-PIVOT | all | |
| 55 | W342600183 | ROD-CYLINDER-L309 | all |  |
| 56 | W342600468 | RING-DIN471-30 | all | |
| 57 | SCREW-M8X160 | all | ||
| 58 | W342600173 | FLANGE | all |  |
| 59 | W342600469 | RING-GUMMI | all |  |
| 60 | W342600594 | GUIDANCE-NYLON | all | |
| 61 | W342600593 | O-RING-D68,26X3,53 | all |  |
| 62 | W342600269 | WASHER-ARM | all |  |
| 63 | W342600218 | HOUSING-CYLINDER-20IN-L135 | all |  |
| 64 | W342600526 | PISTON-D75 | all |  |
| 65 | WASHER-D12,5X30X3 | all | ||
| 66 | W342600252 | SPACER | all |  |
| 67 | W342600172 | FLANGE | all |  |
| 68 | NUT-M8 | all | ||
| 69 | W342600687 | all | ||
| 70 | SCREW-M12X110 | all | ||
| 71 | WASHER-DIN125-12 | all | ||
| 72 | W342600881 | BRACKET-ARM | all |  |
| 73 | W342600698 | all | ||
| 74 | SCREW-M8X16 | all | ||
| 75 | W342600660 | all | ||
| 76 | SCREW-M10X60 | all | ||
| 77 | W342600256 | COVER-FRONT | all |  |
| 78 | W342600713 | all | ||
| 79 | W342600297 | SPRING | all |  |
| 80 | NUT-DIN985-M12 | all | ||
| 81 | W342600189 | SPRING | all |  |
| 82 | W342600126 | HANDLE-ARM | all |  |
| 83 | WASHER-DIN125-8 | all | ||
| 84 | SCREW-M8X20 | all | ||
| 85 | W342600180 | WHEEL | all |  |
| 86 | W342600715 | all | ||
| 87 | W342600258 | LIMIT-STOP | all |  |
| 91 | SCREW-M8X20 | all | ||
| 92 | W342600249 | ROD-HEXAGON-41-777 | all |  |
| 93 | NUT-DIN985-M8 | all | ||
| 94 | W342600717 | PIN-8X50 | all |  |
| 95 | W342600265 | NUT-HANDHANDLE | all |  |
| 96 | SCREW-M12X60 | all | ||
| 97 | NUT-DIN985-M12 | all |
4 Pedals box
Notice:
Please note that some parts only exist in the exploded drawings but not in the spare parts table.
These parts can not be ordered separately!
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|
| 1 | W342600190 | STICKER | all |  |
| 2 | SCREW-M6X20 | all | ||
| 3 | WASHER-DIN125-6 | all | ||
| 4 | W342600009 | CABLE-GROUND-L340 | all |  |
| 5 | W342600279 | BRACKET-BRACKET | all |  |
| 6 | SCREW-M4X12-8.8 | all | ||
| 7 | NUT-DIN934-M4 | all | ||
| 8 | WASHER-TOOTHED-3,2X12X0,5 | all | ||
| 9 | W342600164 | PEDAL-ALTERNATION | all |  |
| 10 | W342600278 | ROD | all |  |
| 11 | W342600139 | LEVER | all | |
| 12 | NUT-DIN985-M6 | all | ||
| 13 | W342600693 | all | ||
| 14 | W342600736 | all | ||
| 15 | W342600775 | RING-DIN471-12 | all | |
| 16 | WASHER-DIN125-6 | all | ||
| 17 | W342600852 | LOCK-CABLE-D9 | all |  |
| 18 | W342600001 | CABLE-L1500 | all |  |
| 19 | W342600281 | CAP-UMSWITCH | all |  |
| 20 | W342600837 | SWITCH-2STEP-1PH | all |  |
| 21 | W342600002 | CABLE-3PH | all |  |
| 22 | W342600038 | SWITCH-3PH-25A2V | all |  |
| 23 | W342600027 | PEDAL-SET | all | |
| 24 | W342600199 | SPRING-PEDAL-15X108X2,2 | all | |
| 25 | W342600167 | FRAME-PEDAL | all |  |
| 26 | W342600165 | PEDAL-TABLE | all |  |
| 27 | W342600166 | PEDAL-PIVOT | all |  |
| 28 | W342600187 | PIN-L337 | all |  |
| 29 | W342600213 | BUSHING-D18X12,5X21 | all |  |
| 30 | NUT-DIN985-M8 | all | ||
| 31 | W342600679 | all | ||
| 32 | W342600132 | SPRING-PEDAL | all |  |
| 33 | NUT-DIN934-M6 | all | ||
| 34 | W342600010 | VALVE | all |  |
| 35 | W342600005 | VALVE | all |  |
| 36 | W342600006 | VALVE-PIVOT | all |  |
| 37 | W342600207 | PIN | all | |
| 38 | W342600718 | PIN-4X24-ISO8752 | all |  |
| 39 | W342600004 | VALVE | all |  |
| 40 | W342600522 | UNION-6410-1/8IN-8 | all |  |
| 41 | W342600466 | TUBE-8X6-L750 | all |  |
| 42 | W342600149 | TUBE-8X6-L1000 | all |  |
| 43 | W342600133 | TUBE-6X4-L480 | all |  |
| 44 | W342600179 | TUBE-8X6-L100 | all |  |
| 45 | W342600177 | PIN | all |  |
| 46 | W342600542 | ABSORBER-SCHALL-1/8IN | all |  |
| 47 | W342600534 | CLUTCH-QUICK-1/8IN-8 | all |  |
| 48 | W342600135 | TUBE-8X6-L350 | all |  |
| 49 | W342600604 | GUIDANCE-CAM | all |  |
| 50 | SCREW-PLATE-2,9X6,5 | all | ||
| 51 | W342600785 | SPRING-8,2X18X1 | all | |
| 52 | W342600606 | ROD-CAM | all |  |
| 53 | W342600605 | SPRING-GABEL | all |  |
| 54 | W342600694 | all | ||
| 55 | WASHER-TOOTHED-8,4X15X0,8 | all | ||
| 56 | W342600607 | GUIDANCE-NOCKE | all |  |
| 57 | W342600144 | TUBE-6X4-L1200 | all | |
| 58 | W342600136 | TUBE-6X4-L750 | all |  |
| 59 | W342600141 | TUBE-6X4-L2200 | all |  |
| 60 | W342600552 | all |  | |
| 61 | W342600548 | all |  | |
| 62 | W342600551 | all |  | |
| 63 | W342600537 | CLUTCH-QUICK-1/8IN | all | |
| 64 | W342600549 | all |  | |
| 65 | W342600153 | VALVE | all |  |
| 66 | W342600597 | O-RING-D9,8X3,85 | all |  |
| 67 | W342600154 | SPACER | all |  |
| 68 | W342600155 | FLANGE | all |  |
| 69 | SCREW-SELF TAPPING-3,5X13 | all | ||
| 70 | W342600517 | UNION-QUICK | all |  |
| 71 | W342600536 | CLUTCH-QUICK-1/8IN-8 | all |  |
| 72 | W342600099 | BRACKET-WECHSLER | all |  |
| 73 | W342600713 | all | ||
| 74 | W342600250 | LEVER-PEDAL | all |  |
| 75 | W342600969 | SP-SPRING | all |
Bead Breaker
Notice:
Please note that some parts only exist in the exploded drawings but not in the spare parts table.
These parts can not be ordered separately!
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|
| 1 | NUT-DIN985-M18X1,5 | all | ||
| 2 | W342600484 | SEAL-200X185X26 | all |  |
| 3 | SCREW-M12X35 | all | ||
| 4 | W342600130 | BUSHING | all |  |
| 5 | W342600658 | all | ||
| 6 | W342600300 | PISTON-D200 | all |  |
| 7 | W342600301 | CAM-L487 | all |  |
| 8 | W342600129 | SPRING-ARM | all |  |
| 9 | SCREW-M16X100 | all | ||
| 10 | W342600512 | O-RING-D196,4XH3,53 | all |  |
| 11 | W342600885 | ARM-BREAKER | all | |
| 12 | W342600817 | RING-DIN471-30 | all | |
| 13 | W342600097 | FLANGE-CYLINDER | all |  |
| 14 | W342600712 | all | ||
| 15 | NUT-M6 | all | ||
| 16 | W342600594 | GUIDANCE-NYLON | all | |
| 17 | W342600599 | O-RING-D20,29X2,62 | all |  |
| 18 | W342600469 | RING-GUMMI | all | |
| 19 | W342600687 | all | ||
| 20 | W342600468 | RING-DIN471-30 | all | |
| 21 | NUT-DIN985-M18 | all | ||
| 22 | W342600188 | HOUSING-CYLINDER-D200 | all | |
| 23 | W342600523 | ABSORBER-1/4IN | all |  |
| 24 | W342600543 | VALVE-QUICK-1/4IN | all |  |
| 25 | W342600534 | CLUTCH-QUICK-1/8IN-8 | all | |
| 26 | W342600516 | UNION-6520-1/4ZO-8-6 | all |  |
| 27 | W342600530 | SOCKET-2543-1/4IN-F | all |  |
| 28 | W342600043 | CYLINDER-PRESSURE | all |  |
| 29 | W342600015 | VALVE | all |  |
| 30 | NUT-DIN985-M8 | all | ||
| 31 | NUT-M14 | all | ||
| 32 | WASHER-DIN125-8 | all | ||
| 33 | W342600608 | HANDLE-BALL-D14 | all |  |
| 34 | W342600726 | all | ||
| 35 | W342600094 | PLATE-BREAKER | all |  |
| 36 | W342600815 | RING-DIN471-20 | all | |
| 37 | W342600210 | PIVOT-D20 | all |  |
| 38 | SCREW-M8X70 | all | ||
| 39 | NUT-DIN985-M16 | all | ||
| 40 | W342600163 | ABSORBER-D21XD63XH14 | all |  |
| 41 | W342600185 | WASHER-ABSORBER | all |  |
| 42 | W342600516 | UNION-6520-1/4IN-8-6 | all | |
Mounting Tools
Notice:
Please note that some parts only exist in the exploded drawings but not in the spare parts table.
These parts can not be ordered separately!
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|
| 1 | W342600003 | TOOL-INSTALLATION | all |  |
| 2 | SCREW-M10X16 | all | ||
| 3 | WASHER-DIN6319-D14-G | all | ||
| 4 | W342600142 | WHEEL | all |  |
| 5 | W342600198 | COVER-PLASTICS | all |  |
| 6 | W342600653 | all | ||
| 7 | W342600232 | PIN-D5-M6-L26 | all |  |
| 8 | WASHER-DIN6319-D10-C | all | ||
| 9 | W342600169 | HEAD-INSTALLATION | all |  |
| 10 | SCREW-M10X16 | all |
Self-Centering turntable 20" GT
Notice:
Please note that some parts only exist in the exploded drawings but not in the spare parts table.
These parts can not be ordered separately!
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|
| 1 | W342600507 | CLUTCH-1/8IN | all | |
| 2 | W342600273 | HUB | all |  |
| 3 | W342600466 | TUBE-8X6-L750 | all | |
| 4 | W342600303 | TUBE-SPIRAL-8X6-L560 | all |  |
| 5 | W342600572 | VALVE-Y-GT | all |  |
| 6 | W342600298 | PAD-SLIDE | all |  |
| 7 | W342600148 | TUBE-8X6-L240 | all |  |
| 8 | W342600644 | RING-DIN471-85 | all | |
| 9 | W342600039 | FLANGE | all |  |
| 10 | SCREW-M12X1,25X45 | all | ||
| 11 | WASHER-D12X21X2,5 | all | ||
| 12 | W342600203 | SPACER | all |  |
| 13 | W342600276 | TURNTABLE-20IN | all |  |
| 14 | W342600096 | GUIDANCE-22IN | all |  |
| 15 | W342600775 | RING-DIN471-12 | all | |
| 16 | WASHER-DIN125-12 | all | ||
| 17 | W342600084 | SLIDE-GT | all |  |
| 18 | W342600174 | SPANNCLAMP | all |  |
| 19 | SCREW-M10X1,25X25 | all | ||
| 20 | W342600277 | PIN | all |  |
| 21 | W342600202 | SPACER | all |  |
| 22 | W342600095 | GUIDANCE-22IN | all |  |
| 23 | W342600201 | SPACER | all |  |
| 24 | W342600286 | RING | all |  |
| 25 | W342600642 | all | ||
| 26 | W342600127 | COVER | all |  |
| 27 | W342600013 | CYLINDER-TABLE-20IN | all |  |
| 28 | W342600593 | O-RING-D68,26X3,53 | all | |
| 29 | W342600217 | HOUSING-CYLINDER-20IN-L345 | all |  |
| 30 | SCREW-M8X369 | all | ||
| 31 | NUT-M8 | all | ||
| 32 | W342600271 | FLANGE | all |  |
| 33 | W342600270 | FLANGE | all |  |
| 34 | W342600468 | RING-DIN471-30 | all | |
| 35 | W342600687 | all | ||
| 36 | W342600469 | RING-GUMMI | all | |
| 37 | W342600526 | PISTON-D75 | all | |
| 38 | W342600599 | O-RING-D20,29X2,62 | all | |
| 39 | W342600186 | ROD-20IN-L400 | all |  |
| 40 | NUT-DIN985-M12 | all | ||
| 41 | W342600534 | CLUTCH-QUICK-1/8IN-8 | all | |
| 42 | W342600861 | CONNECTION-SCREW-INCL-SEALS | all |  |
| 43 | W342600535 | CLUTCH | all |  |
| 44 | WASHER-D12,5X30X3 | all | ||
| 45 | W342600193 | TUBE-10X6,6-L335 | all |  |
| 46 | W342600509 | UNION-1/4IN | all |  |
| 47 | W342600498 | all |  | |
| 48 | W342600161 | TUBE-14X11-L1070 | all |  |
| 49 | W342600158 | SCREW-VALVE | all |  |
| 50 | W342600586 | O-RING-D49,21X3,53 | all |  |
| 51 | W342600225 | SPACER | all |  |
| 52 | W342600195 | TUBE-10X6,6-L430 | all |  |
| 53 | W342600194 | TUBE-10X6,6-L310 | all |  |
| 54A | W342600040 | TURNTABLE-GT-20IN | all |  |
| 55 | W341600092 | CLAMPPROTECTION-RUBBER (without clamp) | all |  |
| W341600106 | CLAMP-METAL | all | ||
| 56 | SCREW 16X1,5X45 8.8 | all | ||
| 57 | W342600640 | WASHER-DIN125-17 | all | |
| 58 | W342600302 | TUBE-8X6-L75 | all |  |
Motor-Reduction Gear Group
Notice:
Please note that some parts only exist in the exploded drawings but not in the spare parts table.
These parts can not be ordered separately!
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|
| 1 | W342600026 | HOUSING-GEAR | all |  |
| 2 | W342600242 | HOUSING-GEAR | all |  |
| 3 | W342600584 | PAD-60X110X22 | all |  |
| 4 | W342600244 | CAM-SCHNECKE | all |  |
| 5 | W342600583 | BEARING | all |  |
| 6 | W342600247 | CAP-SEAL | all |  |
| 7 | W342600582 | O-RING-D34,52X3,53 | all |  |
| 8 | W342600669 | all | ||
| 9 | W342600581 | O-RING-D20X35X10 | all |  |
| 10 | WASHER-DIN125-14 | all | ||
| 11 | NUT-M14 | all | ||
| 12 | W342600240 | GEAR-REDUCTION | all |  |
| 13 | SCREW-M8X30 | all | ||
| 14 | NUT-DIN985-M8 | all | ||
| 15 | W342600666 | all | ||
| 16 | W342600245 | GEAR | all |  |
| 17 | W342600668 | RING-DIN471-60 | all | |
| 18 | W342600246 | CAM | all |  |
| 19 | W342600670 | all | ||
| 20 | W342600580 | BEARING-60X110X22 | all |  |
| 21 | W342600243 | HOUSING-GEAR | all |  |
| 22 | W342600241 | GEAR-ANTRIEB | all |  |
| 23 | SCREW-M8X14 | all | ||
| 24 | W342600579 | BELT | all |  |
| 27 | WASHER-DIN125-8 | all | ||
| 28 | NUT-DIN934-M8 | all | ||
| 31 | SCREW-M10X20-8.8 | all | ||
| 32 | SCREW-M8X25 | all | ||
| 33 | W342600137 | BEARING-MOTOR | all |  |
| 34 | SCREW-M10X40-8.8 | all | ||
| 35 | NUT-DIN934-M10 | all | ||
| 36 | W342600138 | BRACKET-CLAMP | all |  |
| 37 | W342600850 | MOTOR-1PH-230V-50/60HZ | all |  |
| 37A | W342600851 | MOTOR-3PH-230/400V-50HZ | all |  |
| 37B | W342600849 | MOTOR-3PH-400V-50HZ-B3 | all |  |
| 37C | W342600846 | MOTOR-1PH-115V | all | |
| 38 | W342600665 | RING-DIN471-50 | all | |
| 39 | SCREW-M6X10-8.8 | all | ||
| 40 | W342600158 | SCREW-VALVE | all | |
| 41 | SCREW-M10X50 | all |
GT Inflating Device
Notice:
Please note that some parts only exist in the exploded drawings but not in the spare parts table.
These parts can not be ordered separately!
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|
| 1 | SCREW-M6X20-8.8 | all | ||
| 2 | NUT-DIN934-M6 | all | ||
| 3 | SCREW-M6X20 | all | ||
| 4 | W342600092 | PEDAL-GT | all |  |
| 5 | W342600238 | TUBE-8X6-L440 | all |  |
| 6 | W342600023 | VALVE | all |  |
| 7 | WASHER-DIN125-6 | all | ||
| 8 | SCREW-M6X10 | all | ||
| 9 | W342600595 | SPRING-D20X26 | all |  |
| 10 | SCREW-M6X25 | all | ||
| 12 | W342600131 | SPRING | all |  |
| 14 | W342600740 | SPLINT-D3,2X30 | all | |
| 15 | WASHER-DIN125-6 | all | ||
| 16 | SCREW-M4X25 | all | ||
| 17 | NUT-DIN985-M4 | all | ||
| 18 | W342600157 | LEVER-VALVE | all |  |
| 19 | W342600161 | TUBE-14X11-L1070 | all | |
| 20 | SCREW-SELF TAPPING-3,5X13 | all | ||
| 21 | W342600155 | FLANGE | all | |
| 22 | W342600597 | O-RING-D9,8XH3,85 | all | |
| 23 | W342600156 | ROD-VALVE | all |  |
| 24 | W342600154 | SPACER | all | |
| 25 | W342600153 | VALVE | all | |
| 26 | W342600534 | CLUTCH-QUICK-1/8IN-8 | all | |
| 29 | W342600538 | CLUTCH-QUICK-1/8IN | all | |
| 30 | W342600150 | TUBE-8X6-L850 | all |  |
| 31 | W342600321 | FORK-U | all |  |
| 32 | W342600322 | CLUTCH-QUICK | all |  |
| 33 | W342600162 | TUBE-6X4-L580 | all |  |
| 34 | W342600047 | VALVE-SEAL | all |  |
| 35 | W342600525 | UNION-1IN-FM-90 | all | |
| 36 | W342600050 | CLUTCH-QUICK | all |  |
| 37 | W342600513 | CONTROL-1/4IN-3,5BAR | all |  |
| 37/A | W342600508 | REGULATOR-1/4IN-5BAR | all | |
| 38 | W342600528 | CLUTCH-QUICK-1/4IN | all |  |
| 39 | W342600147 | TUBE-8X6-L2300 | all |  |
| 41 | SCREW-M6X12 | all | ||
| 42 | NUT-DIN934-M8 | all | ||
| 43 | W342600521 | VALVE-1/4IN | all |  |
| 44 | W342600531 | CLUTCH-2020-1/4IN | all |  |
| 45 | W342600516 | UNION-6520-1/4IN-8-6 | all | |
| 46 | W342600239 | TUBE-8X6-L440 | all |  |
| 47 | W342600020 | TUBE-L1400 | all |  |
| 48 | W342600597 | O-RING-D9,8XH3,85 | all | |
| 49 | W342600046 | VALVE-1IN | all |  |
| 50 | W342600030 | BOX-18L | all |  |
| 51 | W342600598 | DISPLAY-PRESSURE-D80 | all |  |
| 51/A | W342600510 | DISPLAY-PRESSURE -600KPA-6BAR-85PSI | all | |
| 51/B | W342600275 | DISPLAY-PRESSURE-D80-1200KPA | all | |
| 53 | W342600515 | VALVE-1/8IN-4BAR | all |  |
| 53/A | W342600520 | VALVE-1/4IN-5BAR | all | |
| 54 | W342600570 | O-RING-D25,12XH1,78 | all |  |
| 55 | W342600134 | TUBE-8X6-L910 | all |  |
| 56 | W342600886 | PLATE-GT-FRONT | all |  |
| 57 | SCREW-M8X16 | all | ||
| 58 | W342600034 | KIT-AIR-GT | all |  |
| 58/A | W342600035 | KIT-AIR-GT-600KPA | all | |
| 58/B | W342600037 | KIT-AIR-GT-1200KPA | all | |
| 59 | W342600600 | KNOB-PRESSURE | all |  |
| 61 | W342600274 | VALVE | all |  |
| 62 | W342600531 | CLUTCH-2020-1/4IN | all | |
| 63 | W342600527 | CLUTCH-QUICK-1/4IN | all |  |
| 64 | W342600887 | PLATE-GT-REAR | all |  |
| 65 | WASHER-DIN125-4 | all |
Air Lubrication Group
Notice:
Please note that some parts only exist in the exploded drawings but not in the spare parts table.
These parts can not be ordered separately!
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|
| 1 | W342600513 | CONTROL-1/4IN-3,5BAR | all | |
| 2 | W342600515 | VALVE-1/8IN-4BAR | all | |
| 3 | W342600528 | CLUTCH-QUICK-1/4IN | all | |
| 4 | W342600025 | CONTROL-4BAR | all |  |
| 5 | W342600516 | CLUTCH-6530-1/4IN-8-6 | all | |
| 6 | W342600545 | CLUTCH-9AM-1/4IN | all |  |
| 7 | W342600488 | OILUNIT-GLAS | all |  |
| 8 | W342600487 | OILUNIT-HEAD | all |  |
| 9 | W342600492 | OILUNIT-1/4IN | all |  |
| 10 | W342600524 | CLUTCH-2070-1/4IN | all | |
| 11 | W342600511 | VALVE-400-1/4IN-FF | all |  |
| 12 | W342600554 | CLUTCH-1/4IN | all |  |
| 13 | W342600527 | CLUTCH-QUICK-1/4IN | all | |
| 14 | W342600028 | UNIT-LUBRICATOR | all |  |
| 15 | W342600533 | CONTROL-1/4IN-12BAR | all |  |
| 16 | W342600528 | CLUTCH-QUICK-1/4IN | all | |

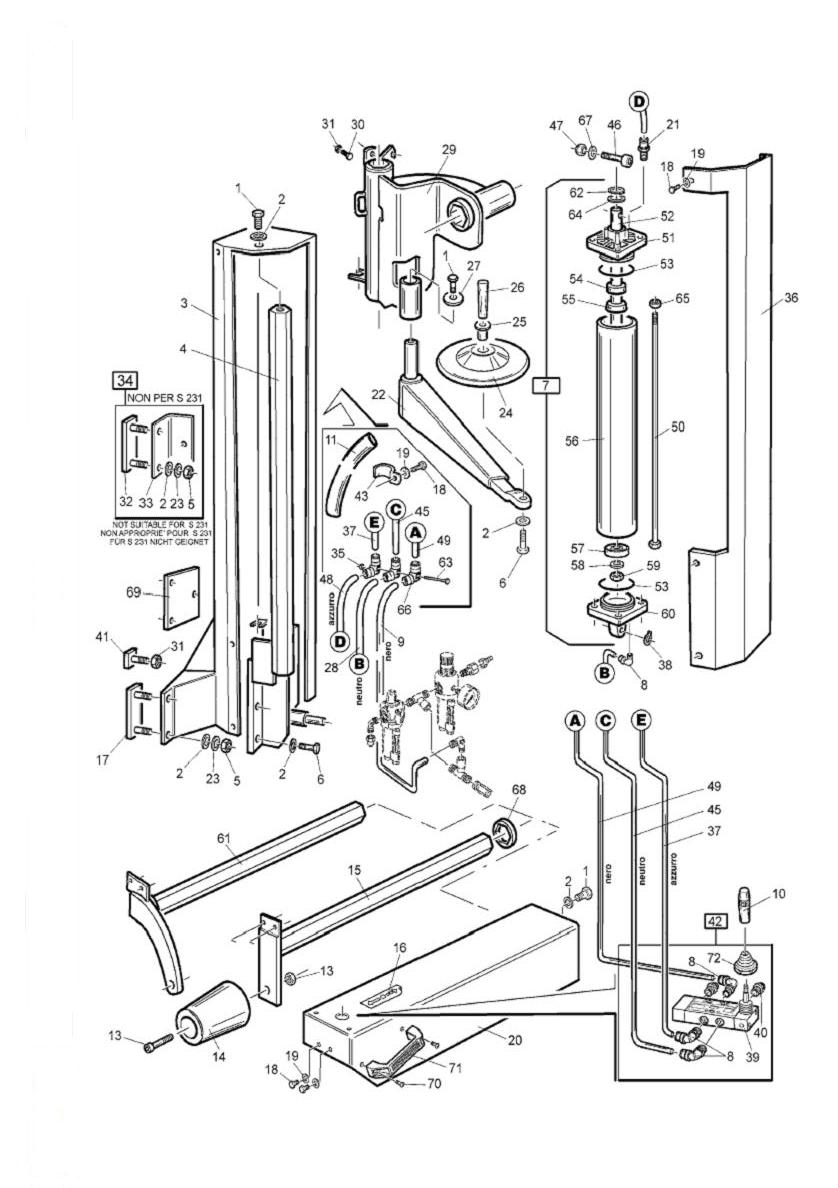

Help 4
Notice:
Please note that some parts only exist in the exploded drawings but not in the spare parts table.
These parts can not be ordered separately!
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|
| 1 | SCREW M10x20 - 8.8 | all | ||
| 2 | WASHER D.10 (10,5x21x2) | all | ||
| 3 | W342600088 | HELP 4 BASE | all | |

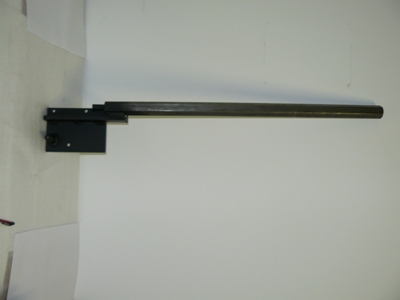

| 4 | W342600087 | VERTICAL ARM HELP 4 | all |  |
| 5 | NUT M10 | all | ||
| 6 | SCREW M10x30 8.8 | all | ||

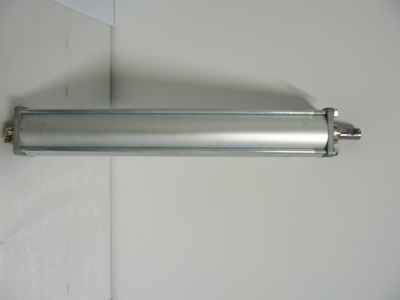

| 7 | W342600016 | HELP 3 CYLINDER UNIT | all |  |
| 8 | W342600518 | UNION 1/8” | all |  |
| 9 | W342600292 | HOSE 6x4 L=2000 | all | |
| 10 | W342600237 | KNOB D.14X45 M5 | all |  |
| 11 | W342600234 | PVC SHEATH 18x20 L=860 | all | |
| 12 | SCREW 20x90 8.8 | all | ||
| 13 | NUT M20 | all | ||

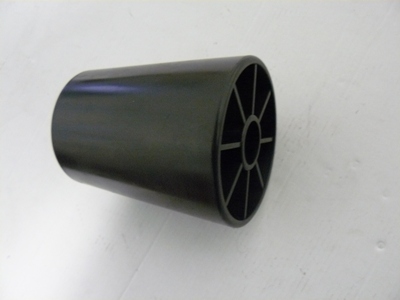

| 14 | W342600224 | BEAD BREAK. ROLLER D.102 L=120 | all |  |

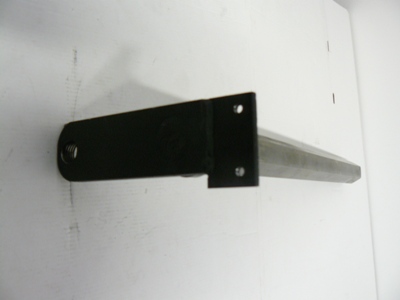

| 15 | W342600871 | HORIZONTAL ARM | all |  |

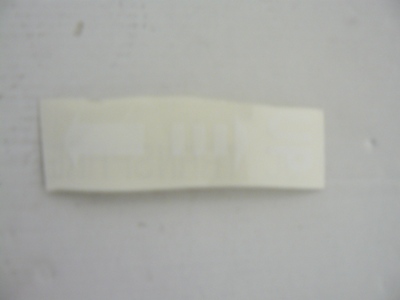

| 16 | W342600231 | DECAL | all |  |

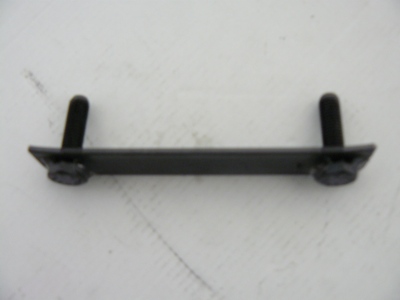

| 17 | W342600085 | H.3 FASTENING U-BOLT | all |  |
| 18 | SCREW 6x12 8.8 | all | ||
| 19 | WASHER 6 (6,4x12x1,6) | all | ||
| 20 | W342600083 | HORIZONTAL ARM COVER | all | |
| 21 | W342600537 | QUICK UNION 1/8” | all | |

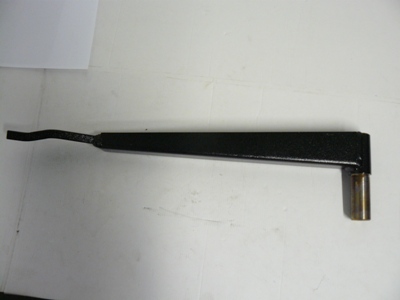

| 22 | W342600873 | BEAD BREAKING DISK ARM L=605 | all |  |
| 23 | W342600709 | GROWER WASHER D.10 | all | |

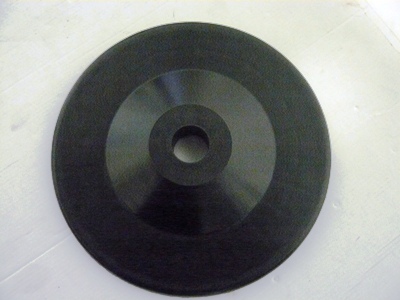

| 24 | W342600204 | BEAD BREAKING DISK | all |  |

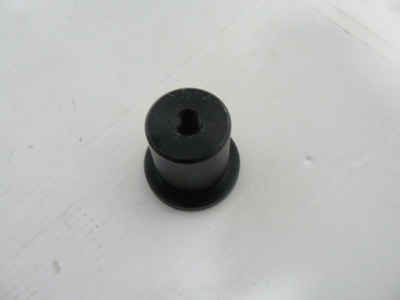

| 25 | W342600200 | DISK UPPER PIN | all |  |
| 26 | W342600031 | HANDLE+SCREW | all |  |
| 27 | WASHER D.10x45x4 | all | ||
| 28 | W342600287 | HOSE 6x4 L=1500 | all | |

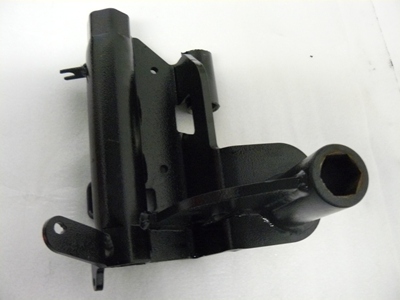

| 29 | W342600888 | HELP 3 SLIDE | all |  |
| 30 | SCREW 10x20 | all | ||
| 31 | W342600196 | KEEP PLATE | all | |

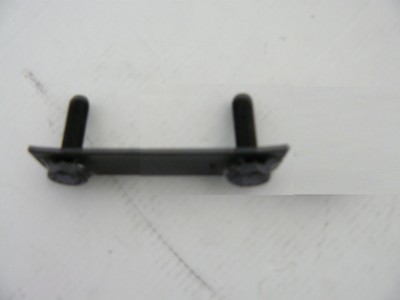

| 32 | W342600093 | U BOLT | all |  |

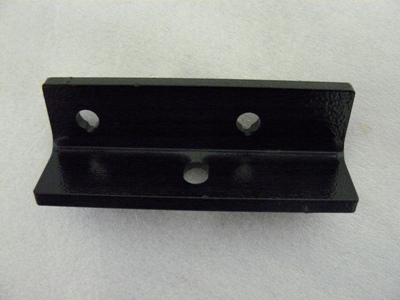

| 33 | W342600878 | SUPPORT | all |  |

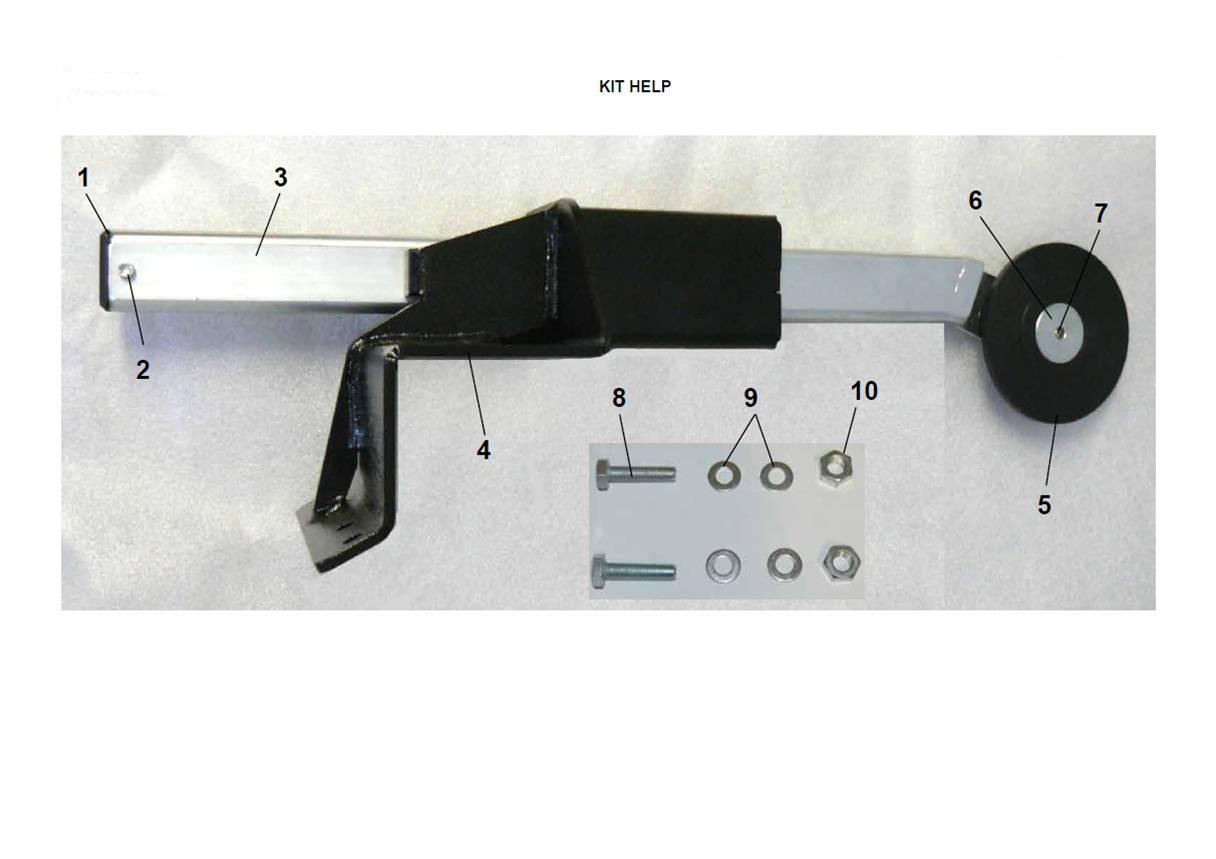

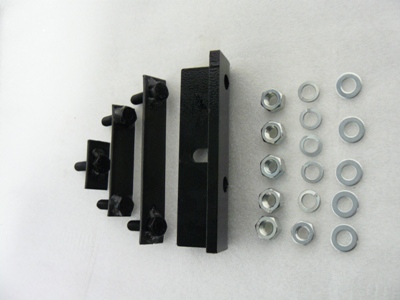

| 34 | W342600024 | HELP ARM INSTALLATION KIT | all |  |
| 35 | SELF-LOCKING NUT M3 | all | ||
| 36 | W342600089 | HELP 4 COVER | all | |
| 37 | W342600289 | HOSE 6x4 L=1500 | all | |
| 38 | W342600775 | SEEGER RING D.12 | all | |
| 39 | W342600514 | 5-WAYS VALVE | all |  |
| 40 | W342600542 | SILENCER 1/8” | all | |

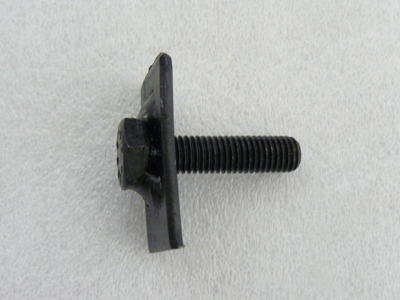

| 41 | W342600086 | ANTIROTATION SCREW H.3 | all |  |
| 42 | W342600012 | VALVE UNIT | all |  |

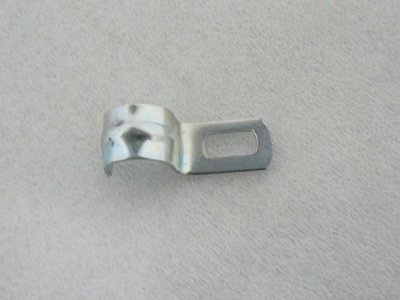

| 43 | W342600573 | STEEL HOOK D.16 | all |  |
| 44 | W342600267 | HOSE 6x4 L=1100 | all | |
| 45 | W342600299 | HOSE 6x4 L=1500 | all | |
| 46 | W342600146 | PIN L=50 | all | |
| 47 | SELF-LOCKING NUT M12 | all | ||
| 48 | W342600290 | HOSE 6x4 L=90 | all | |
| 49 | W342600266 | HOSE 6x4 L=1500 | all | |
| 50 | STUD BOLT 8x1,25x522 | all | ||
| 51 | W342600271 | FRONT FLANGE | all | |

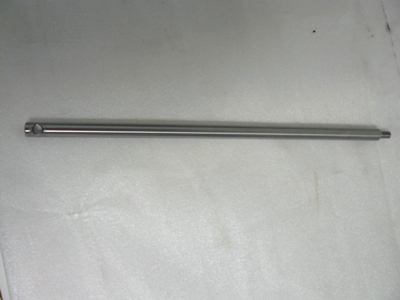

| 52 | W342600197 | CYLINDER SHAFT L=559 | all |  |
| 53 | W342600593 | O-RING-D68,26XH3,53 | all | |
| 54 | W342600599 | O-RING-D20,29XH2,62 | all | |
| 55 | W342600469 | OIL SCRAPER | all | |

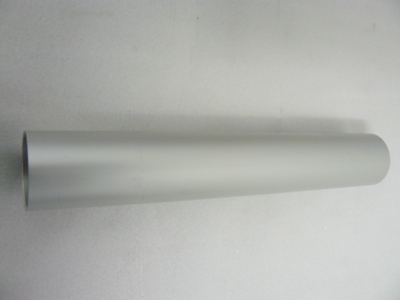

| 56 | W342600221 | CYLINDER LINER H.3 L=490 | all |  |
| 57 | W342600526 | PISTON D.75 | all | |
| 58 | WASHER D.12,5x30x3 | all | ||
| 59 | SELF-LOCKING NUT M12 | all | ||
| 60 | W342600270 | BACK FLANGE | all | |

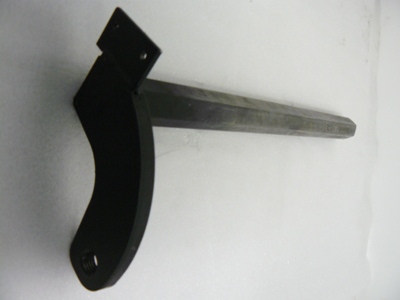

| 61 | W342600876 | HORIZONTAL ARM | all |  |
| 62 | W342600468 | SEEGER RING D.30 | all | |
| 63 | SCREW 3x45 | all | ||
| 64 | SHIM D.24x30x0,3 | all | ||
| 65 | NUT M8 | all | ||

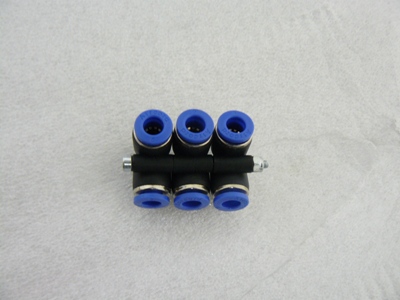

| 66 | W342600489 | UNION | all |  |
| 67 | WASHER 12 (13x24x2,5) | all | ||
| 68 | W342600181 | MOUNTING HEAD SHOCK ABSORBER | all | |

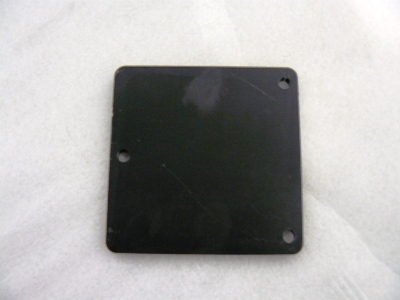

| 69 | W342600235 | FIXING PLATE H.4 | all |  |
| 70 | SCREW 6x16 10.9 | all | ||
| 71 | W342600588 | HANDLE | all |  |

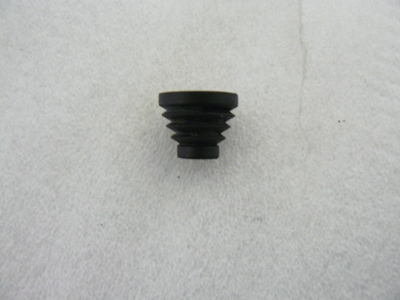

| 72 | W342600589 | VALVE COVER | all |  |
Press Arm 3
Notice:
Please note that some parts only exist in the exploded drawings but not in the spare parts table.
These parts can not be ordered separately!
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|
| 1 | W342600231 | DECAL | all | |

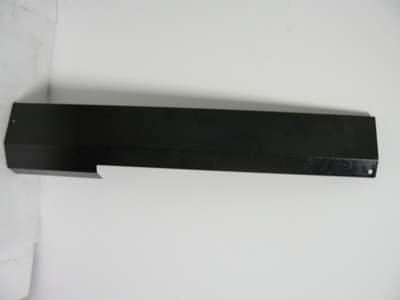

| 2 | W342600875 | P.A.3 COVER | all |  |
| 3 | WASHER D. 10x45x4 | all | ||
| 4 | SCREW 10x20 10.9 | all | ||
| 5 | W342600537 | UNION 6512 1/8” - 6 | all | |
| 6 | WASHER 6 (6,4x12x1,6) | all | ||
| 7 | SCREW 6x12 | all | ||
| 8 | W342600146 | PIN L=50 | all | |
| 9 | SELF-LOCKING NUT M12 | all | ||

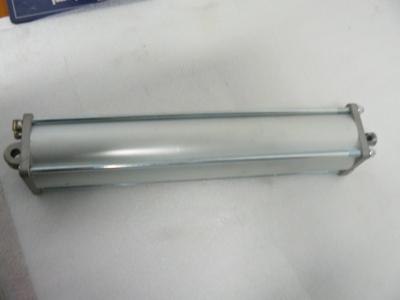

| 10 | W342600019 | CYLINDER UNIT | all |  |
| 11 | W342600537 | QUICK UNION 1/8” | all | |

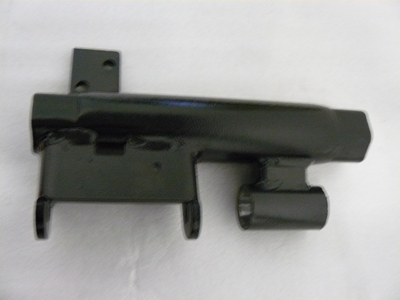

| 12 | W342600890 | SLIDE | all |  |
| 13 | WASHER D.10x45x4 | all | ||
| 14 | SCREW M10x20 - 8.8 | all | ||
| 15 | SCREW 10x20 | all | ||
| 16 | NUT M10 | all | ||
| 17 | SCREW TE 16x160 8.8 | all | ||
| 18 | WASHER 16 (17x30x3) | all | ||
| 19 | SELF-LOCKING NUT M16 | all | ||

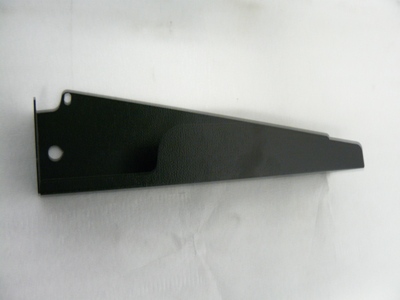

| 20 | W342600889 | ARM FRAME | all |  |
| 21 | WASHER 12 (13x24x2,5) | all | ||

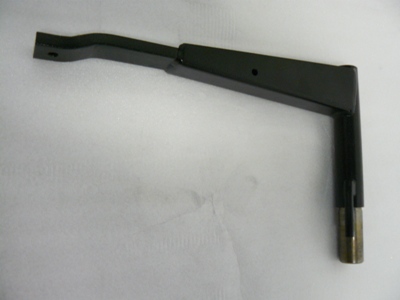

| 22 | W342600872 | BEAD BREAKING DISK ARM L=425 | all |  |
| 23 | W342600291 | RILSAN HOSE D.6x4 L=580 | all | |
| 24 | WASHER D.10 (10,5x21x2) | all | ||
| 25 | W342600204 | BEAD BREAKING DISK | all | |
| 26 | W342600200 | DISK UPPER PIN | all | |
| 27 | W342600590 | HANDLE WITH PIN M10x20 | all | |

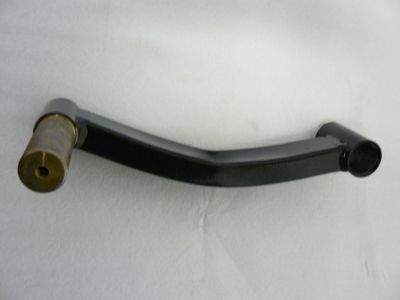

| 28 | W342600884 | ARM 2 P.A.3 | all |  |
| 29 | W342600091 | ARM 3 P.A.3 | all |  |

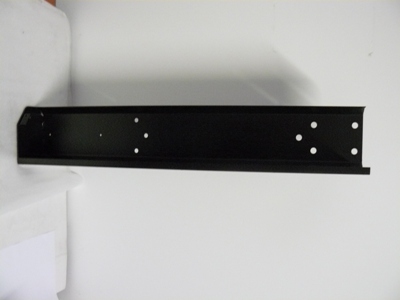

| 30 | W342600874 | P.A.3 BASE | all |  |

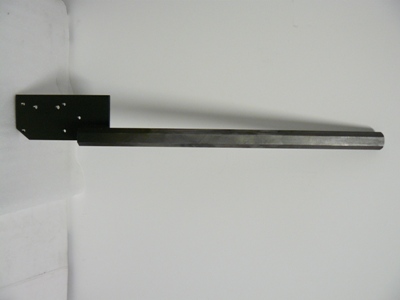

| 31 | W342600090 | VERTICAL ARM P.A.3 | all |  |

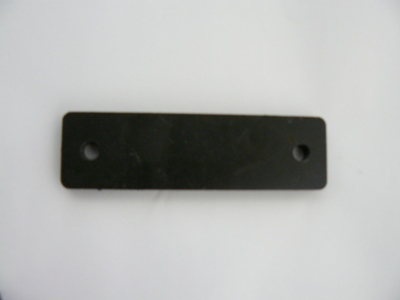

| 32 | W342600208 | FIXING PLATE | all |  |
| 33 | W342600098 | ARM 3 SLIDE | all |  |
| 34 | W342600223 no longer available! | BEAD PRESSING TOOL 50x90x110 | all |  |
| 35 | WASHER 8 (9x24x2) | all | ||
| 36 | SCREW M 8x16 8.8 | all | ||

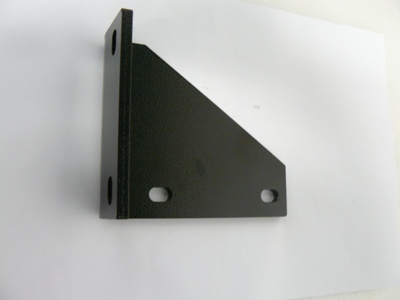

| 37 | W342600870 | SUPPORT | all |  |

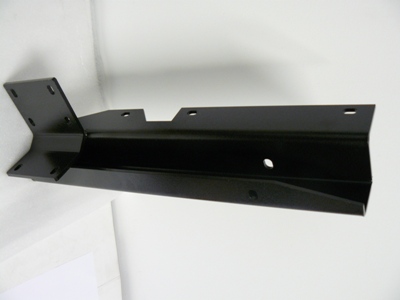

| 38 | W342600869 | P.A.2 BASE COLUMN | all |  |
| 39 | SCREW TE 10x25 8.8 | all | ||
| 40 | W342600514 | 5-WAYS VALVE | all | |
| 41 | W342600573 | STEEL HOOK D.16 | all | |
| 42 | W342600542 | SILENCER 1/8” | all | |
| 43 | W342600012 | VALVE UNIT | all | |
| 44 | W342600295 | RILSAN HOSE D.6x4 L=1050 | all | |
| 45 | W342600255 | PVC SHEATH 18x20 L=750 | all | |
| 46 | SCREW M10x30 8.8 | all | ||
| 47 | NUT M10 | all | ||
| 48 | STUD BOLT M8x1,25x437 | all | ||
| 49 | W342600172 | BACK FLANGE | all | |
| 50 | W342600593 | O-RING D.68,26x3,53 | all | |
| 51 | NUT M12 | all | ||
| 52 | WASHER D.12,5x30x3 | all | ||
| 53 | W342600526 | PISTON D.75 | all | |
| 54 | W342600226 | CYLINDER LINER L=405 | all |  |
| 55 | W342600469 | OIL SCRAPER | all | |
| 56 | GUIDE IN NYLON | all | ||
| 57 | W342600227 | CYLINDER SHAFT D.20 L=458 | all | |
| 58 | W342600173 | FRONT FLANGE | all | |
| 59 | W342600288 | HOSE 6x4 L=1050 | all | |
| 60 | W342600266 | HOSE 6x4 L=1500 | all | |
| 61 | W342600637 | SCREW 3x45 | all | |
| 62 | W342600468 | SEEGER RING D.30 | all | |
| 63 | FLANGE NUT M8 | all | ||
| 64 | W342600687 | SHIM D.24x30x0,3 | all | |
| 65 | W342600209 | SPACER 12x18x45 | all |  |
| 66 | W342600691 | SCREW 12x75 8.8 | all | |
| 67 | SELF-LOCKING NUT M3 | all | ||
| 68 | W342600664 | SCREW 10x20 | all | |
| 69 | NUT M10 | all | ||
| 70 | WASHER D.10 (10,5x21x2) | all | ||
| 71 | W342600292 | HOSE 6x4 L=2000 | all | |
| 72 | W342600294 | HOSE 6x4 L=1050 | all | |
| 73 | W342600290 | HOSE 6x4 L=90 | all | |
| 74 | W342600262 | ARM END PART | all | |
| 75 | W342600237 | KNOB D.14X45 M5 | all | |

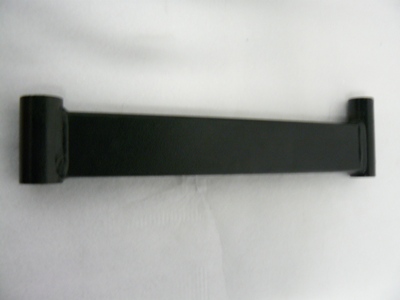

| 76 | W342600877 | ARM | all |  |
Kithelp
Notice:
Please note that some parts only exist in the exploded drawings but not in the spare parts table.
These parts can not be ordered separately!
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|
| 1 | W342600262 | ARM END PART | all | |
| 2 | SCREW 6x12 | all | ||

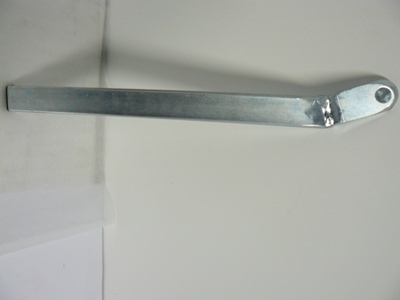

| 3 | W342600119 | DISC SUPPORT ARM | all |  |

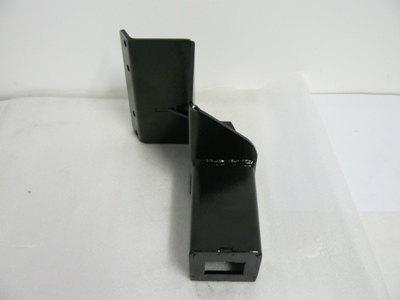

| 4 | W342600892 | KIT HELP ARM SUPPORT | all |  |

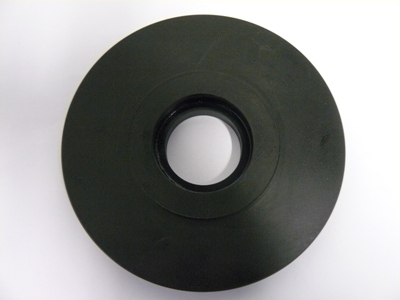

| 5 | W342600431 | DISC FOR KIT HELP | all |  |

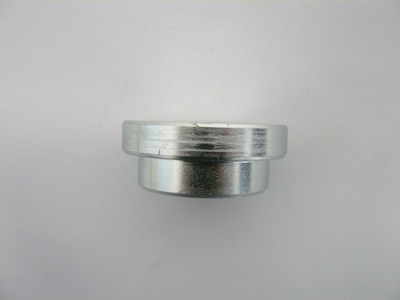

| 6 | W342600432 | DISC PIN | all |  |
| 7 | SCREW 10x30 | all | ||
| 8 | SCREW 10x40 | all | ||
| 9 | WASHER D.10 (10,5x21x2) | all | ||
| 10 | NUT M10 | all |

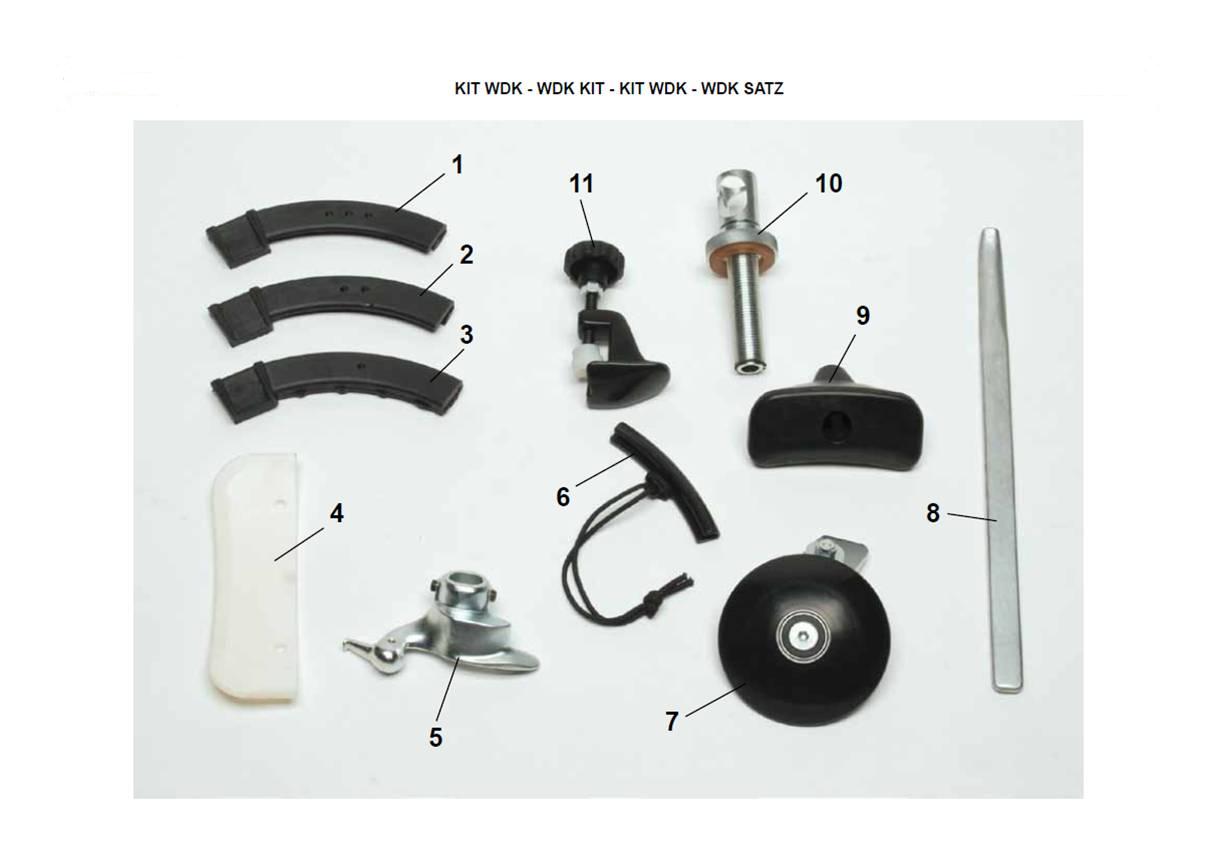

Kit WDK - only WTM 400 RF
Notice:
Please note that some parts only exist in the exploded drawings but not in the spare parts table.
These parts can not be ordered separately!
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|

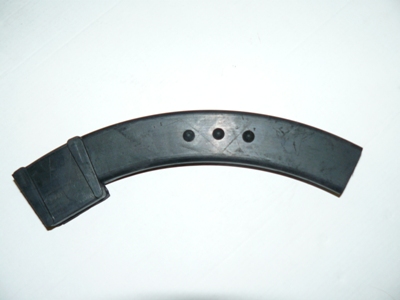

| 1 | W342600371 | RUBBER PROTECTION T.3 | all |  |

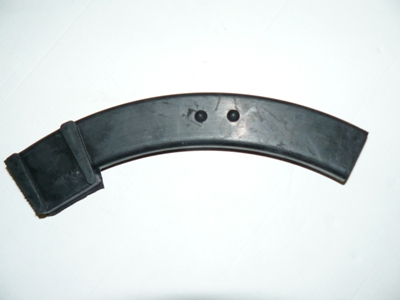

| 2 | W342600370 | RUBBER PROTECTION T.2 | all |  |
| 3 | W342600369 | RUBBER PROTECTION T.1 | all | |

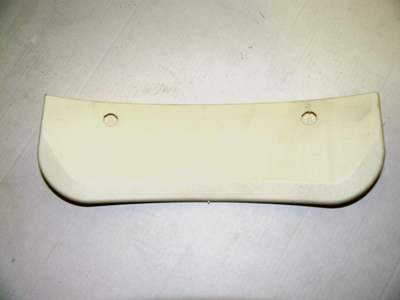

| 4 | W342600263 | PROTECTIVE COVER | all |  |
| 5 | W342600036 | MOUNTING TOOL | all |  |

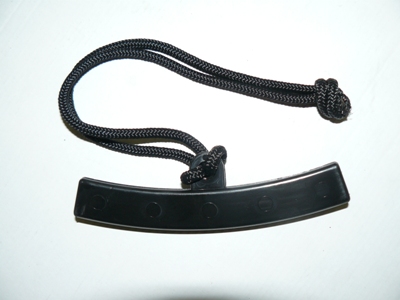

| 6 | W342600032 | COMPLETE JAW`S RIM PROTECTION | all |  |

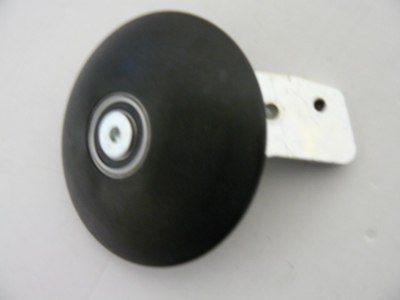

| 7 | W342600056 | RUN FLAT UHP DISC UNIT | all |  |
| 9 | W342600372 | PRESS ARM "S" PAD | all |  |

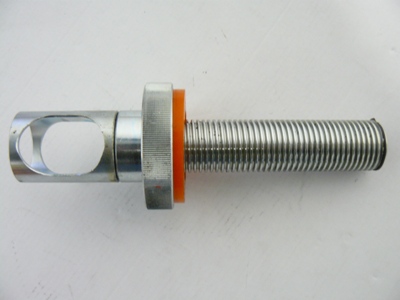

| 10 | W342600060 | STROKE LIMITER | all |  |

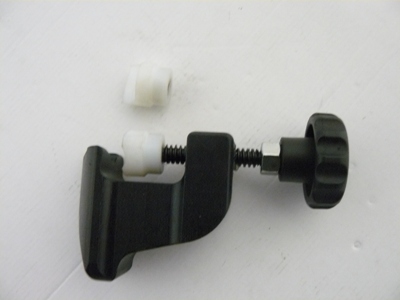

| 11 | W342600941 | CLAMP - RUN FLAT KIT | all |  |
