WEL 228BF

Please choose the subassembly in the selection.

Selection of subassembly
control board
lifter complete







CONTROL BOARD

Notice:

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

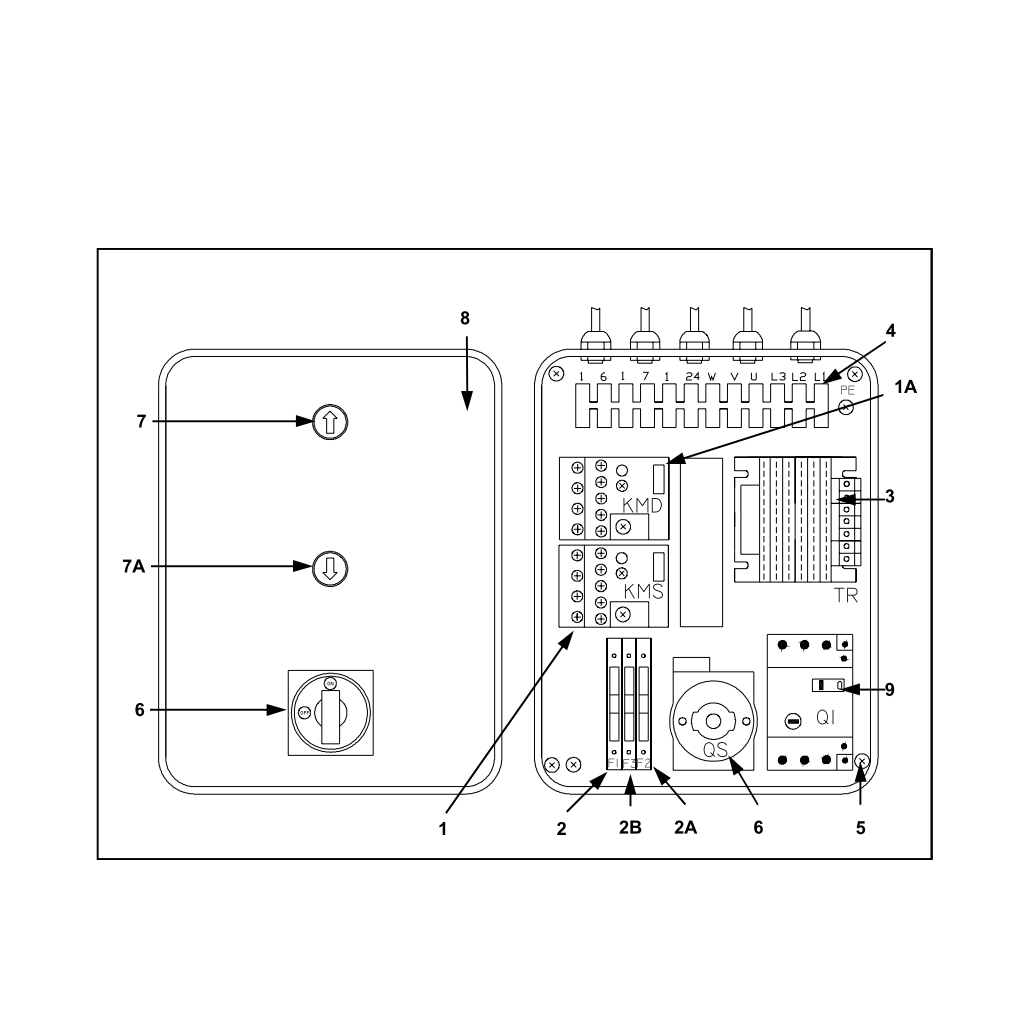

Exploded Drawing WEL 228BF control board

Click to enlarge

PosArticle No.DesignationSerial-No.Picture
1W111400034SP-LCONTACTORall
2W111400051SP-FUSEall
2W111400057SP-HOLDERall
2bW111400036SP-FUSEall
3W111400035SP-TRANSFORMERall
6W111400055SP-SWITCHall
7W111400053SP-CONTACTall
7W111400054SP-BUTTONall
9W111400037SP-BREAKERall

LIFTER COMPLETE

Notice:

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

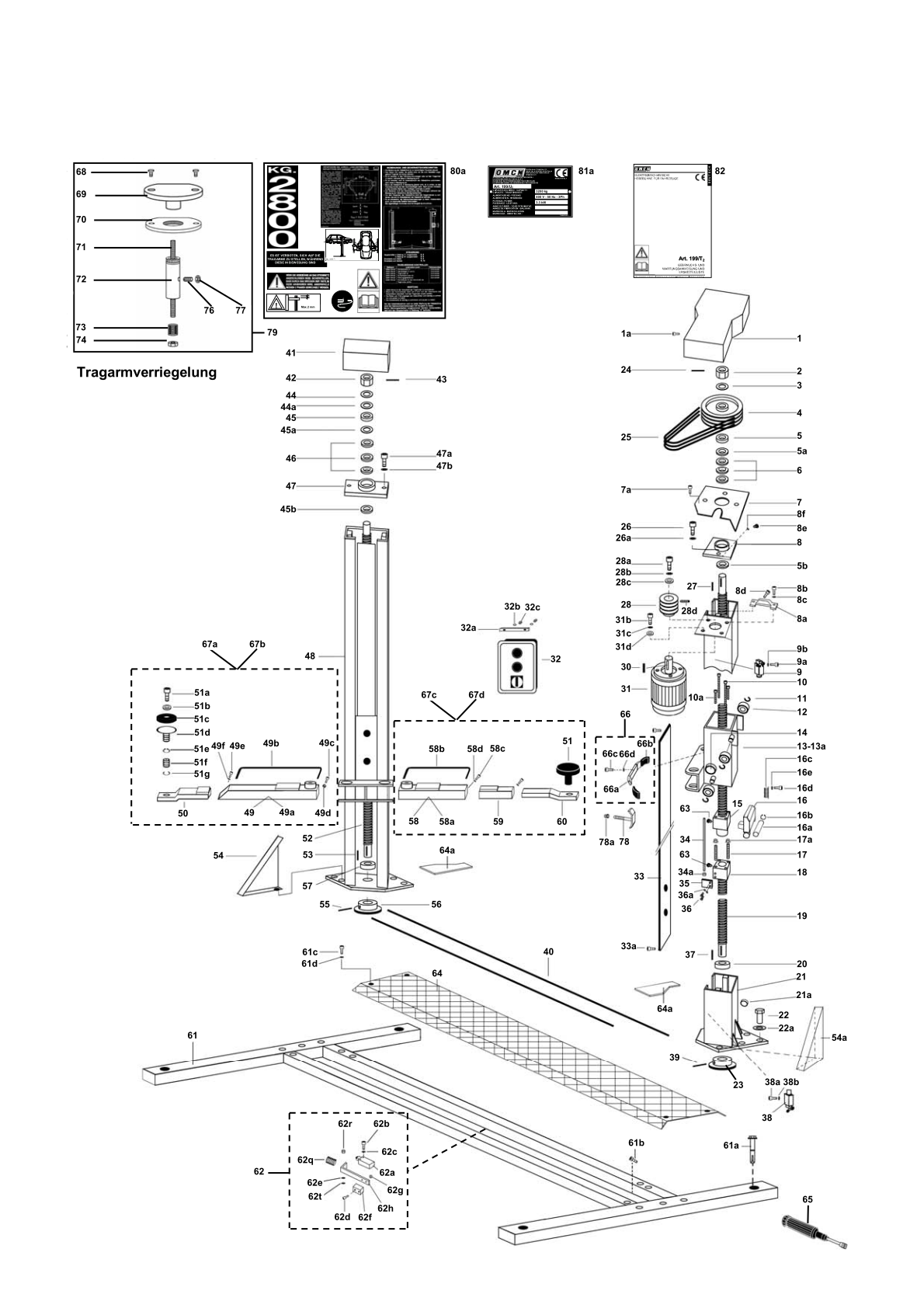

Exploded Drawing WEL 228BF lifter complete

click to enlarge

PosArticle No.DesignationSerial-No.Picture
5W111400042SP-BEARINGall
6W111400043SP-BEARINGall
9W111400058SP-SWITCHall
12W111400039SP-BLOCKall
23W111400033SP-PINIONall
25W111400045SP-BELTall
51cW111400041SP-PADall
57W111400032SP-BEARINGall
62aW111400038SP-SWITCHall
62fW111400031SP-BLOCKall
65W111400040SP-PUMPall
