Coolius 1200 - (Art.no. 0900764990)
Notice:
Please note that some parts only exist in the exploded drawings but not in the spare parts table.
These parts can not be ordered separately!
| Pos | Article No. | Designation | Serial-No | Picture |
|---|---|---|---|---|
| without | 0900900692 | Service kit - 100 hrs | all | |
| without | 0900900693 | Service kit - 200 hrs | all |
| Pos | Article No. | Designation | Serial-No | Picture |
|---|---|---|---|---|

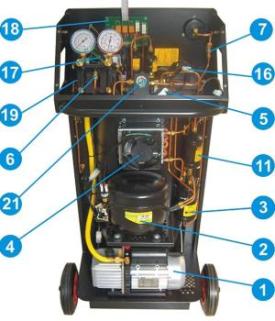

| 1 | 0900902607 | Vacuum pump module | all |  |
| 1.1 | 0900900695 | Brass fitting | all |  |
| 1.2 | 0900900696 | Vacuum pump oil - 330 ml | all | |
| 2.1 | 0900900697 | Compressor FR11G | all |  |
| 2.2 | 0900900698 | Pressure switch | all |  |
| 2.3 | 0900900699 | Compressor oil | all | |

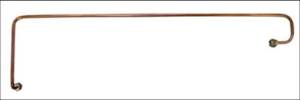

| 2.4 | 0900901600 | Copper pipe | all |  |
| 2.5 | 0900901601 | Copper pipe | all |  |

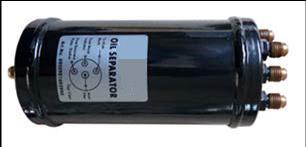

| 3.1 | 0900901602 | Oil separator | all |  |
| 3.2 | 0900901603 | Brass fitting | all |  |
| 3.3 | 0900901604 | Copper pipe | all |  |
| Pos | Article No. | Designation | Serial-No | Picture |
|---|---|---|---|---|

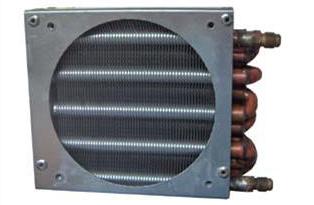

| 4.1 | 0900901605 | Condensing coil | all |  |
| 4.2 | 0900901606 | Cooling fan | all |  |
| 4.3 | 0900901607 | Copper pipe | all |  |
| 4.4 | 0900901608 | Copper pipe | all |  |

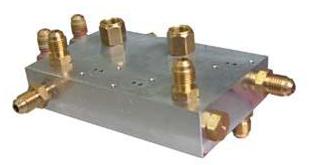

| 5.1 | 0900901609 | Solenoid valves manifold | all |  |
| 5.2 | 0900901610 | Primary charging line filter | all |  |
| 5.3 | 0900901611 | Primary recovery line filter | all |  |
| 5.4 | 0900901612 | Pressure switch | all |  |
| 5.5 | 0900901613 | Pressure switch | all |  |
| 5.6 | 0900901614 | Solenoid valve | all |  |

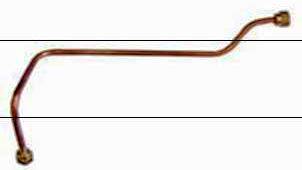

| 5.7 | 0900901615 | Copper pipe | all |  |
| 5.8 | 0900901616 | Copper pipe | all |  |
| 5.9 | 0900901617 | Copper pipe | all |  |
| 5.10 | 0900901618 | Copper pipe | all |  |
| 0900902623 | Copper pipe (1/4" - Flare) | all |  | |
| 5.11 | 0900901619 | Check valve | all |  |
| 5.12 | 0900901620 | Brass fitting | all |  |

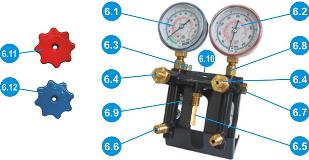

| 6.1 | 0900901621 | Gauge low pressure | all |  |
| 6.2 | 0900901622 | Gauge high pressure | all |  |
| 6.3 | 0900901623 | Pressure switch | all |  |
| 6.4 | 0900901624 no longer available | Spool valve | all |  |
| 6.5 | 0900901625 | Copper pipe | all |  |
| 6.6 | 0900901626 | Brass fitting | all |  |
| 6.7 | 0900901627 | Brass fitting | all |  |
| 6.8 | 0900901628 | Brass fitting | all |  |
| 0900902615 | Female M10 x 1,25 - 1/8" BSP | all |  | |
| 6.9 | 0900901629 | Brass fitting | all |  |
| 6.10 | 0900901630 | Brass fitting | all |  |
| 6.11 | 0900901631 | Hand wheel | all |  |
| 6.12 | 0900901632 | Hand wheel | all |  |
| 6.13 | 0900901633 | Hand m-fold | all |  |
| 6.14 | 0900901634 | NHBR "o"-ring | all |  |

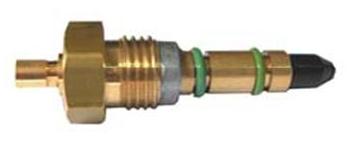

| 6.15 | 0900902600 | Vacuum switch | all |  |
| Pos | Article No. | Designation | Serial-No | Picture |
|---|---|---|---|---|
| 7.1 | 0900901635 | Ball valve | all |  |
| 7.2 | 0900901636 | Gauge | all |  |
| 7.3 | 0900901637 | Copper pipe | all |  |
| 7.4 | 0900901638 | Copper pipe | all |  |
| 7.5 | 0900901639 | NHBR "o"-ring | all |  |
| 0900902626 | NHBR "o"-ring 5,25 x 1,78 mm | all |  | |
| 8.1 | 0900901641 | Solenoid valve | all |  |
| 8.2 | 0900901644 | Oil plastic vessel | all |  |
| 8.3 | 0900901642 | Brass fitting | all |  |
| 8.4 | 0900901643 | Plastic hose | all |  |
| 9.1 | 0900902613 | Recovered oil reservoir retainer | all |  |
| 9.2 | 0900901645 | Recovered oil container | all |  |
| 9.4 | 0900901647 | Copper pipe | all |  |
| Pos | Article No. | Designation | Serial-No | Picture |
|---|---|---|---|---|
| 10.1 | 0900902614 | New oil retainer | all |  |
| 10.3 | 0900901651 | Copper pipe (1/4" flare) | all |  |
| 11 | 0900901653 | Main filter dryer | all |  |

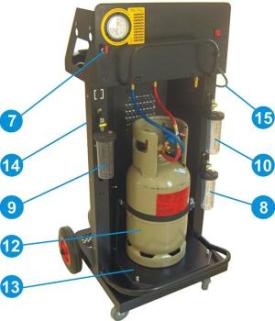

| 12.1 | 0900902606 | Refrigerant cylinder | all |  |
| 12.2 | 0900901655 | Cylinder strap | all |  |

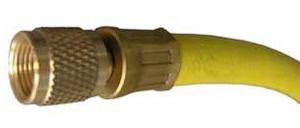

| 12.3 | 0900901656 | Refrigerant hose | all |  |
| 0900902618 | Hose, red, without valve | all |  | |
| 0900902619 | Hose, red, with valve | all |  | |
| 12.4 | 0900901657 | Refrigerant hose | all |  |
| 0900902620 | Hose, blue, without valve | all |  | |
| 0900902621 | Hose, blue, with valve | all |  | |
| 12.5 | 0900901658 | NHBR "o"-ring | all | |
| Pos | Article No. | Designation | Serial-No | Picture |
|---|---|---|---|---|
| 13.1 | 0900901659 | Cylinder Platform | all |  |

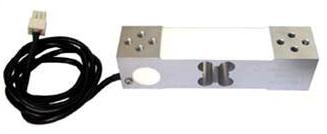

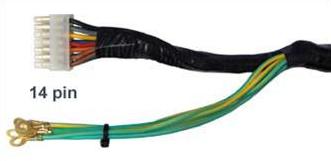

| 13.2 | 0900901660 | Load cell | all |  |
| 13.3 | 0900901661 | Distant steel plate | all |  |
| 14.1 | 0900901662 | Chassis basis | all |  |
| 14.2 | 0900901663 | Chassis cover | all |  |
| 14.3 | 0900902622 | Wheel Ø 200 x 20 mm | all |  |
| 14.4 | 0900901665 | Castor wheel | all |  |
| 15.1 | 0900901666 | Power lead - DIN | all |  |
| 15.2 | 0900901667 | Power lead - UK | all |  |
| 15.3 | 0900901668 | Power lead - USA | all |  |
| 15.4 | 0900901669 | Transformer | all |  |
| 15.5 | 0900901670 | Fuse holder | all |  |
| 15.6 | 0900901671 | Fuse 10 A | all |  |
| 15.7 | 0900901672 | Power switch | all |  |
| 16 | 0900901673 | Wiring loom (Low voltage) | all |  |

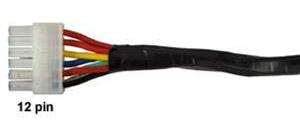

| 17 | 0900902608 | Wiring loom (High voltage) | all |  |
| 18 | 0900902610 | Relay card | all |  |
| 18.1 | 0900901676 | Ribbon cable | all |  |
| 19.1 | 0900901677 | Solenoid valve | all |  |
| 19.2 | 0900901678 | Rubber hose | all |  |
| 19.3 | 0900901679 | Brass fitting | all |  |
| 19.3 | 0900901680 | Brass fitting | all |  |
| 19.4 | Brass fitting 1/4" BSP - 1/4" Flare | all |  | |

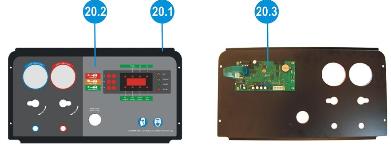

| 20.1 | 0900902611 | Membrane switch panel | all |  |

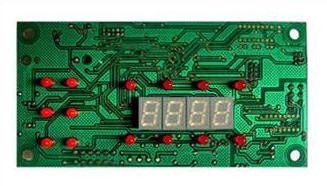

| 20.3 | 0900902609 | Processor board | all |  |
| Pos | Article No. | Designation | Serial-No | Picture |
|---|---|---|---|---|

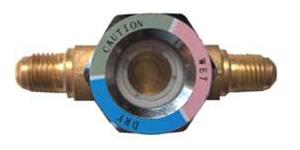

| 21.1 | 0900901684 | Moisture indicator | all |  |
| 21.2 | 0900901685 | Copper pipe | all |  |
| 0900902625 | Copper pipe (1/4" flare) | all |  | |

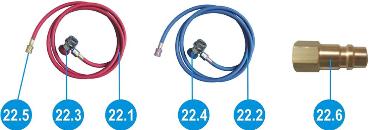

| 22.1 | 0900901686 | Service hose, red, 3,0 m | all |  |
| W052400106 | Service hose, red, 6,0 m | all | | |
| 22.2 | 0900901687 | Service hose, blue, 3,0 m | all |  |
| W052400107 | Service hose, blue, 6,0 m | all | | |
| 22.3 | 0900901688 | R134 quick coupler, red | all |  |
| 22.4 | 0900901689 | R134 quick coupler, blue | all |  |
| 22.5 | 0900901690 | NHBR "o"-ring | all | |
| 22.6 | 0900901691 | Brass adapter | all |  |
