WAC 1200YF - (Art.no. W050400008)



Exploded drawing will follow soon!



To Accessory parts To Accessory parts

To maintenance parts To maintenance parts

Article No.DesignationSerial-No.Picture
W052400002SP-STICKER-WARNINGall
W052400003SP-STICKER SWITCH OFFall
W052400004SP-STICKER-OIL-NEW-OLDall
W052400005SP-STICKER-TRACER-WARANTYall
W052400007SP-STICKER-OIL-VACUUM-PUMPall
W052400008SP-STICKER-PRINTER all
W052400011SP-STICKER-OILall
W052400113SP-FRONT GLASSED STICKER WOWall

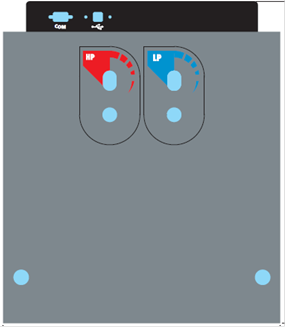

W052400114SP-FRONTAL-PANELall
W052400115SP-TOP-Lexan Panelall
W052400019SP-STICKER-WOW-ACall
W052400116SP-QUICK COUPLER CONNECTION HP HFO1234yfall
W052400117SP-QUICK COUPLER CONNECTION LP HFO1234yfall
W052400024SP-SCALE-REFRIGERANT-35 KGall
W052400025SP-SCALE-OIL-15KGall
W052400118SP-CONDENSER FAN 172x150x51 / 12 VDCall
W052400119SP-CONDENSER FAN 120x120x38 / 12 VDCall
W052400027SP-SPACER-BOTTLEall
W052400028SP-COIL-SOLENOIDVALVE to S/N XX1501520
W052400109SP-COIL-SOLENOIDVALVE from S/N XX1501521
0900901666SP-POWER LEAD-DIN-EUROPEall
0900901667SP-CABLE-UK-5MTR-KALTGERAET-C13all
W052400029SP-POWER FILTERall
W052400030SP-POWER CABLE-CONNECTORall
W052400031SP-HEATER-BELT-BOTTLE 12Lall
W052400033SP-FUSE 8Aall
W052400034SP-INTERNAL SERIAL CABLEall
W052400035SP-INTERNAL USB CABLEall
W052400036SP-WIRING-CABLE-WITH-CONNECTORall
W052400037SP-FILTER all
W052400038SP-COMPRESSOR all
W052400120SP-CONDENSER HFOall
W052400041SP-CONTAINER-BLUE-260MLall
W052400042SP-CONTAINER-YELLOW-260MLall
W052400043SP-CONTAINER-RED-260MLall
W052400044SP-PACKING-KIT-COMPLETE-WAC1200all
W052400045SP-CHECK-VALVEto S/N XX1501520
W052400108SP-CHECK-VALVEfrom S/N XX1501521
W052400047SP-COVERall
W052400048SP-TANK-PRESSURE GAUGE all
W052400049SP-HP GAUGEall
W052400050SP-LP GAUGEall
W052400051SP-BLACK KNOBall
W052400052SP-RED CAP FOR KNOBall
W052400053SP-BLUE CAP FOR KNOBall
W052400054SP-FRONTAL COVER-GREYall
W052400055SP-REAR COVER-BLACK 22Lall
W052400056SP-REAR COVER-OILCHECK-BLACKall
W052400057SP-LEFT SIDE-BLACKall
W052400058SP-RIGHT SIDE-BLACKall
W052400059SP-HANDLE-BLACKall
W052400060SP-REAR PLASTIC POKETall
W052400121SP-VACUUM PUMP 115l/min 230V - 50/60Hzall
W052400062SP-HEATER PRESSURE SWITCHall
W052400063SP-SAFETY PRESSURE SWITCH-WITH-CONall
W052400066SP-ALUMINIUM NUT-1/4"SAEall
W052400068SP-CONNECTOR-FOR-SILICON HOSE all
W052400069SP-NUT FOR SILICON HOSE all
W052400073SP-OIL DRAIN FITTING-REDall
W052400074SP-CONNECTOR-TRACER-YELLOWall
W052400075SP-CONNECTOR-OIL-BLUEall
W052400076SP-WHEEL-WITH-BRAKE-100MMall
W052400077SP-WHEEL-REAR-250MMall
W052400080SP-SAFETY RING-20MM-FOR-RUO7110all
W052400122SP-MOTHERBOARD value-unic-3 lcd mm98x39all
W052400110SP-MOTHERBOARD-CYRILLICall
W052400082SP-MEMBRANE KEYPADall
W052400083SP-BOTTLE TEMPARATURE SENSORall
W052400084SP-PRINTERall
W052400085SP-CAP-FOR-CONTAINER-260MLall
W052400087SP-CORK FOR WHEELall
W052400088SP-PRESSURE TRANSDUCER-2CP5-64 all
W052400089SP-COPPER HOSE-1/4"-1/4"SAEall
W052400090SP-HOSE BLUE-1M-1/4"-1/4"SAEall
W052400091SP-HOSE RED-60CM-1M-1/4"-1/4"SAEall
W052400123SP-RED HOSE-3M-HFO-1234YFall
W052400124SP-BLUE HOSE-3M-HFO-1234YFall
W052400094SP-COPPER HOSE-1/4"-1/4"SAE-DEPRESSORall
W052400095SP-SILICON TUBE-10M-3MMX6MMall
W052400097SP-HOSE-45CM-F1/4"-F1/4"SAEall
W052400098SP-HOSE-50CM-F1/4"-F1/4"SAEall
W052400099SP-HOSE-60CM-F1/4"-F1/4"SAEall
W052400100SP-HOSE-75CM-F1/4"-F1/4"SAEall
W052400101SP-SOLENOID VALVE-PARKERto S/N XX1501520
W052400111SP-SOLENOID VALVE-ODEfrom S/N XX1501521
W052400102SP-CHECK VALVE-M1/4"-M1/4"SAEall
W052400103SP-SAFETY VALVE all

ACCESSORY PARTS

PosArticle No.DesignationSerial-No.Picture
 076495 002AY-PAPERROLL-A/C-PRINTERall
 W067400003AY-DATABASE-UPDATE-WAC1200YFall

MAINTENANCE PARTS

PosArticle No.DesignationSerial-No.Picture
 W052200279Seal screw1 incl. seal ringall
 W052400037Filter dryerall
 0892764300Wurth vacuum pump oil ISO 68 - 2 pcs to order!all
 0900106005Maintenance stickerall
