Coolius A30
* also for cyrillic version

Notice:

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

To Accessory parts To Accessory parts

To maintenance parts To maintenance parts

Service unit parts

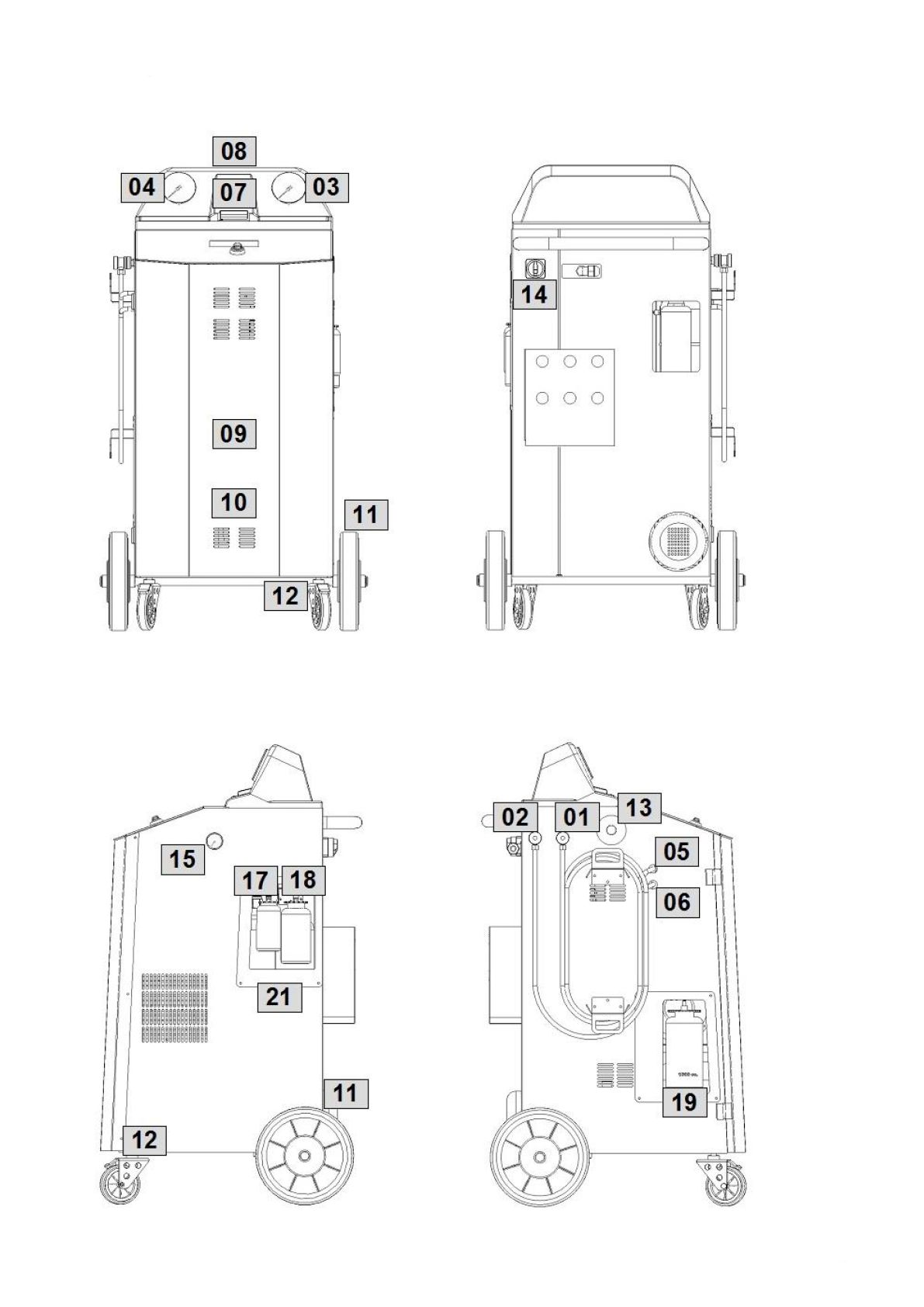

exploded drawing service unit



click to enlarge

PosArticle No.DesignationSerial-No.Picture
1W052200247SP-SERVICE-COUPLING-HPall
2W052200246SP-SERVICE-COUPLING-LPall
3W052200259SP-GAUGE-HPall
4W052200258SP-GAUGE-LPall
 W052100049SP-RINGS-RED-BLUE-GAUGESall

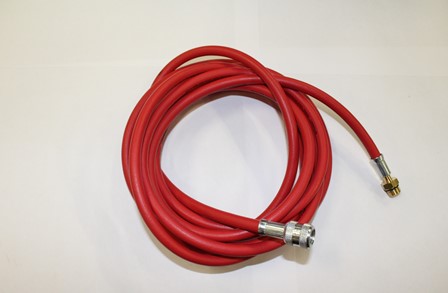

5W052100000SP-SERVICE-HOSE-HP-5Mall

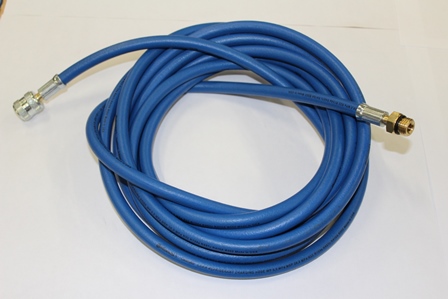

6W052100001SP-SERVICE-HOSE-LP-5Mall
 W052100159SP-O-RING-SERVICE-HOSE-M14-R134Aall
 W052100178SP-GASKET for 1/4SAE and 1/2 ACME HOSES- A Seriesall
 W052100173SP-HOLDER-SERVICE-HOSES-10-30all
7W052200220SP-PRINTER-KITall

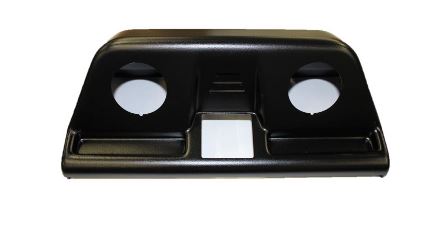

8W052100029SP-TOP-COVERuntil SN-AC000139
 W052100094SP-TOP-COVERfrom SN-AC000140
9W052100030SP-LOGO-WABCO-WUERTHall
 W052100031 SP-LOGO-AUTOCOMall
10W052100032SP-STICKER-A30-BUS all

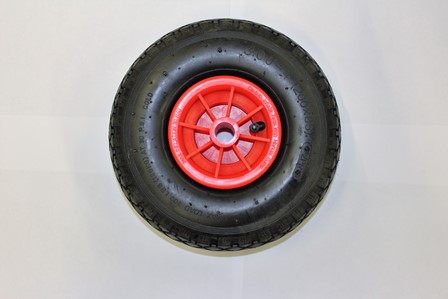

11W052100033SP-WHEEL-REAR all
 W052100090SP-TYPE A - REAR WHEEL BLOCK =10pcsall
 W052100091SP-TYPE A - REAR WHEEL STING =10pcsall
 W052100100SP-TYPE B - REAR WHEEL CAP =10pcsall

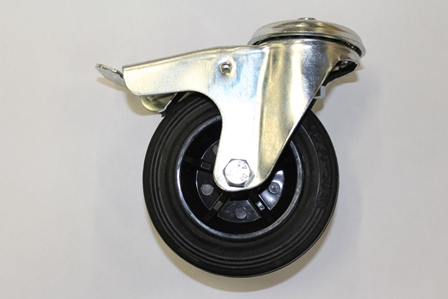

12W052100034SP-FRONT-WHEEL-WITH-BRAKE all
13W052100027SP-MAIN-FAN all
14W052100026SP-MAIN-SWITCH all
 W052100083MAIN SWITCH (VERSION WITH SCREWS)all

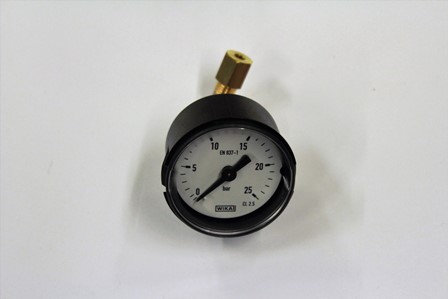

15W052100025SP-INTERNAL-VESSEL-PRESSURE-GAUGE all

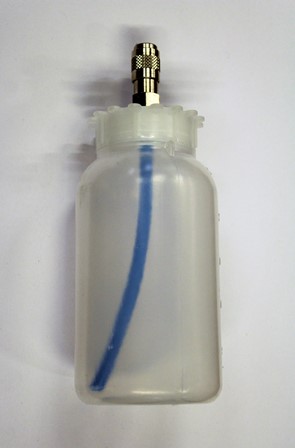

17W052200275SP-BOTTLE-UV-TRACER-250MLall

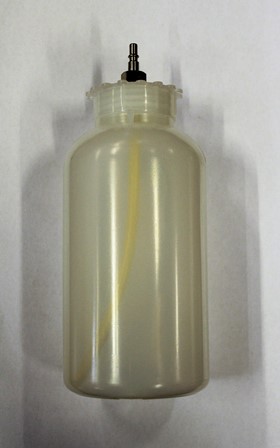

18W052100021SP-BOTTLE-NEW-OIL-500MLall
 W052100103NEW OIL / POE OIL CONNECTOR G1/8 201all

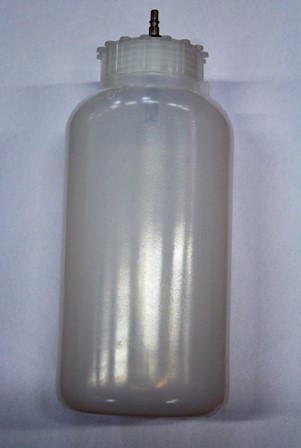

19W052100022SP-BOTTLE-USED-OIL-1000MLall
 W052100098SP-CONNECTOR-OLD-OIL-UV-BOTTLEall
 W052100170SP-ADAPTER-KIT-FOR-SEALED-OIL-BOTTLESall
21W052100035
no longer available!		SP-PLASTIC-FRAME all

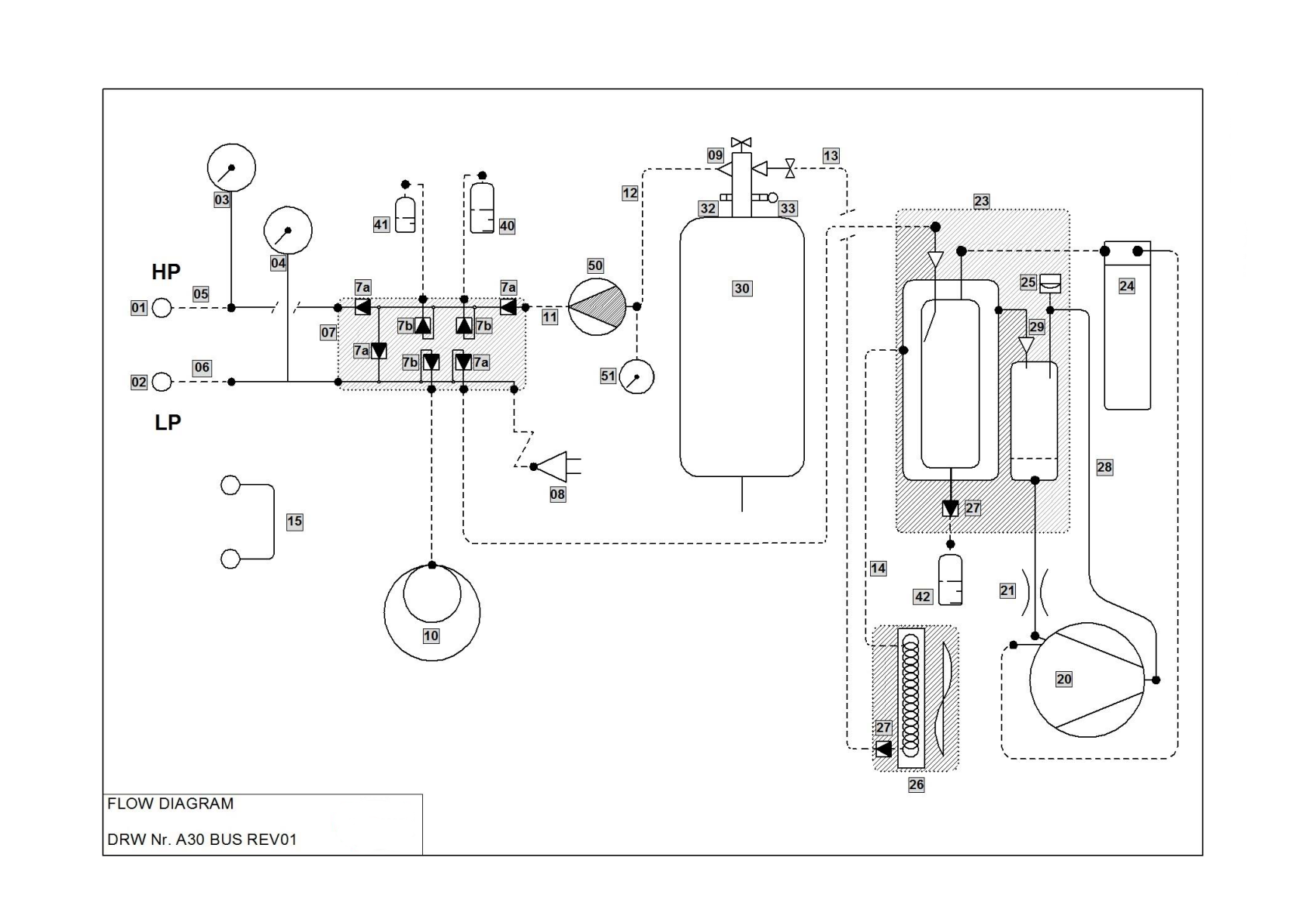

Flow diagram

flow diagram



click to enlarge

PosArticle-No.DesignationSerial-No.Picture
1W052200247SP-SERVICE-COUPLING-HPall
2W052200246SP-SERVICE-COUPLING-LPall
3W052200259SP-GAUGE-HPall
4W052200258SP-GAUGE-LPall
5W052100000SP-SERVICE-HOSE-HP-5Mall
6W052100001SP-SERVICE-HOSE-LP-5Mall
7W052100002SP-MANIFOLDall
7aW052200224SP-ELECTRIC-VALVE-GROUP-LP-XP-RF-A2all
7bW052200225SP-ELECTRIC-VALVE-GROUP-NO-UV-VPall
8W052100125SP-PRESSURE-TRANSDUCER-ELECTRONIC-TO-SN-000139up to SN 000139
8W052200262SP-PRESSURE-TRANSDUCER-ELECTRONIC-FROM-SN-000140from SN 000140
9W052100004SP-CHECKVALVE-A/C-CHARGEall
10W052100005SP-VACUUM-PUMPall
 W052100172SP-SCREW-M8-WITH-O-RING-VAC-PUMP-100-128Lall

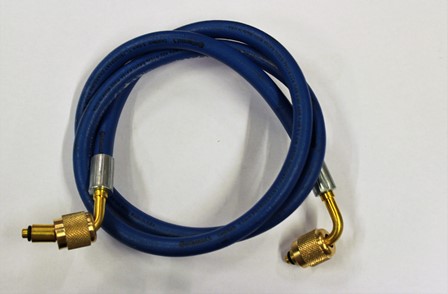

11W052100095SP-YELLOW-BLUE-FLEXIBLE-HOSEall
12W052100007SP-FLEXIBLE-HOSE-REDall
13W052100008SP-HOSE-YELLOW-W/VALVEall
14W052100009SP-FLEXIBLE-HOSE-YELLOWall
15W052100010SP-BY-PASS-INTERNALall
20W052100011SP-COMPRESSORall
21W052100012SP-CAPILLARYall
23W052100013SP-RECOVERY-COMPRESSOR DISTILLER-GROUPall
24W052200250SP-MAIN-FILTERall
25W052100028SP-SWITCH-HIGHPRESSUREall
26W052100014SP-HEAT-EXCHANGER-GROUP-WITH FANall
27W052200224SP-ELECTRIC-VALVE-GROUP-LP-XP-RF-A2all
28W052100016SP-COPPER-PIPE-COMPRESSORall
29W052100017SP-CHECKVALVE–OIL-SEPARATORall
30W052100018SP-LIQUID-RECEIVER-VESSEL-GROUPall

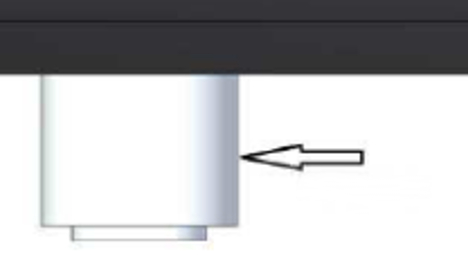

 W052100140SP-CENTERING-SCREW-35KG-FROM-SN240from SN 000240

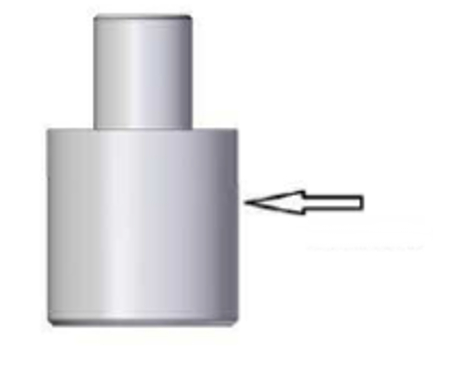

 W052100141SP-CENTERING-SPACER-35KG-FROM-SN240from SN 000240
 W052100147SP-SPRING-INTERNAL-VESSELall
32W052200232SP-VALVE-OVERPRESSUREall
33W052100019SP-SAFETY-VALVEall
40W052200275SP-BOTTLE-UV-TRACER-250MLall
41W052100021SP-BOTTLE-NEW-OIL-500MLall
42W052100022SP-BOTTLE-USED-OIL-1000MLall

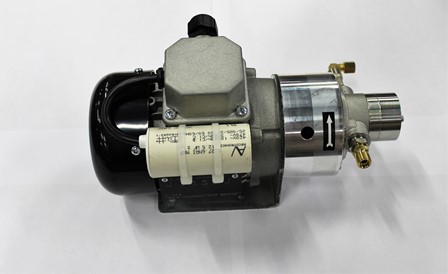

50W052100023SP-REFRIGERANT-PUMPall

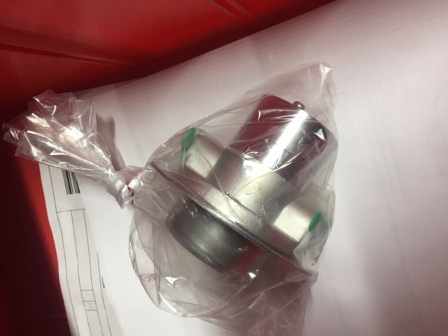

 W052100024SP-REFRIGERANT-PUMP-SPARE-PARTS all
51W052100025SP-INTERNAL-VESSEL-PRESSURE-GAUGE all

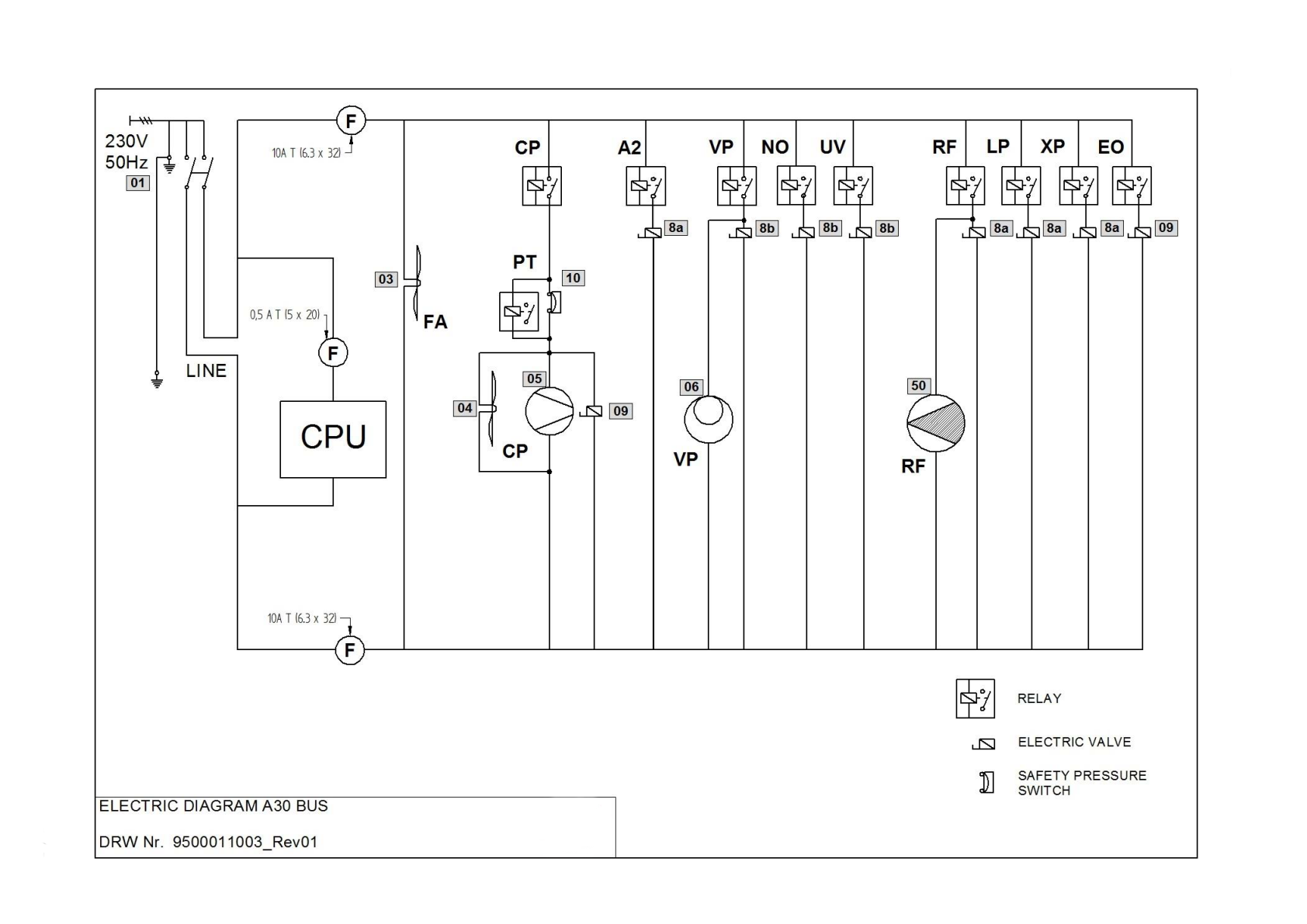

Electric diagram

electric diagram



click to enlarge

PosArticle No.DesignationSerial-No.Picture
1W052100026SP-MAIN-SWITCHall
3W052100027SP-MAIN-FANall
4W052100014SP-HEAT-EXCHANGER-GROUP-WITH-FANall
5W052100011SP-COMPRESSORall
6W052100005SP-VACUUM-PUMPall
8aW052200224SP-ELECTRIC-VALVE-GROUP-LP-XP-RF-A2all
8bW052200225SP-ELECTRIC-VALVE-GROUP-NO-UV-VPall
9W052200224SP-ELECTRIC-VALVE-GROUP-LP-XP-RF-A2all
10W052100028SP-SWITCH-HIGH-PRESSUREall
50W052100023SP-REFRIGERANT-PUMPall

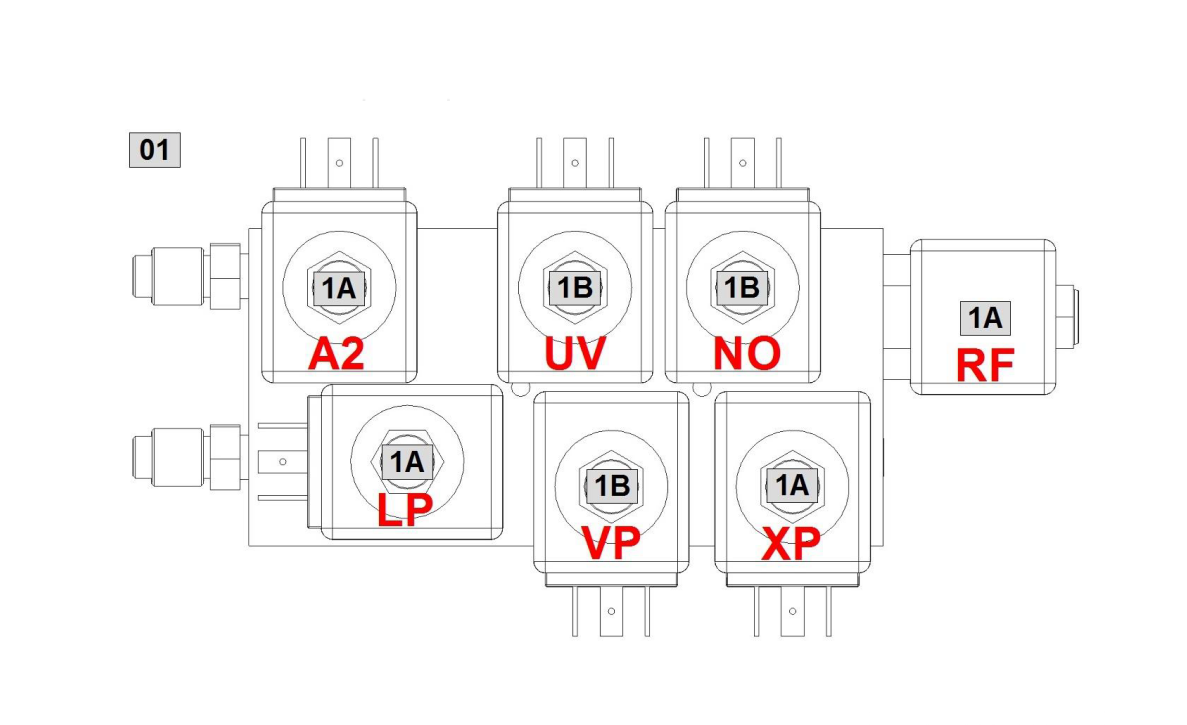

Manifold

spare parts manifold



click to enlarge

PosArticle No.DesignationSerial-No.Picture
1W052100002SP-MANIFOLDall
1AW052200224SP-ELECTRIC-VALVE-GROUP-LP-XP-RF-A2 all
 W052200226SP-PISTON-FOR-1A-ELECTR-VALVE-LP-XP-RF all
1BW052200225SP-ELECTRIC-VALVE-GROUP-NO-UV-VP-A2 all
 W052200227SP-PISTON-FOR-1B-ELECTR-VALVE-NO-UV-VP all

Other parts

PosArticle No.DesignationSerial-No.Picture

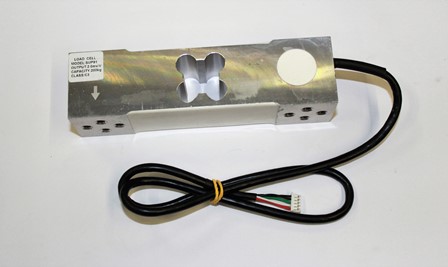

 W052100036SP-LOAD-CELL-200KG all
 W052100157SP-SCALE-200KG-FROM-SN-000140from SN 000140
 W052100037SP-LOAD-CELL-15KG all
 W052100038SP-RILSAN-PA11-HL-NEUTRAL-PIPE-6/8 all
 W052100039SP-RILSAN-PA11-NEUTRAL-PIPE-4/6 all
 W052100040SP-RILSAN-PA11-BLUE-PIPE-2/4 all
 W052100041SP-RILSAN-BLUE-PIPE-6/8 all
 W052100042SP-RILSAN-PA11-RED-PIPE-2/4 all
 W052100043SP-YELLOW-PU-PIPE-4/6 all
 W052100044SP-BLUE-PU-PIPE-4/6 all
 W052100045SP-CRISTAL-PIPE-4/6 all
 W052100167SP-BRASS-OGIVE-2/4all
 W052100168SP-INTERNAL-SUPPORT-BUSHING-2/4all
 W052100169SP-INTERNAL-SUPPORT-BUSHING-4/6all
 W052100053SP-O-RING-FOR-TUBESall
 W052200212SP-PRINTER-PAPER-ROLL-MOQ10PCS all
 W052100046
no longer available!		SP-MAINBOARD-KIT until SN-AC000139
 W052100181SP-MAINBOARD-CPU-A30-TO-SN-AC000139until SN-AC000139
 W052100182SP-DISPLAY-A30-TO-SN-AC000139until SN-AC000139
 W052100092SP-MAINBOARD KIT-FROM-SN-AC000140from SN-AC000140
 W052100149SP-MAINBOARD KIT-FROM-SN-AC000140-CYRILLICfrom SN-AC000140
 W052100138SP-CABLE-CONNECTORall
 W052200219SP-CONTROL-KNOB-COOLIUS-SELECT all
 W052100047SP-KEY-BOARD-POLYESTER-PANEL until SN-AC000139
 W052100093SP-KEY-BOARD-POLYESTER-PANELfrom SN-AC000140

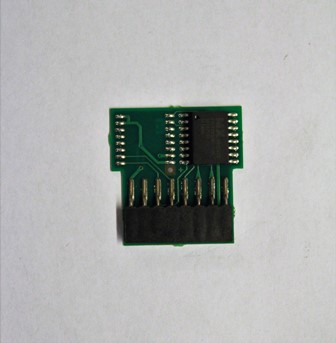

 W052100050SP-UPDATE-CARD until SN-AC000139
 W052100051SP-TRANSFORMER until SN-AC000139
 W052100105SP-PACKAGING-30-40-50-SERIE-KITall

Accessory parts

PosArticle No.DesignationSerial-No.Picture
 W052100170ADAPTER-KIT-FOR-SEALED-OIL-BOTTLESall

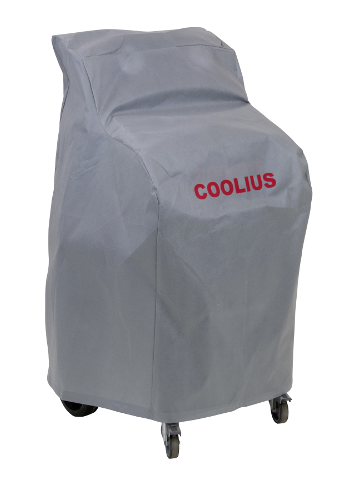

 W067100003AY-COVER-30-50-SERIES COOLIUS LOGOall

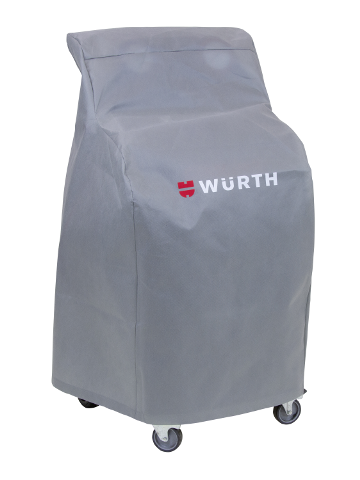

 W067100016AY-COVER-30-50-SERIES WURTH LOGOall
 W067100007AY-STICKER-R513Aall
 W067100010AC-FLUSHING-KIT-COMPLETE-WITH-ADAPTERSall
 W067100009AC-ADAPTER-KIT-FOR-FLUSHING-KIT-ALL-ACall
 W067100008AY-POWER-ADAPTER-APAC-COUNTRIESall
 W067100011AY-DATA-BASE-R134A-UNITSall
 W067200030AY-SERVICEHOSE-EXTENSION-KIT-R134Aall

Maintenance parts

PosArticle No.DesignationSerial-No.Picture
 W052100048SP-MAINTENANCE-KIT (DRIER+VACUUM PUMP OIL+GASKETS)all
 W052100164SP-MAINTENANCE-KIT-AUS-NZall
 W052200250SP-MAIN-FILTER (MAIN FILTER)all
 W052200279Seal screw1 incl. seal ringall
 W052100097Seal ring2all
 W052100172SP-SCREW-M8-WITH-O-RING-VACUUM-PUMP-100-128Lall
​ ​
