Coolius 2700BT (Art.no. W050 022 700)
Notice:
Please note that some parts only exist in the exploded drawings but not in the spare parts table.
These parts can not be ordered separately!
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|
| W067700001 | AY-COVER | all | ||
| W067000014 | AY-CONSTRUCTIONKIT-A/CSERVSTAT-OEL3A4 | all |  | |
| W067000015 | AY-FLUSHINGKIT-A/CSERVSTAT-VW | all |  | |
| W067000016 | AY-FLUSHINGKIT-A/CSERVSTAT | all |  | |
| W067000017 | AY-IDENTIFIER-A/CSERVSTAT-REFRIGERANT | all |  | |
| W067000018 | AY-SENSOR-A/CSERVSTAT-HUMIDITY-TEMPERAT | all |  | |
| W067000019 | AY-SENSOR-A/CSERVSTAT-TEMPERATURES-KIT | all |  | |
| W067000020 | AY-HOLDER-A/CSERVSTAT-IQ320-PRINTER | all |  | |
| W052000103 | SP-SERVICEKIT-100HOURS | all | ||
| W052000104 | SP-SERVICEKIT-300HOURS | all |
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|

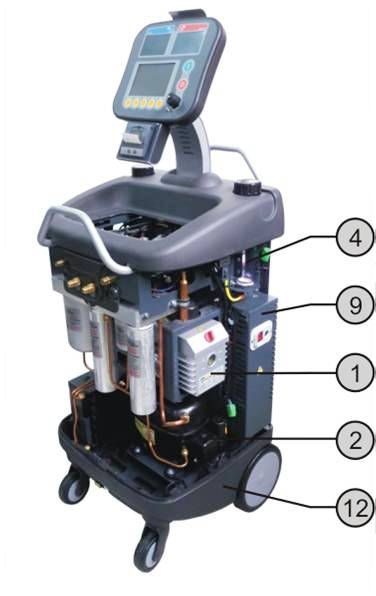

| 1 | W052000002 | SP-PUMP-VACUUM-DUALSTAGE | all |  |
| 1.1 | W052000003 | SP-PUMP-VACUUM-CAP-PLASTIC | all |  |
| 1.2 | W052000004 | SP-PUMP-VACUUM-EXHAUSTFILTER | all |  |
| 1.3 | W052000005 | SP-HOSE-CONNECTORHose-D10-1/2 | all |  |
| W052000006 | SP-OIL-VACUUMPUMP-330ML | all | ||
| 2.1 | W052000007 | SP-COMPRESSOR-COMPLETELY | all |  |
| 2.2 | W052000008 | SP-PIPE-COMPRESSOR-DISCHARGE | all |  |
| 2.3 | W052000009 | SP-PIPE-COMPRESSOR-SUCTION | all |  |
| 2.4 | W052000010 | SP-SENSOR-PRESSURE-P5 | all |  |
| 2.5 | W052000011 | SP-SENSOR-TEMPERATURE-SUCTION | all |  |
| 2.6 | W052000012 | SP-OIL-COMPRESSOR-500ML | all | |
| 3.1 | W052000013 | SP-VESSEL-OIL1-COMPL | all |  |
| 3.2 | W052000014 | SP-VESSEL-OIL-CAP | all |  |
| 3.3 | W052000015 | SP-HOSE-CONNECTOR-D6-1/4 | all |  |

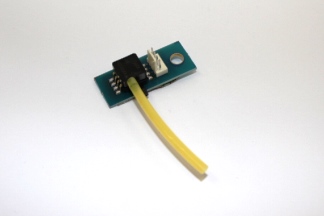

| 3.3 | W052000110 | SP-SENSOR-PRESSURE-VESSEL-OIL 1 | all |  |

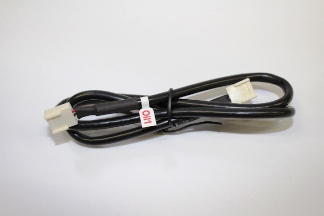

| 3.3 | W052000108 | SP-CABLE-SENSOR-OILPRESSURE-BOARD 1 | all |  |
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|

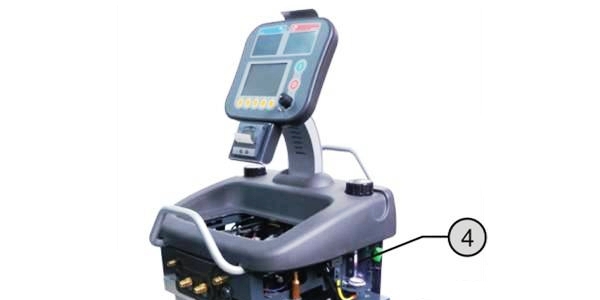

| 4.1 | W052000016 | SP-VESSEL-OIL2-COMPL | all |  |
| 4.2 | W052000014 | SP-VESSEL-OIL-CAP | all | |
| 4.3 | W052000017 | SP-MOISTURE-TRAP | all |  |
| 4.3 | W052000111 | SP-SENSOR-PRESSURE-VESSEL-OIL 2 | all |  |
| 4.3 | W052000109 | SP-CABLE-SENSOR2-OILPRESSURE-BOARD | all |  |
| 5.1 | W052000018 | SP-VESSEL-OLDOIL | all |  |
| 5.2 | W052000019 | SP-HOSE-CONNECTOR-D12-1/4 | all |  |
| 5.3 | W052000015 | SP-HOSE-CONNECTOR-D6-1/4 | all | |
| 5.4 | W052000021 | SP-VALVE-BALL-1/8-1/8 | all |  |

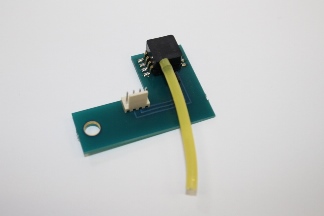

| 5.4 | W052000112 | SP-SENSOR-PRESSURE-VESSEL-OLDOIL | all |  |
| 6.1 | W052000022 | SP-CONDENSER | all |  |
| 6.2 | W052000023 | SP-PIPE-CONDENSER-OUT | all |  |
| 6.3 | W052000024 | SP-PIPE-CONDENSER-IN | all |  |
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|
| 7.1 | W052000025 | SP-FILTER-DRYER | all |  |
| 7.2 | W052000026 | SP-SEPARATOR-OIL-SUCTION | all |  |
| 7.3 | W052000027 | SP-SEPARATOR-OIL-DISCHARGE | all |  |
| 7.4 | W052000028 | SP-SEPARATOR-HEATER-OIL-DISCHARGE | all |  |
| 7.5 | W052000029 | SP-FILTER-PRIMARY-M14-3/8 | all |  |
| 7.5 | W052000030 | SP-FITTING-1/4–1/8 | all |  |
| 7.6 | W052000032 | SP-VALVE-SOLENOID-2MM-CLOSED | all |  |
| 7.7 | W052000035 | SP-VALVE--SOLENOID-4MM-CLOSED | all |  |
| 7.8 | W052000031 | SP-SENSOR-PRESSURE-P3-P4 | all |  |
| 7.9 | W052000037 | SP-SENSOR-PRESSURE-P1-P2 | all |  |
| 7.10 | W052000031 | SP-SENSOR-PRESSURE-P3-P4 | all | |
| 7.11 | W052000033 | SP-VALVE-SOLENOID-2MM-OPEN | all |  |
| 7.12 | W052000034 | SP-VALVE-SOLENOID-2MM-SCREW-M3 | all |  |
| 7.13 | W052000036 | SP-VALVE-SOLENOID-4MM-OPEN | all |  |
| 7.14 | W052000038 | SP-SENSOR-TEMPERATURE-DICHARGE | all |  |
| 7.16 | W052000039 | SP-VALVE-SOLENOID-OPEN | all |  |
| 7.17 | W052000040 | SP-VALVE-SOLENOID-COIL | all |  |
| 7.18 | W052000041 | SP-AIRPURGE-EXHAUST | all |  |
| 8.1 | W052000042 | SP-VESSEL-REFRIGERANT-27KG | all |  |
| 8.2 | W052000043 | SP-VESSEL-STRAP | all |  |
| 8.3 | W052000044 | SP-HOSE-HP-SHORT-VALVE | all |  |
| 8.4 | W052000045 | SP-HOSE-LP-SHORT-VALVE | all |  |
| 8.5 | W052000046 | SP-SEALRING-ORING | all |  |
| 8.6 | W052000047 | SP-SCALE-VESSEL-REFRIEGERANT | all |  |
| 8.7 | W052000048 | SP-FILTER-VESSEL-REFRIGERANT | all |  |

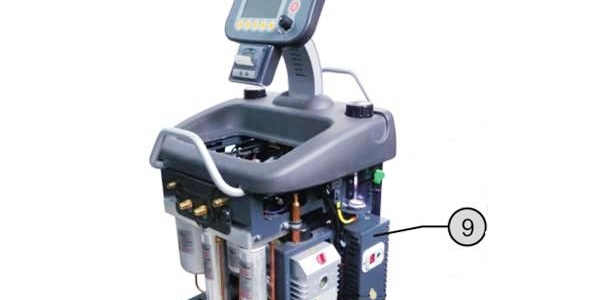

| 9.1 | W052000049 | SP-SUPPLY-POWER-24V | all |  |
| 9.2 | W052000050 | SP-SUPPLY-POWER-12V | all |  |
| 9.3 | W052000051 | SP-SUPPLY-POWER-220V | all |  |
| 9.4 | W052000052 | SP-SUPPLY-POWER-SOCKET | all |  |
| 9.5 | W052000053 | SP-HOLDER-FUSE | all |  |
| 9.6 | W052000054 | SP-FUSE | all |  |
| 9.7 | W052000055 | SP-SWITCH-MAIN | all |  |
| 9.8 | W052000056 | SP-RELAY-CARD | all |  |
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|
| 10.1 | W052000057 | SP-BOARD-ELECTRONICS | to 1187 & for 1233 |  |

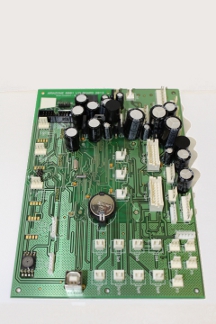

| 10.1 | W052000114 | SP-BOARD-ELECTRONICS | from 1188 |  |
| 10.2 | W052000058 | SP-MODUL-BLUETOOTH | all |  |
| 10.3 | W052000059 | SP-BATTERY-BOARD CR2032 | all |  |
| 10.4 | W052000060 | SP-ANTENA-RF | all |  |
| 10.5 | W052000061 | SP-ANTENA-CABLE | all |  |

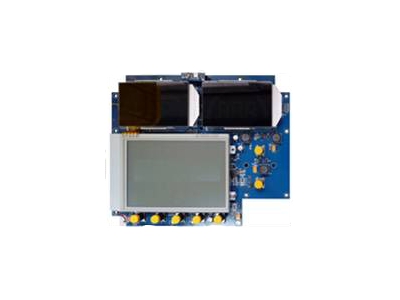

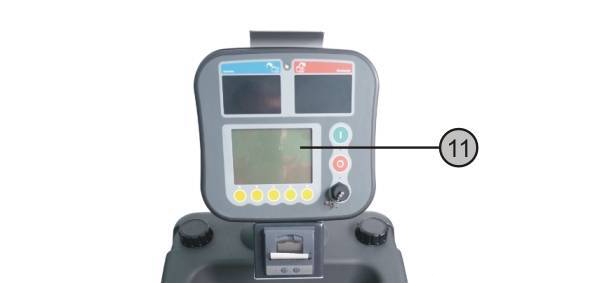

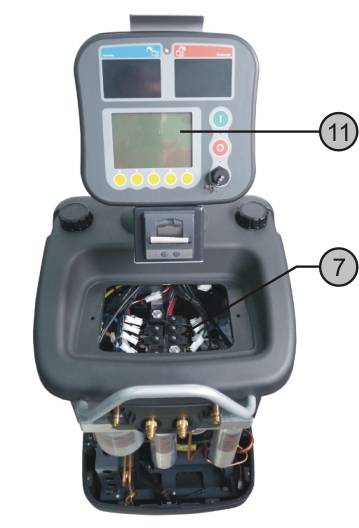

| 11.1 | W052000062 | SP-DISPLAY-BOARD | to 1187 & for 1233 |  |
| 11.1 | W052000113 | SP-DISPLAY-BOARD | from 1188 | |

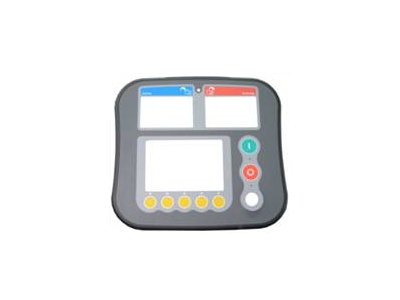

| 11.2 | W052000063 | SP-DISPLAY-PANEL | all |  |
| 11.3 | W052000064 | SP-PRINTER | all |  |

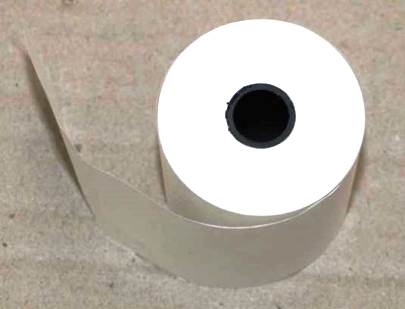

| 076495 002 | Paper roll-A/C-printer | all |  | |
| 11.4 | W052000065 | SP-CABLE-DISPLAY | all |  |
| 11.5 | W052000066 | SP-CABLE-DISPLAY-INSIDED | all |  |
| 12.1 | W052000068 | SP-WHEEL-ROTATABLE | all |  |
| 12.2 | W052000069 | SP-WHEEL-D200 | all |  |
| 12.3 | W052000070 | SP-COVERPANEL-TOP | all |  |
| 12.4 | W052000071 | SP-COVERPANEL-FRONT | all |  |
| 12.5 | W052000072 | SP-COVERPANEL-BASIC | all |  |
| 12.6 | W052000073 | SP-COVERPANEL-BACK-REFRIVESSEL | all |  |
| 12.7 | W052000074 | SP-HOSE-OUTLET-PLASTIC | all |  |
| 12.8 | W052000075 | SP-VALVE-LOCKINGLEVER | all |  |
| 12.9 | W052000076 | SP-HAND-WHEEL | all |  |

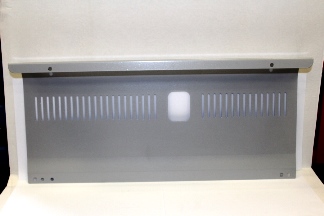

| 12.9 | W052000106 | SP-COVERPANEL-RIGHT-METAL | all |  |

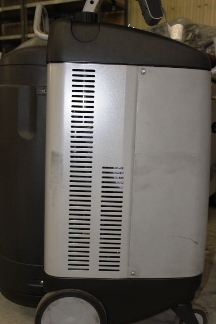

| 12.9 | W052000107 | SP-COVERPANEL-LEFT-METAL | all |  |
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|
| 13.1 | W052000078 | SP-HOSE-HIGHPRESSURE-3M | all |  |
| 13.2 | W052000077 | SP-HOSE-LOWPRESSURE-3M | all |  |
| 13.3 | W052000080 | SP-QUICKCOUPLER-HIGHPRESSURE | all |  |
| 13.4 | W052000079 | SP-QUICKCOUPLER-LOWPRESSURE | all |  |
| 13.5 | W052000081 | SP-SEALRING-ORING | all |  |
| 13.6 | W052000082 | SP-ADAPTER-QUICKCOUPLER-1/4 | all |  |
| 14.1 | W052000083 | SP-SENSOR-TEMPERATURE-VENT | all |  |
| 14.2 | W052000084 | SP-SENSOR-TEMPERATURE-VENT-JAWS | all |  |
| 14.3 | W052000085 | SP-SENSOR-TEMPERATURE-8MM | all |  |
| 14.4 | W052000086 | SP-SENSOR-TEMPERATURE-8MM-JAWS | all |  |
| 14.5 | W052000087 | SP-SENSOR-TEMPERATURE-10MM | all |  |
| 14.6 | W052000088 | SP-SENSOR-TEMPERATURE-10MM-JAWS | all |  |
| 14.7 | W052000089 | SP-SENSOR-TEMPERATURE-13MM | all |  |
| 14.8 | W052000090 | SP-SENSOR-TEMPERATURE-13MM-JAWS | all |  |
| 14.9 | W052000091 | SP-SENSOR-TEMPERATURE-19MM | all |  |
| 14.10 | W052000092 | SP-SENSOR-TEMPERATURE-19MM-JAWS | all |  |
| 14.11 | W052000105 | SP-SENSOR-TEMPERATURE-CHARGING CABLE | all |  |
| 15.2 | W052000094 | SP-VESSEL3-KIT | all |  |
| 15.3 | W052000095 | SP-VESSEL4-KIT | all |  |
| 15.4 | W052000039 | SP-VALVE-SOLENOID-OPEN | all | |
| 15.5 | W052000040 | SP-VALVE-SOLENOID-COIL | all | |
| 15.6 | W052000096 | SP-VESSEL-OIL-HOLDER | all |  |
| 15.7 | W052000097 | SP-SCALE-OIL | all |  |
| 15.8 | W052000098 | SP-VESSEL-OIL-250ML | all |  |
| 15.9 | W052000099 | SP-HOSE-CONNECTOR-Y | all |  |
| 15.10 | W052000100 | SP-HOSE-CONNECTOR-ELBOW | all |  |
| 15.11 | W052000101 | SP-HOSE-CONNECTOR-DIRECT | all |  |
