Coolius 4000 - (Art.no. 0900700605)

Notice:

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

To maintenance parts To maintenance parts



Service unit parts

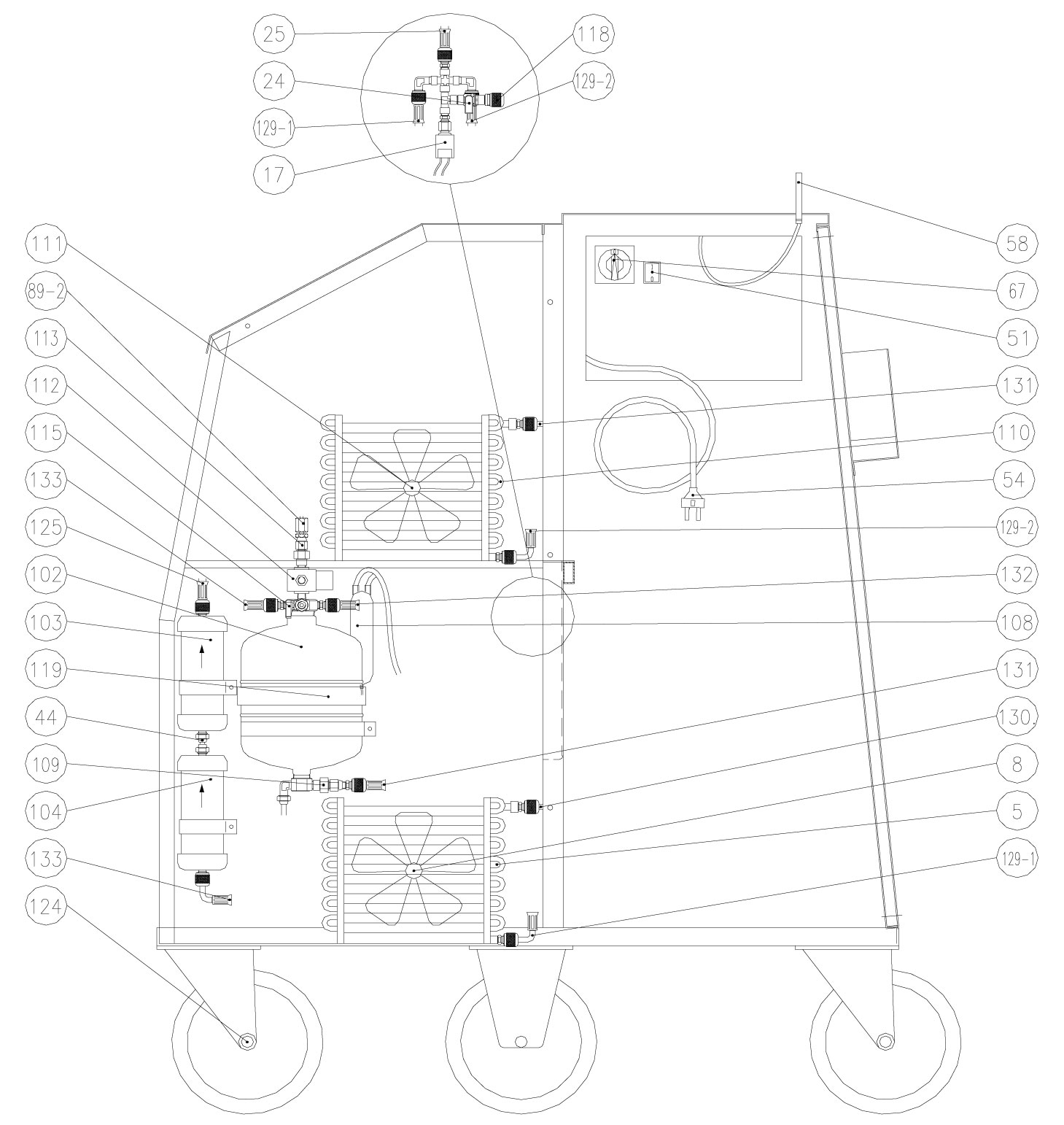

Tafel1

Click to enlarge

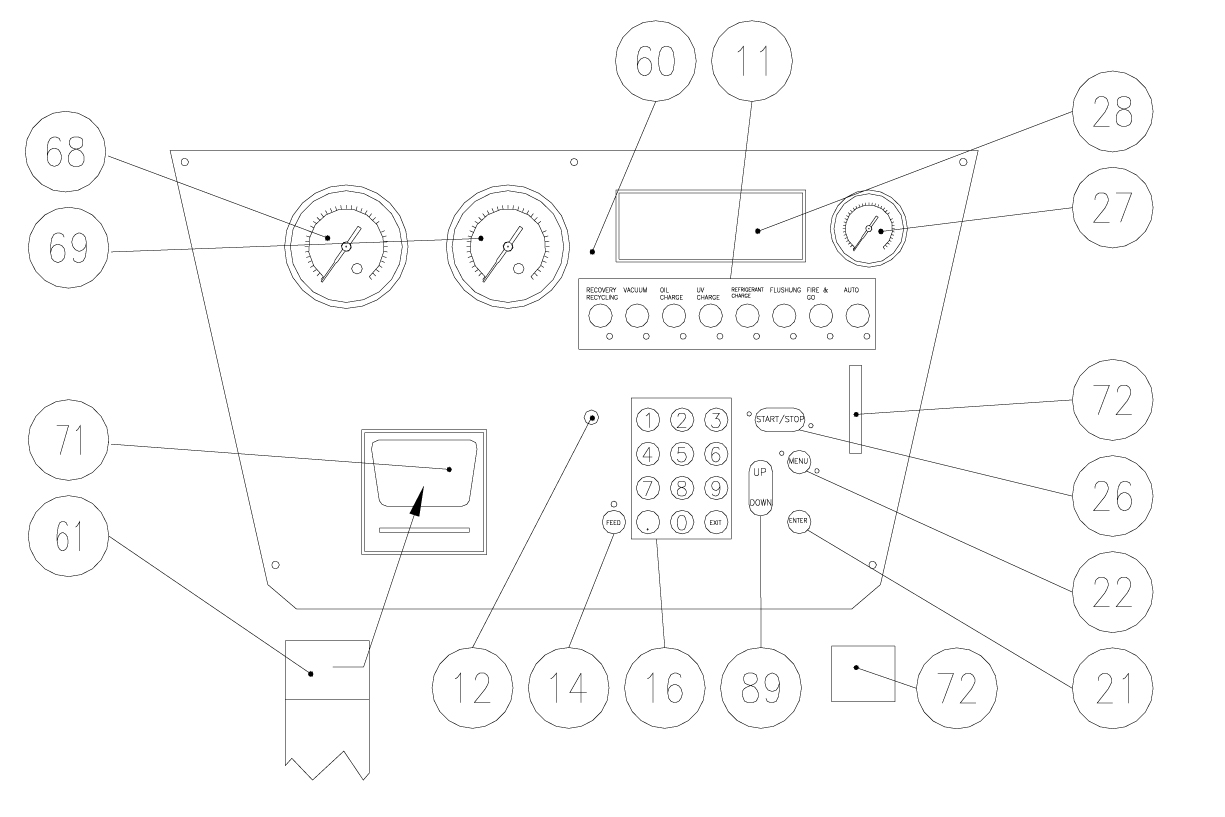

Tafel2

Click to enlarge

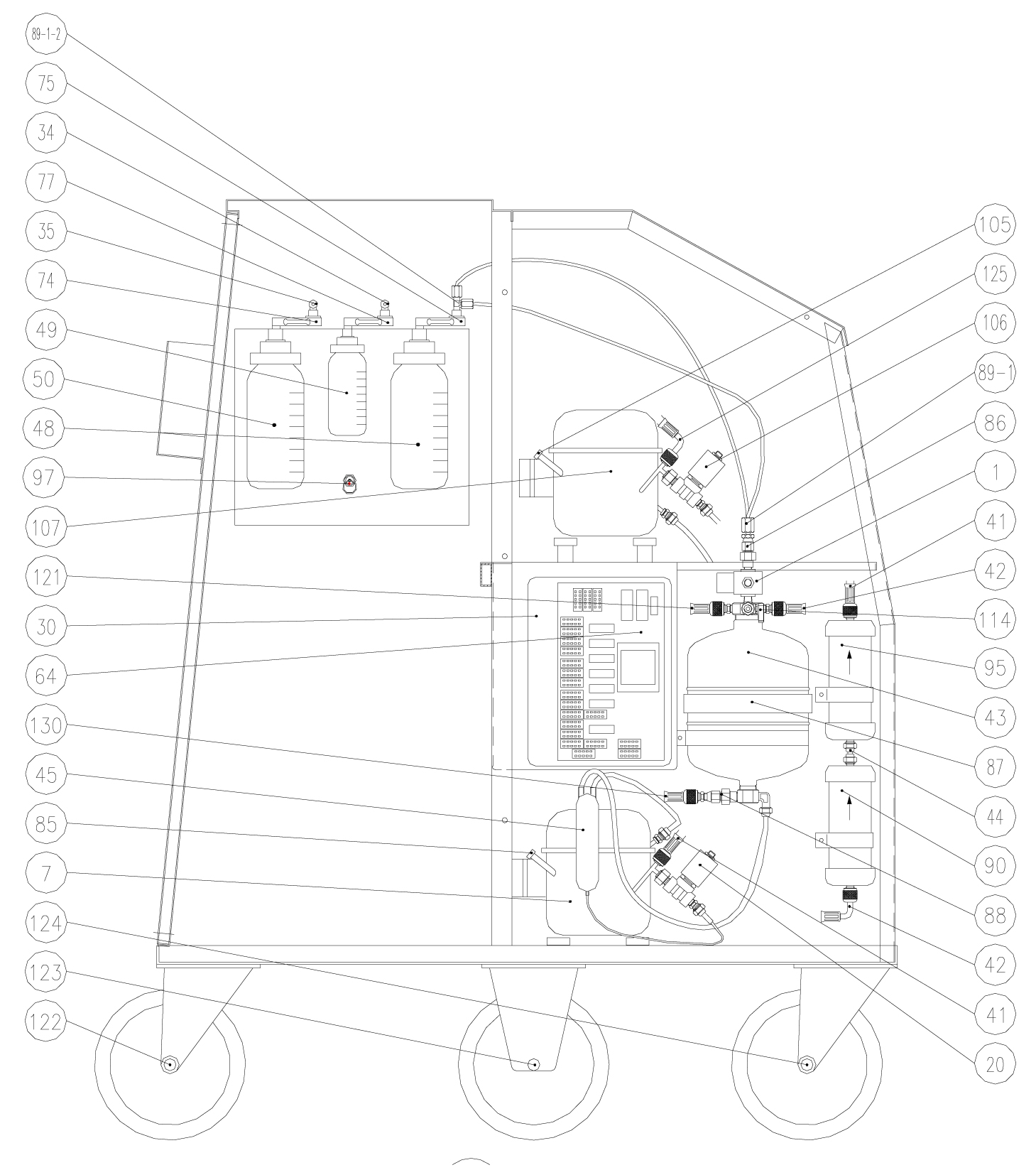

Tafel3

Click to enlarge

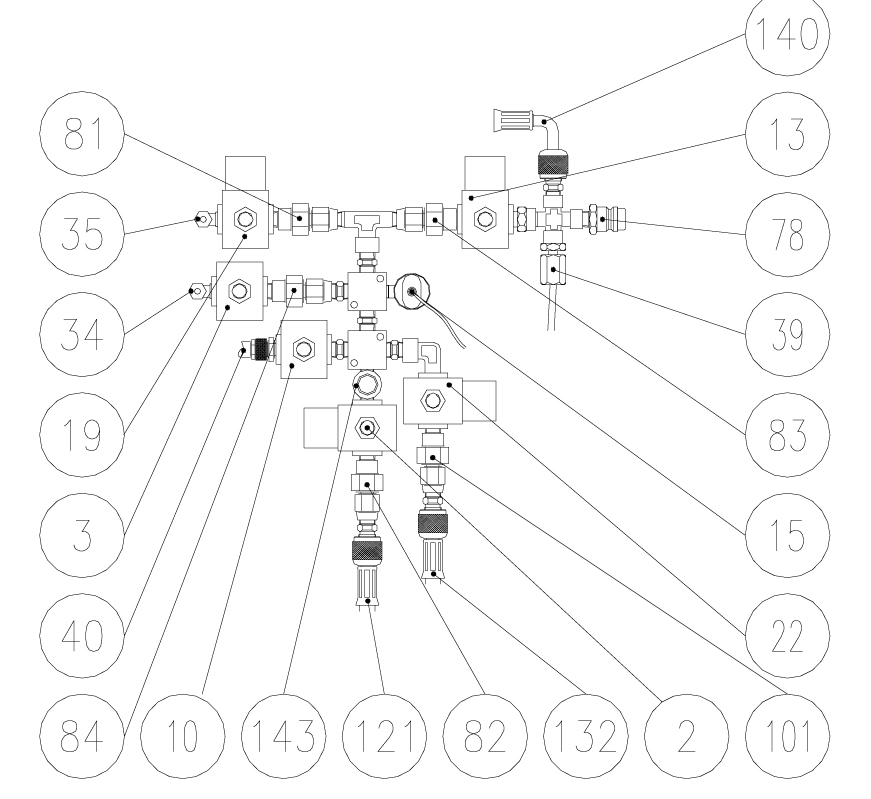

Tafel4

Click to enlarge

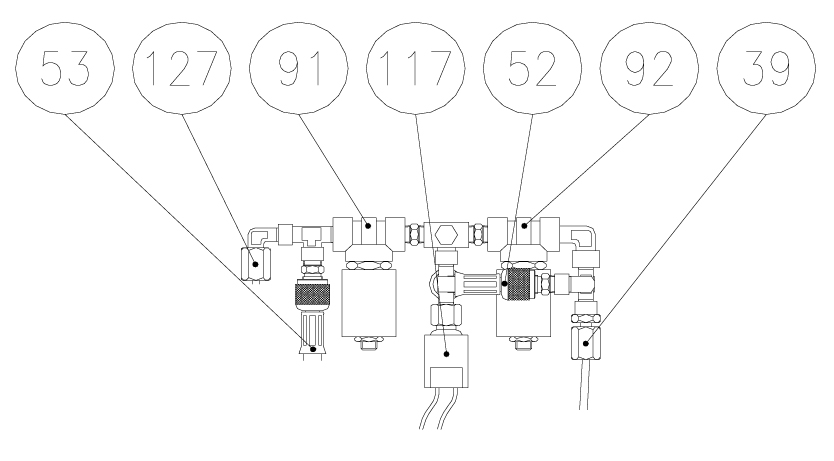

Tafel5

Click to enlarge

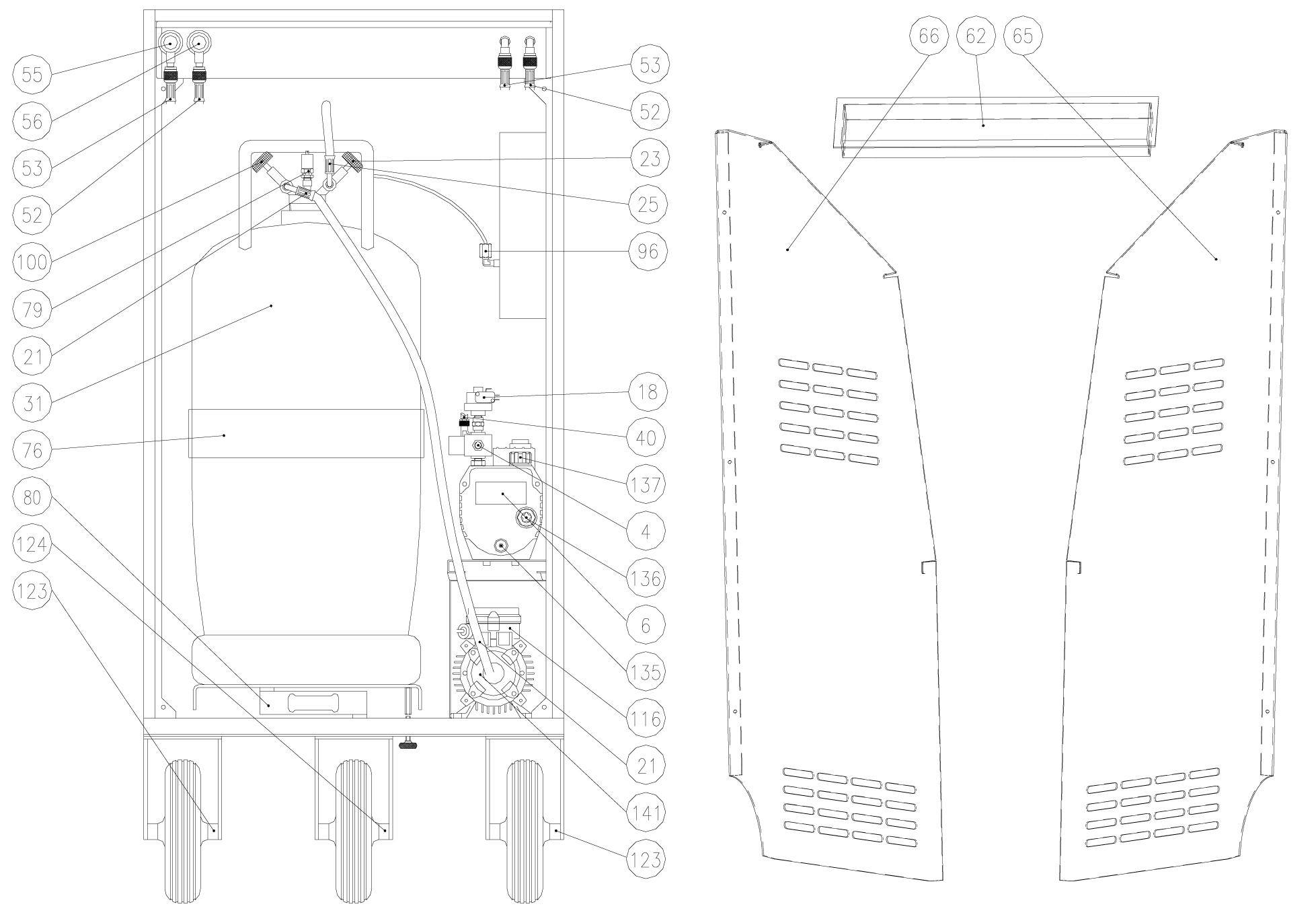

Tafel6

Click to enlarge

PosArticle No.DesignationSerial-NoPicture
10707764007Solenoid valveall
20707764007Solenoid valveall
30707764007Solenoid valveall
40707764203Solenoid valveall
5W052200060SP-CONDENSER-COMPLETEall
60707764205Vacuum pumpall
70707764057Compressorall
8W052200060SP-CONDENSER-COMPLETEall
100707764007Solenoid valveall
130707764007Solenoid valveall
150707764046Pressovacuostatoall
170900900603Safety swicthall
180707764014Vacuostatoall
190707764007Solenoid valveall
200707764025Solenoid valveall
21W052200049SP-HOSE-BOTTLE-PUMPall
220707764007Solenoid valveall
240707764001Bottle service valveall
25W052200045SP-HOSE-BOTTLEall
270707764210Bottle pressure gaugeall
31W052200059SP-BOTTLE-REFRIGERANTall
34W052200089Capillary tubeall
35W052200089Capillary tubeall
39W052200089Capillary tubeall
400707764220Vacuum hoseall
41W052200043SP-HOSE-COMPRESSORall
42W052200048SP-HOSE-DEST-DRYRall
43W052200056SP-DESTILLER-OILall
44W052200009SP-THREAD- DOUBLEPIECEall
450707764225Complete oil separatorall
470707764227Handle supportall
48W052200038SP-CUP-USEDOILall
48 Oil discharge bottleall
49W052200113UV dosimeter incl. lid (black)all
50W052200038SP-CUP-FRESHOILall
50 Oil dosimeterall
510900900643Heater swicthall
520707764228High pressure hose, 3,0 mall
52W052200131SP-HOSE-HP-INSIDE-76CMall
530707764229Low pressure hose, 3,0 mall
53W052200132SP-HOSE-LP-INSIDE-64CMall
54W052200090Power cable (Europe standard)all
550707764019HP quick couplerall
560707764020LP quick couplerall
580707764231
no longer available		Temperature probeall
60no longer availableElectronic card instruction panelall
61076495 002Paper roll-A/C-printerall
620707764238Black plastic basinall
64W052200044SP-PCB-POWERSUPPLYall
65W052200042SP-COVER-RIGHTall
66W052200061SP-COVER-LEFTall
670707764008Interruttore lucchettabileall
68W052200077Low pressure gaugeall
69W052200078High pressure gaugeall
71no longer availablePrinterall
720707764241Memory Cardall
740707764232Oil load cellall
750707764232Oil drain load cellall
760707764034Heater on the bottleall
770707764232UV load cellall
790900900613Safety valveall
800707764235Refrigerant load cellall
810707764006Check valveall
820707764006Check valveall
830707764006Check valveall
840707764006Check valveall
860707764006Check valveall
870707764236Heater on the distillerall
880707764006Check valveall
89-1W052200089Capillary tubeall
89-2W052200089Capillary tubeall
900707764052Filter drierall
910707764007Solenoid valveall
920707764007Solenoid valveall
950707764052Filter drierall
96W052200089Capillary tubeall
970900900613Safety valveall
1000707764258Valve on the refrigerant bottle in charging lineall
1010707764006Check valveall
102W052200056SP-DESTILLER-OILall
1030707764052Filter drierall
1040707764052Filter drierall
1060707764025Solenoid valveall
1070707764057Compressorall
1080707764225Complete oil separatorall
1090707764006Check valveall
110W052200060SP-CONDENSER-COMPLETEall
111W052200060SP-CONDENSER-COMPLETEall
1120707764007Solenoid valveall
1130707764006Check valveall
1140707764041Manual discharge valve on distillerall
1150707764041Manual discharge valve on distillerall
116W052200035SP-MOTOR-PUMPall
1170707764206Safety swicthall
1190707764236Heater on the distillerall
121W052200052SP-HOSE-VENT-DESTall
122W052200040SP-WHEEL-MOVEABLE-BRAKEall
123W052200041SP-WHEEL-FIXED-BRAKEall
124W052200039SP-WHEEL-MOVEABLEall
125W052200043SP-HOSE-COMPRESSORall
127W052200089Capillary tube LOWall
129-1W052200050SP-HOSE-COND-BOTTLEall
129-2W052200051SP-HOSE-COND-BOTTLEall
130W052200046SP-HOSE-DEST-CONDall
131W052200047SP-HOSE-DEST-CONDall
132W052200052SP-HOSE-VENT-DESTall
133W052200048SP-HOSE-DEST-DRYRall
1350900900610Vacuum pump oil drain capall
1360900900679Oil level sight glassall
1370900900611Vacuum pump oil venting capall
139W052200089Capillary tube HIGHall
140W052200053SP-HOSE-PUMP-VALVEall
141W052200055SP-PUMPall

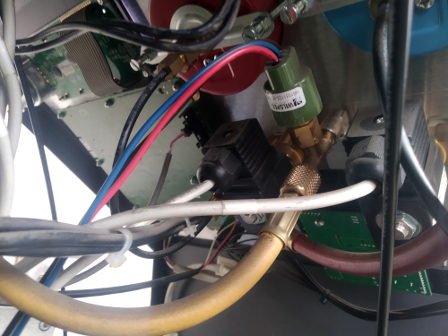

143W052200054SP-HOSE-YELLOW-VALVE-VALVEall
 0900800606Calibration load cells kitall
 no longer availablePressure switches check kit all
 0900900600Kit 2nd valve on the refrigerant bottleall
 0900900605Discharge oil filterall
 0900900606Kit Not condensable gas purgingall
 0900900607Spring for heaterall

Maintenance parts

PosArticle No.DesignationSerial-No.Picture
 0900800610Maintenance kitall
 0707764052Filter dryerall
 0900900605Discharge oil filterall
 W052200123Seal 3/8"all
 W052200122Seal 1/4"all
 W052200279Seal screw1 incl. seal ringall
 W052200280Seal screw2all
 W052200281Seal ringall
 0892764300Wurth vacuum pump oil ISO 12 - 2 pcs to order!all
​ ​
