Secutronic 10kg (Art.no. 076494)

Notice:

Please note that some parts only exist in the exploded drawings but not in the spare parts table.

These parts can not be ordered separately!

To maintenance parts To maintenance parts



Service unit parts

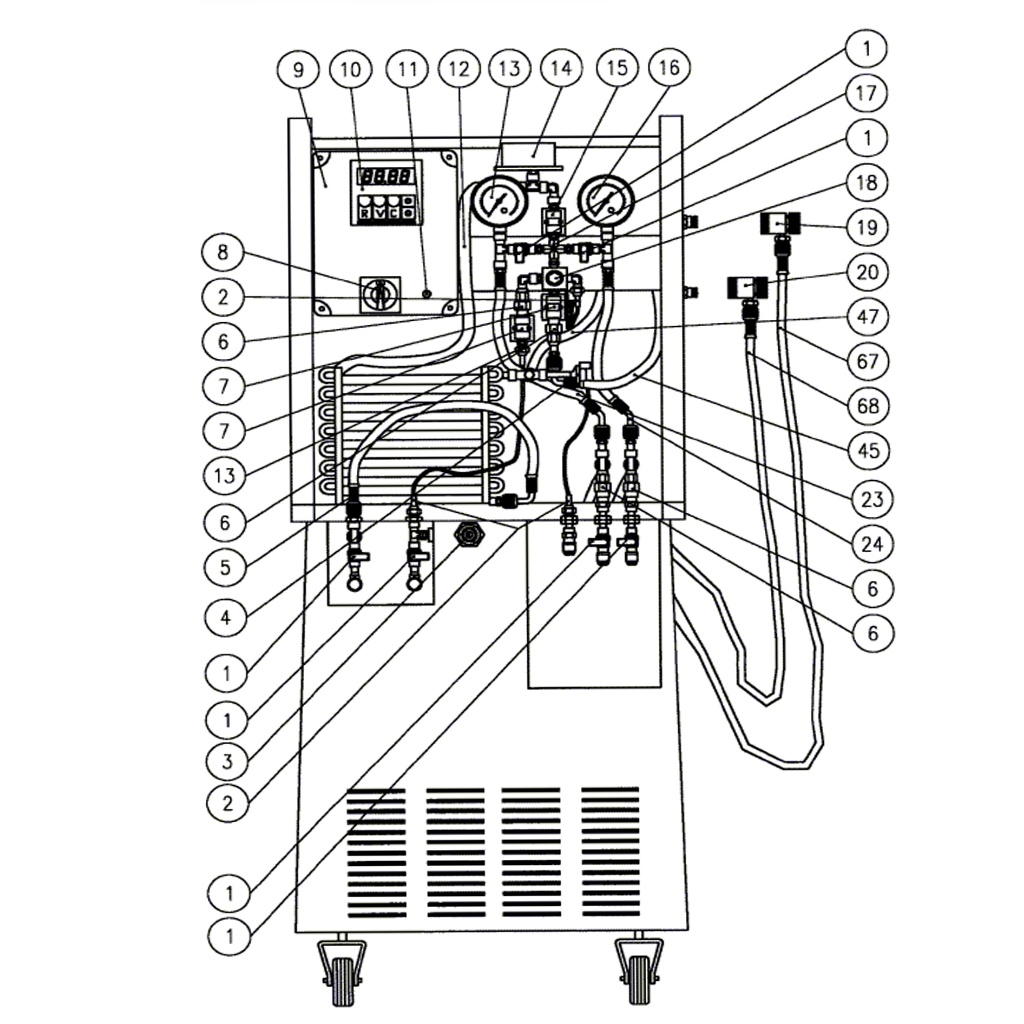

Fullview front

click to enlarge

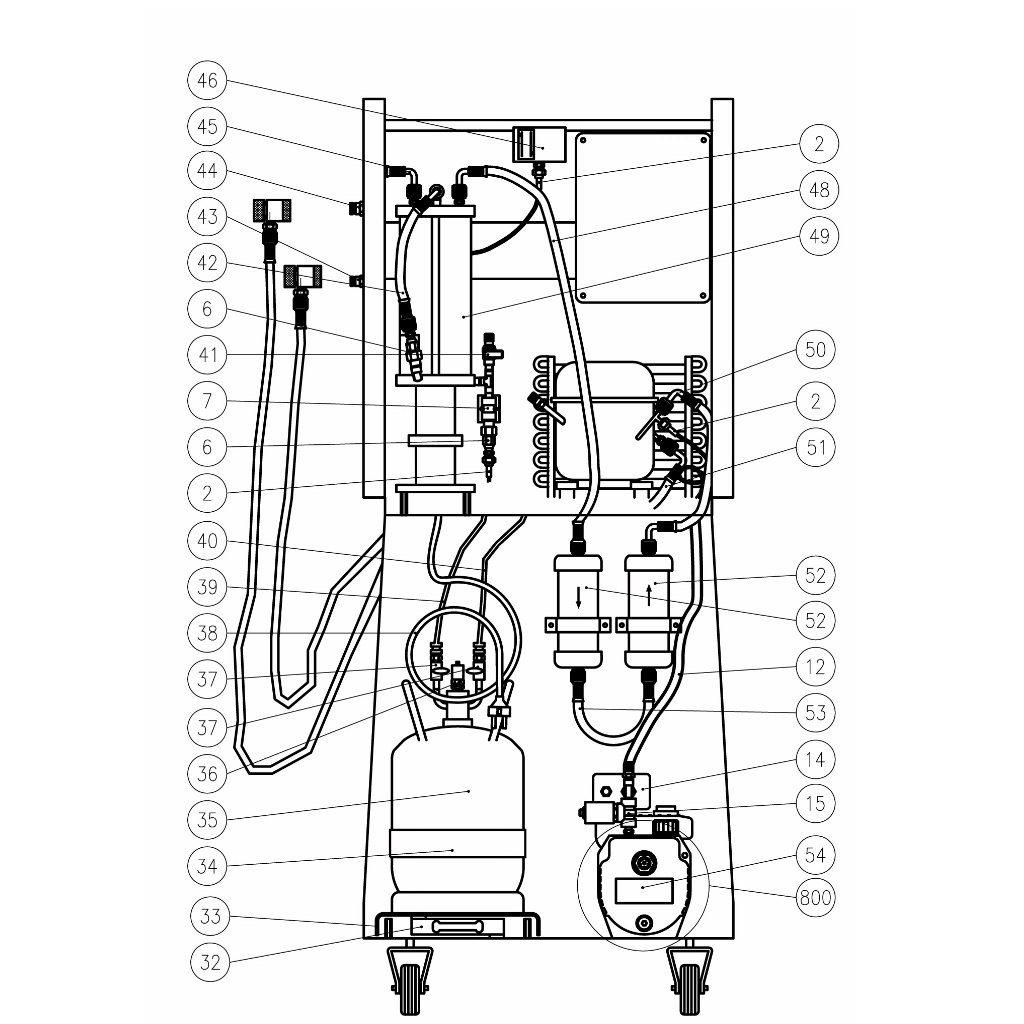

Fullview backside

click to enlarge

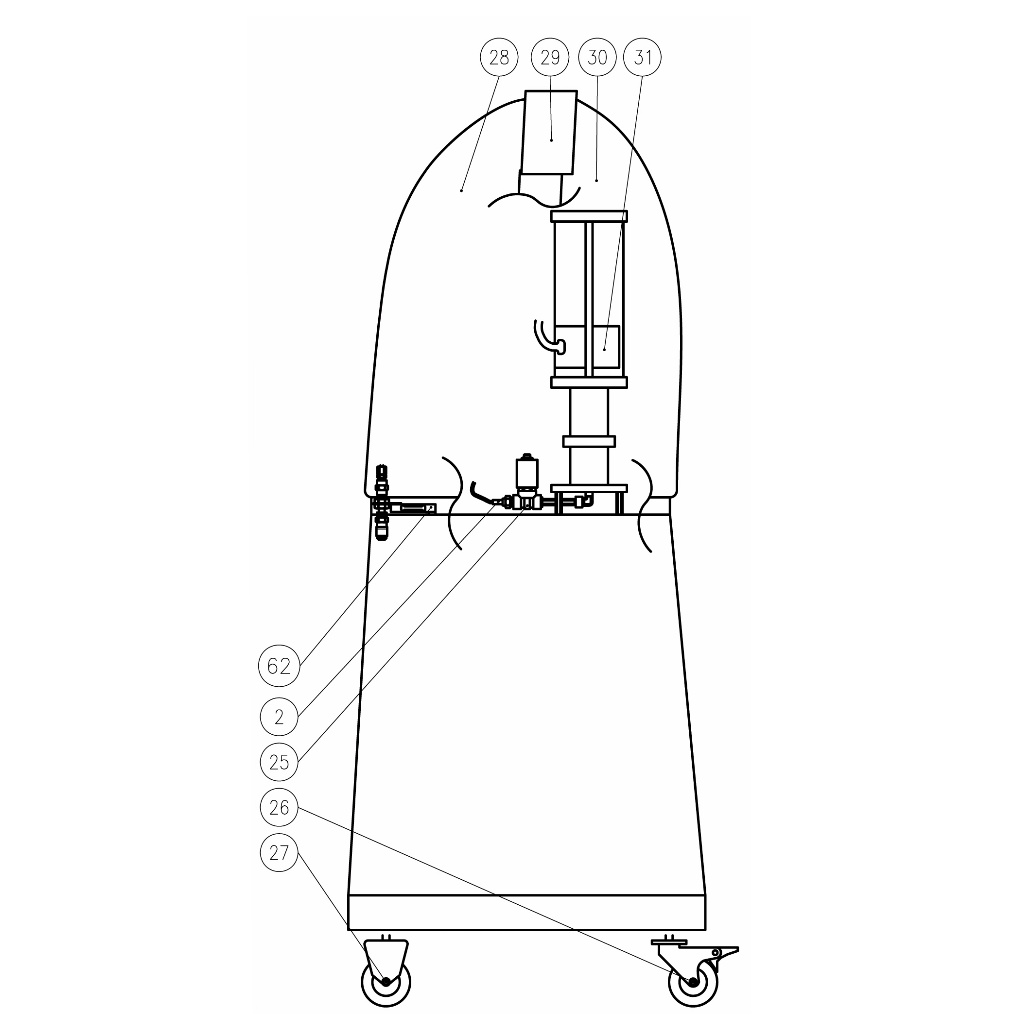

Fullview left side

click to enlarge

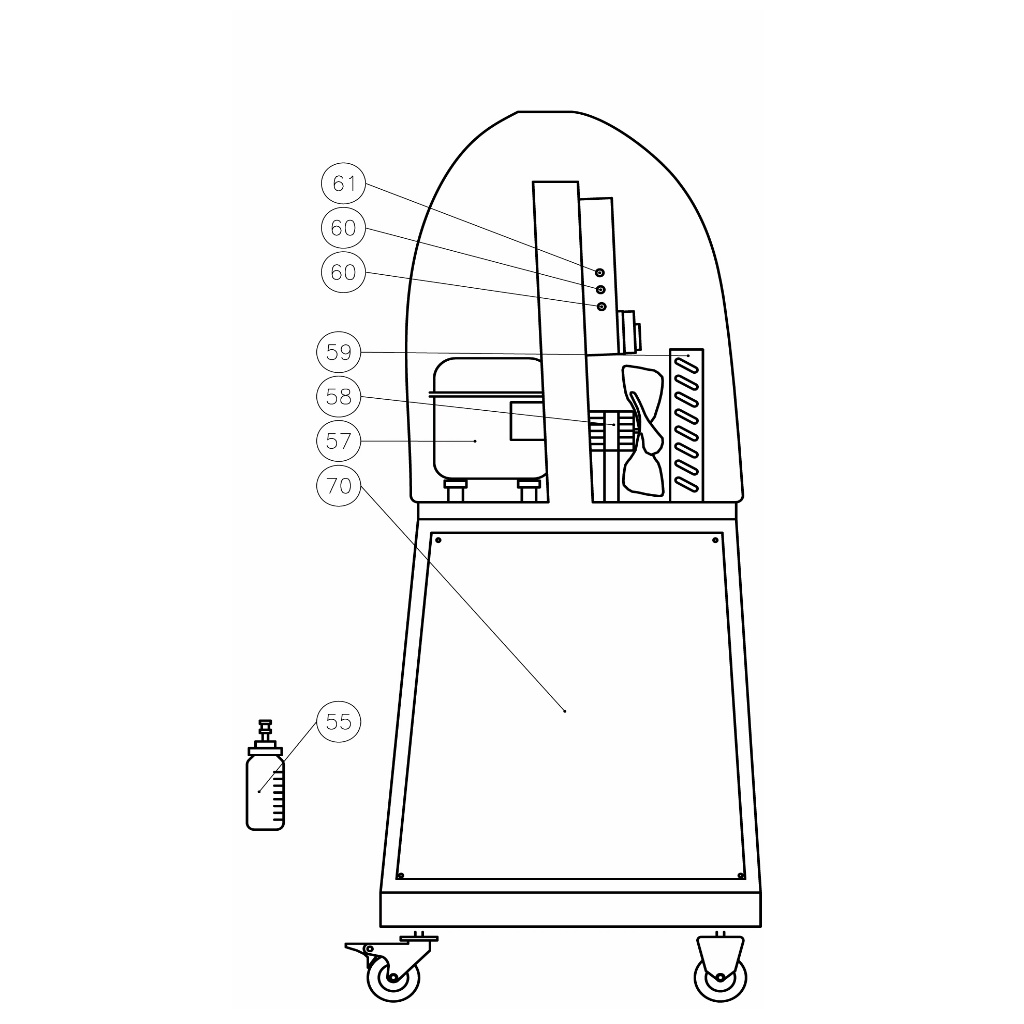

Fullview right side

click to enlarge

PosArticle No.DesignationSerial-No.Picture

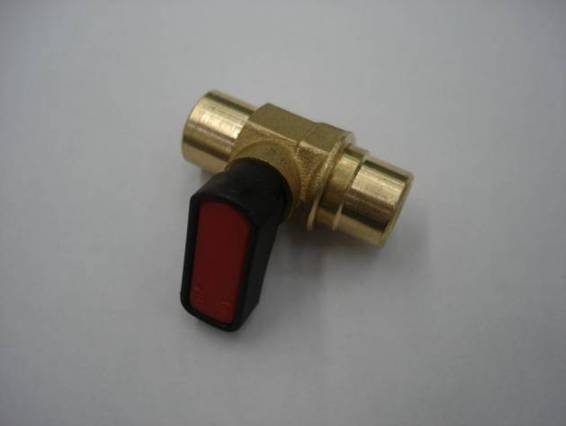

10707764001Valve 1/8" NPTf x 1/8" NPTfall

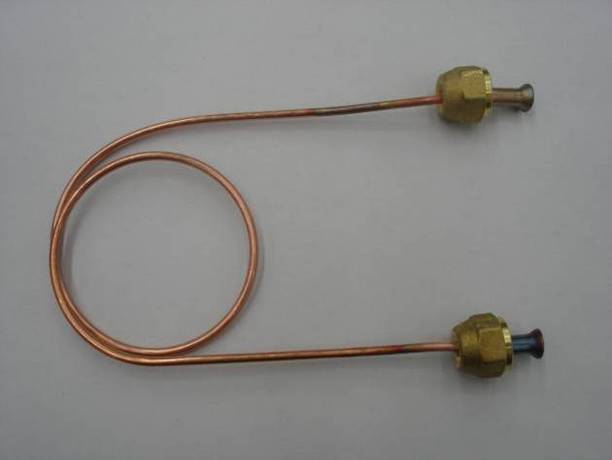

20707764002Capillary tubeall
30707764003Moisture indicatorall
40707764004Charge pressure switchall
50707764005Flexible hoseall
60707764006Check valveall
70707764007Solenoid valve 1/8"all
80707764008Main switchall
9no longer available!Caseall

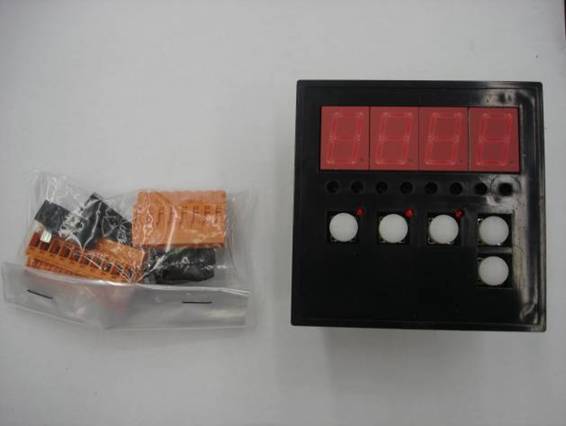

100707764010
no longer available!		Electronic moduleall

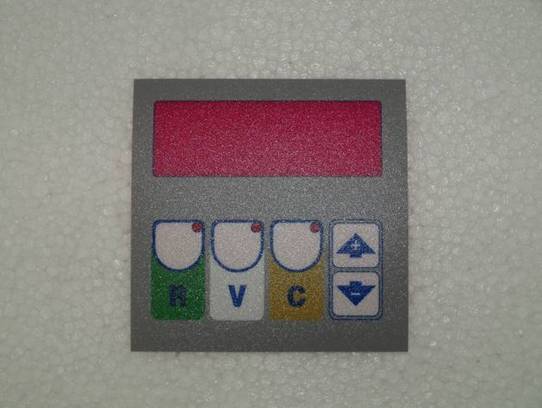

100707764251WIG1 front panelall
110707764011Red lightall
120707764012Capillary tube Ø 10 mmall
13W052200187LP pressure gauge R12 - R134aall
140707764014Protected vacuum switchall
150707764015Solenoid valve 1/4"all
160707764016HP pressure gauge R12 - R134aall
170707764017Cross connectionall
180707764018Sight glassall
190707764019HP quick couplerall
200707764020LP quick couplerall
230707764023Flexible hoseall
240707764024Flexible hoseall
250707764025Solenoid valve 1/8"all
260707764026Wheel (with brake)all
270707764027Turning wheelall
28W052200062
no longer available!		ABS front plastic cover (black)all
29no longer available!Black basin of plastic coverall
300707764030ABS rear plastic cover (black)all

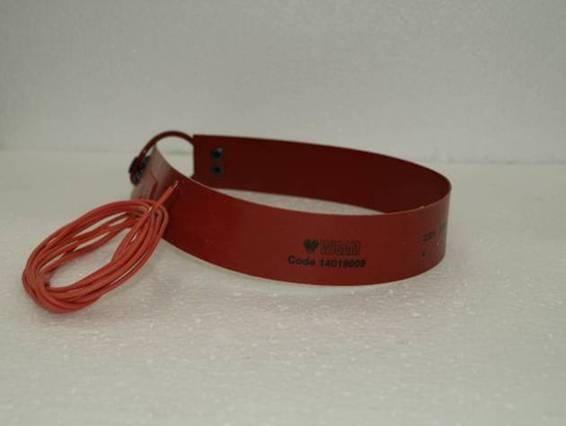

310707764031Heating element 85 Wall
320707764032Loadcell refrigerantall
33noneScale upper panall
340707764034Heating element 400 Wall
350707764035Complete bottle for Secutronicall
360707764036
no longer available!		Safety valveall
370707764037Valve 1/4" SAE x 1/8" NPTall
380707764038Power cableall
390707764039Flexible hose 470 mmall
400707764040Flexible hose 340 mmall
410707764041Valve 1/4" SAE x 1/8" NPTall
420707764042Flexible hoseall
430707764043Mountingholder lp quick couplerall
440707764044Mountingholder hp quick couplerall
450707764045Flexible hoseall
460707764046Pressure switchall
470707764047Flexible hoseall
480707764048Flexible hoseall
49no longer available!Complete distillerall
510707764051Flexible hoseall
520707764052Filter dryerall
530707764053Flexible hoseall
540900901692Single stage vacuum pumpall
550707764055Oil discharge receiver R134a/6 - 180°all
560707764056Oil dosimeter 180° R134aall
570707764057Complete compressor R134aall
580707764058Motorfan with cableall
590707764059Complete condenserall
600707764060Fuse 10 Aall
610707764061Fuse 5 Aall
 no longer available!Fuse protectionall
620707764062Load cell 5 kgall
63W052200113Oil dosimeter 180° R134a
incl. lid (black)		all
670707764228Flexible hose 3/8" SAE, 3000 mm incl. adapter 0900900601all
67W067000002Flexible hose 3/8" SAE, 6000 mm without adapterall
680707764229Flexible hose 3/8" SAE, 3000 mm incl. adapter 0900900601all
68W067000003Flexible hose 3/8" SAE, 6000 mm without adapterall
 0900900601Connection adapter for HP and LP hosesall

Maintenance parts

PosArticle No.DesignationSerial-No.Picture
 0900800610Maintenance kitall
 0707764052Filter dryerall
 0900900605Discharge oil filterall
 W052200123Seal 3/8"all
 W052200122Seal 1/4"all
 W052200279Seal screw1 incl. seal ringall
 W052200280Seal screw2all
 W052200281Seal ringall
 0892764300Wurth vacuum pump oil ISO 68 - 2 pcs to order!all
​ ​
