Secutronic Bus (Art.no. 076496)
Notice:

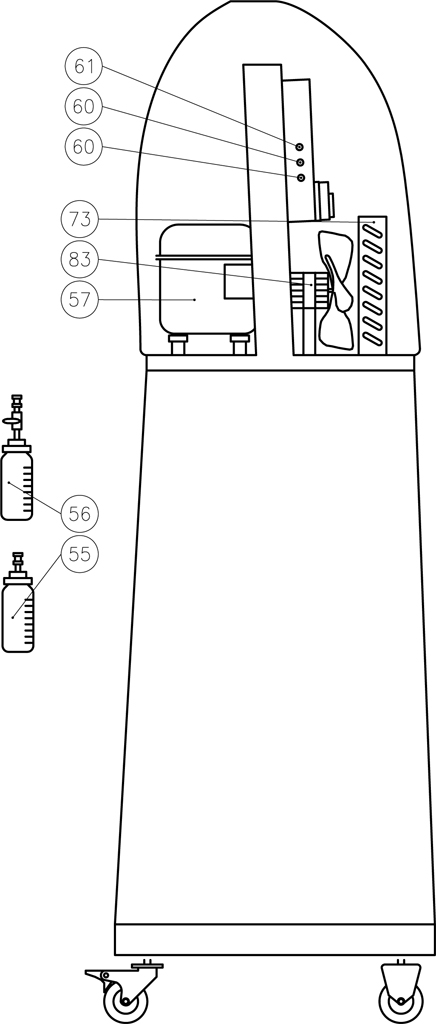

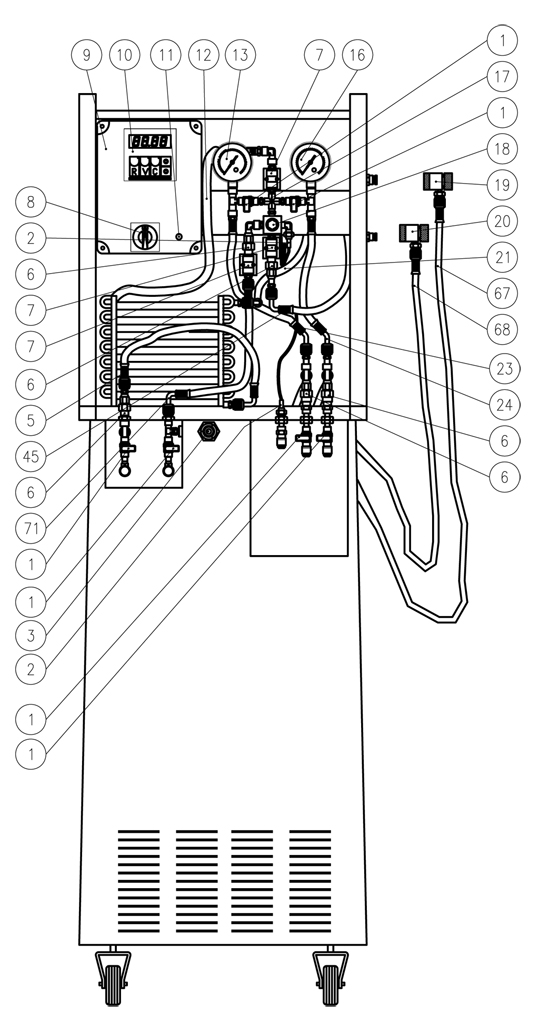

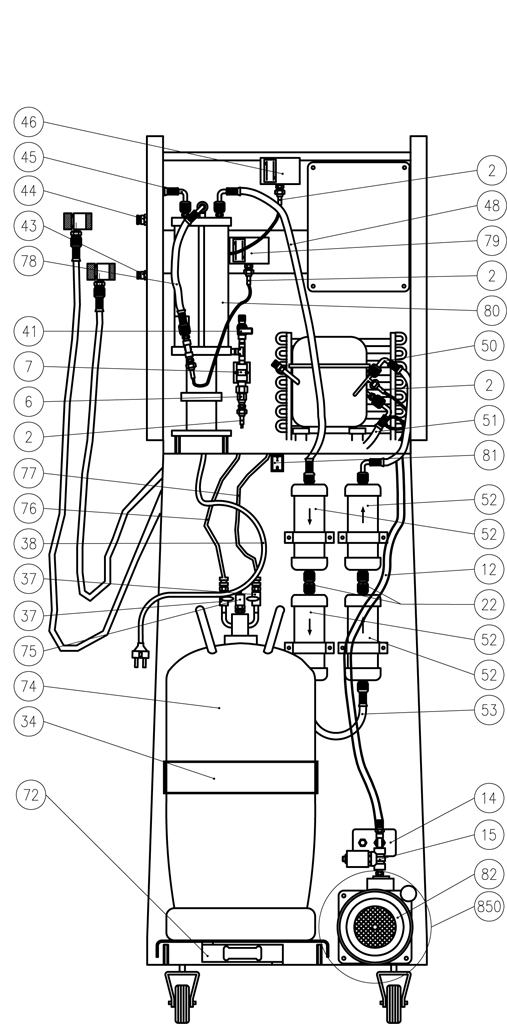

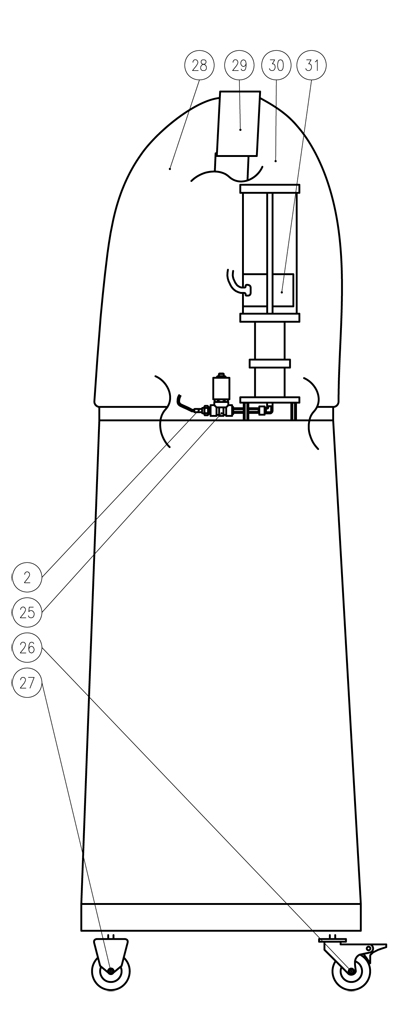

Please note that some parts only exist in the exploded drawings but not in the spare parts table.
These parts can not be ordered separately!
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|
| 0900800610 | Maintenance kit | all |  | |
| 1 | 0707764001 | Valve 1/8" NPTf x 1/8" NPTf | all | |
| 2 | 0707764002 | Capillary tube | all | |
| 3 | 0707764003 | Moisture indicator | all |  |
| 4 | 0707764004 | Charge pressure switch | all | |
| 6 | 0707764006 | Check valve | all |  |
| 7 | 0707764007 | Solenoid valve 1/8" | all |  |
| 8 | 0707764008 | Main switch | all |  |
| 10 | 0707764010 no longer available! | Electronic module | all | |
| 10 | 0707764251 | WIG1 front panel | all | |
| 11 | 0707764011 | Red light | all |  |
| 12 | 0707764012 | Capillary tube Ø 10 mm | all | |
| 13 | W052200187 | LP pressure gauge R12 - R134a | all |  |
| 14 | 0707764014 | Protected vacuum switch | all |  |
| 15 | 0707764015 | Solenoid valve 1/4" | all | |
| 16 | 0707764016 | HP pressure gauge R12 - R134a | all |  |
| 18 | 0707764018 | Sight glass | all | |
| 19 | 0707764019 | HP quick coupler | all |  |
| 20 | 0707764020 | LP quick coupler | all |  |
| 25 | 0707764025 | Solenoid valve 1/8" | all | |
| 26 | 0707764026 | Wheel (with brake) | all |  |
| 27 | 0707764027 | Turning wheel | all |  |
| 28 | W052200062 no longer available! | ABS front plastic cover (black) | all | |
| 29 | no longer available! | Black basin of plastic cover | all |  |
| 30 | 0707764030 | ABS rear plastic cover (black) | all | |
| 31 | 0707764031 | Heating element 85 W | all | |

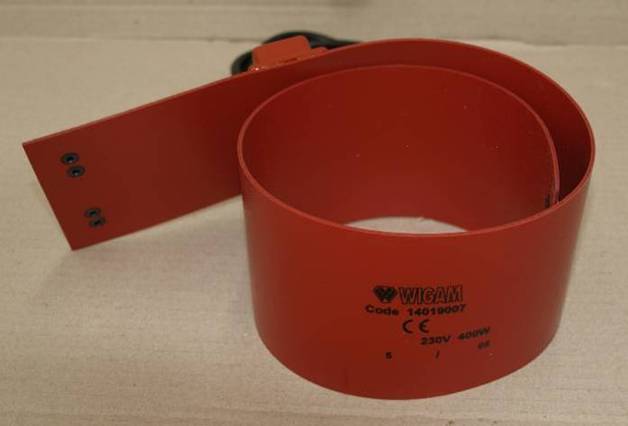

| 34 | 0707764034 | Heating element 400 W | all |  |

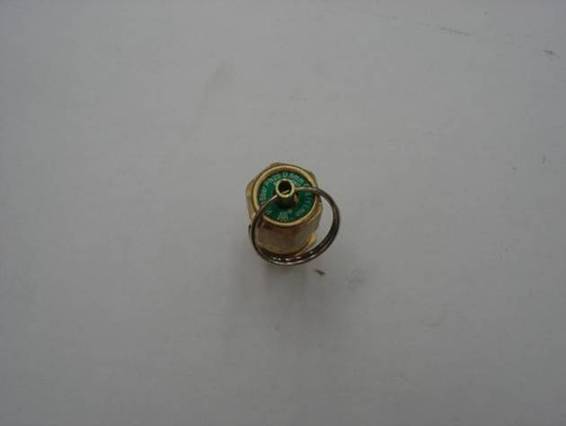

| 36 | 0707764036 no longer available! | Safety valve | all |  |
| 41 | 0707764041 | Valve 1/4" SAE x 1/8" NPT | all |  |
| 48 | 0707764048 | Flexible hose | all | |

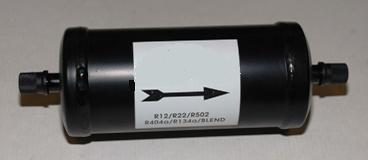

| 52 | 0707764052 | Filter dryer | all |  |
| 53 | 0707764053 | Flexible hose | all | |
| 55 | 0707764055 | Oil discharge receiver R134a/6 - 180° | all | |

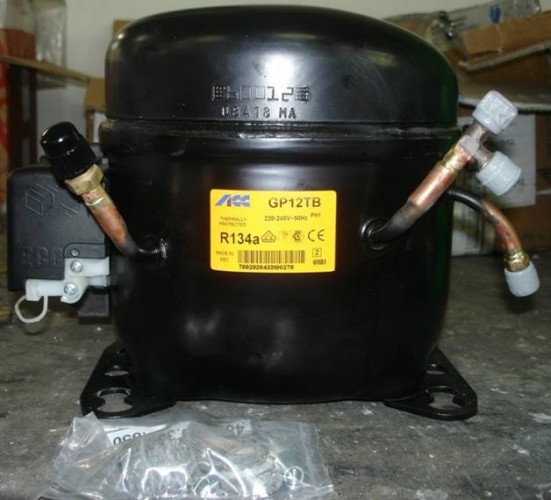

| 57 | 0707764057 | Complete compressor R134a | all |  |
| 60 | 0707764060 | Fuse 10 A | all |  |
| 61 | 0707764061 | Fuse 5 A | all |  |
| no longer available! | Fuse protection | all |  | |
| 63 | W052200113 | Oil dosimeter 180° R134a incl. lid (black) | all | |
| 65 | 0707764065 | Printer | all | |
| 076495 002 | Paper roll | all | ||
| 67 | 0707764228 | Flexible hose 3/8" SAE, 3000 mm incl. adapter 0900900601 | all |  |
| 67 | W067000002 | Flexible hose 3/8" SAE, 6000 mm without adapter | all |  |
| 68 | 0707764229 | Flexible hose 3/8" SAE, 3000 mm incl. adapter 0900900601 | all |  |
| 68 | W067000003 | Flexible hose 3/8" SAE, 6000 mm without adapter | all |  |
| 0900900601 | Connection adapter for HP and LP hoses | all |  | |
| 71 | 0707764071 | Flexible hose | all | |
| 72 | 0707764235 | Refrigerant load cell | all |  |
| 73 | 0707764073 | Complete condenser | all | |
| 74 | 0707764074 | Complete bottle for secutronic bus | all | |
| 79 | 0707764079 | Pressure switch | all | |
| 80 | 0707764080 | Complete destiller | all | |
| 81 | 0900900643 | Lominous switch | all | |
| 82 | 0707764205 | Double stage vacuum pump | all | |
| 83 | 0707764083 | Motor fan with cable | all |
